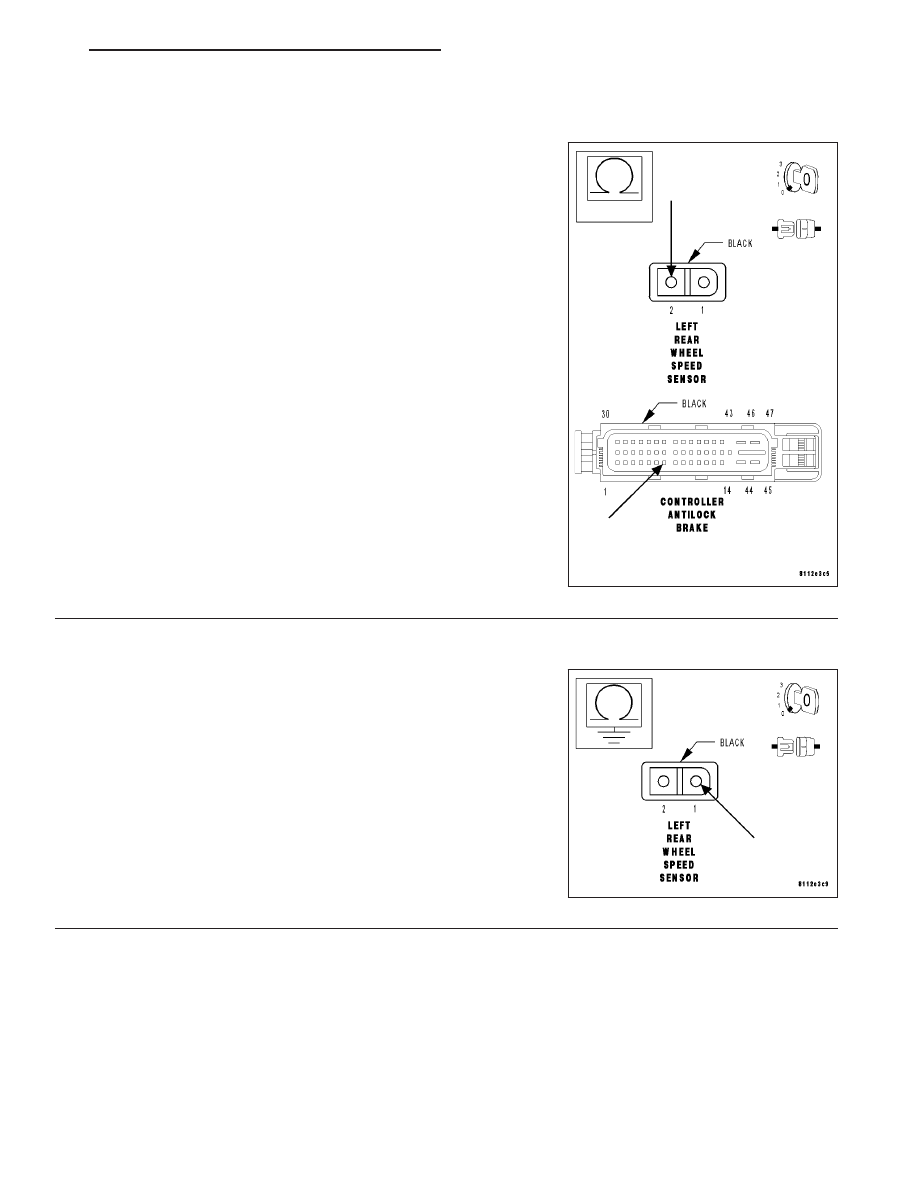

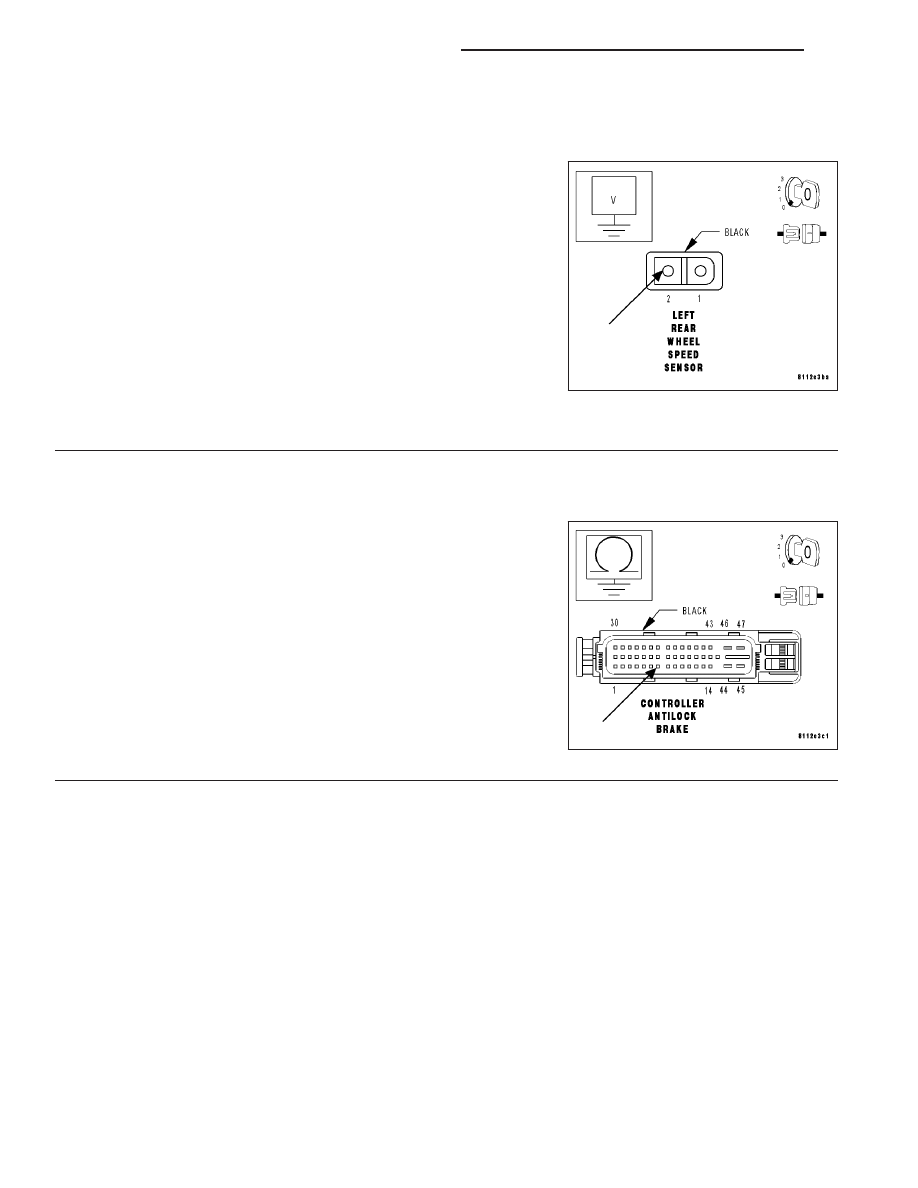

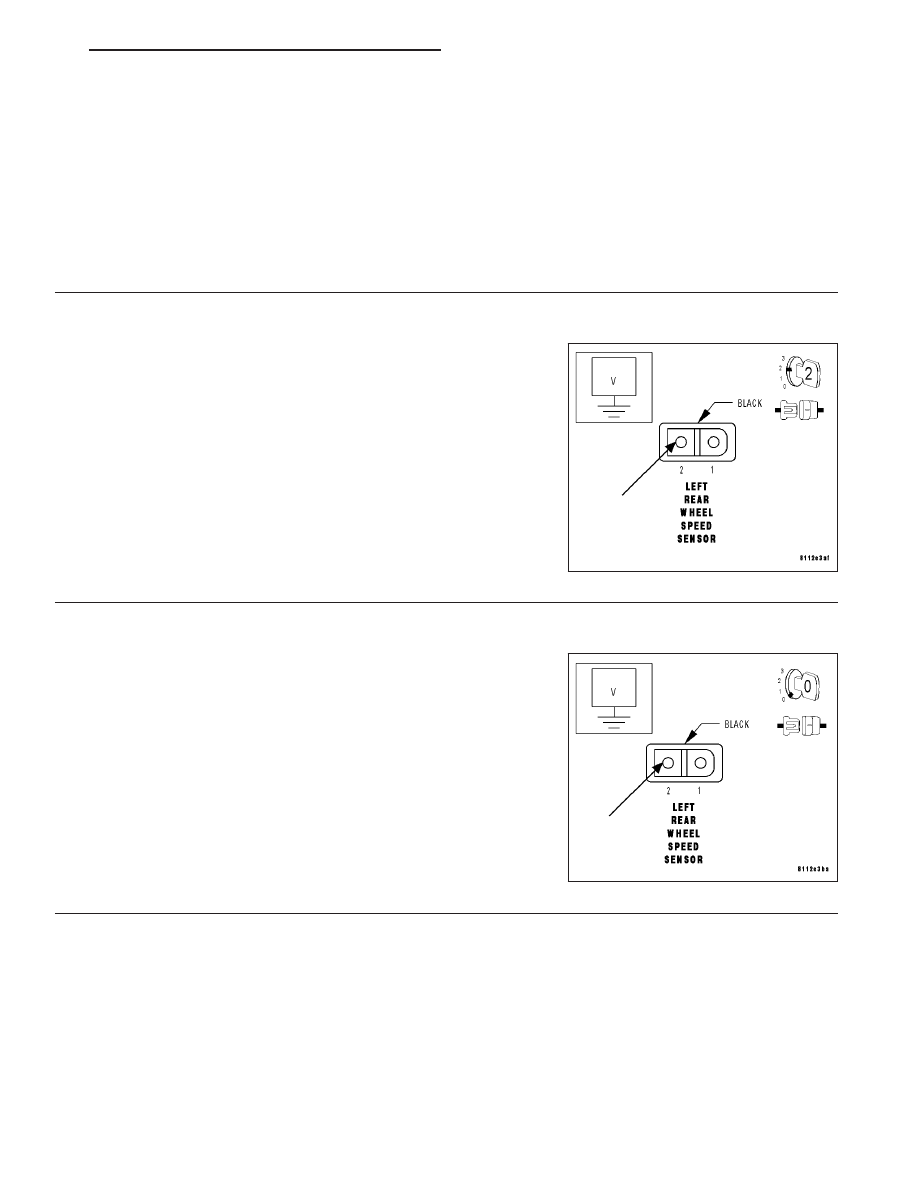

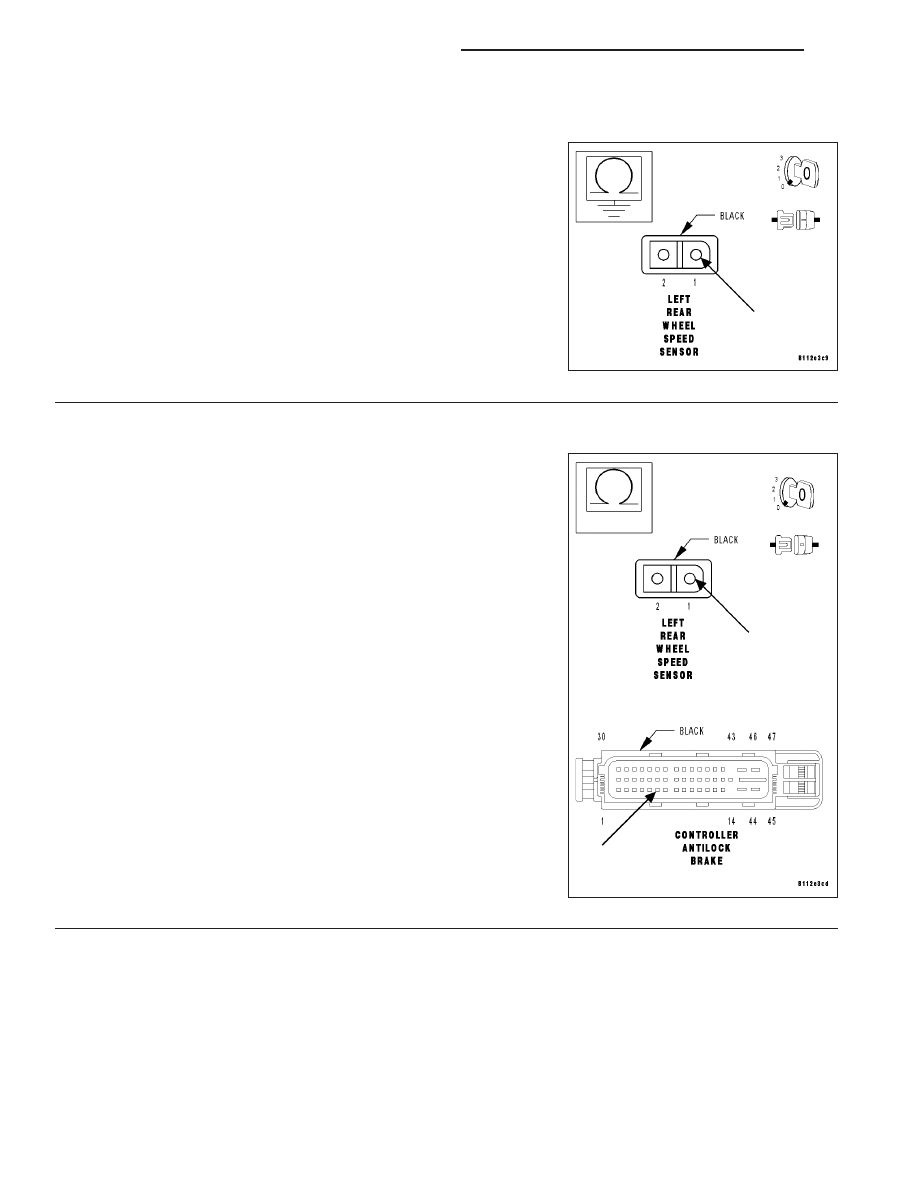

LEFT REAR WHEEL SPEED SENSOR CIRCUIT (CONTINUED) 2. INSPECT THE LEFT REAR WHEEL SPEED SENSOR Turn the ignition off. Inspect the Left Rear Wheel Speed Sensor and connector. Is the Sensor or Connector damaged? Yes >> Repair as necessary. Perform ABS VERIFICATION TEST. No >> Go to 3 3. MEASURE THE VOLTAGE OF THE LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY CIRCUIT With the ignition off. Disconnect the Left Rear Wheel Speed Sensor harness connector. Note: Check connectors - Clean/repair as necessary. Measure the voltage of the Left Rear Wheel Speed Sensor 12 Volt Is the voltage above 10 volts? Yes >> Go to 8 No >> Go to 4 4. MEASURE THE VOLTAGE OF THE LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY CIRCUIT Turn the ignition off. Measure the voltage of the Left Rear Wheel Speed Sensor 12 Volt Is the voltage below 1.0 volt? Yes >> Go to 6 No >> Go to 5 ZH BRAKES - ABS ELECTRICAL DIAGNOSTICS 5 - 125 |
