Electrical Repair

Wire Harness Repair

1. Peel off 0.5 inch insulating layer from the lead to be repaired and the substitute lead.
2. Connect the original lead to the substitute lead with the heat shrink tube and compress the metal core of

heat shrink tube with a tool, so that the original lead and the substitute lead can be connected firmly.

3. Heat the heat shrink tube to shrink the outer rubber layer and ensure that the sealing of repaired area is in

good condition.

4. Wrap the repaired lead with insulating tape.

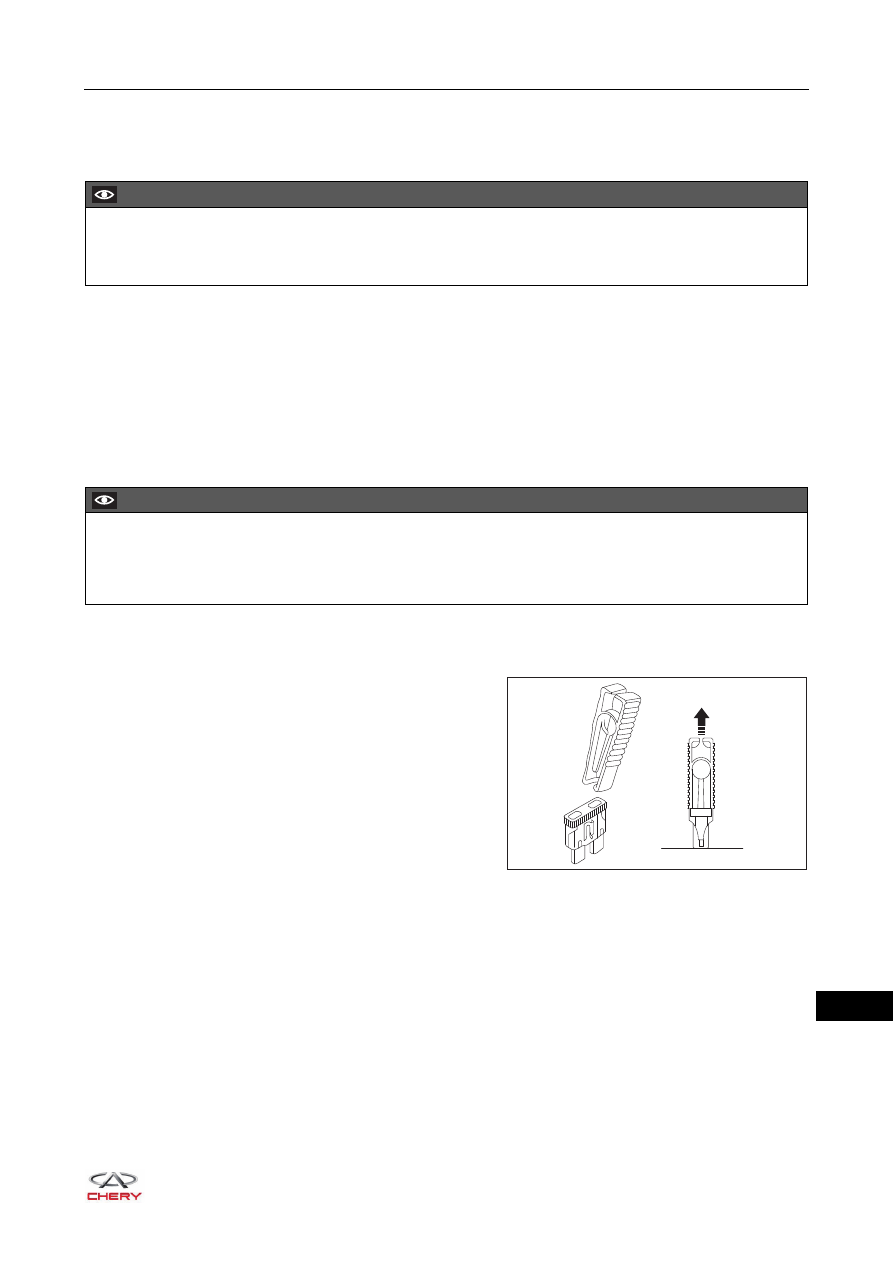

Fuse Replacement

1. Turn off all the electrical equipment and ignition switch before servicing.
2. Remove the blown fuse with a fuse puller.
3. Replace the fuse with a new one which has the same

specification.

CAUTION

 Measure the length of lead to be repaired and select a proper substitute lead before servicing.
 If there are several leads to be repaired, please stagger the repaired parts.

CAUTION

 Energizing test should be performed after replacing the fuse. If the fuse is blown again, check the

corresponding circuit for short. If any electrical equipment or additional device which exceeds the rated
current is installed, replace it with the fuse with higher amperes.

Fuse

Puller

Pull

RT21510040

51–

10

51

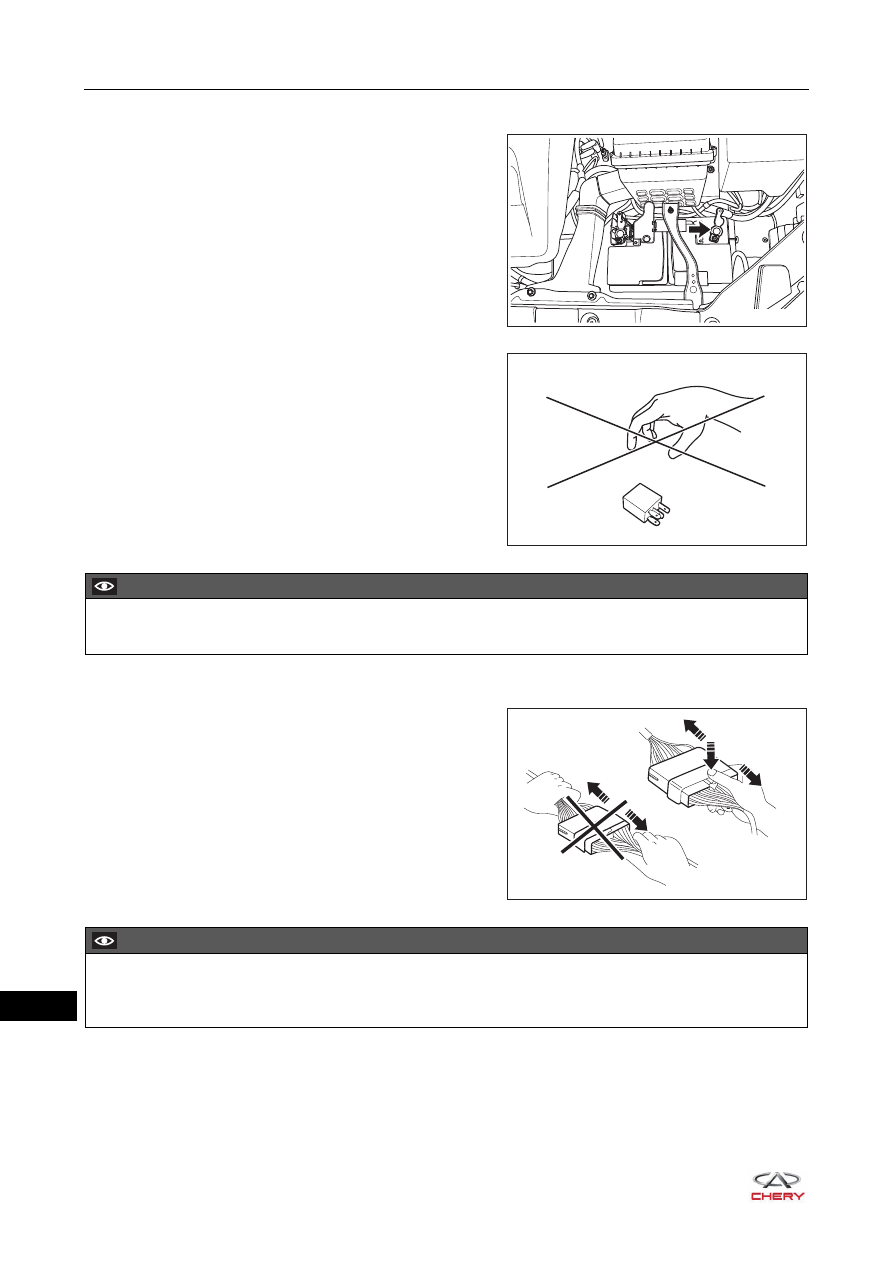

Electrical Components

1. Battery cable

Disconnect the negative battery cable (arrow) before
servicing electrical components.

2. Sensor, switch and relay

Do not drop or tap the sensor, switch or relay to avoid
damaging components during servicing.

3. Connector

a. Disconnect the connector.

Hold the connector by hand and press the connector
clip to disconnect it.

RT21020200

RT21510060

CAUTION

 Use the relay of the same specification with the original one during replacement.

RT21510070

CAUTION

 DO NOT pull the wire harness forcibly to avoid damaging components when disconnecting the

connector.

51–

11

51

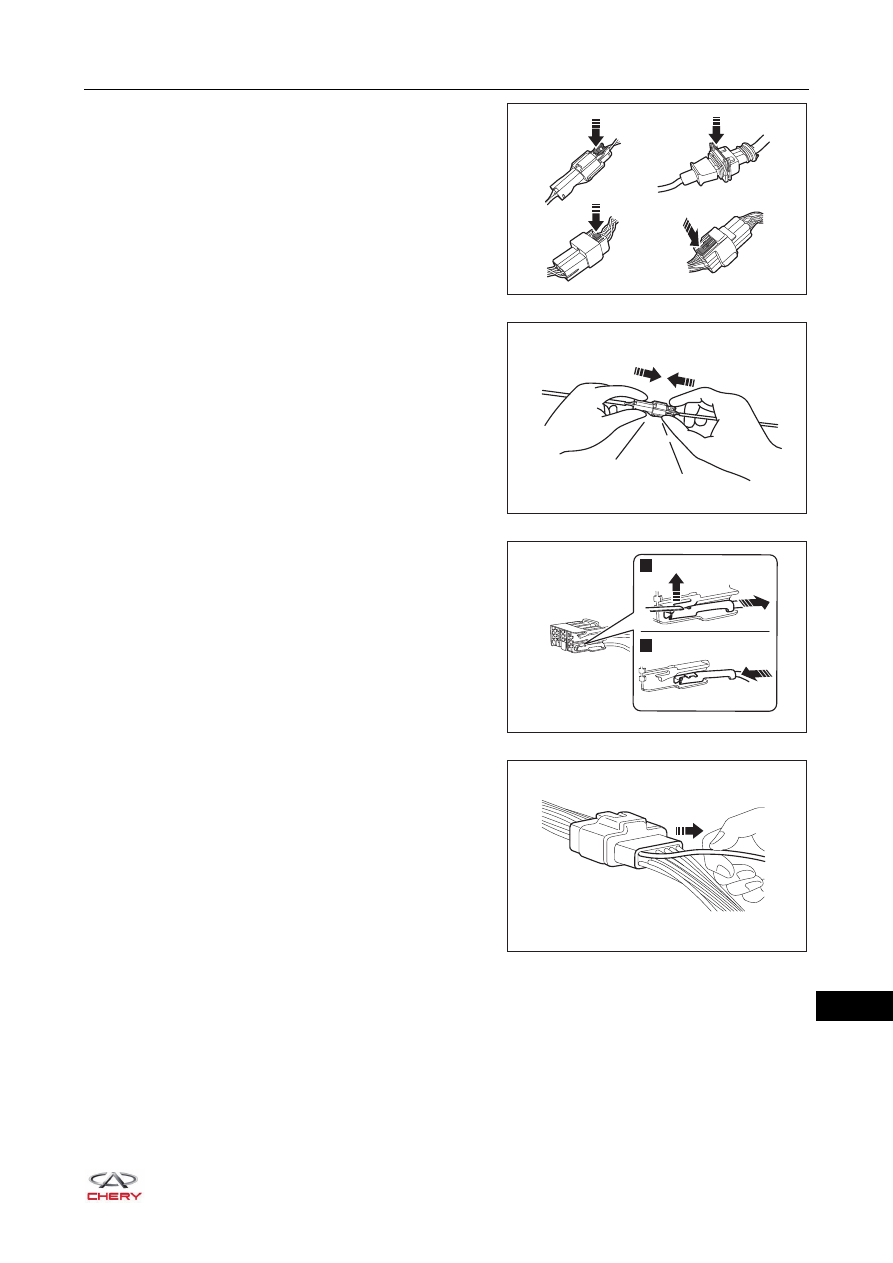

There are a variety of ways to fix connector clips, and
common disconnection methods are shown in the
illustration.

b. Install the connector.

A "click" can be heard when the connector is installed
in place.

c. Replace the connector terminal.

As shown in the illustration (1), insert a suitable tool
into the terminal to lift up the fixing clip, and then pull
out the terminal from behind.
During installation, push the terminal from the back of
the connector to ensure that the fixing clip is installed
in place as shown in the illustration (2).

d. Check the connector terminal.

Pull a single wire harness terminal gently to check if it
is installed in place.

RT21510080

Click

RT21510090

2

1

RT21510100

RT21510110

51–

12

51

VEHICLE POWER DISTRIBUTION

General Information

Description

Power distribution system provides secure, reliable and efficient power for all electrical equipment on the
vehicle.
Power distribution system consists of the following components:
 Battery
 Engine compartment fuse and relay box
 Instrument panel fuse and relay box
 Ignition switch
 Fuse
 Relay
