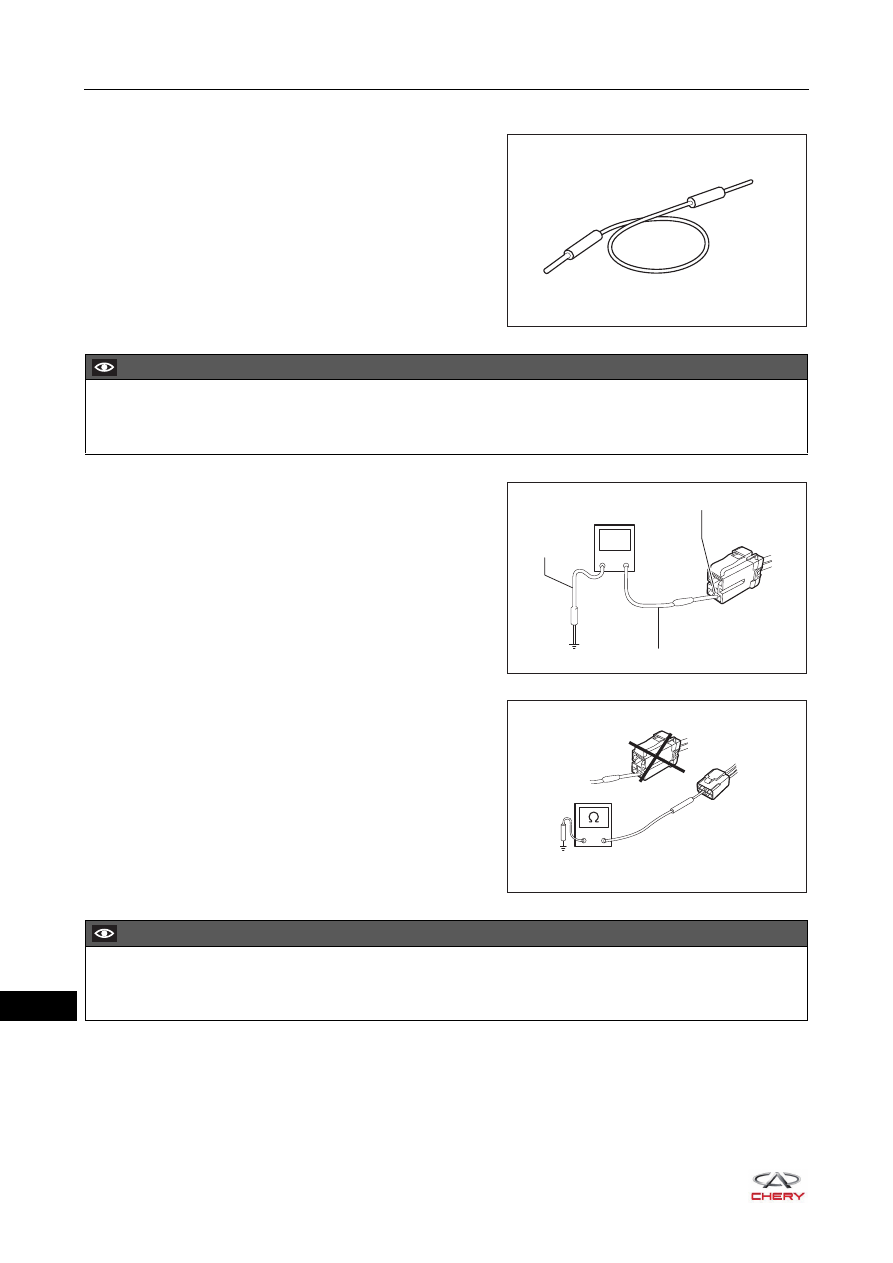

The following is a list of symbols defined in the circuit diagram.
No.
Definition
Description
[1]
Battery
It indicates the power supply from battery positive to electrical
equipment.
[2]
Fuse
This symbol indicates a fuse; "EF05" indicates the fuse number;
"30A" indicates the rated amperage of the fuse.
[3]
Splice Point
The solid circle indicates that each intersecting wire is interconnected.
[4]
Relay
This symbol indicates a relay; "MAIN RELAY" indicates the relay
name; "1", "2", "3" and "5" indicate the terminal numbers of the relay.
[5]
Color
It indicates the color of this wire. The color codes are as follows:
B = Black;
W = White;
R = Red;
G = Green;
L = Blue;
Y = Yellow;
Br = Brown;
O = Orange;
Gr = Gray;
P = Pink;
V = Violet;
Lg = Light Green.
For example: "BrR" indicates that the main color is brown in the wire
color, and the second color is red.
[6]
Connector
It indicates the junction connectors. "Λ" is the female connector, and
"I-013" is the applicable number; "◊" is the male connector, and "E-010"
is the applicable number. The number "2" and "3" inside the male
connector indicates the terminal number. "----" indicates different
terminals come from the same junction connectors.
[7]
Motor
This symbol indicates a motor.
[8]
Component Name
It indicates the name of the component.
