BODY DIMENSIONS

GENERAL INFORMATION

Description

 All measurements should be made from the bare metal. Remove the trim and bumper covers as

necessary.

 Repair the badly damaged areas before taking measurements for underbody alignment.
 Monitor the upper body structure for excessive stress or movement while making any corrections to the

underbody structure.

 Remove all the necessary glasses to prevent breakage.
 All dimensions are shown in millimeters (mm).

50–

4

50

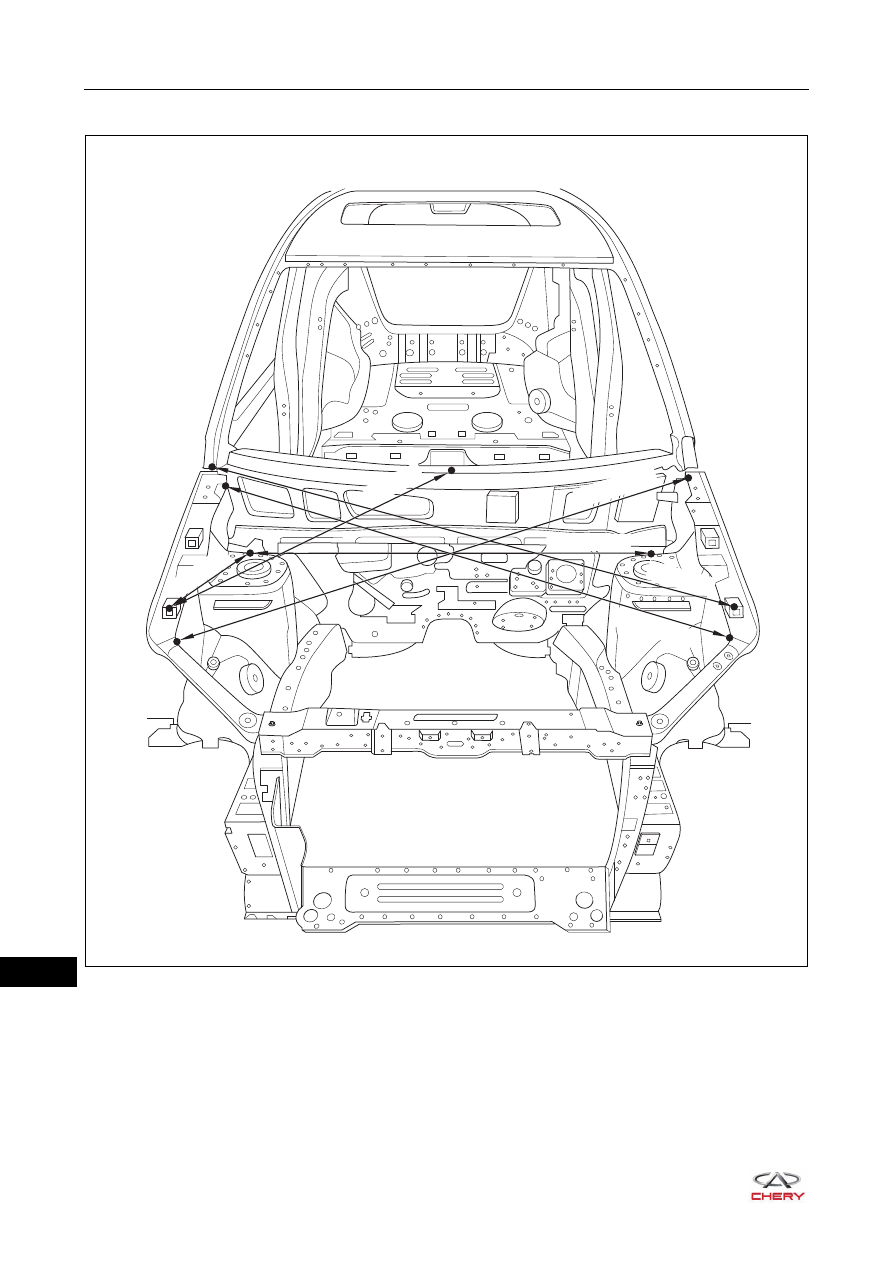

Engine Compartment Dimensions

RT21500010

1127.1 mm

1545 mm

1545 mm

874 mm

275 mm

1517 mm

50–

5

50

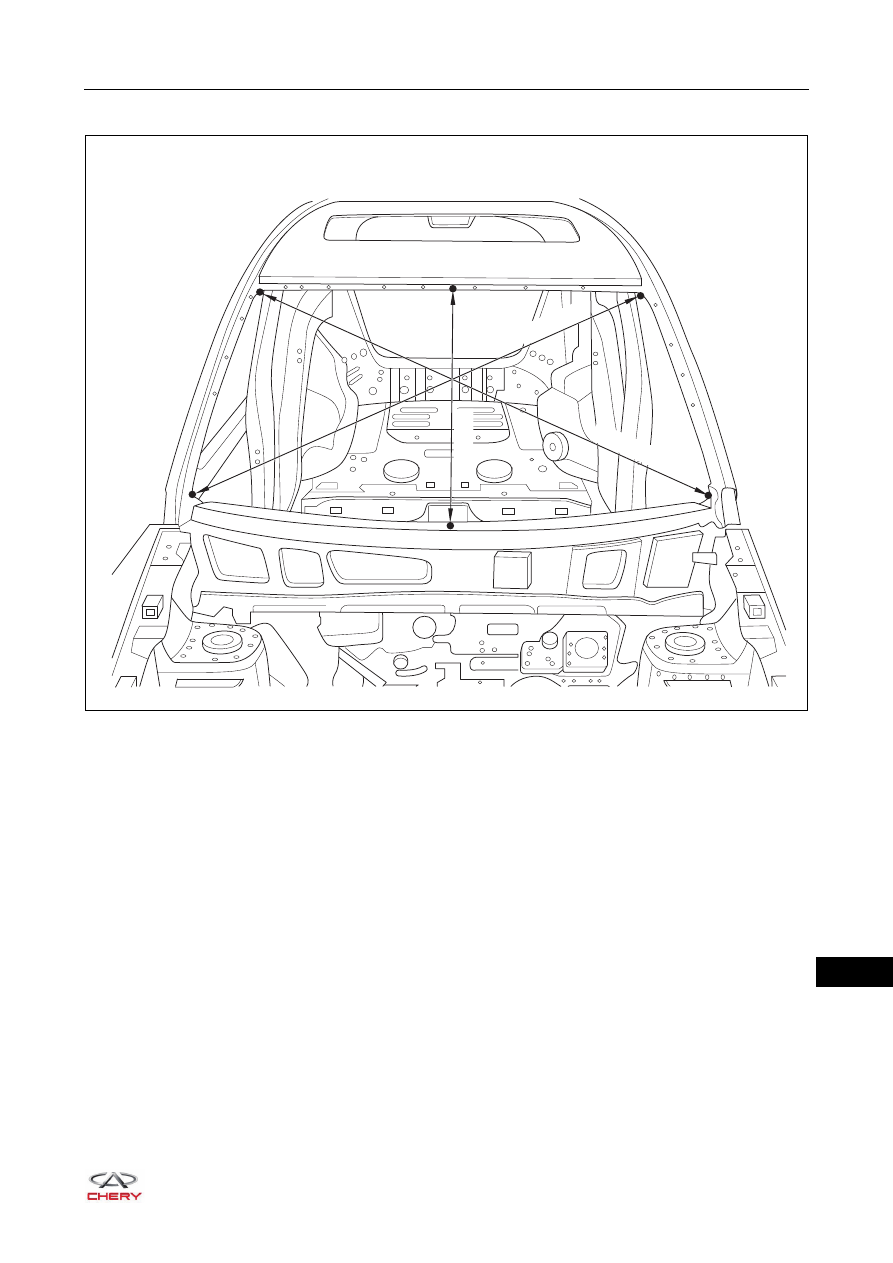

Body Opening Dimensions (Front View)

RT21500020

790 mm

1484 mm

1484 mm

50–

6

50

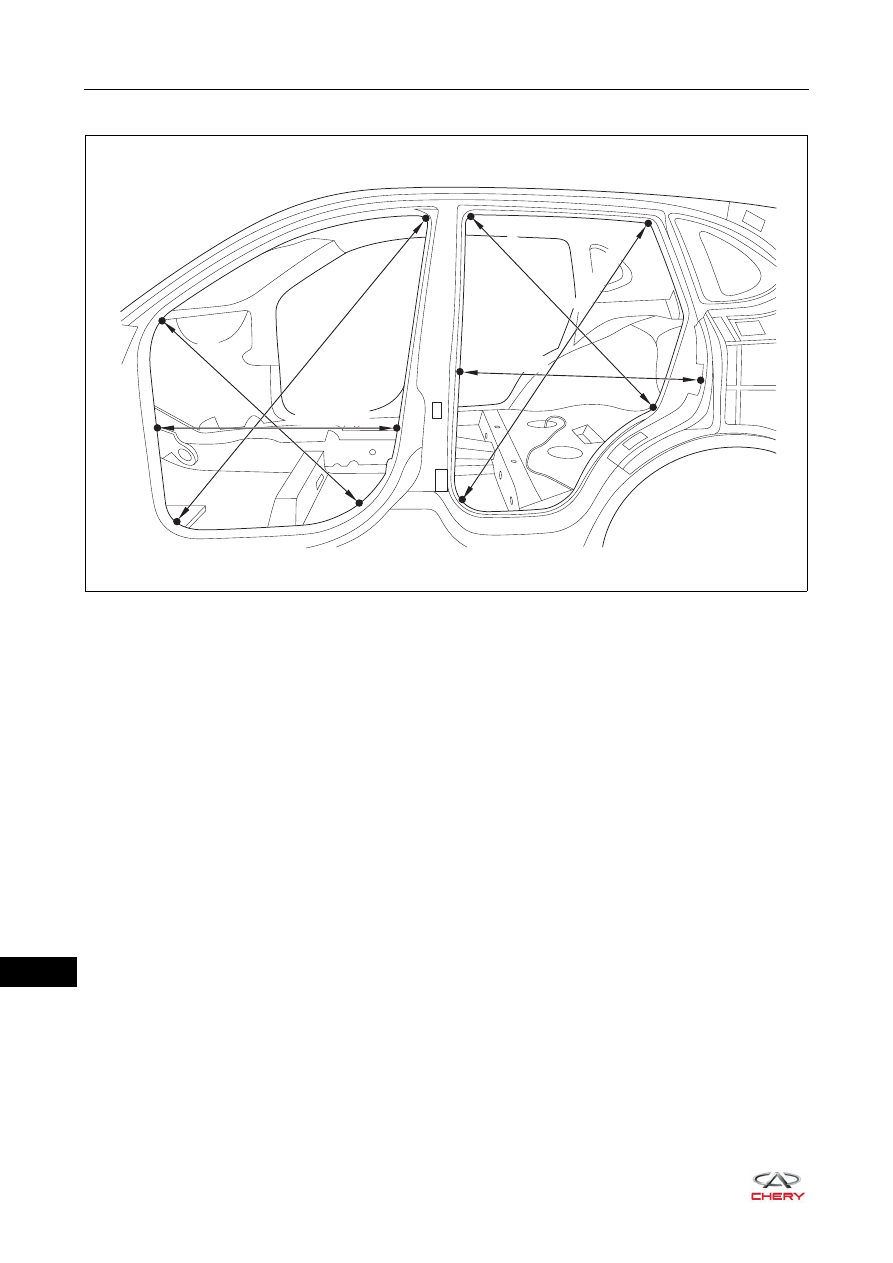

Body Opening Dimensions (Side View)

RT21500030

947 mm

1425.7 mm

923.7 mm

898.8 mm

922.6 mm

1255.7 mm
