48–

6

48

Bumper assembly and bumper crossmember assembly are safety devices to protect the front and rear body,
which mainly absorb and reduce outside shock. The exterior mainly includes front bumper assembly, radiator
grille assembly, front bumper stiffener bracket assembly, front bumper mounting bracket assembly, front
bumper crossmember assembly, wheel flare assembly, apron plate assembly, front wheel house protector
assembly, fender assembly, engine lower protector assembly, rear bumper assembly, rear bumper mounting
bracket assembly, rear bumper crossmember assembly, front wheel house protector assembly of rear wheel,
rear wheel house protector assembly, front windshield lower garnish assembly, roof rack assembly, rear
spoiler assembly and back door upper trim board assembly.

Specifications

Torque Specifications

Description

Torque (N·m)

Front Name Plate CAC Assembly Fixing Screw

2.5 ± 0.5

Front Bumper Upper Grille Fixing Screw

2.5 ± 0.5

Front Bumper Assembly Fixing Screw

3 ± 1

Front Bumper Assembly Fixing Bolt

10 ± 1

Front Fog Assembly Fixing Screw

1.5 ± 0.5

Front Bumper Mounting Bracket Assembly Fixing
Bolt

10 ± 1

Headlight Fixing Bolt

3.5 ± 0.5

Front Bumper Upper Mounting Bracket Assembly
Fixing Bolt

10 ± 1

Front Bumper Lower Mounting Bracket Assembly
Fixing Bolt

10 ± 1

Front Bumper Crossmember Assembly Fixing Nut

23 ± 2

Apron Plate Cover Assembly Fixing Screw

3 ± 1

Apron Plate Assembly Fixing Screw

3 ± 1

Front Bumper Center Stiffener Bracket Assembly
Fixing Bolt

10 ± 1

Front Bumper Lower Stiffener Bracket Assembly
Fixing Nut

10 ± 1

Front Wheel House Protector Assembly Fixing
Screw

3 ± 1

Fender Assembly Fixing Bolt

10 ± 1

Engine Lower Protector Assembly Fixing Bolt

10 ± 1

Engine Lower Protector Assembly Fixing Screw

3 ± 1

Rear Bumper Assembly Fixing Screw

3 ± 1

Rear Bumper Assembly Fixing Bolt

3 ± 1

Rear Bumper Mounting Bracket Assembly Fixing
Screw

3 ± 1

Rear Bumper Crossmember Assembly Fixing Bolt

23 ± 2

Front Wheel House Protector Assembly of Rear
Wheel Fixing Screw

3 ± 1

48–

7

48

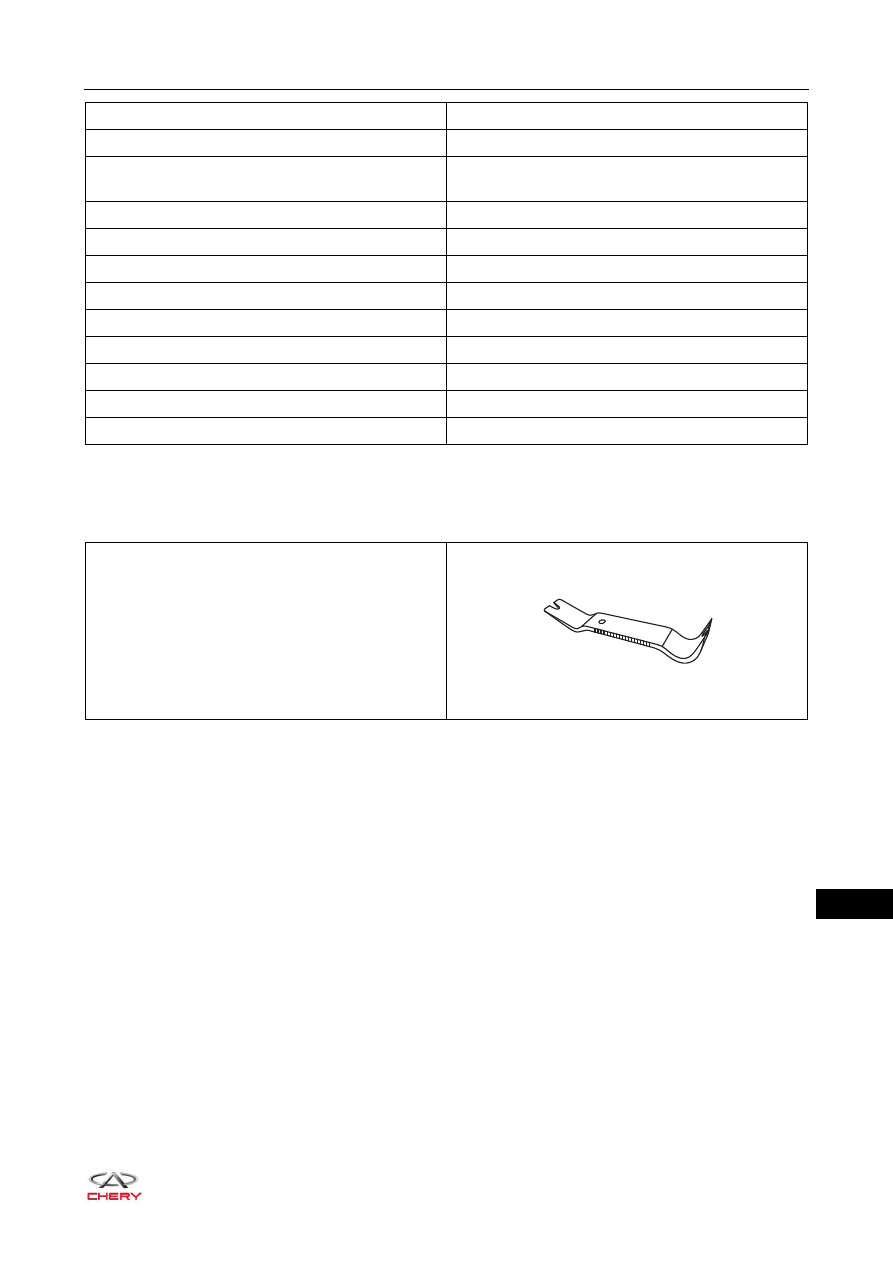

Tool

General Tool

Rear Wheel House Protector Assembly Fixing Screw

3 ± 1

Front Windshield Lower Garnish Assembly Fixing
Screw

3 ± 1

Roof Rack Assembly Fixing Bolt

9 ± 1

Rear Spoiler Assembly Fixing Nut

5 ± 1

High Mounted Stop Light Fixing Nut

3.5 ± 0.5

Back Door Locating Seat Fixing Bolt

1.5 ± 1

Rear Bumper Energy Absorber Fixing Bolt

23 ± 2

Rear Fog Light Fixing Screw

1.5 ± 0.5

Back Door Upper Trim Board Assembly Fixing Screw

3 ± 1

Back Door Upper Trim Board Assembly Fixing Nut

5 ± 1

Camera Fixing Screw

6 ± 0.5

Description

Torque (N·m)

Interior Crow Plate

RCH0000025

48–

8

48

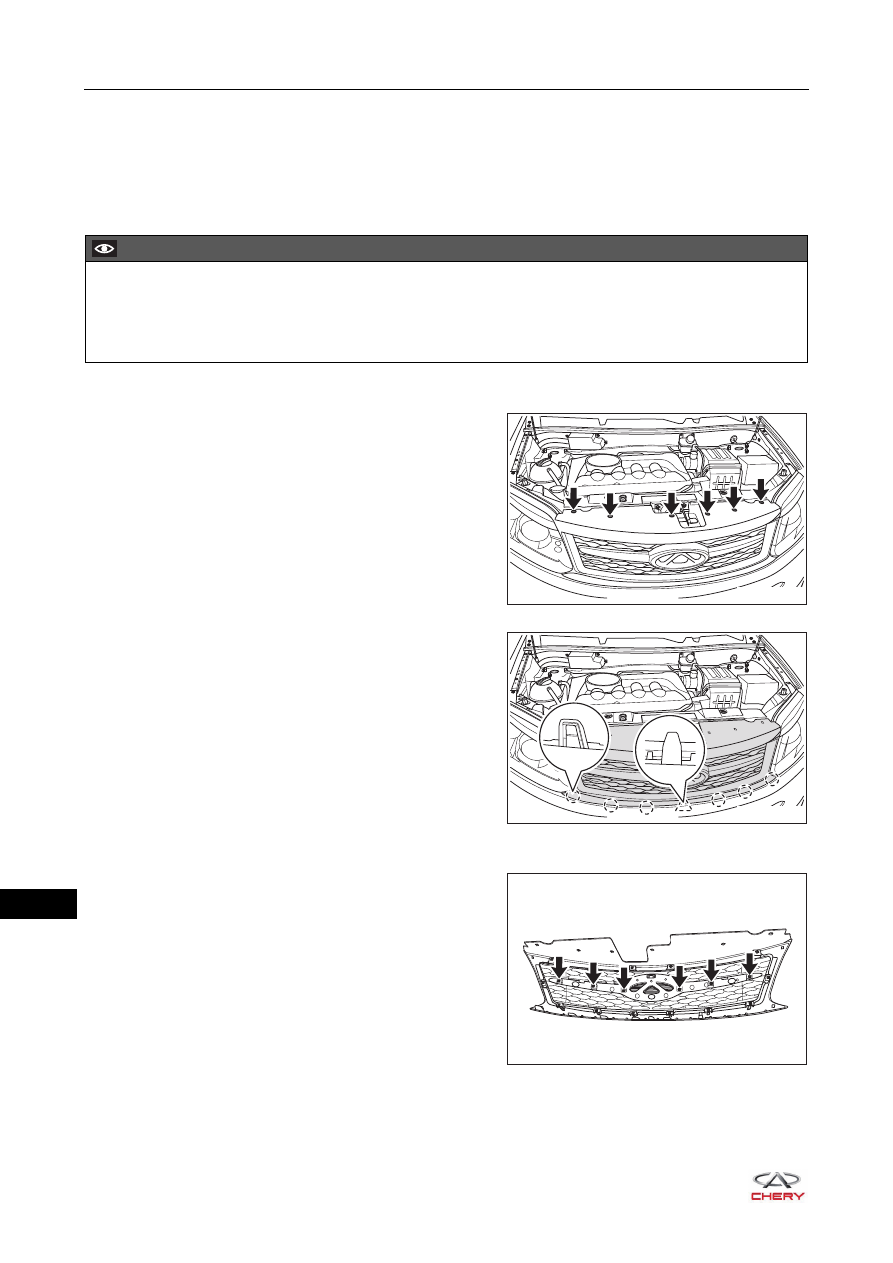

ON-VEHICLE SERVICE

Radiator Grille Assembly

Removal

1. Remove the radiator grille assembly.

a. Remove 6 plastic clips (arrow) from the radiator grille

assembly.

b. Using a screwdriver wrapped with protective tape, pry

up the claw on radiator grille assembly.

c. Remove the radiator grille assembly.

2. Remove the front name plate CAC assembly.

a. Remove 6 fixing crews (arrow) from the front name

plate CAC assembly.



(Tightening torque: 3 ± 1 N·m)

b. Remove the front name plate CAC assembly from the

radiator grille assembly.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing radiator grille assembly.
 Appropriate force should be applied when removing radiator grille assembly, and operate carefully.
 Try to prevent body paint surface from being scratched when removing radiator grille assembly.

RT21480030

RT21480040

RT21480042

48–

9

48

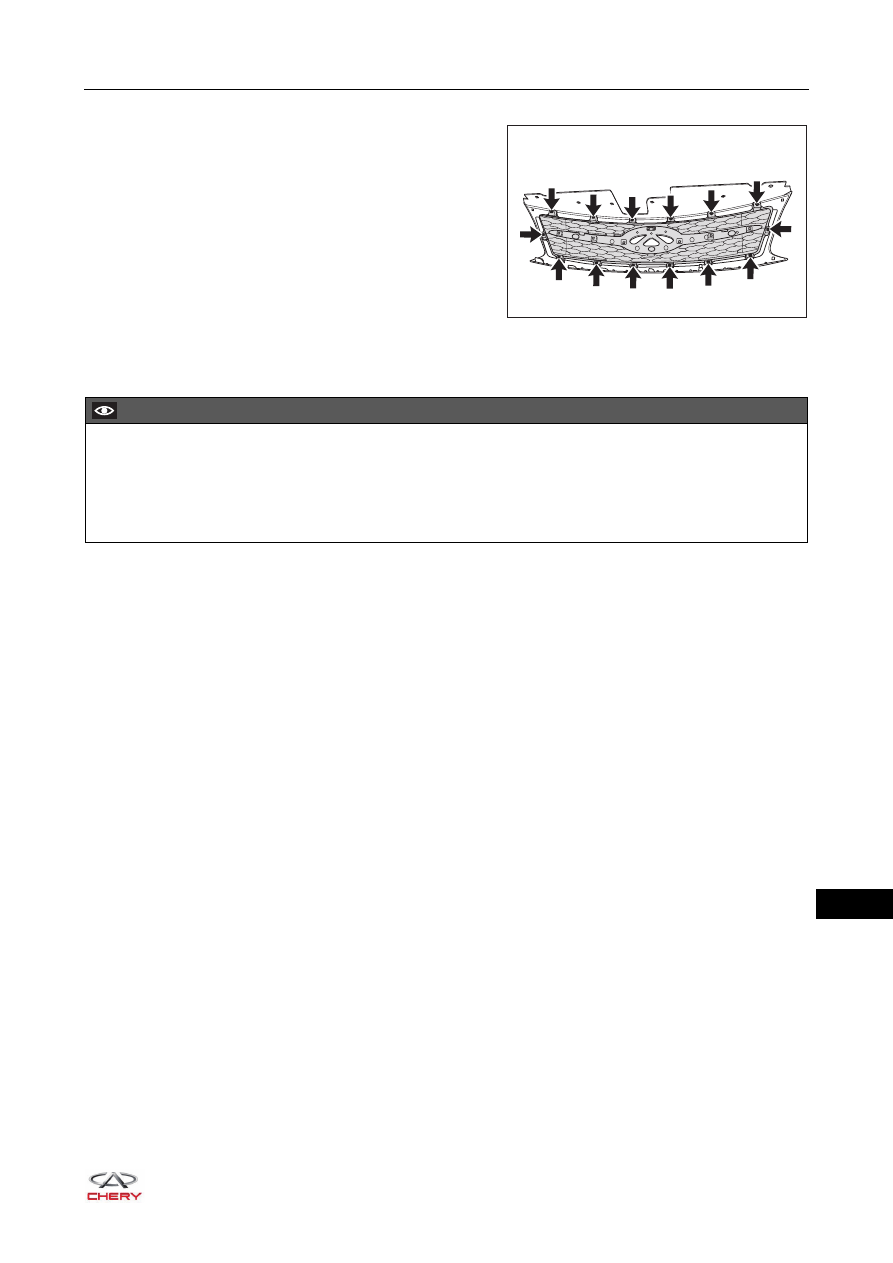

3. Remove the front bumper upper grille.

a. Remove 14 fixing screws (arrow) from the front

bumper upper grille.



(Tightening torque: 3 ± 1 N·m)

b. Remove the front bumper upper grille from the

radiator grille assembly.

Installation

Installation is in the reverse order of removal.

RT21480043

CAUTION

 Be sure to wear safety equipment to prevent accidents when installing radiator grille assembly.
 Try to prevent body paint surface from being scratched when installing radiator grille assembly.
 Make sure that radiator grille is installed correctly and fitting clearance between radiator grille and front

bumper is appropriate when installing radiator grille assembly.
