Chery Tiggo 5 (T21). Manual - part 511

2

48

48–

3

48

EXTERIOR

GENERAL INFORMATION

Description

9

5

6

7

8

1

2

3

4

21

16

12

13

10

11

17

18

19

20

14

15

RT21480010

×6

×3

×3

×3

×6

×3

×8

×2

×4

×6

×18

×14

×12

48–

4

48

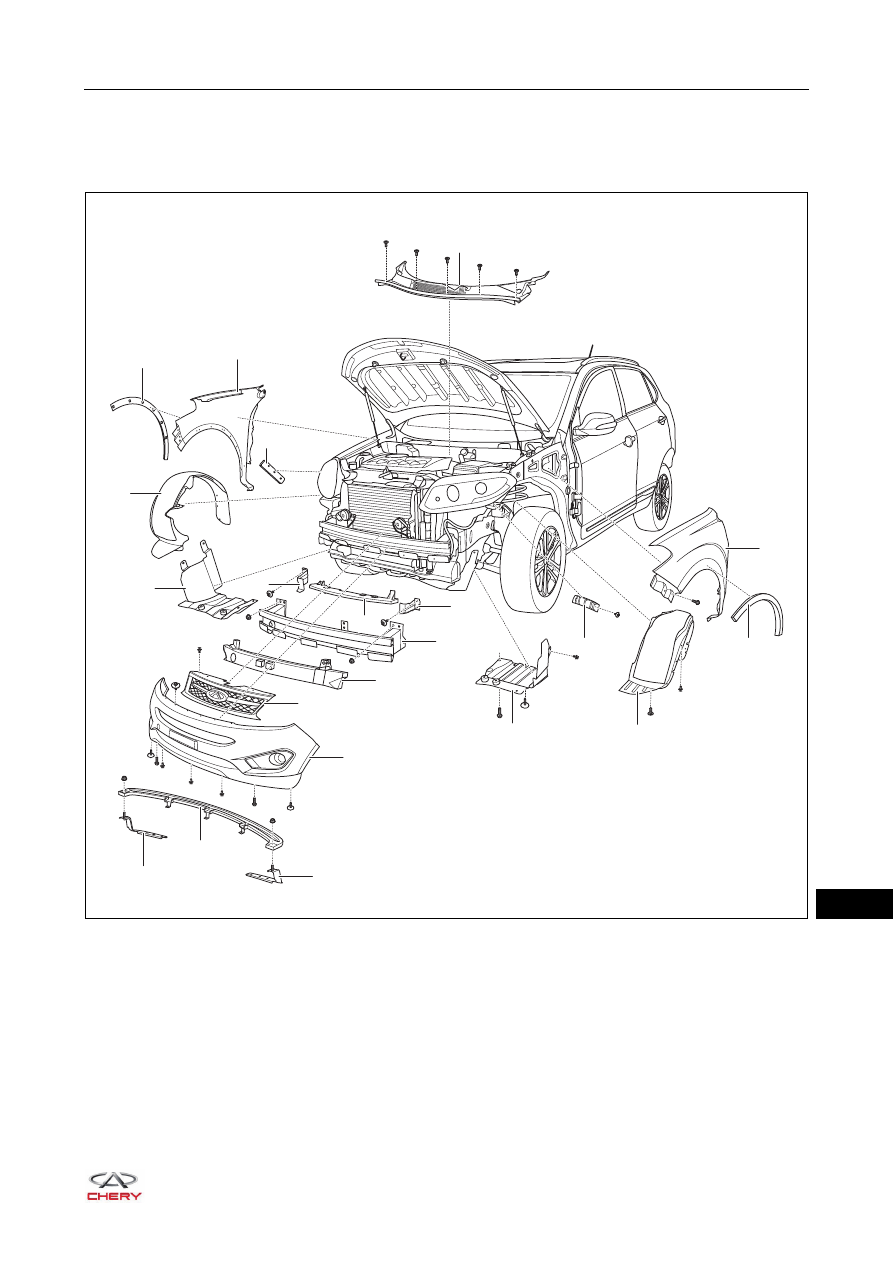

1 - Front Windshield Lower Garnish Assembly

2 - Right Fender Assembly

3 - Front Right Wheel Flare Assembly

4 - Front Bumper Right Mounting Bracket Assembly

5 - Front Right Wheel House Protector Assembly

6 - Engine Lower Right Protector Assembly

7 - Front Bumper Upper Right Mounting Bracket

Assembly

8 - Front Bumper Center Stiffener Bracket Assembly

9 - Front Bumper Upper Left Mounting Bracket

Assembly

10 - Front Bumper Crossmember Assembly

11 - Front Bumper Energy Absorber

12 - Radiator Grille Assembly

13 - Front Bumper Assembly

14 - Front Bumper Lower Right Mounting Bracket

Assembly

15 - Front Bumper Lower Stiffener Bracket Assembly 16 - Front Bumper Lower Left Mounting Bracket

Assembly

17 - Engine Lower Left Protector Assembly

18 - Front Bumper Left Mounting Bracket Assembly

19 - Front Left Wheel House Protector Assembly

20 - Front Left Wheel Flare Assembly

21 - Left Fender Assembly

48–

5

48

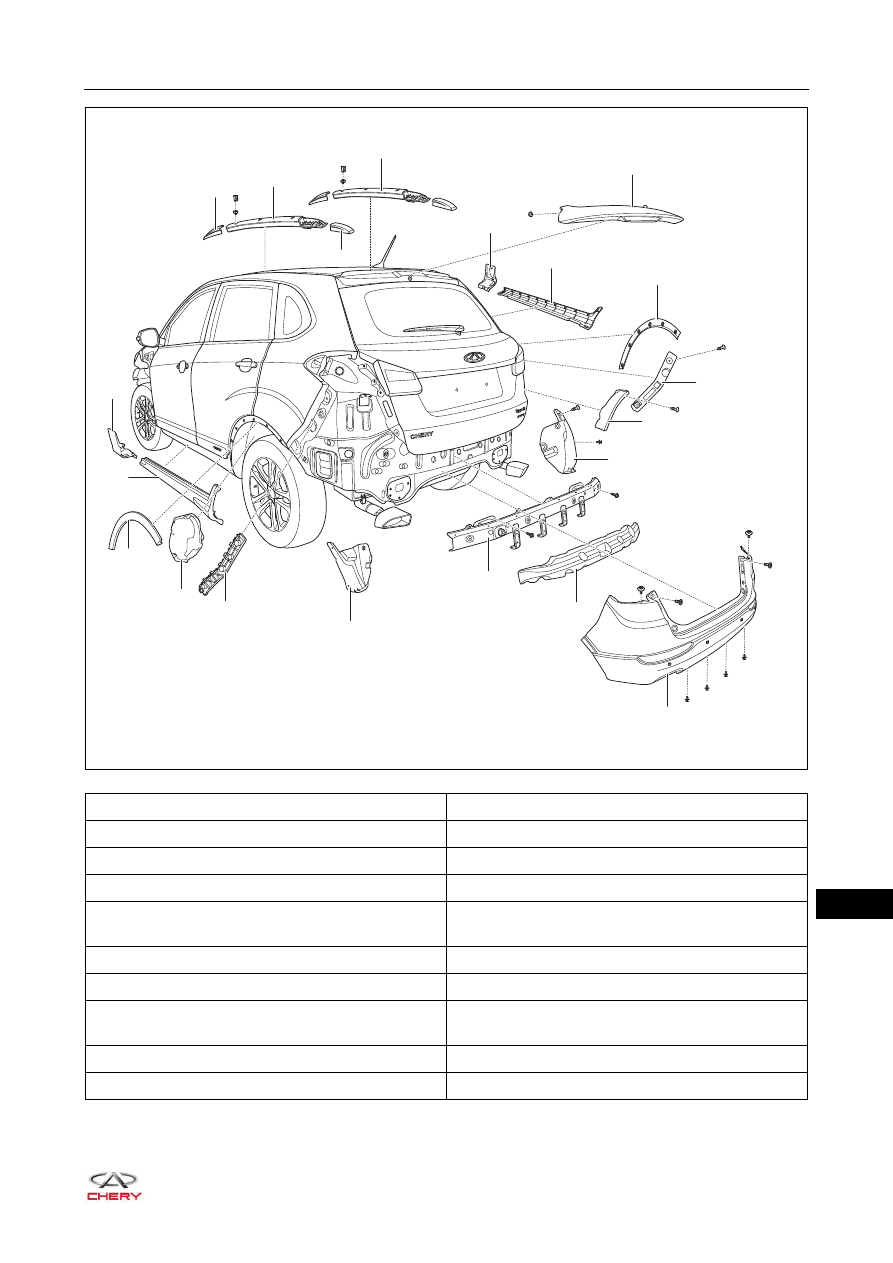

1 - Rear Spoiler Assembly

2 - Right Roof Rack Assembly

3 - Roof Rack Rear Trim Cover

4 - Left Roof Rack Assembly

5 - Roof Rack Front Trim Cover

6 - Left Apron Plate Cover Assembly

7 - Left Apron Plate Assembly

8 - Rear Left Wheel Flare Assembly

9 - Front Wheel House Protector Assembly of Rear

Left Wheel

10 - Rear Bumper Left Mounting Bracket Assembly

11 - Rear Left Wheel House Protector Assembly

12 - Rear Bumper Crossmember Assembly

13 - Rear Bumper Energy Absorber

14 - Rear Bumper Assembly

15 - Rear Right Wheel House Protector Assembly

16 - Front Wheel House Protector Assembly of Rear

Right Wheel

17 - Rear Bumper Right Mounting Bracket Assembly 18 - Rear Right Wheel Flare Assembly

19 - Right Apron Plate Assembly

20 - Right Apron Plate Cover Assembly

×3

×5

×3

×8

×8

×3

×2

×3

×2

×6

×5

×4

×2

7

8

9

10

3

1

5

4

2

6

18

19

20

15

16

17

11

14

12

13

RT21480020
