44–

8

44

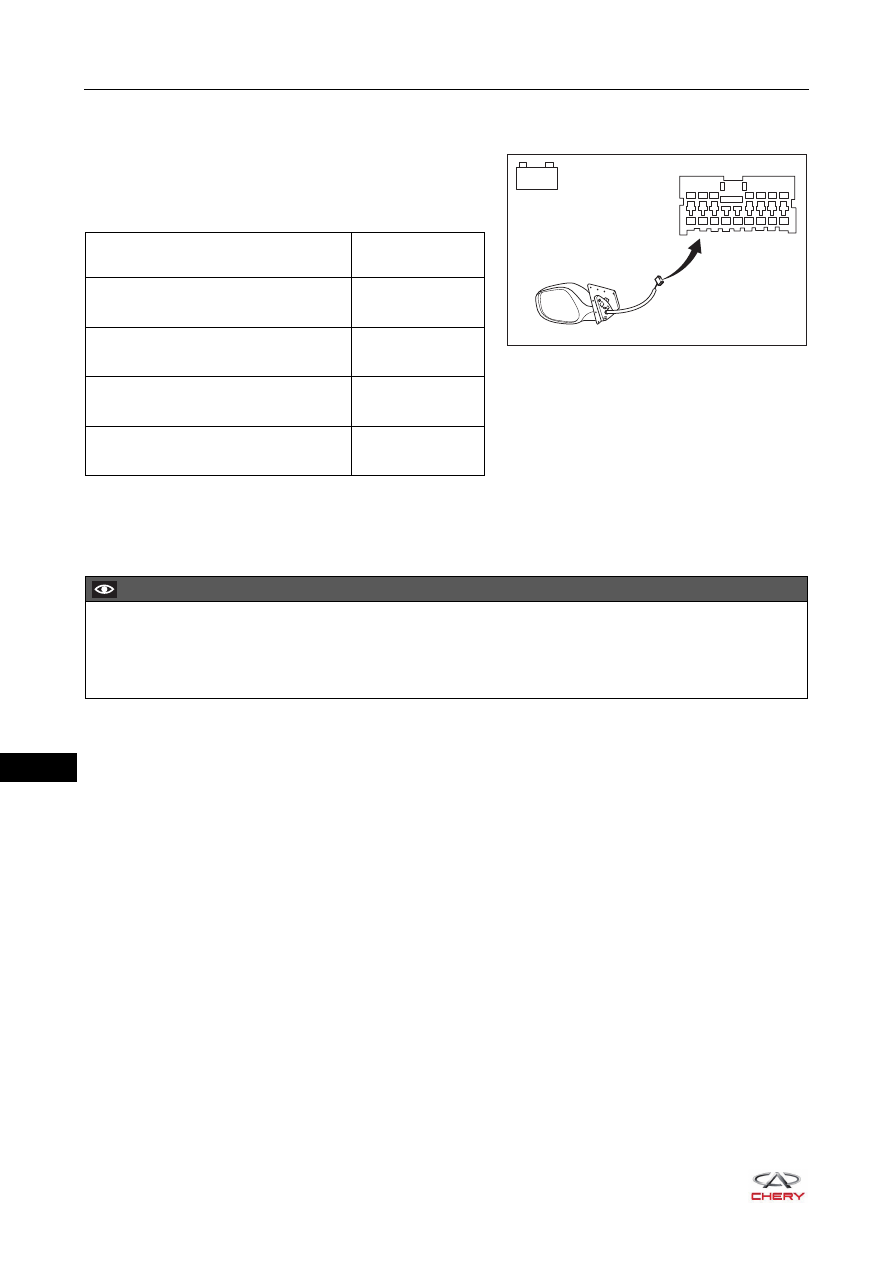

Inspection

1. Inspect the left outside rear view mirror assembly.

a. Apply battery voltage to the terminals of outside rear

view mirror assembly connector and check the
operation of outside rear view mirror according to the
table below.

If result is not as specified, replace the left outside rear view mirror assembly.

Installation

Installation is in the reverse order of removal.

1

2

3

8

9

10 11 12 13 14 15 16

4

5

6

7

-

+

RT21440040

Measurement Condition

Specified

Condition

Battery positive (+) → Terminal 3

Battery negative (-) → Terminal 2

UP

Battery positive (+) → Terminal 2

Battery negative (-) → Terminal 3

DOWN

Battery positive (+) → Terminal 1

Battery negative (-) → Terminal 2

LEFT

Battery positive (+) → Terminal 2

Battery negative (-) → Terminal 1

RIGHT

CAUTION

 When installing outside rear view mirror assembly, install connector in place and tighten fixing bolts to the

specified torque.

 Make sure outside rear view mirror assembly can move smoothly after installation.

44–

9

44

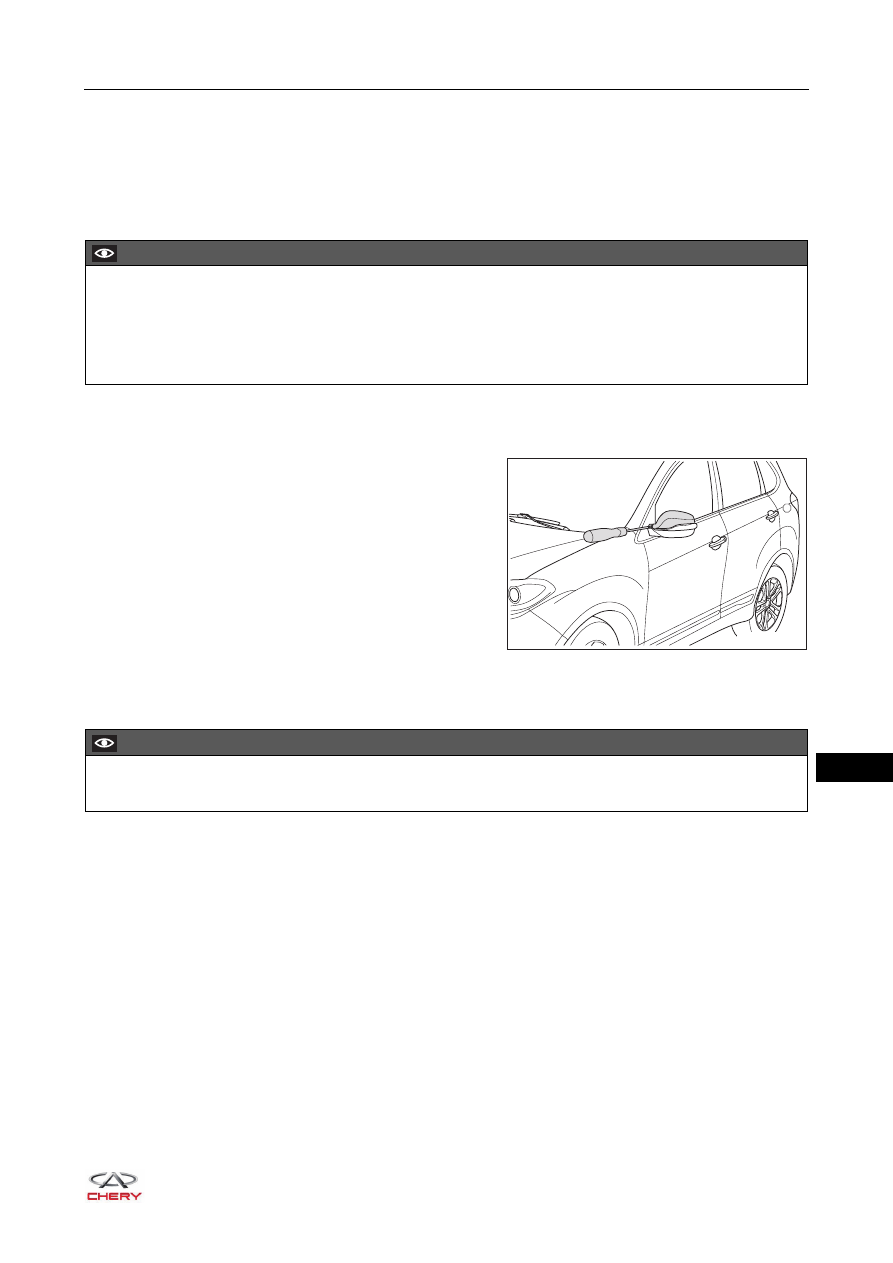

Outside Rear View Mirror Housing Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the left outside rear view mirror housing

assembly.
a. Using a screwdriver wrapped with protective tape,

remove the clip from outside rear view mirror housing
assembly, and remove the left outside rear view mirror
housing assembly.

Installation

Installation is in the reverse order of removal.

CAUTION

 Avoid breaking the claw when removing outside rear view mirror housing assembly.
 Avoid damaging lens due to dropping when removing outside rear view mirror housing assembly.
 Try to prevent body paint surface from being scratched when removing outside rear view mirror housing

assembly.

RT21440050

CAUTION

 Make sure to install outside rear view mirror housing assembly in place.

44–

10

44

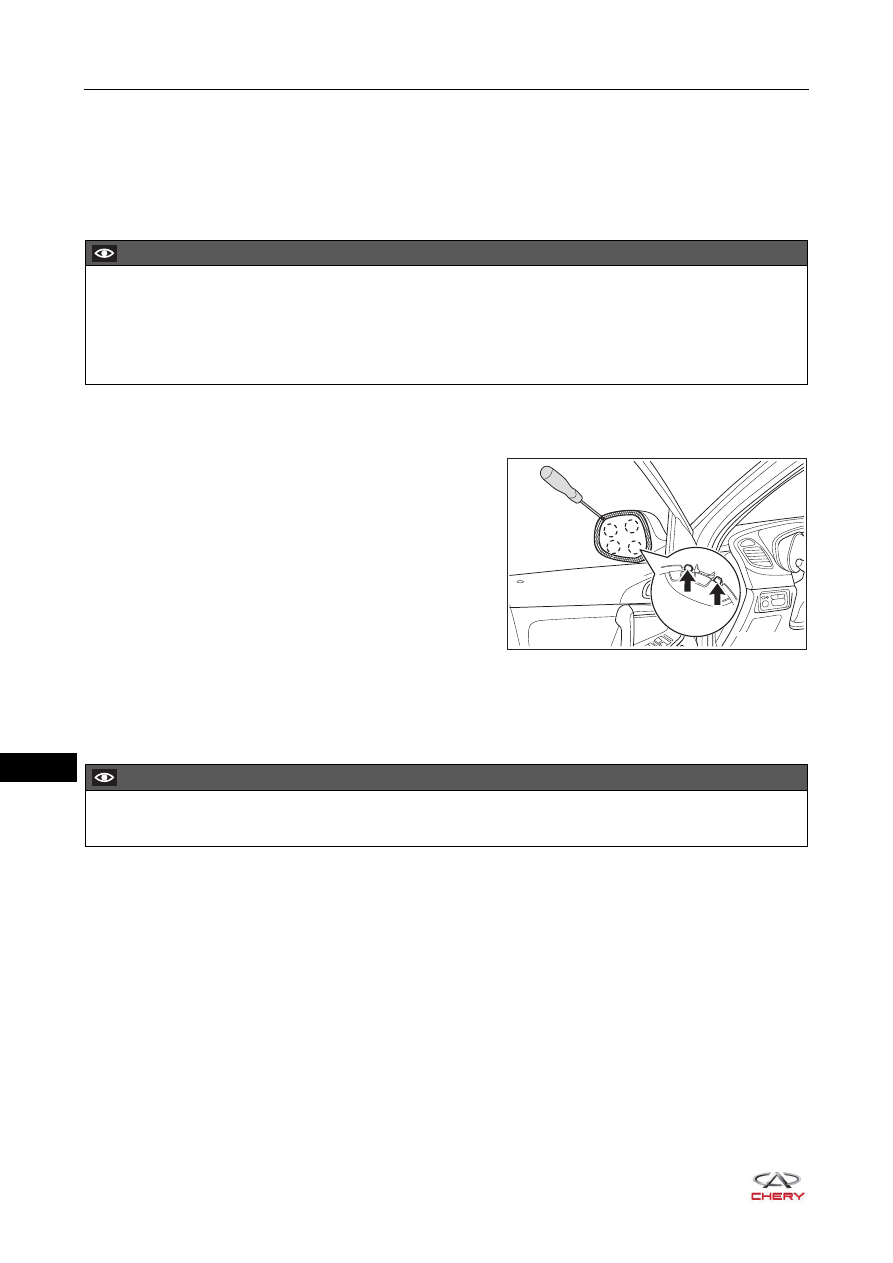

Outside Rear View Mirror Lens Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the left outside rear view mirror lens assembly.

a. Press the outside rear view mirror surface to tilt it.
b. Apply protective tape around the outside rear view

mirror frame.

c. Using a screwdriver wrapped with protective tape, pry

up the claws (arrow) of outside rear view mirror lens
assembly.

d. Remove the left outside rear view mirror lens assembly.

Installation

Installation is in the reverse order of removal.

CAUTION

 Avoid breaking the claws when removing outside rear view mirror lens assembly.
 Avoid damaging lens due to dropping when removing outside rear view mirror lens assembly.
 Try to prevent body paint surface from being scratched when removing outside rear view mirror lens

assembly.

RT21440090

CAUTION

 Make sure the lens can move smoothly after installing outside rear view mirror lens assembly.

44–

11

44

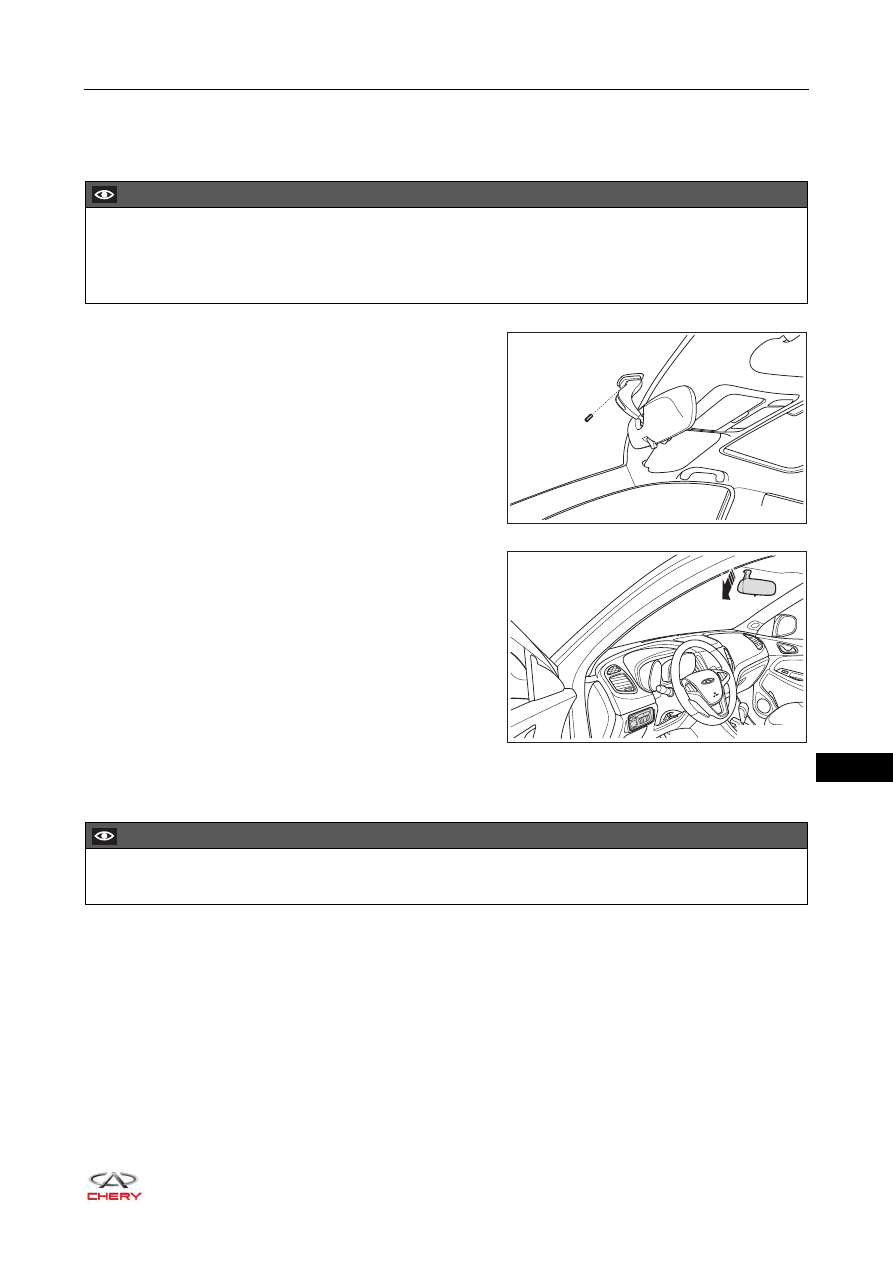

Inside Rear View Mirror Assembly

Removal

1. Remove the inside rear view mirror assembly.

a. Remove the fixing screw from inside rear view mirror.



(Tightening torque: 1.5 ± 0.5 N·m)

b. Remove the inside rear view mirror assembly in the

direction of arrow as shown in the illustration.

Installation

Installation is in the reverse order of removal.

CAUTION

 Appropriate force should be applied when removing inside rear view mirror assembly, and operate

carefully.

 Avoid scratching front windshield assembly when removing inside rear view mirror assembly.

RT21440100

RT21440110

CAUTION

 Make sure the inside rear view mirror assembly can move smoothly after installation.
