Chery Tiggo 5 (T21). Manual - part 465





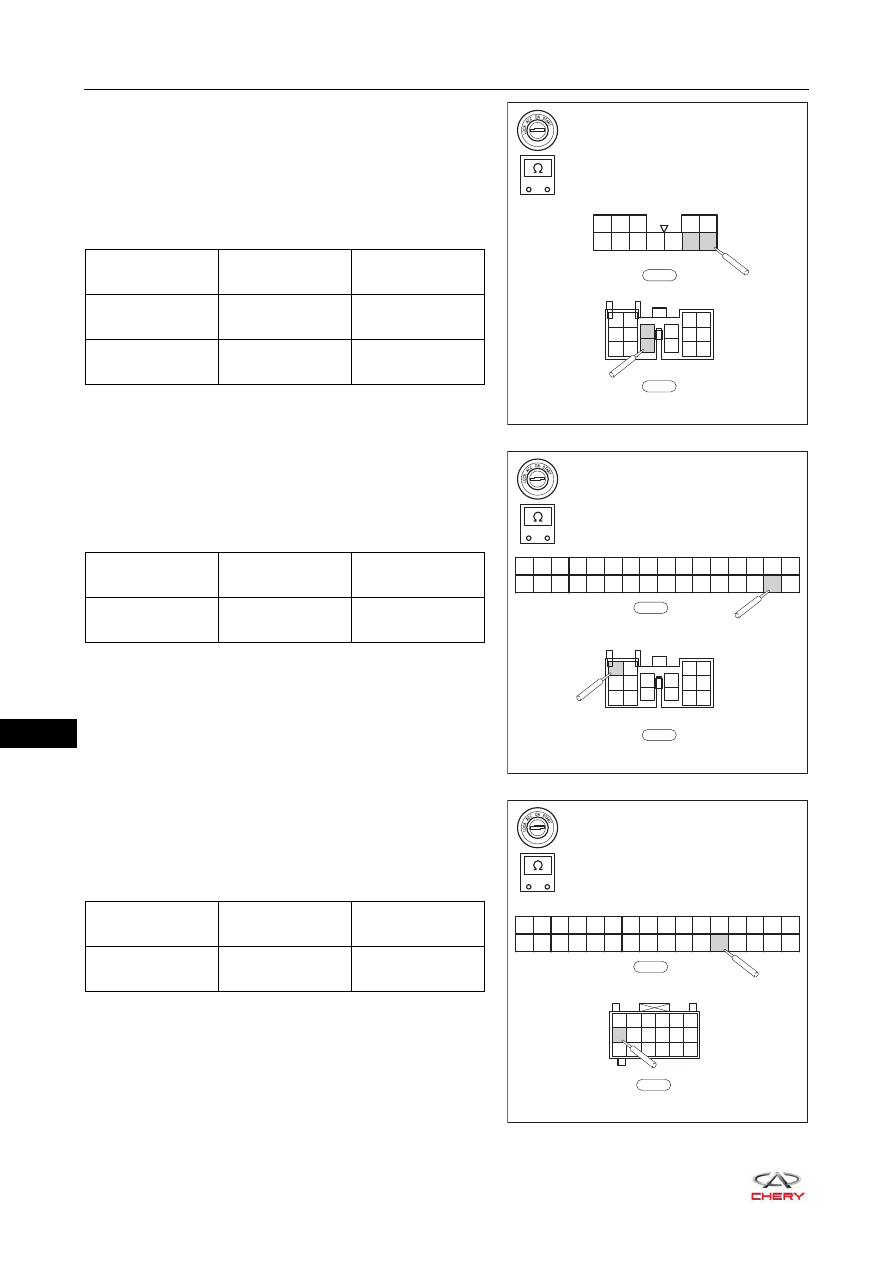

43–

40

43

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect the body wire harness connectors B-044 and

B-005.

d. Using a digital multimeter, check for continuity between

body wire harness connectors B-044 and B-005
according to the table below.

e. Disconnect the body wire harness connectors B-047 and

B-005.

f. Using a digital multimeter, check for continuity between

body wire harness connectors B-047 and B-005
according to the table below.

g. Disconnect the body wire harness connectors B-047 and

B-041.

h. Using a digital multimeter, check for continuity between

body wire harness connectors B-047 and B-041
according to the table below.

-

+

RT21430630

D1

D6 D7 D8 D9 D10 D11D12

D2 D3

D4 D5

B-044

1

2

7

8

13

14

3

4

9

10

5

6

11

12

15

16

B-005

Multimeter

Connection

Condition

Specified

Condition

B-044 (D11) -

B-005 (4)

Always

Continuity

B-044 (D12) -

B-005 (10)

Always

Continuity

-

+

RT21430640

1

2

7

8

13

14

3

4

9

10

5

6

11

12

15

16

B-005

B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16

B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32

B-047

Multimeter

Connection

Condition

Specified

Condition

B-047 (B15) -

B-005 (6)

Always

Continuity

-

+

RT21430650

B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16

B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32

B-047

1

4

7

10

13

16

2

5

8

11

14

17

3

6

9

12

15

18

B-041

Multimeter

Connection

Condition

Specified

Condition

B-047 (B12) -

B-041 (17)

Always

Continuity

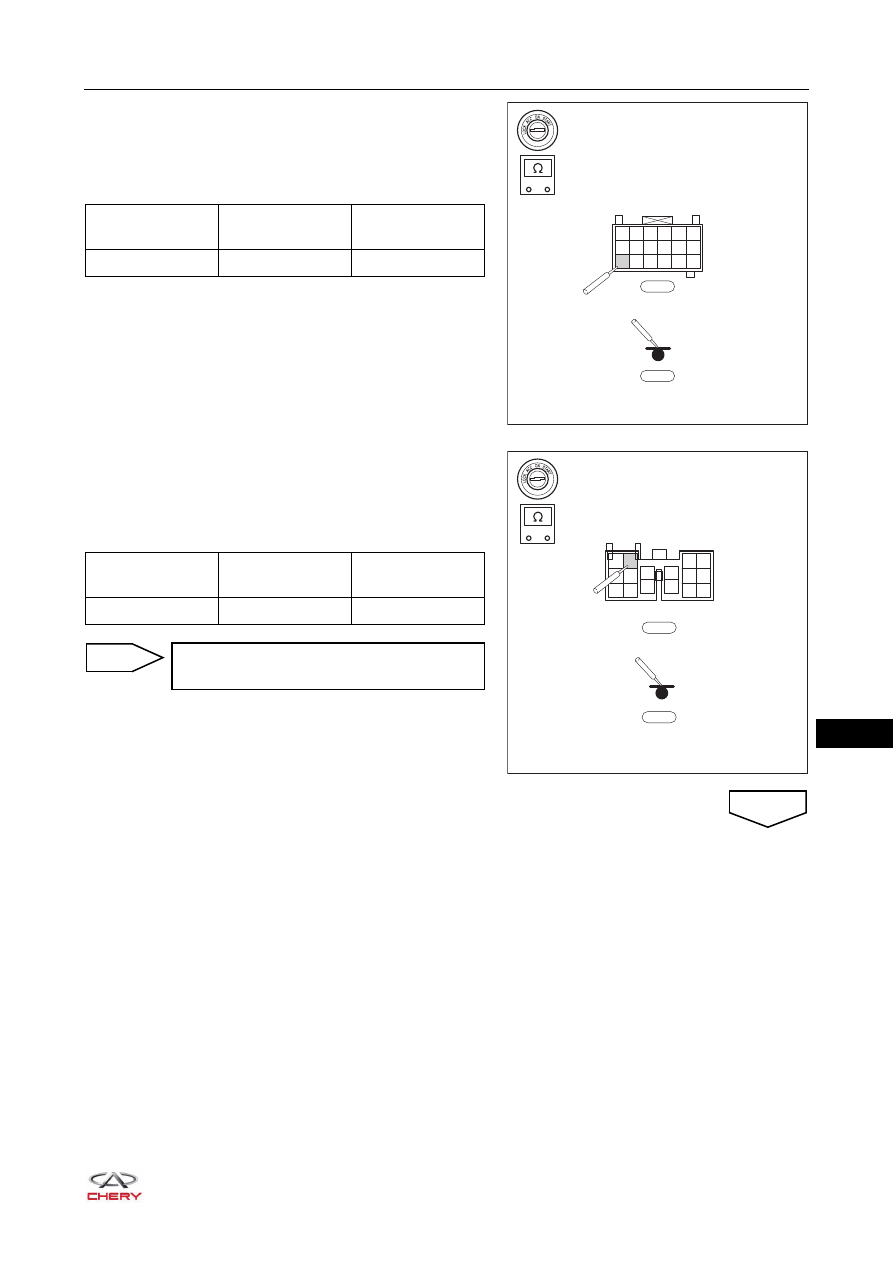

43–

41

43

i. Disconnect the body wire harness connector B-040 and

ground B-036.

j. Using a digital multimeter, check for continuity between

body wire harness connector B-040 and ground B-036
according to the table below.

k. Disconnect the body wire harness connector B-005 and

ground B-062.

l. Using a digital multimeter, check for continuity between

body wire harness connector B-005 and ground B-062
according to the table below.

-

+

RT21430660

1

4

7 10 13 16

2

5

8 11 14 17

3

6

9 12 15 18

B-040

B-036

Multimeter

Connection

Condition

Specified

Condition

B-040 (3) - B-036

Always

Continuity

-

+

RT21430690

1

2

7

8

13

14

3

4

9

10

5

6

11

12

15

16

B-005

B-062

Multimeter

Connection

Condition

Specified

Condition

B-005 (5) - B-062

Always

Continuity

Repair or replace body wire harness and
connector

NG

OK

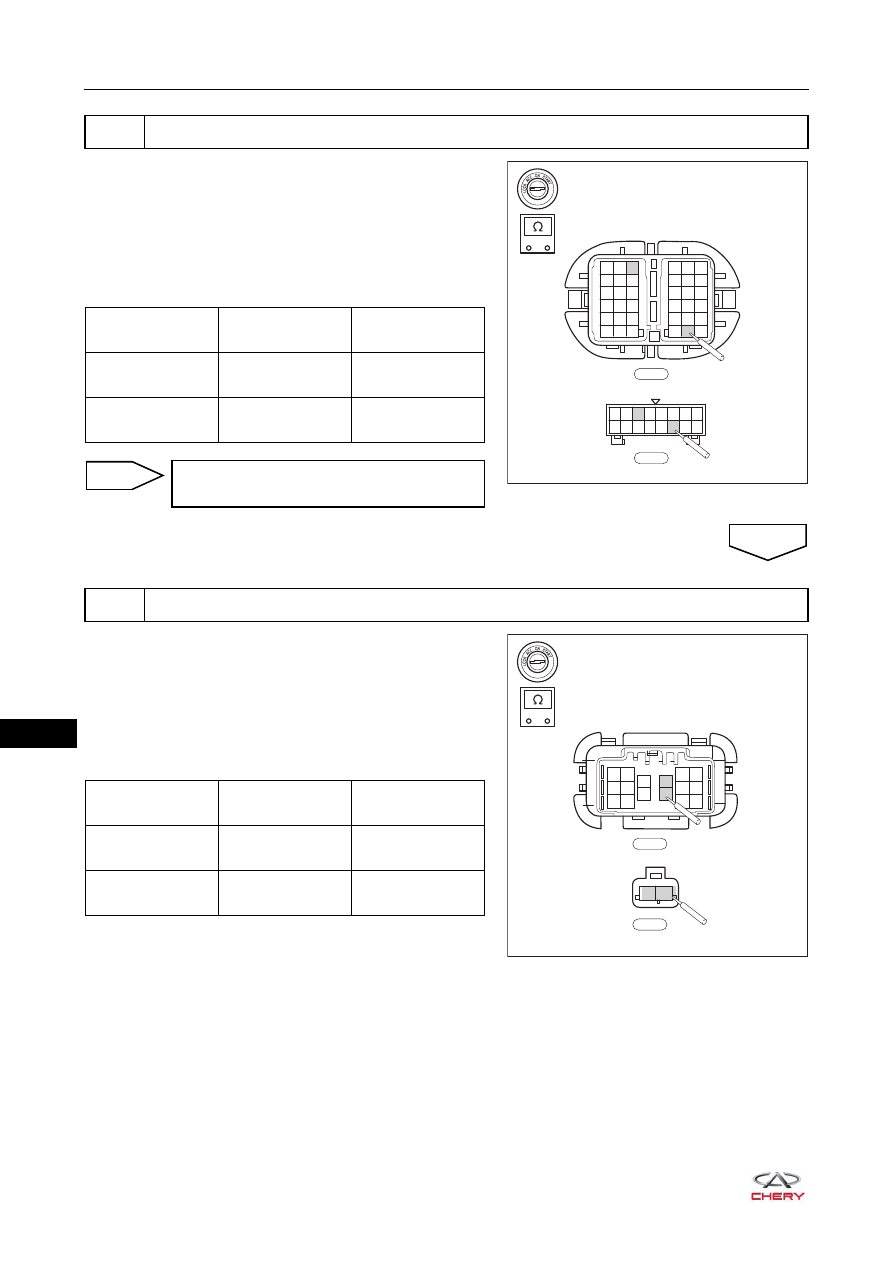

43–

42

43

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect the front left door wire harness connectors

F-007 and F-009.

d. Using a digital multimeter, check for continuity between

front left door wire harness connectors F-007 and F-009
according to the table below.

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect the rear right door wire harness connectors

R-001 and R-002.

d. Using a digital multimeter, check for continuity between

rear right door wire harness connectors R-001 and R-002
according to the table below.

4

Check front left door wire harness and connector

-

+

RT21430780

1

1

2

2

3

3

4 5 6

7 8 9

10 11 12

13 14 15

16

4

7

10

13

16

17

5

8

11

14

17

18

6

9

12

15

18

F-007

1

2

3

4

5

6

7

8

16

15

14

13

12

11

10

9

F-009

Multimeter

Connection

Condition

Specified

Condition

F-007 (17) -

F-009 (3)

Always

Continuity

F-007 (3) -

F-009 (11)

Always

Continuity

Repair or replace front left door wire
harness and connector

NG

5

Check rear right door wire harness and connector

OK

-

+

RT21430790

1

2

13 14

5 6

7

8

3

4

9

10

11 12

15 16

R-002

1

2

R-001

Multimeter

Connection

Condition

Specified

Condition

R-001 (1) -

R-002 (4)

Always

Continuity

R-001 (2) -
R-002 (10)

Always

Continuity

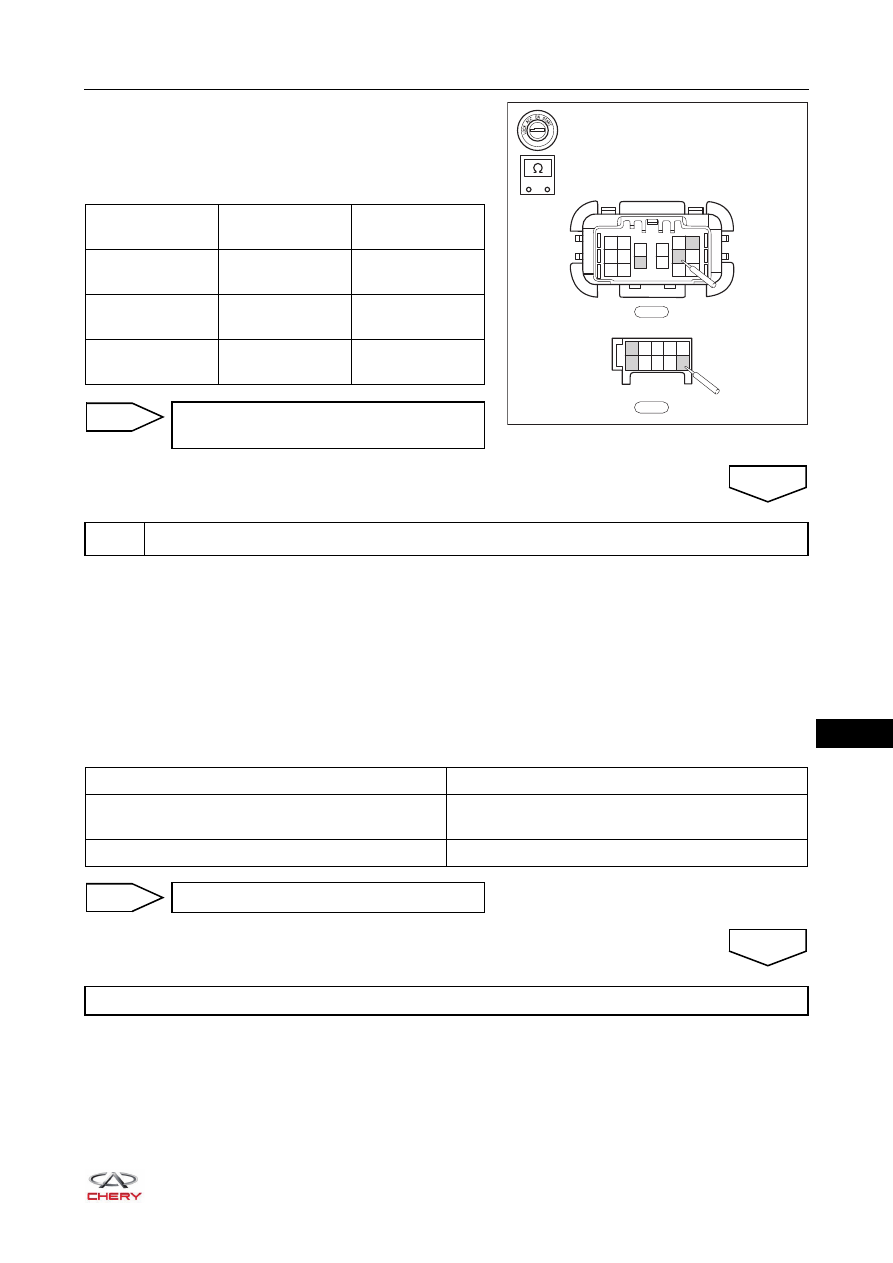

43–

43

43

e. Disconnect the rear right door wire harness connectors

R-002 and R-003.

f. Using a digital multimeter, check for continuity between

rear right door wire harness connectors R-002 and R-003
according to the table below.

a. Connect all connectors.
b. Connect the negative battery cable.
c. Turn ignition switch to ON.
d. Use X-431 3G diagnostic tester (the latest software) to record and clear DTCs stored in the Body Control

Module (BCM).

e. Turn ignition switch to LOCK and wait for a few seconds.
f. Turn ignition switch to ON.
g. Use X-431 3G diagnostic tester (the latest software) to read DTCs stored in the Body Control Module

(BCM) again.

-

+

RT21430800

1 2 3 4

5

6 7 8 9 10

R-003

1

2

7

8

13 14

3

4

9

10

5 6

11 12

15 16

R-002

Multimeter

Connection

Condition

Specified

Condition

R-002 (6) -

R-003 (6)

Always

Continuity

R-002 (11) -

R-003 (1)

Always

Continuity

R-002 (9) -

R-003 (5)

Always

Continuity

Repair or replace rear right door wire
harness and connector

NG

6

Reconfirm DTCs

OK

Result

Proceed to

DTC B101213, B101271, B101313 and B101371 are
output

NG

No DTC is output

OK

Replace Body Control Module (BCM)

NG

System is normal

OK
