Rear Wiper Arm Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.

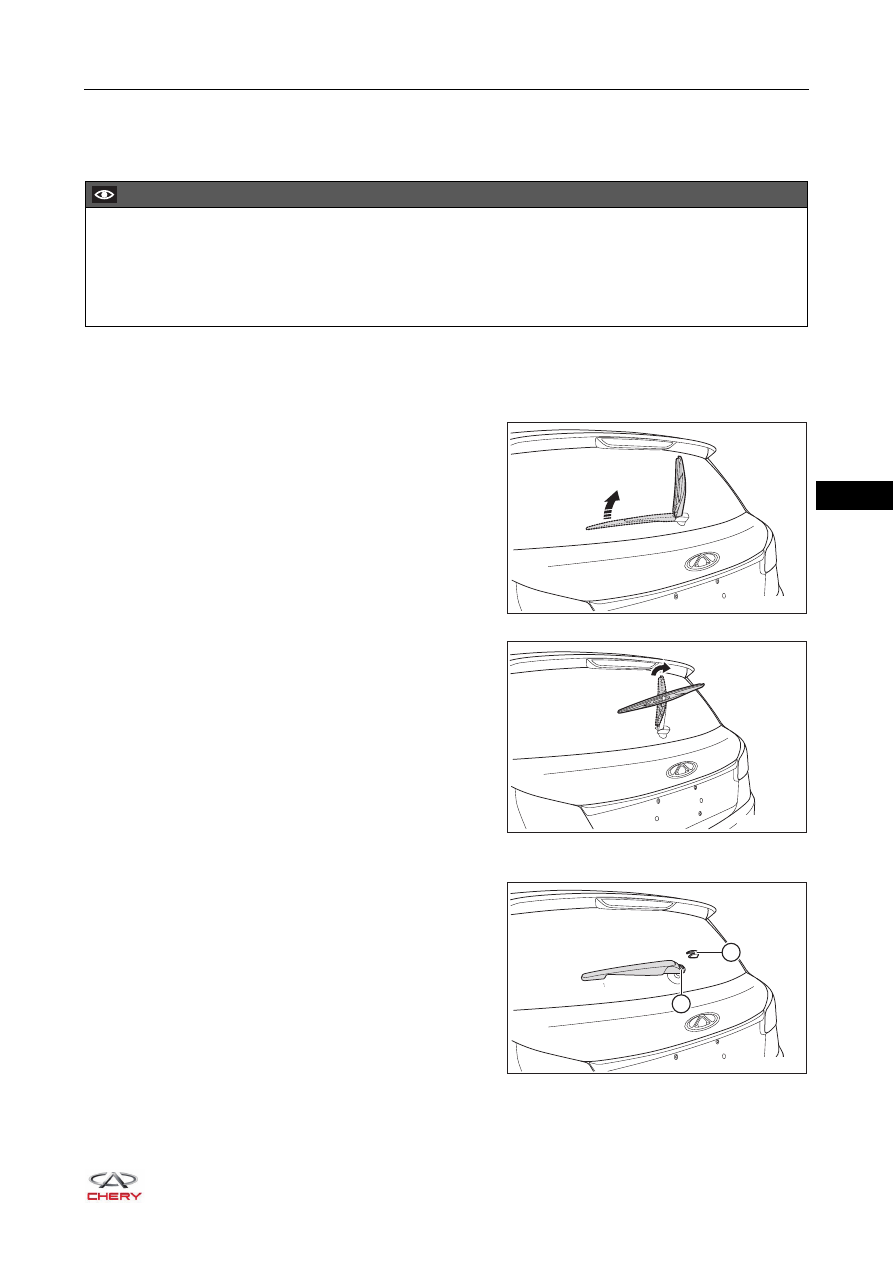

3. Remove the rear wiper arm blade.

a. Lift up the rear wiper arm assembly in the direction of

arrow as shown in the illustration.

b. Pull the rear wiper arm blade out of rear wiper arm

assembly in the direction of arrow as shown in the
illustration.



4. Remove the rear wiper arm assembly.

a. Using a screwdriver wrapped with protective tape,

remove the rear wiper arm trim cap (1).

b. Remove 2 fixing nuts (2) from rear wiper arm

assembly.

(Tightening torque: 10 ± 1 N·m)

c. Remove the rear wiper arm assembly.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing rear wiper arm assembly.
 Appropriate force should be applied when removing rear wiper arm assembly. Be careful not to operate

roughly.

 Try to prevent rear windshield assembly from being scratched when removing rear wiper arm assembly.

RT21360170

RT21360180

RT21360190

1

2

36–

32

36

Installation

Installation is in the reverse order of removal.

CAUTION

 Always operate carefully to prevent other components from being damaged when installing rear wiper

arm assembly.

 Make sure to tighten fixing nuts to the specified torque when installing rear wiper arm assembly.
 Check rear wiper arm assembly for proper operation after installation.

36–

33

36

Rear Wiper Motor Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the rear wiper arm assembly (

See page 36-31

).

4. Remove the back door protector assembly (

See page 47-47

).

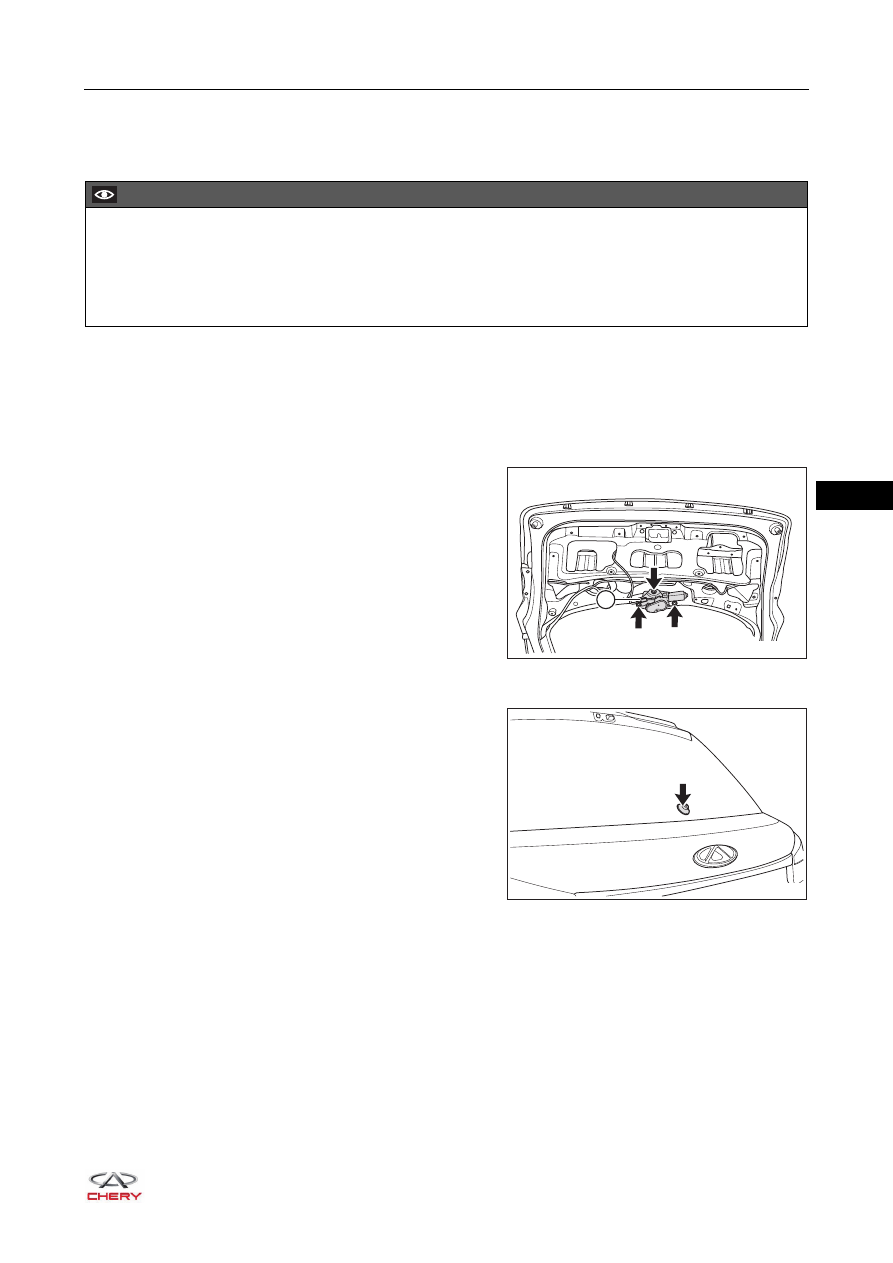

5. Remove the rear wiper motor assembly.

a. Disconnect the rear wiper motor assembly connector

(1).

b. Remove 3 fixing bolts (arrow) from rear wiper motor

assembly.

(Tightening torque: 10 ± 1 N·m)

c. Remove the rear wiper motor assembly.
d. Using a screwdriver wrapped with protective tape, pry

up the grommet (arrow).

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing rear wiper motor assembly.
 Appropriate force should be applied when removing rear wiper motor assembly. Be careful not to operate

roughly.

 Try to prevent body paint surface from being scratched when removing rear wiper motor assembly.

1

RT21360200

RT21360210

36–

34

36

Inspection

1. Check rear wiper motor assembly.

a. Check operation of rear wiper motor assembly.

If result is not as specified, replace rear wiper motor assembly.

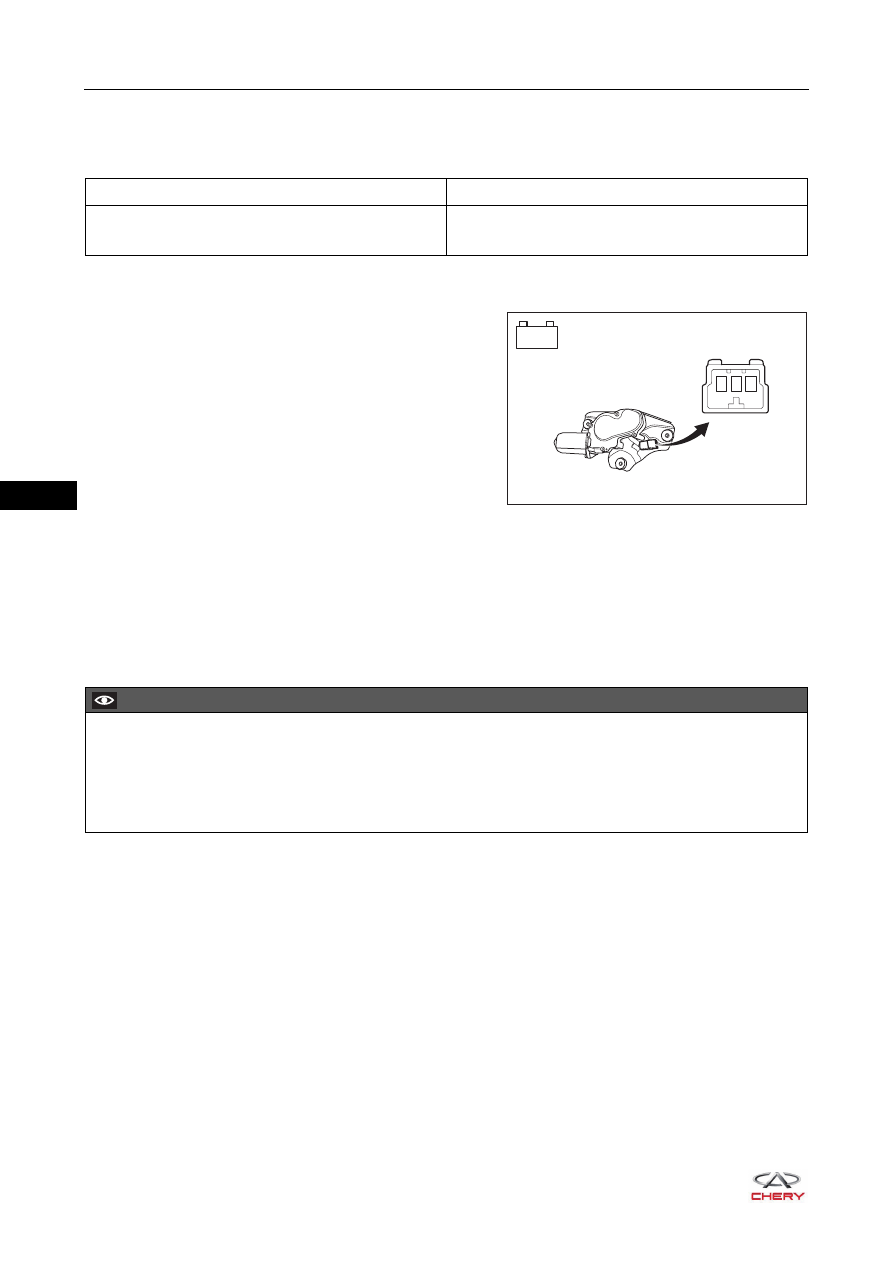

b. Check auto reset function.

 Connect positive (+) battery lead to terminal 3 and

negative (-) battery lead to terminal 1. When motor
is running, disconnect battery negative (-) to stop
rear wiper motor at any position other than the
automatic stop position.

 Connect positive (+) battery lead to terminal 3 and

negative (-) battery lead to terminal 2 to make the
motor run again.

 Check that motor can reset automatically.
OK: Motor can reset automatically.
If result is not as specified, replace rear wiper motor assembly.

2. Check grommet for deterioration, deformation or damage. Replace grommet if necessary.

Installation

Installation is in the reverse order of removal.

Measurement Condition

Specified Condition

Battery positive (+) → Terminal 3
Battery negative (-) → Terminal 1

Motor runs normally

1 2 3

-

+

RT21360221

CAUTION

 Always operate carefully to prevent other components from being damaged when installing rear wiper

motor assembly.

 Tighten fixing bolts to the specified torque when installing rear wiper motor assembly.
 Check wiper system for proper operation after installing rear wiper motor assembly.
