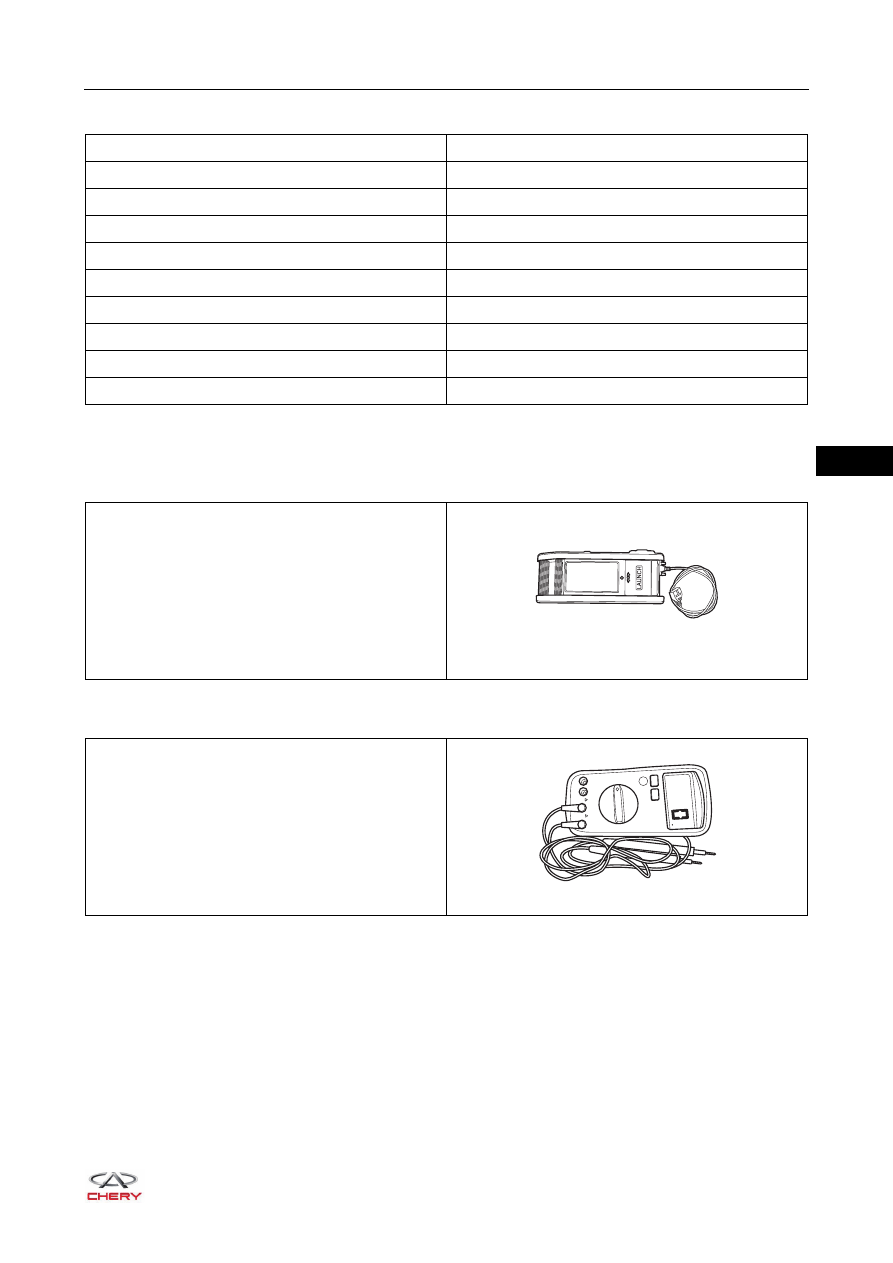

Torque Specifications

Tools

Special Tool

General Tool

Description

Torque (N·m)

Headlight Assembly Fixing Bolt

3.5 ± 0.5

Front Fog Assembly Fixing Screw

1.5 ± 0.5

Rear Combination Light Assembly Fixing Nut

4.5 ± 1

Rear Combination Light Assembly Fixing Screw

1.5 ± 0.5

Front Dome Light Assembly Fixing Screw

1.5 ± 0.5

Rear Dome Light Assembly Fixing Screw

1.5 ± 0.5

Rear Fog Light & Reflector Assembly Fixing Screw

1.5 ± 0.5

High Mounted Stop Light Fixing Nut

3.5 ± 0.5

Back-up Light Switch

20 ± 2

X-431 3G Diagnostic Tester

RCH0000001

ཽ⪔⊳䖜

Digital Multimeter

RCH0000002

35–

8

35

Circuit Diagram

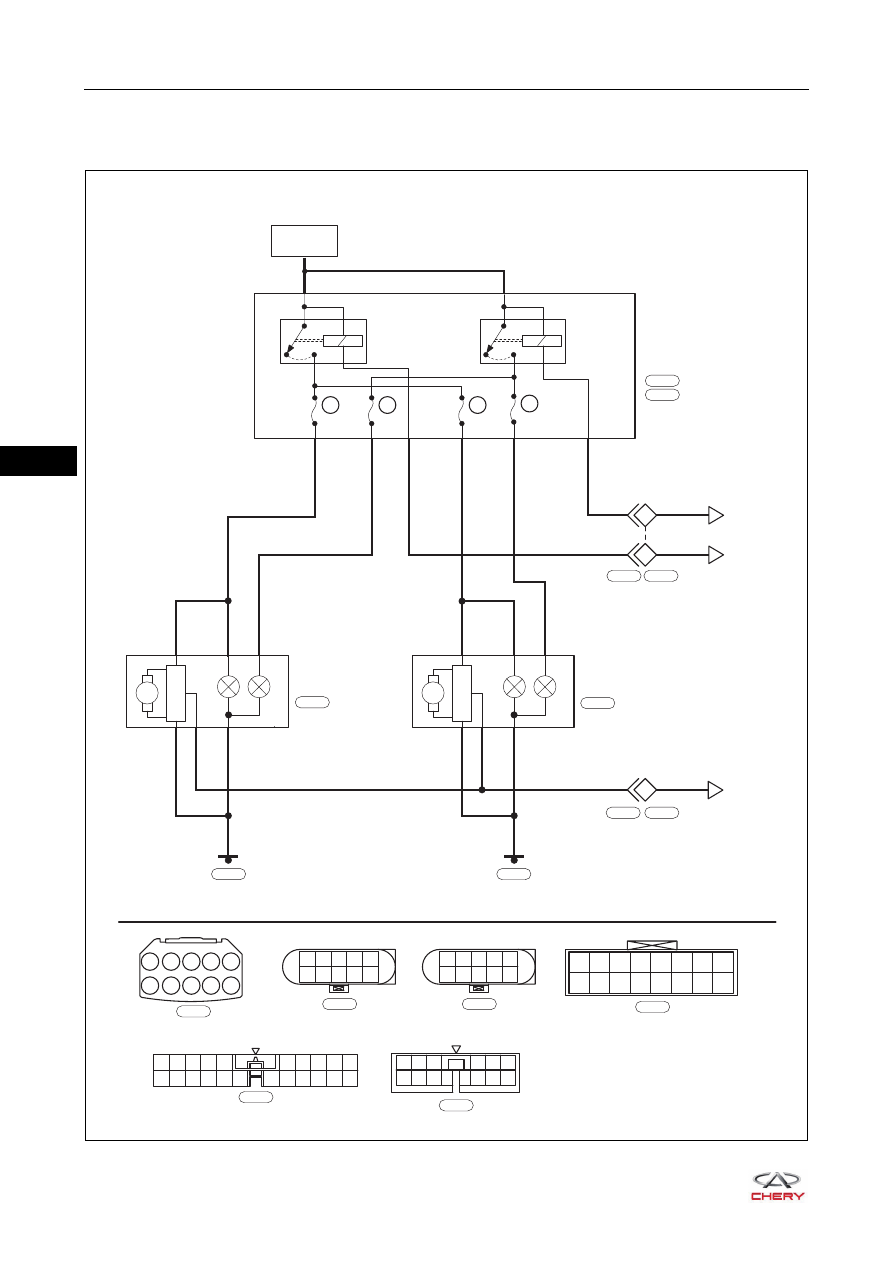

High/Low Beam Light (Page 1 of 2)

ET21350010

ENGING
COMPARTMENT
FUSE AND
RELAY BOX

HIGH
BEAM
RELAY

LOW
BEAM
RELAY

GY

B

B

B

B

B

B

GY

GY

BBr

BL

D2

D4

D3

D5

H1

H2

GR

BBr

RL

RV

BL

RB

RL

RL

GR

GR

A

B

C

EF04

20A

EF03

20A

EF02

20A

EF01

20A

M

7

4

2

6

3

5

FRONT LEFT
HEADLIGHT

M

7

4

2

6

3

5

FRONT RIGHT
HEADLIGHT

BATTERY

D1

D2

D3 D4

D5

D6

D7

D8 D9 D10

H8

H16

H7

H15

H6

H14

H5

H13

H4

H12

H3

H11

H2

H10

H1

H9

2

1

5

1

2

3

4

5

6

7

8

9 10

11 12 13 14 15

18

17

16

19 20 21 22

B

E-034

B

E-056

9

7

5

3

1

10 8

6

4

2

9

7

5

3

1

10 8

6

4

2

E-034

E-031

E-056

E-058

W

E-070

E-070 B-048

B

E-071

1

2

3

4

5

6

7

8

9 10

11 12 13 14

E-071

I-004

W

E-067

W

E-068

E-067
E-068

35–

9

35

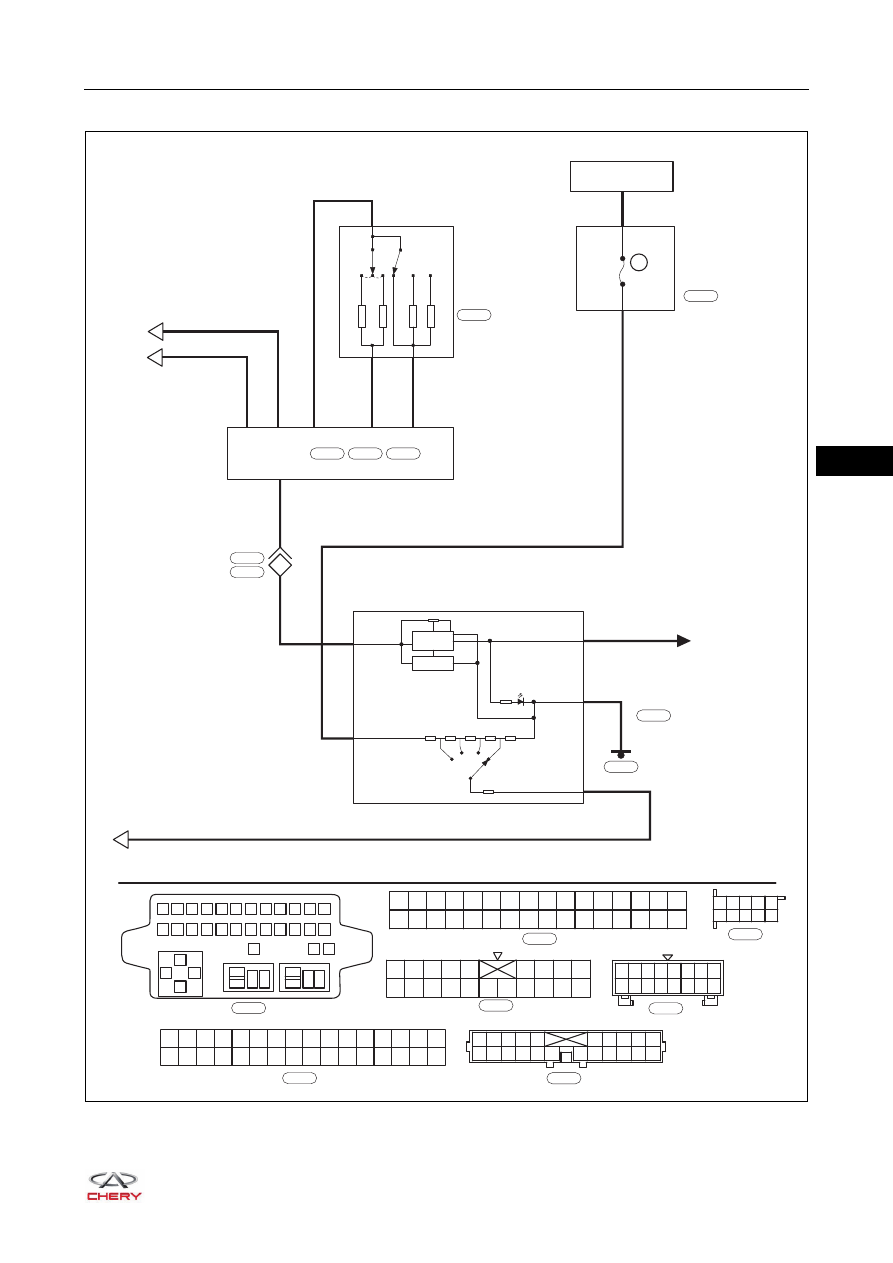

High/Low Beam Light (Page 2 of 2)

ET21350020

1

2

3

4

5

6

7

8

9 10 11 12

13

85

85

87

87 30

87 30

30

86

86

85

86

14 15 16 17 18 19 20 21 22 23 24

25

27

26

8

16

7

15

6

14

5

13

4

12

3

11

2

10

1

9

RL

Lg

COMBINATION
LIGHT SWITCH

2

RF02

10A

B31

A32

A26

9

8

A10

2

C8

B30

BCM

A

B

C

6

7

8

2

1

BBr

B

Gr

L

BrG

BL

LG

LG

INSTRUMENT
PANEL FUSE
AND RELAY
BOX

ILLUMINATION

22

B

IC

R5

R4

R3

R2

R1

0

1

2

3

R0

HIGH BEAM

150

330

220

150

FLASH

OFF

PARK

LOW BEAM

1

2

3

4

5

6

7

8

9

10

HEADLIGHT
ADJUSTMENT
SWITCH

B

I-007

I-007

A32

A31

A30

A29

A28

A16

A15

A14

A13

A12

A11

A10

A9

A8

A7

A6

A5

A4

A3

A2

A1

A27

A26

A25

A24

A23

A22

A21

A20

A19

A18

A17

L

I-005

B

I-011

I-011

Br

I-009

I-009

I-003

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

W

I-006

I-006

B-003

B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16

B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32

L

B-047

C1

C10 C11 C12 C13 C14 C15 C16 C17 C18

C2 C3 C4 C5

C6 C7 C8 C9

C20

C19

W

B-043

I-005

B-047

B-043

IGNITION SWITCH

ON OR START

35–

10

35

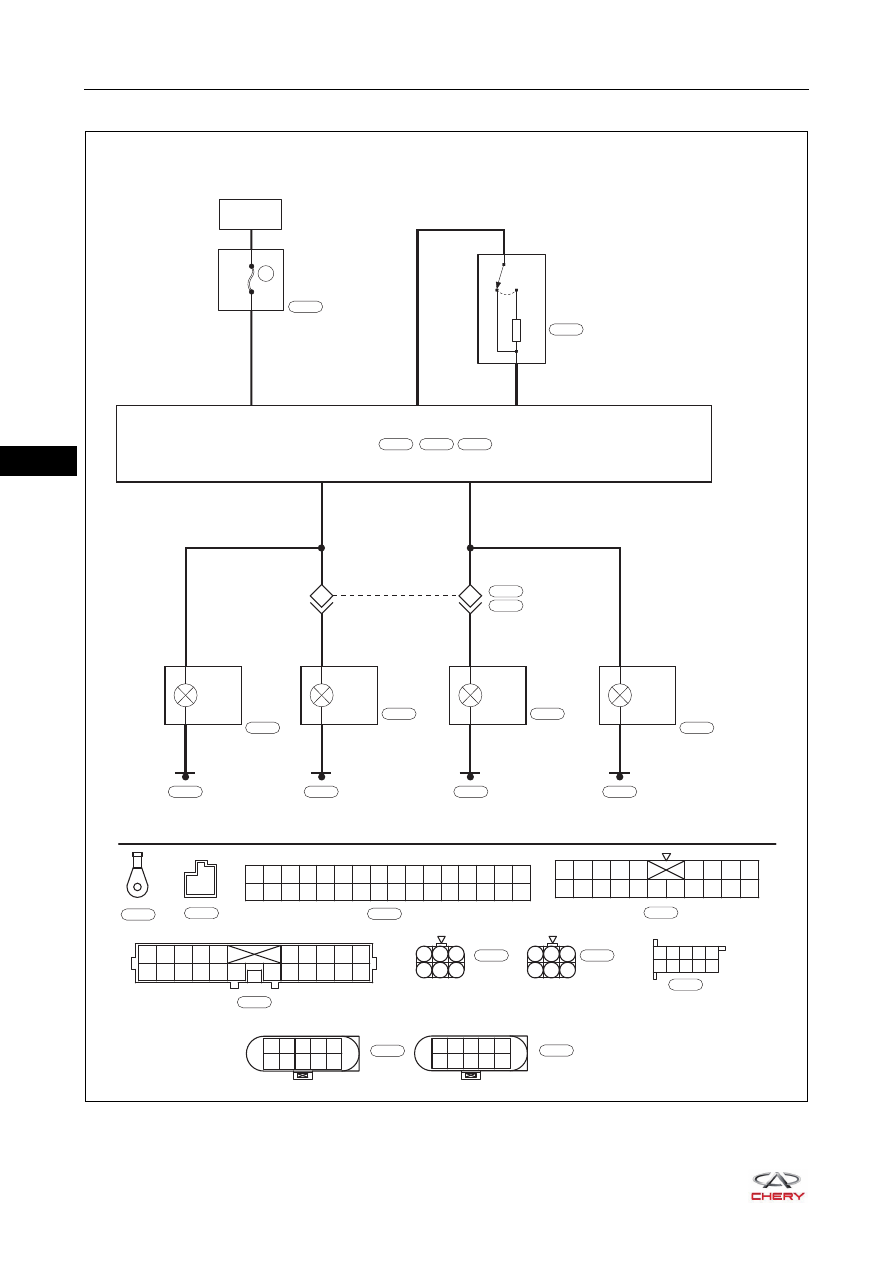

Position Light

ET21350060

B-022

B-018

E-031

E-058

BCM E-072

B-043

I-005

E1

3

1

2

3

4

5

11

12

13

14

15

6

7

8

9

10

22 21 20 19 18 17

16

C1

C10 C11 C12 C13 C14 C15 C16 C17 C18

C2 C3 C4 C5

C6 C7 C8 C9

C20

C19

E-061

W

E-072

W

B-043

1

2

3

4

5

6

1

2

3

4

5

6

B

B-016

B

B-021

W

B-048

B

E-034

B

E-056

9

7

5

3

1

10 8

6

4

2

9

7

5

3

1

10 8

6

4

2

R

E1

BATTERY

60A

MF03

3

WY

WY

WY

C7

8

6

1

1

16

POSI-
TION
LIGHT

POSI-
TION
LIGHT

POSI-
TION
LIGHT

POSI-
TION
LIGHT

B

B

LG

LG

C8

8

1

15

B

LG

6

1

B

ENGINE
COMPARTMENT
FUSE AND
RELAY BOX

E-061

B-048
E-070

REAR
LEFT
COMBI-
NATION
LIGHT

B-021

FRONT
LEFT
HEADLIGHT

E-056

FRONT
RIGHT
HEADLIGHT

E-034

REAR
RIGHT
COMBI-
NATION
LIGHT

B-016

1

2

3

4

5

6

7

8

9

10

A32

A31

A30

A29

A28

A16

A15

A14

A13

A12

A11

A10

A9

A8

A7

A6

A5

A4

A3

A2

A1

A27

A26

A25

A24

A23

A22

A21

A20

A19

A18

A17

L

I-005

B

I-011

COMBINATION
LIGHT SWITCH

A32

8

A10

2

B

L

220

OFF

PARK

I-011
