LIGHTING SYSTEM

GENERAL INFORMATION

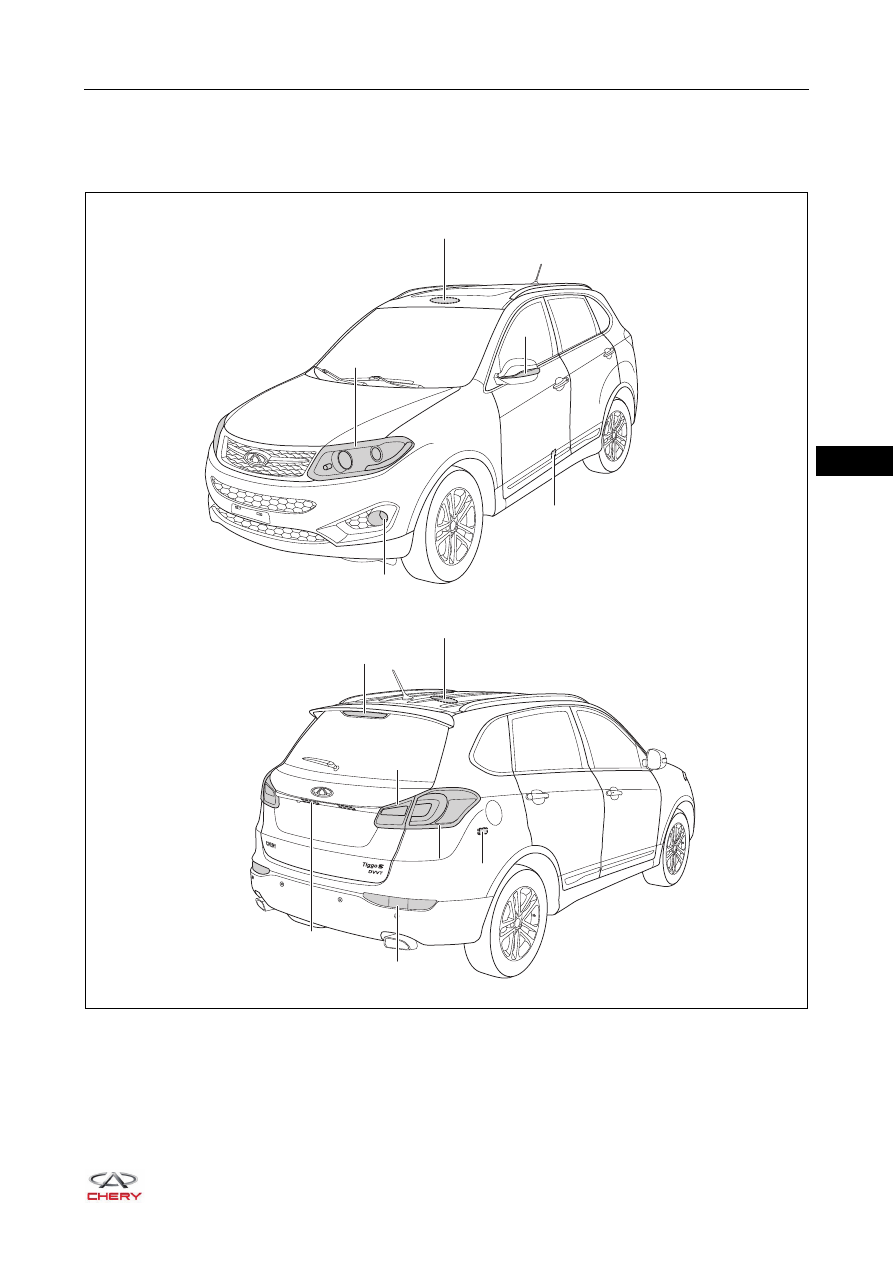

Light Position Diagram

RT21350010

11

12

5

1

3

6

7

2

4

10

9

8

35–

4

35

1 - Headlight Assembly (Low Beam Light, High

Beam Light, Position Light, Turn Signal Light)

2 - Interior Front Dome Light

3 - Side Turn Signal Light

4 - Front Door Courtesy Light

5 - Front Fog Light

6 - High Mounted Stop Light

7 - Interior Rear Dome Light

8 - Luggage Compartment Light

9 - Rear Combination Light (Fixed Part) (Turn Signal

Light, Position Light, Brake Light)

10 - Rear Combination Light (Movable Part)



(Back-up Light)

11 - Rear Fog Light

12 - License Plate Light

35–

5

35

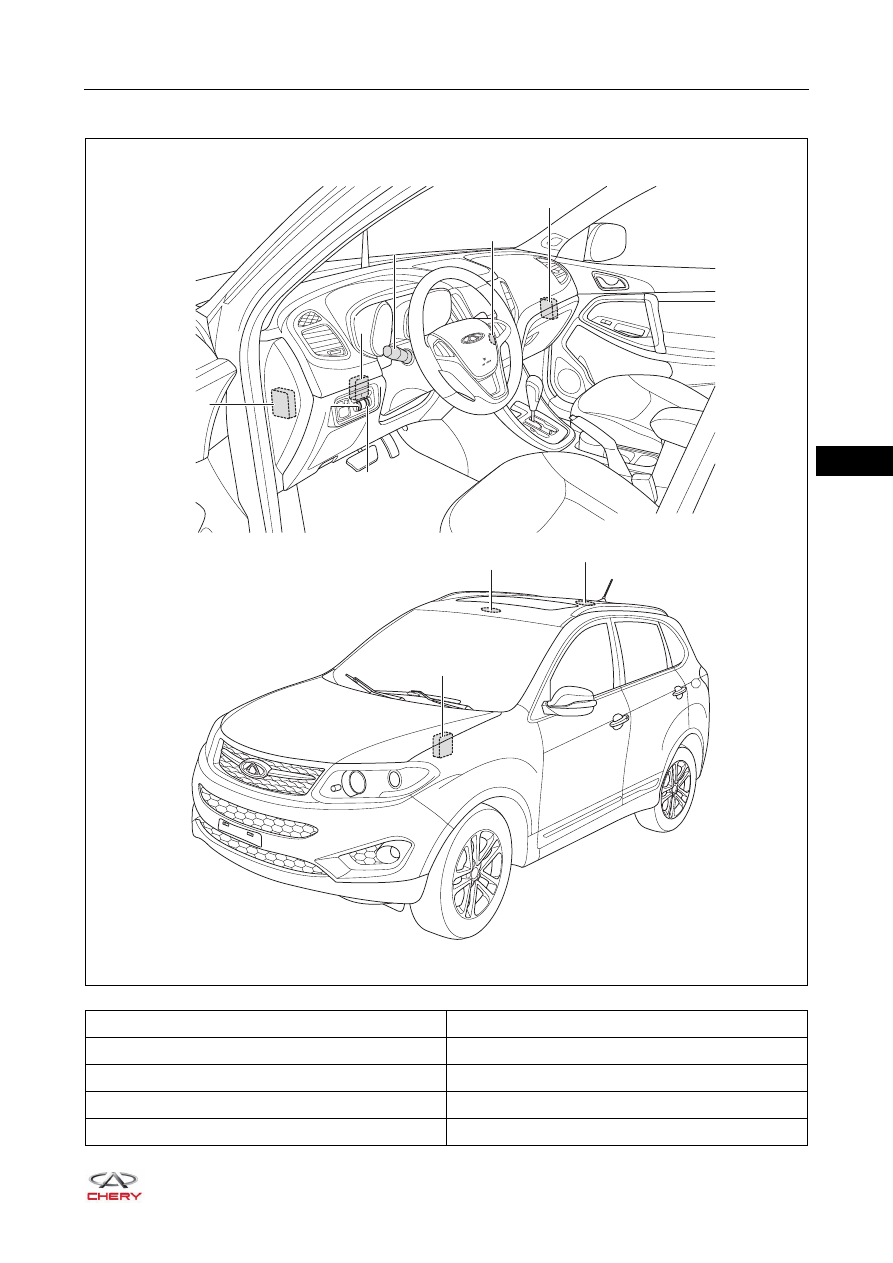

System Assembly Diagram

1 - Instrument Panel Fuse and Relay Box A

2 - Body Control Module (BCM)

3 - Headlight Adjustment Switch Assembly

4 - Hazard Warning Light Switch

5 - Instrument Panel Fuse and Relay Box B

6 - Headlight Leveling Switch

7 - Backlight Adjustment Switch

8 - Interior Rear Dome Light Switch

9 - Interior Front Dome Light Switch

10 - Engine Compartment Fuse and Relay Box

RT21350020

1

7

3

2

4

5

9

10

8

6

35–

6

35

Description

Lighting system on this model consists of vehicle lighting device and light signal device, which are used for
normal operation of vehicle to ensure safety when driving at night or in fog.
Lighting system consists of headlight assembly (including low beam light, high beam light, position light and
turn signal light), front fog light, side turn signal light, front dome light, front door courtesy light, instrument
panel backlight, rear combination light (including turn signal light, position light, brake light and back-up light),
rear fog light (rear fog light and reflector), license plate light, high mounted stop light, rear dome light and
luggage compartment light. The headlight assembly and rear combination light use semi-closed structure for
easy inspection and repair.

Specifications

Bulb Specifications

Bulb Name

Nominal Light Source (Model/Type)

Headlight (High Beam/Low Beam)

H1/H7

Front Position Light

LED

Front Turn Signal Light

PY21W

Brake Light

LED

Front Fog Light

H7

Rear Fog Light

P21W

License Plate Light

C5W

High Mounted Stop Light

LED

Rear Position Light

LED

Rear Turn Signal Light

PY21W

Back-up Light

W16W

Side Turn Signal Light

LED

Front Dome Light

C10W

Rear Dome Light

10W

Luggage Compartment Light

C5W

Front Door Courtesy Light

3W
