33–

12

33

Removal

HINT:

 Use the same procedures for the front passenger seat belt buckle assembly and driver seat belt buckle

assembly.

 The procedures listed below are for the driver seat belt buckle assembly.

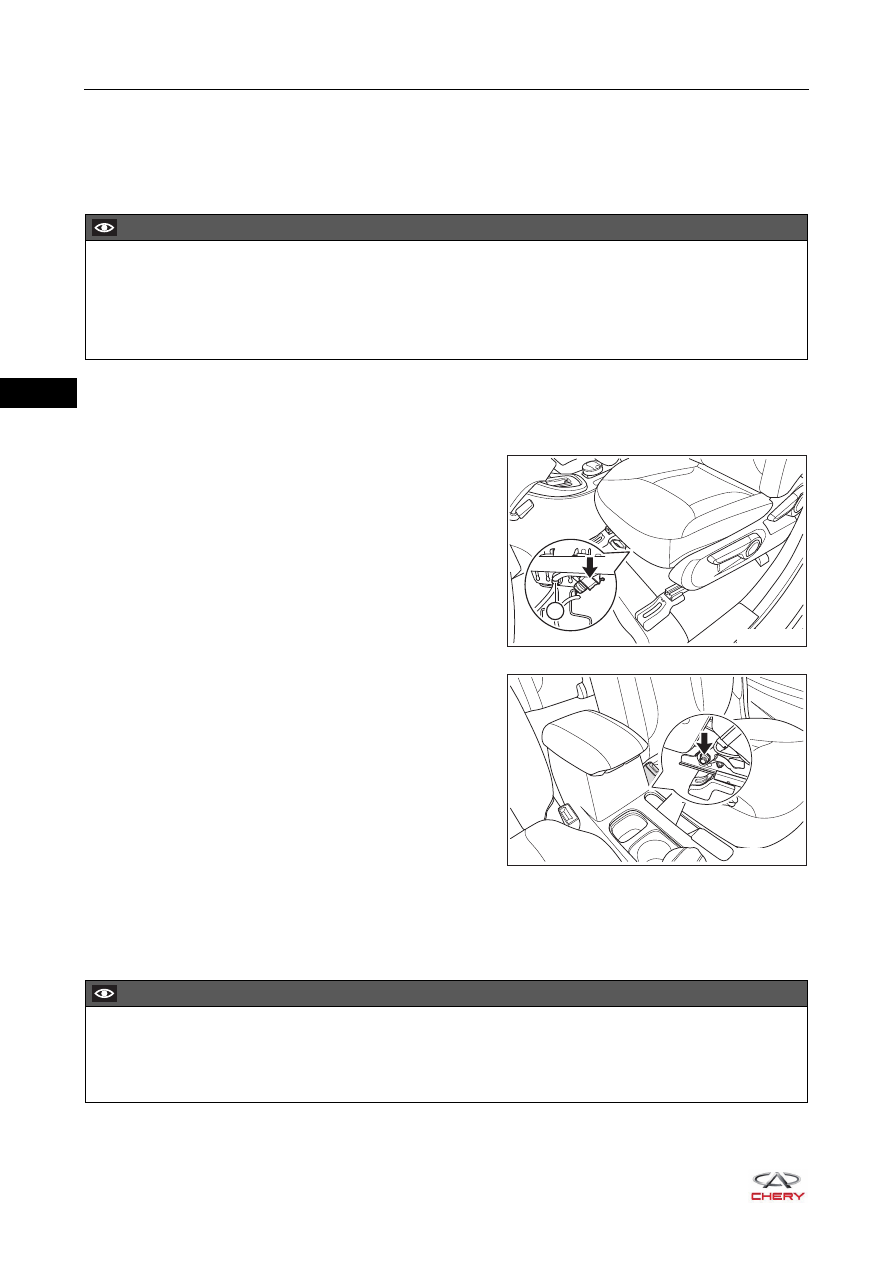

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the front seat belt buckle assembly.

a. Using a screwdriver wrapped with protective tape, pry

the clip (1) on the wire harness connector.

b. Disconnect the front seat belt buckle connector

(arrow).

c. Remove the fixing nut (arrow) from front seat belt

buckle assembly.



(Tightening torque: 50 ± 5 N·m)

d. Remove the front seat belt buckle assembly.

Installation

Installation is in the reverse order of removal.

CAUTION

 Make sure to wear safety equipment to prevent accidents when removing front seat belt buckle

assembly.

 DO NOT scratch the interior when removing front seat belt buckle assembly.
 DO NOT damage the wire harness and connector when removing front seat belt buckle assembly.

RT21330080

1

RT21330090

CAUTION

 Make sure to tighten all fixing nuts according to the specified torque when installing the front seat belt

buckle assembly.

 Install the connector in place when installing the front seat belt buckle assembly.

33–

13

33

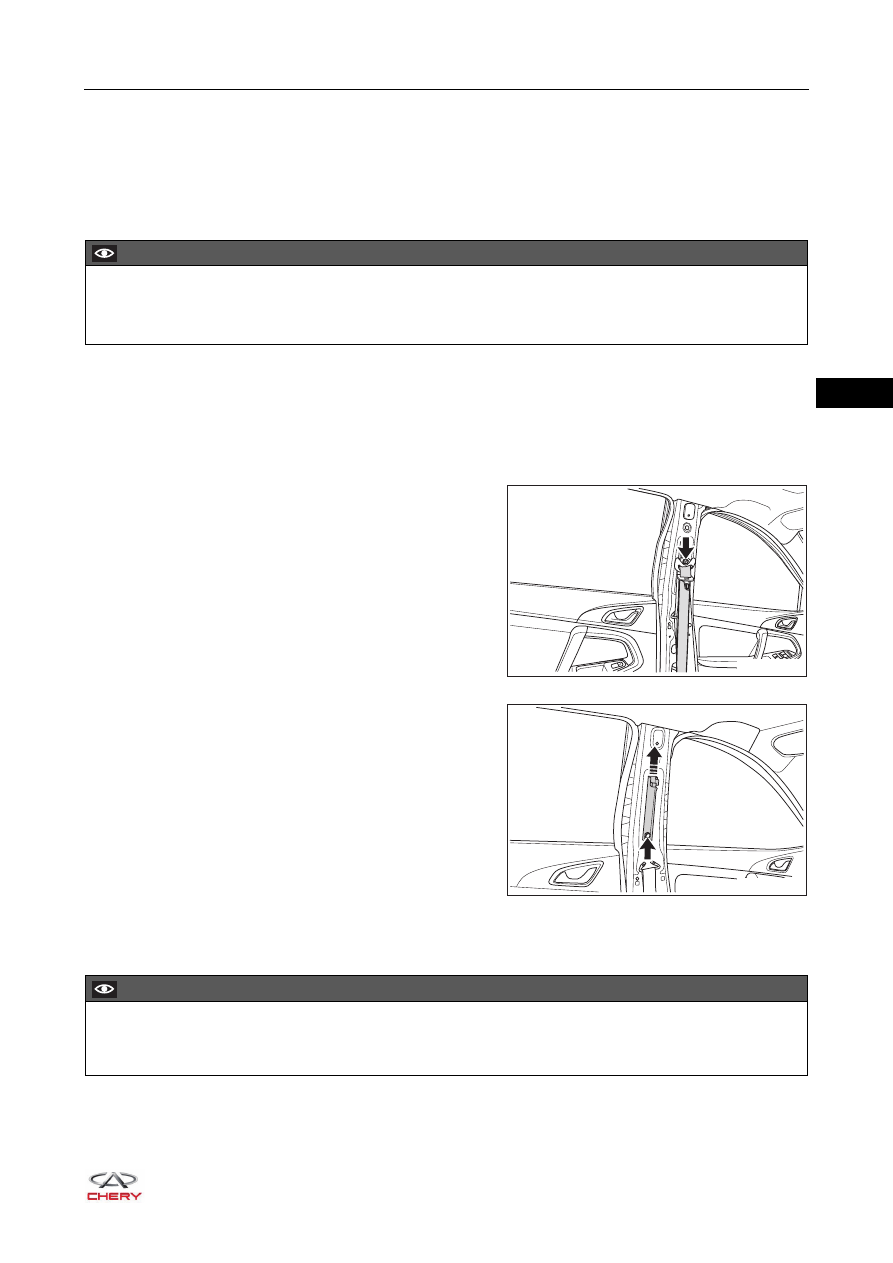

Height Adjuster Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the left B-pillar lower protector assembly (

See page 49-20

).

4. Remove the left B-pillar upper protector assembly (

See page 49-21

).

5. Remove the height adjuster assembly.

a. Remove the fixing bolt (arrow) from upper part of front

seat belt assembly.



(Tightening torque: 50 ± 5 N·m)

b. Remove the fixing bolt (arrow) from the height

adjuster assembly.



(Tightening torque: 23 ± 2 N·m)

c. Remove the height adjuster assembly in the direction

of arrow as shown in the illustration.

Installation

Installation is in the reverse order of removal.

CAUTION

 Make sure to wear safety equipment to prevent accidents when removing the height adjuster assembly.
 DO NOT scratch the interior when removing the height adjuster assembly.

RT21330031

RT21330100

CAUTION

 Make sure to tighten all fixing bolts according to the specified torque when installing the height adjuster

assembly.

33–

14

33

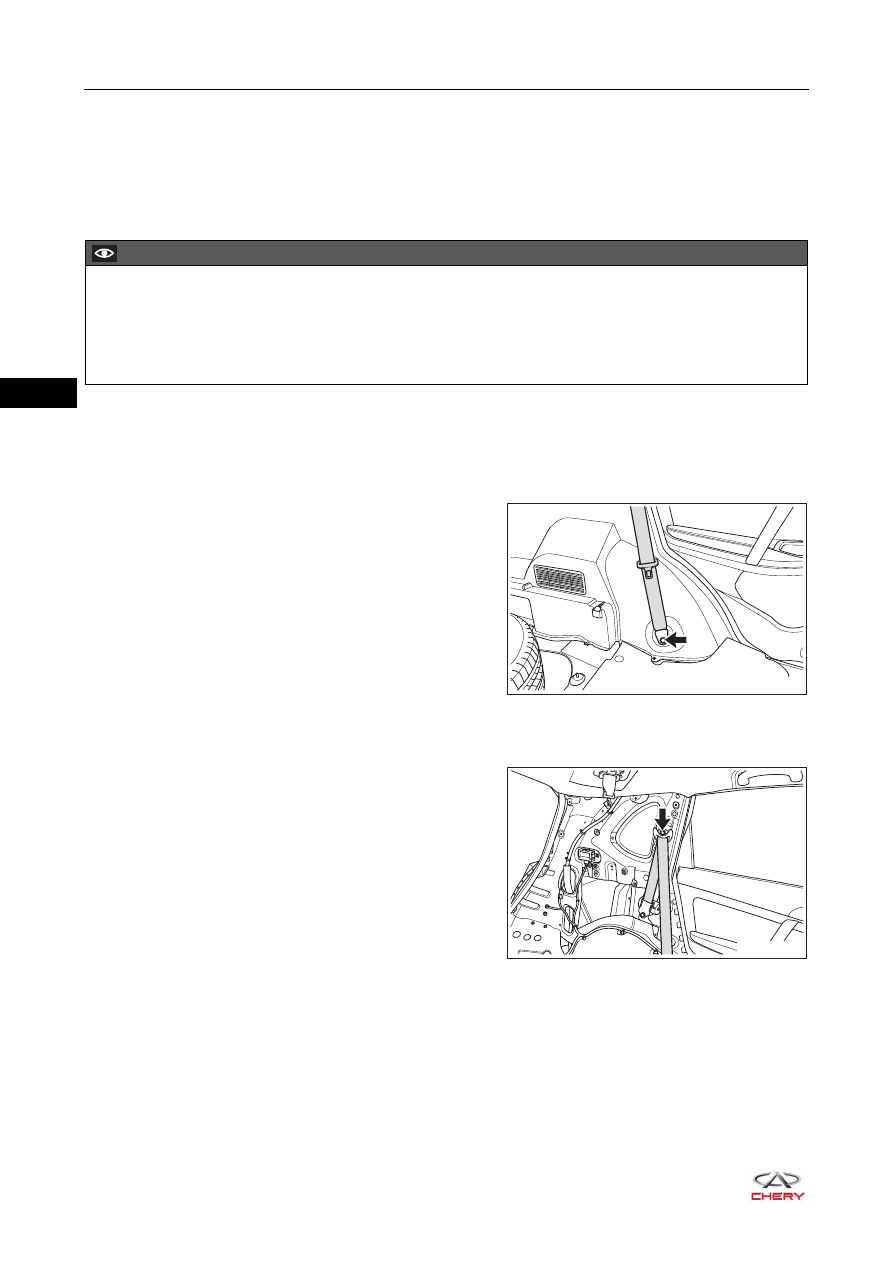

Rear Seat Belt Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the rear seat assembly (

See page 46-25

).

4. Remove the rear left seat belt assembly.

a. Remove the fixing bolt (arrow) from the lower part of

rear seat belt assembly.



(Tightening torque: 50 ± 5 N·m)

b. Remove the left C-pillar lower protector assembly (

See page 49-23

).

c. Remove the left C-pillar upper protector assembly (

See page 49-26

).

d. Remove the fixing bolt (arrow) from the upper part of

rear seat belt assembly.



(Tightening torque: 50 ± 5 N·m)

CAUTION

 Make sure to wear safety equipment to prevent accidents when removing the rear seat belt assembly.
 Appropriate force should be applied when removing the rear seat belt assembly, and avoid operating

roughly.

 DO NOT scratch the interior when removing the rear seat belt assembly.

RT21330110

RT21330121

33–

15

33

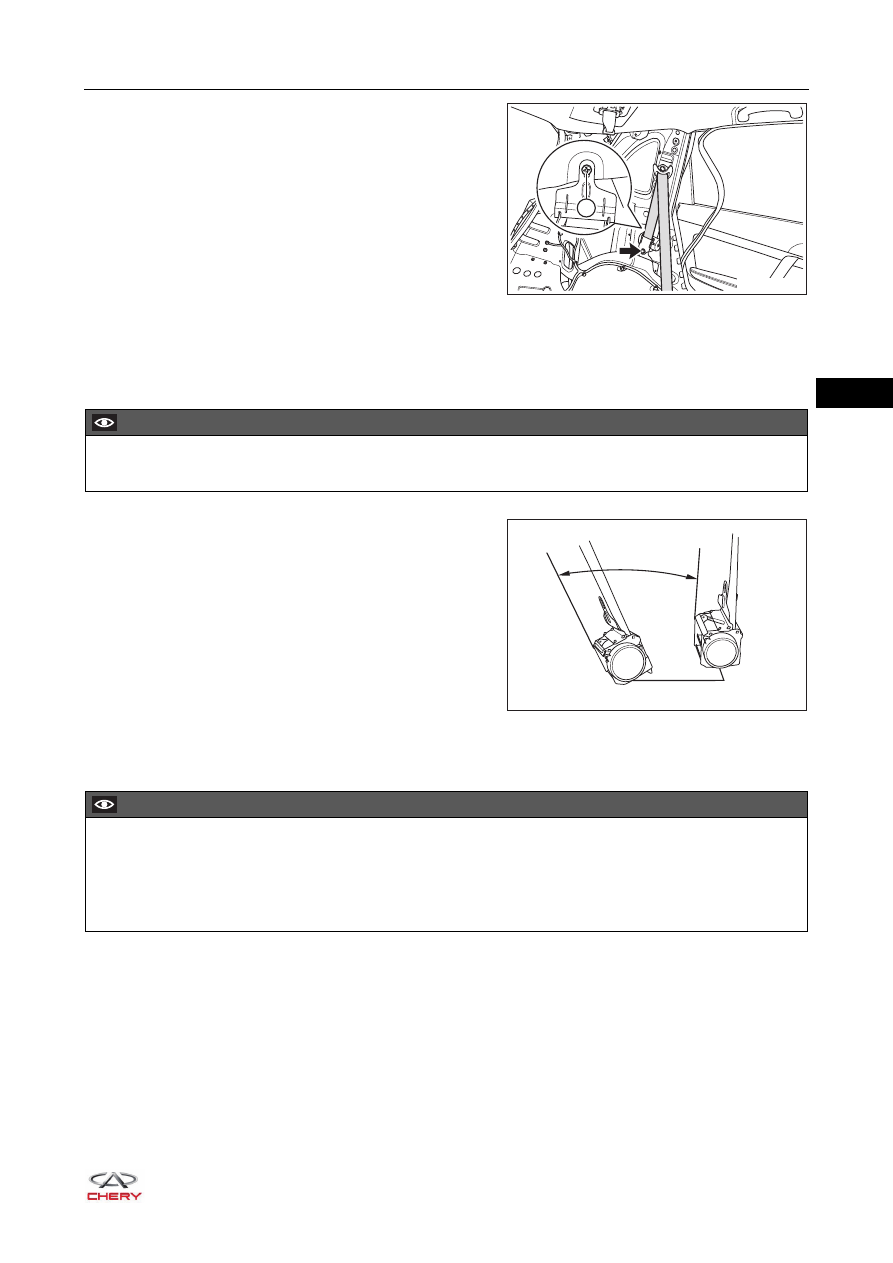

e. Remove the fixing bolt (arrow) from the rear seat belt

retractor.



(Tightening torque: 50 ± 5 N·m)

f. Remove the fixing screw (1) from the rear seat belt

retractor.



(Tightening torque: 1.5 ± 0.5 N·m)

g. Remove the rear left seat belt assembly.

Inspection

Check the rear seat belt retractor.

HINT:
When inclination of rear seat belt retractor is 15° or less,
check that rear seat belt can be pulled out from rear seat belt
retractor. When the inclination of rear seat belt retractor is
over 45°, check that rear seat belt locks.

If result is not as specified, replace the rear seat belt
assembly.

Installation

Installation is in the reverse order of removal.

1

RT21330120

CAUTION

 DO NOT disassemble the rear seat belt retractor.

Unlock

lock

45

o

Retractor

RT21330130

CAUTION

 Keep seat belt assembly clean, avoid attaching oil and check seat belt assembly for damage when

installing the rear seat belt assembly.

 Make sure to tighten all fixing bolts and fixing screws according to the specified torque when installing

rear seat belt assembly.
