Rear Seat Belt Assembly

The front seat belt assembly is a 3 point type belt with limiter and pretensioner, and front seat belt buckle
assembly is a device with alarm function. Front seat belt is equipped with seat belt reminder. The reminder will
not work until ignition switch is turned to ON. If driver or front passenger seat belt unfastened, the reminder
will continue flashing. When vehicle speed exceeds 25 km/h, the buzzer will sound to inform driver and front
passenger to fasten their seat belts. Seat belt reminder will go off immediately after seat belt is fastened.
The rear seat belt assembly is 3 point emergency locking type belt.

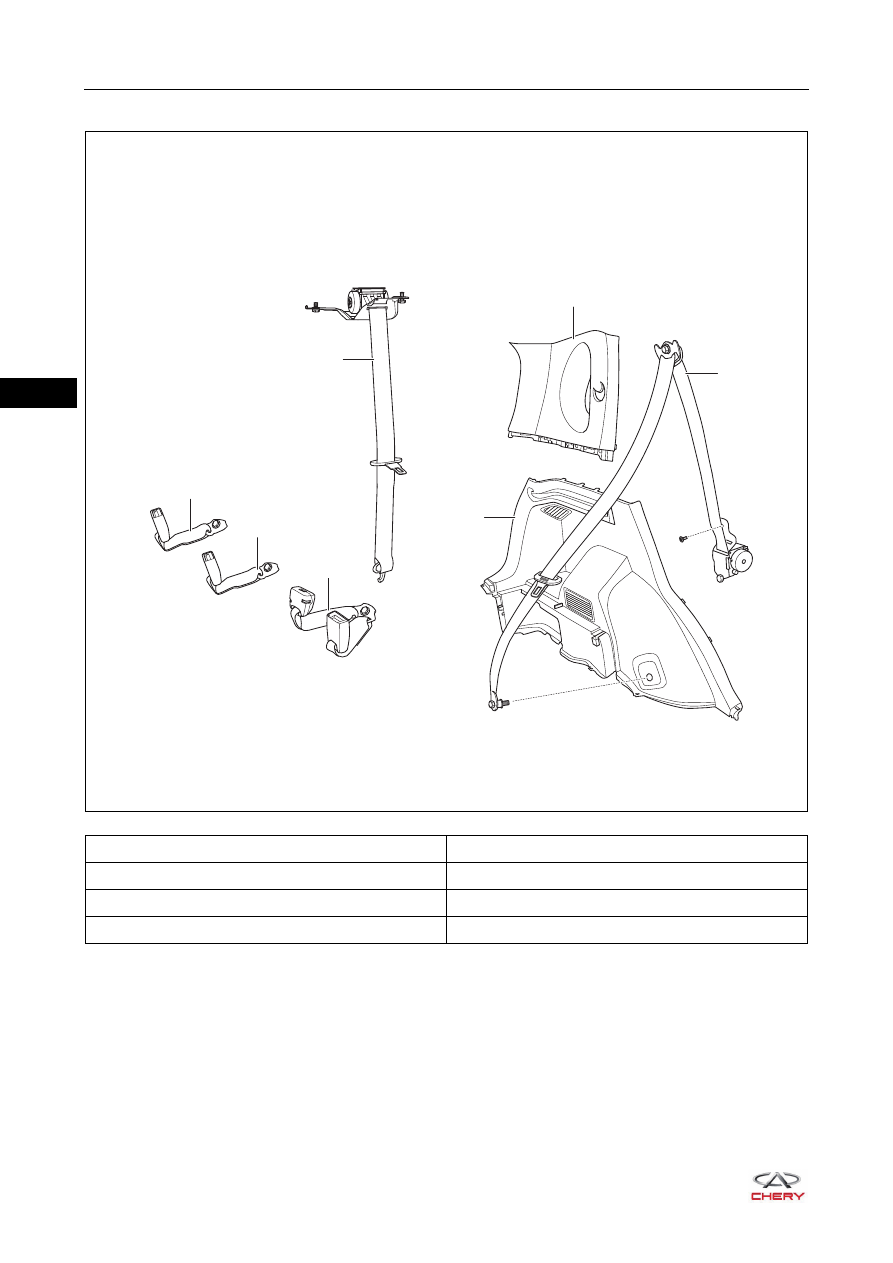

1 - C-pillar Upper Protector Assembly

2 - Rear Seat Belt Assembly

3 - C-pillar Lower Protector Assembly

4 - Center Seat Belt Assembly

5 - Rear Seat Belt Buckle Assembly

6 - Rear Center Seat Belt Buckle Assembly

7 - Rear Right Seat Belt Buckle Assembly

RT21330020

4

3

5

6

7

1

2

33–

5

33

Operation

In the event of a collision, the seat belt lock starts to work. Seat belt is locked securely and cannot be pulled
out from the retractor freely, so that the passenger will be restricted to seat to prevent head and chest from
hitting the steering wheel, instrument panel, windshield or front seat, which can reduce the risk of second
collision.

Specifications

Torque Specifications

Tool

General Tool

Description

Torque (N·m)

Height Adjuster Fixing Bolt

23 ± 2

Front Seat Belt Assembly Fixing Bolt

50 ± 5

Front Seat Belt Retractor Fixing Screw

3 ± 0.5

Front Seat Belt Assembly Center Fixing Screw

1.5 ± 0.5

Rear Seat Belt Assembly Fixing Bolt

50 ± 5

Rear Seat Belt Assembly Fixing Screw

1.5 ± 0.5

Center Seat Belt Assembly Fixing Bolt

50 ± 5

Center Seat Belt Inner Trim Cover Fixing Screw

3 ± 0.5

Rear Seat Belt Buckle Assembly Fixing Bolt

50 ± 5

Rear Center Seat Belt Buckle Assembly Fixing Bolt

50 ± 5

Rear Right Seat Belt Buckle Assembly Fixing Bolt

50 ± 5

Front Seat Belt Buckle Fixing Nut

50 ± 5

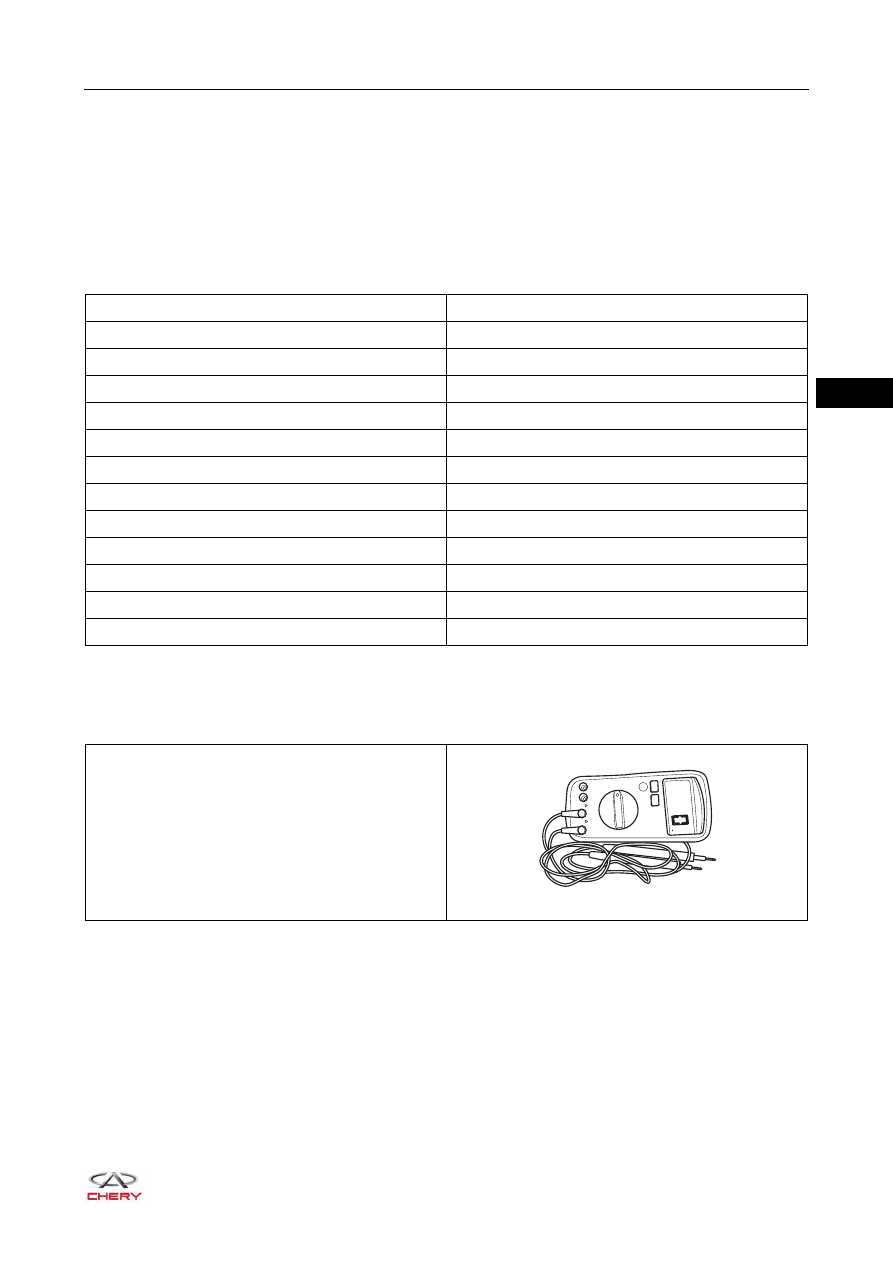

Digital Multimeter

RCH0000002

33–

6

33

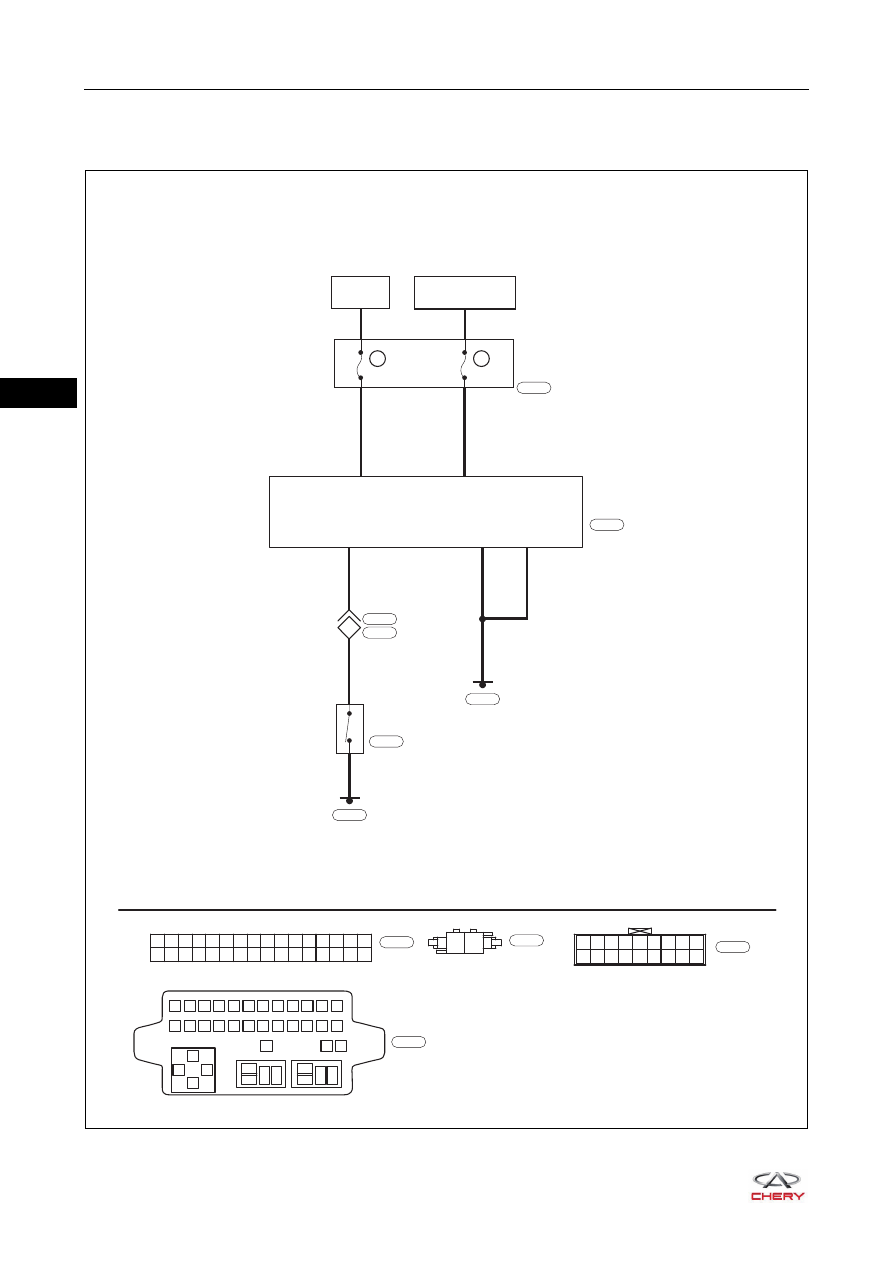

Circuit Diagram

Seat Belt System

ET21330010

19

BG

BG

B

17

B-059

I-035

1

2

B-042

BATTERY

R

P

RF23

10A

INSTRUMENT
CLUSTER

DRIVER SEAT
BELT SWITCH

23

10A

RF06

6

11

13

IGNITION SWITCH
    ON OR START

INSTRUMENT
PANEL
FUSE AND
RELAY BOX  A

I-003

3

5

B

Br

1

2

3

4

5

6

7

8

9 10 11 12

13

85

85

87

87 30

87 30

30

86

86

85

86

14 15 16 17 18 19 20 21 22 23 24

25

27

26

1

2

32

31

30

29

28

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

27

26

25

24

23

22

21

20

19

18

17

L

I-015

I-015

I-007

18 17 16 15 14 13 12 11 10

9

8

7

6

5

4

3

2

1

W

I-035

B

B-039

B-039

B

I-007

33–

7

33

DIAGNOSIS & TESTING

Seat Belt Inspection

1. When pulling seat belt downward slowly by hand, the seat belt should be pulled out smoothly from the

retractor and can return back after releasing. If it is not as specified, replace the seat belt.



The seat belt should be locked automatically as it is pulled out quickly. If not, replace the seat belt.

2. Check seat belt for cuts, wear and looseness. If damaged, replace the seat belt assembly.
3. Check seat belt for overstretch (for example after accident). If damaged, replace the seat belt assembly or

related components.

4. Tighten and release seat belt and seat belt buckle repeatedly to check engagement between them. If those

conditions (difficult operation, excessive sliding resistance and sticking, etc.) occur, replace the seat belt
assembly or seat belt buckle assembly.

WARNING

 The seat belt system should be checked regularly to reduce the possibility and serious level of injury

caused by accident.

 When checking impacted vehicle, be sure to check the seat belt system to reduce the possibility and

serious level of injury caused by accident.
