ON-VEHICLE SERVICE

Steering Fluid Reservoir Assembly

Removal

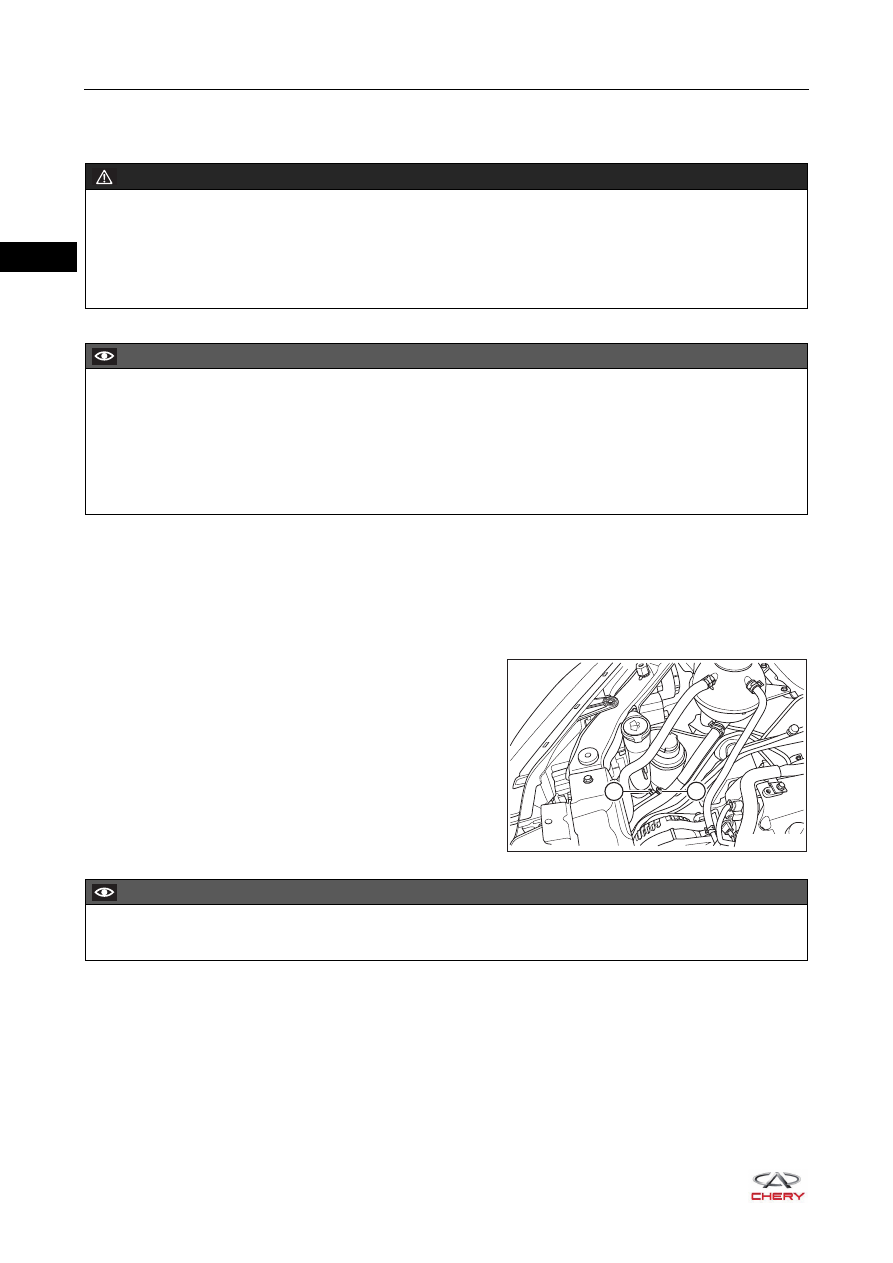

1. Drain the steering fluid (

See page 29-7

).

2. Remove the steering fluid reservoir assembly.

a. Remove the fluid suction pipe clamp (1) on steering

fluid reservoir, and disconnect the connection
between fluid suction pipe assembly and steering fluid
reservoir assembly.

b. Remove the fluid return pipe clamp (2) on steering

fluid reservoir, and disconnect the connection
between fluid return pipe assembly and steering fluid
reservoir assembly.

c. Pull the steering fluid reservoir assembly upward to remove it from the steering pump bracket.

Inspection

1. Check steering fluid reservoir assembly for breakage or deformation. Replace fluid reservoir if necessary.
2. Check if there is contamination in steering fluid reservoir assembly. Clean or replace if necessary.

WARNING

 Be sure to wear necessary safety equipment to prevent accidents when servicing.
 When removing and installing high temperature components and surrounding components, wait and

operate until they drops to normal temperature to avoid being burned.

 Prevent skin and eyes from contacting with steering fluid.

CAUTION

 After disconnecting steering line, seal it immediately to prevent foreign matter from entering.
 Never run power steering pump assembly when the steering fluid is insufficient.
 Steering wheel should not be in limit positions for more than 5 seconds.
 Never start engine with hose loosened or disconnected.
 Never allow hose to contact with high temperature exhaust pipe.

1

2

RT21290040

CAUTION

 Using a plug, clog the disconnected pipe to prevent foreign matter from entering.

29–

11

29

Installation

Installation is in the reverse order of removal.

CAUTION

 Install fluid suction pipe clamp and fluid return pipe clamp in place.
 Never tap or hit the fluid reservoir.

29–

12

29

Steering Fluid Pipe

Removal

1. Drain the steering fluid (

See page 29-7

).

2. Remove the front bumper (

See page 48-11

).

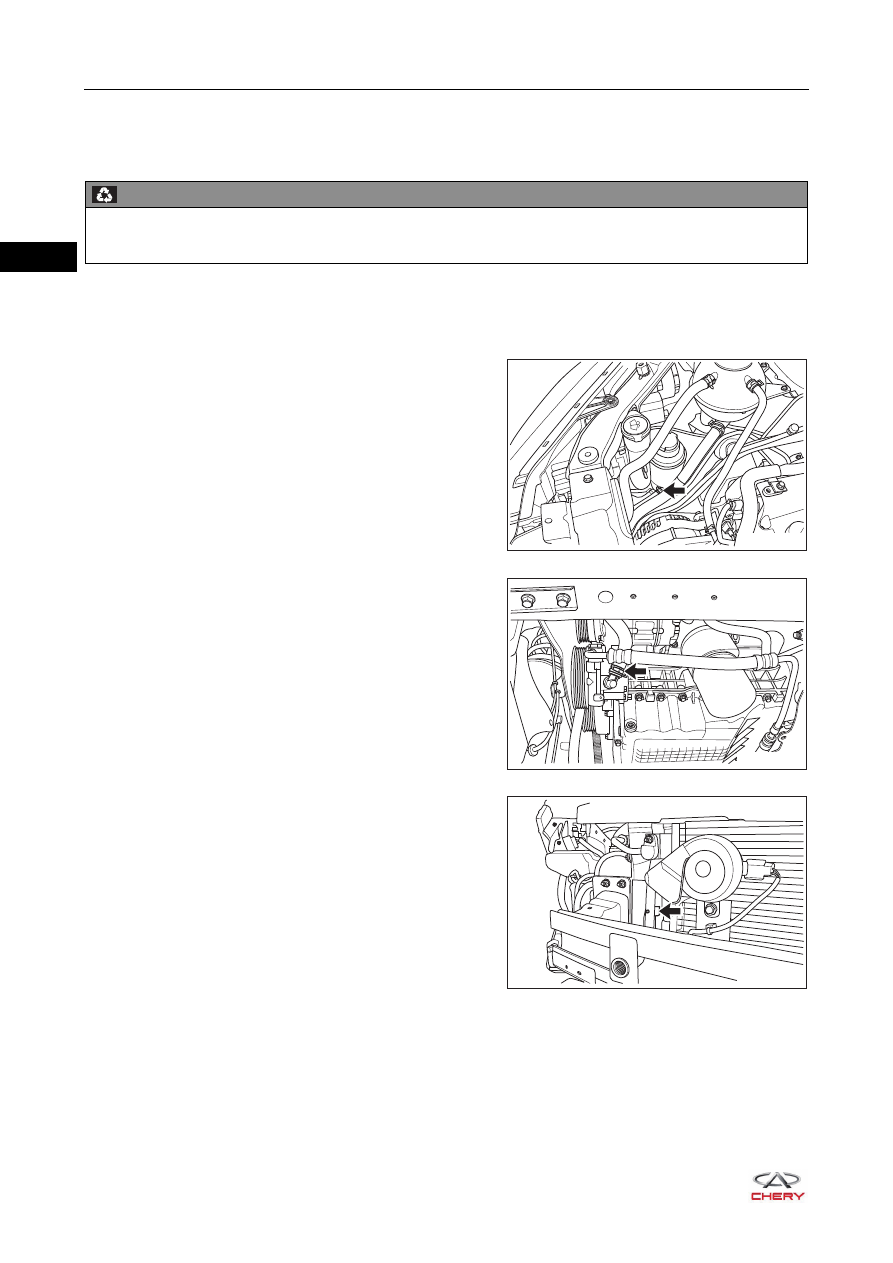

3. Remove the fluid suction pipe.

a. Remove the fluid suction pipe clamp (arrow) on

steering fluid reservoir, and disconnect the connection
between fluid suction pipe and steering fluid reservoir
assembly.

b. Remove the fluid suction pipe clamp (arrow) on the

power steering pump assembly side.

c. Loosen the plastic pipe clamp from the front vertical

board of body.

d. Remove the fluid suction pipe.

ENVIRONMENTAL PROTECTION

 Collect residual steering fluid in the line with a container when disconnecting the line.

RT21290041

RT21290020

RT21290050

29–

13

29

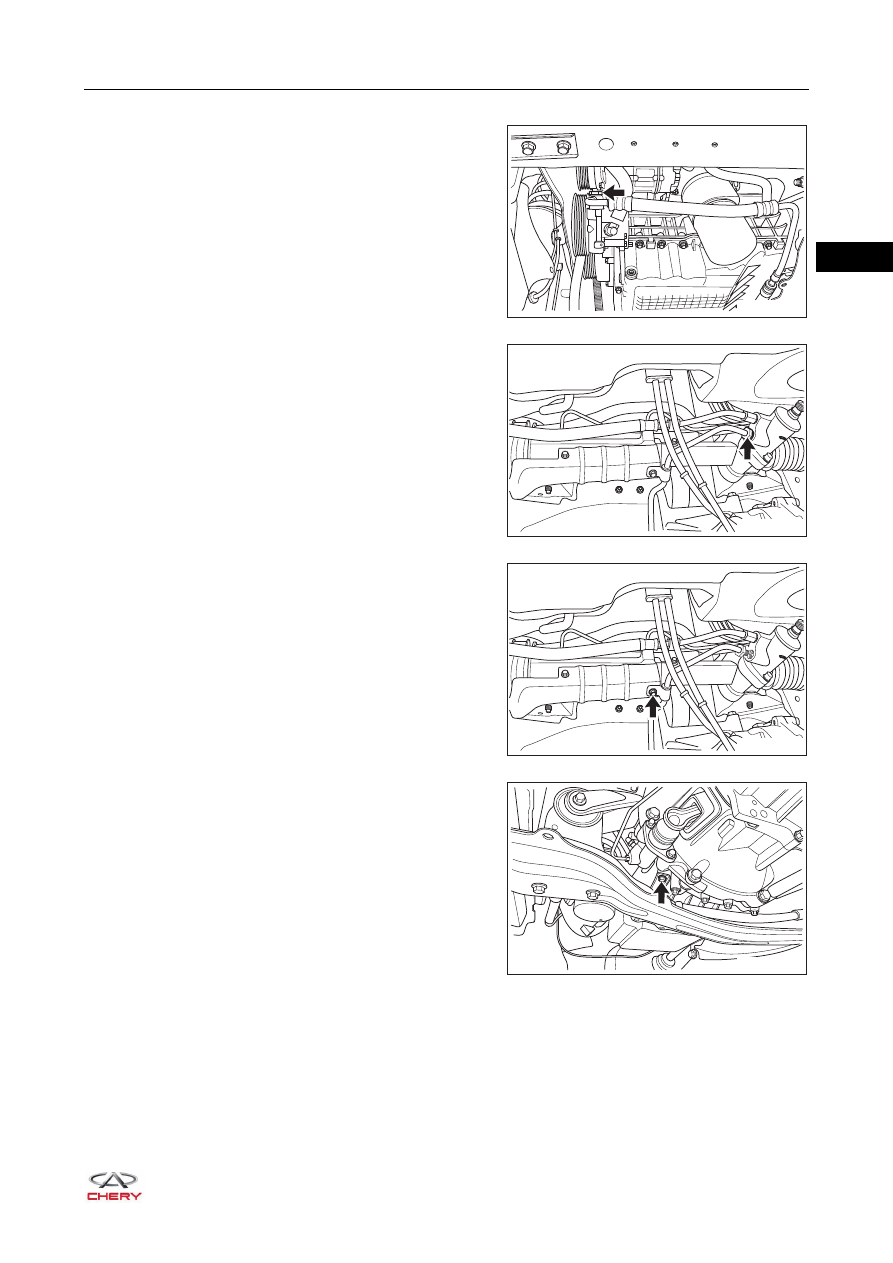

4. Remove the high pressure fluid pipe.

a. Remove the high pressure fluid pipe joint hollow bolt

(arrow) from the power steering pump assembly.
(Tightening torque: 40 ± 3 N·m)

b. Remove the high pressure fluid pipe clamping bolt

from the steering gear assembly.



(Tightening torque: 30 ± 3 N·m)

c. Remove the high pressure fluid pipe bracket bolt 1

(arrow).



(Tightening torque: 9 ± 1 N·m)

d. Remove the high pressure fluid pipe bracket bolt 2

(arrow).



(Tightening torque: 9 ± 1 N·m)

e. Remove the high pressure fluid pipe.

RT21290021

RT21290060

RT21290061

RT21290070
