Chery Tiggo 5 (T21). Manual - part 310





28–

22

28

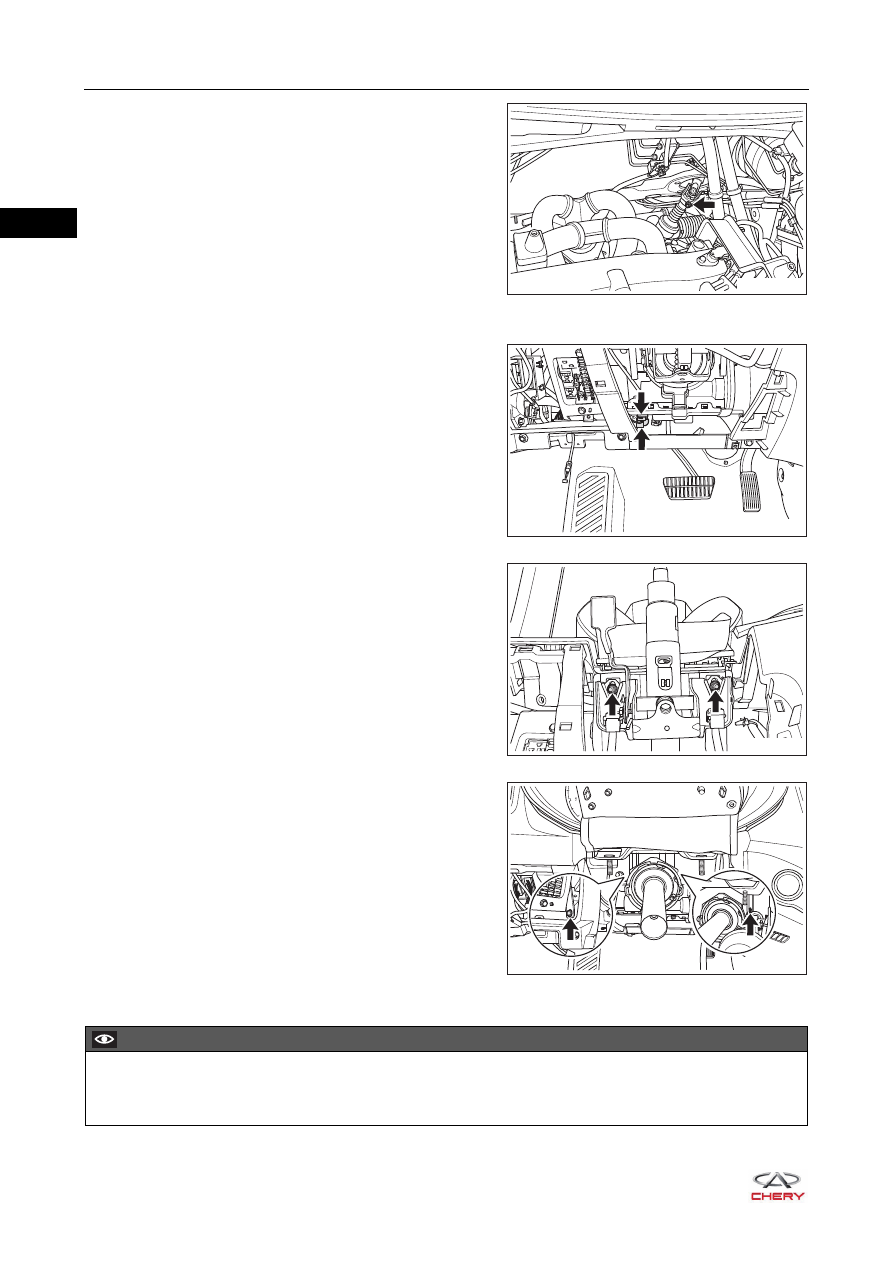

12.Remove the coupling bolt (arrow) between steering

column with intermediate shaft assembly and steering
gear input shaft.

(Tightening torque: 60 ± 5 N·m)

13.Remove the steering column with intermediate shaft assembly.

a. Disconnect 2 connectors (arrow) from the electronic

controller.

b. Remove 2 fixing nuts (arrow) from the upper bracket

of steering column assembly, and then remove the
upper part of steering column.

(Tightening torque: 25 ± 3 N·m)

c. Remove 2 fixing bolts (arrow) from the lower bracket

of steering column assembly.

(Tightening torque: 25 ± 3 N·m)

d. Carefully remove the steering column with intermediate shaft assembly from underneath.

RT21280240

RT21280250

RT21280260

10

15

25

25

RT21280270

CAUTION

 DO NOT touch the interior ornament when removing the steering column with intermediate shaft

assembly to avoid scratching the interior ornament.

28–

23

28

Disassembly

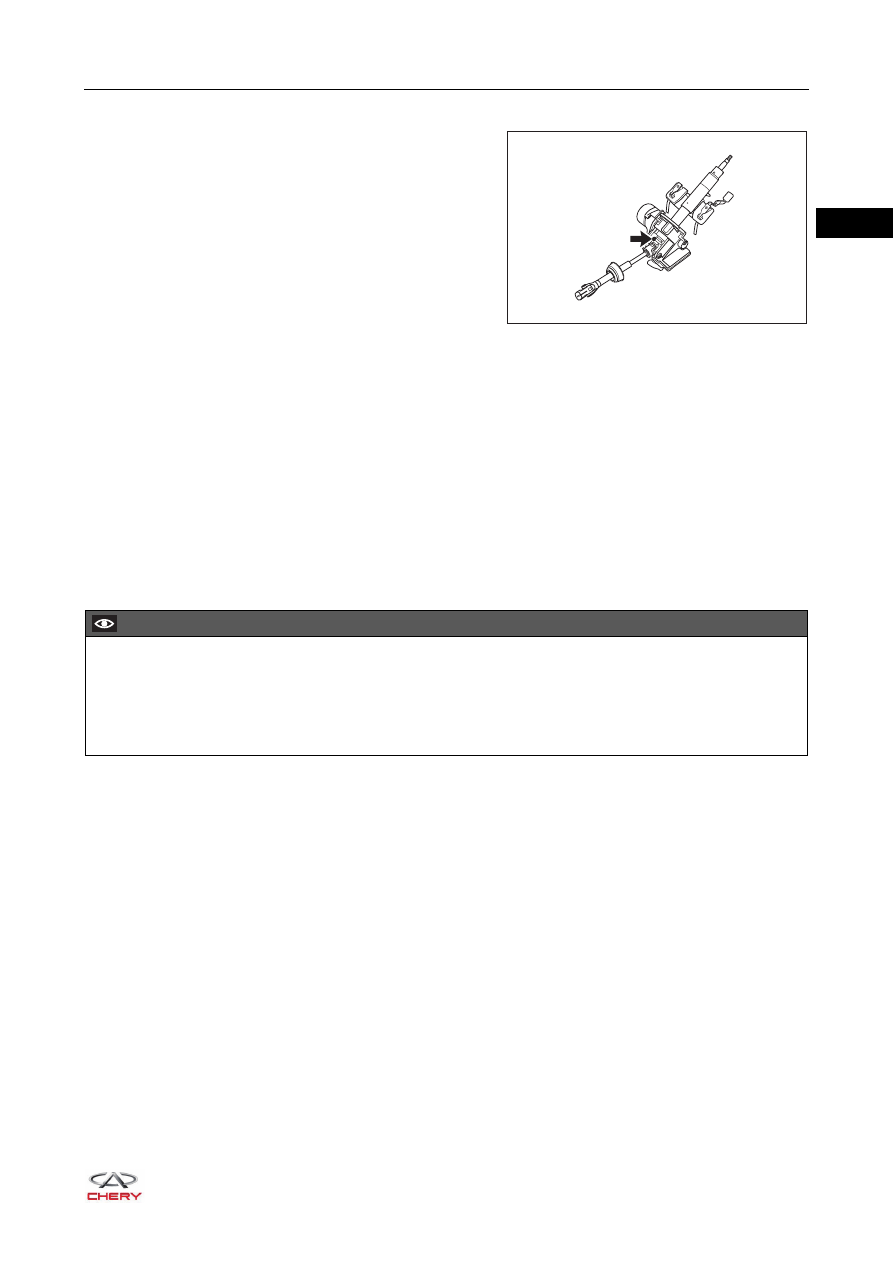

1. Remove the coupling bolt (arrow) between electronic

power steering column and intermediate shaft.

(Tightening Torque: 50 N·m)

Inspection

1. Check if electronic controller is normal. Replace the electronic controller if necessary.
2. Check steering column assembly for wear, cracks or deformation, and welding or correction is not allowed.

Replace the steering column assembly if necessary.

3. Check steering column bearing for looseness, wear or sticking. Replace the steering column assembly if

necessary.

Assembly

Assembly is in the reverse order of disassembly.

Installation

Installation is in the reverse order of removal.

RT21280280

CAUTION

 Before installing steering column assembly, slide the spline at lower part of steering column assembly

onto intermediate shaft upper universal joint first.

 Tighten the fixing nuts, bolts and screws in place.
 Install each connector in place.

28–

24
