ON-VEHICLE SERVICE

Steering Wheel Assembly

Removal

1. Set steering wheel to straight-ahead position.
2. Turn off all the electrical equipment and ignition switch.
3. Disconnect the negative battery cable.

4. Remove the driver airbag assembly (

See page 32-65

).

5. Remove the steering wheel assembly.

a. Secure the steering wheel assembly, and put

matchmarks on the steering wheel assembly and
steering column assembly, then remove the steering
wheel assembly fixing nut.



(Tightening torque: 35 ± 3 N·m)

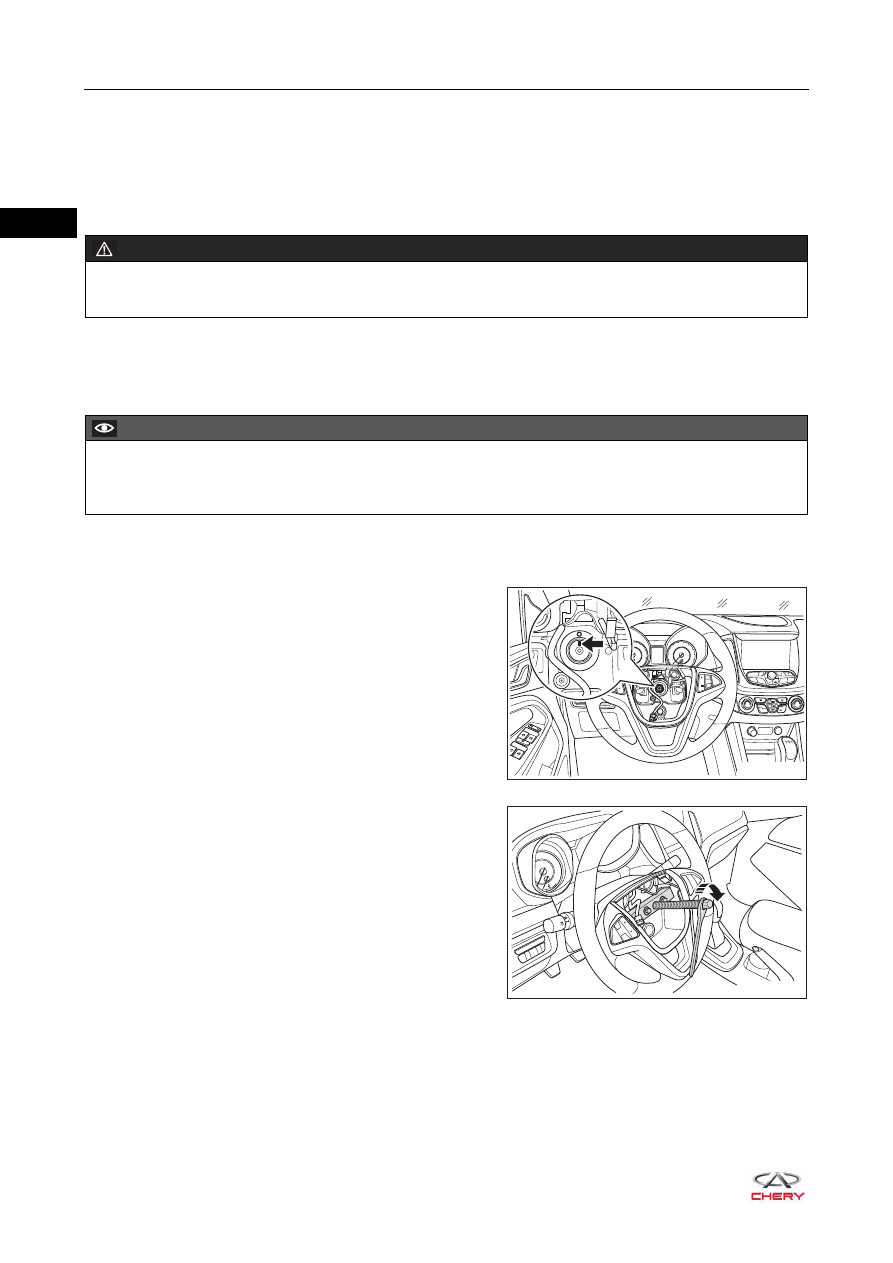

b. As shown in the illustration, install the steering wheel

remover, and then tighten it with a wrench to loosen
the steering wheel assembly from the steering column
assembly.

WARNING

 Be sure to read the precautions for SRS airbag before removing the steering wheel (

See page 32-65

).

CAUTION

 Wait at least 90 seconds after disconnecting the negative battery cable to prevent airbag and belt

pretensioner from being activated.

3

4

5

6

7

8

1

2

x1000

H

20

40

60

80

100 120

140

160

180

200

220

L

R

MODE

VOL-

VOL+

NAV1

MENU

BAND

SET

2 4 R

3 5

1

A/C

RES/+

SET/-

ON
OFF

RT21280040

OFF

5

6

7

8

MODE

VOL-

VOL+

RT21280050

28–

11

28

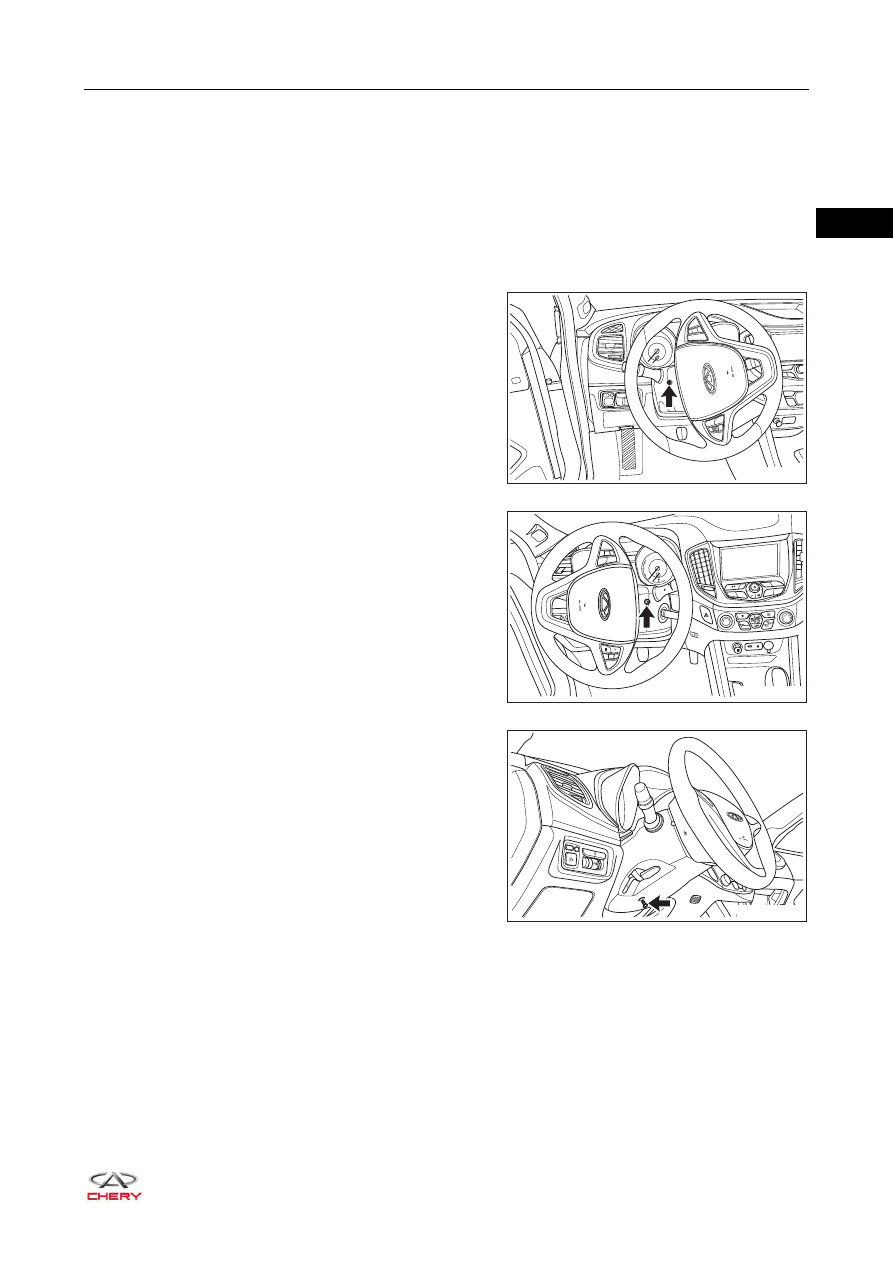

c. Cut the wire harness band (arrow).

d. Disconnect the steering wheel quick button connector

(arrow).

e. Remove the steering wheel assembly.

Inspection

1. Check the steering wheel assembly body for damage or deformation. Replace the steering wheel

assembly if necessary.

2. Check the spline in the steering wheel assembly for damage. Replace the steering wheel assembly if

necessary.

3

4

5

6

7

8

1

2

x1000

H

20

40

60

80

100 120

140

160

180

200

220

L

R

MODE

VOL-

VOL+

NAV1

MENU

BAND

SET

2 4 R

3 5

1

A/C

RES/+

SET/-

ON
OFF

RT21280041

RT21280060

CAUTION

 Be careful when removing the steering wheel assembly to prevent damage to the airbag connector, horn

connector and quick button connector on the spiral cable.

28–

12

28

Installation

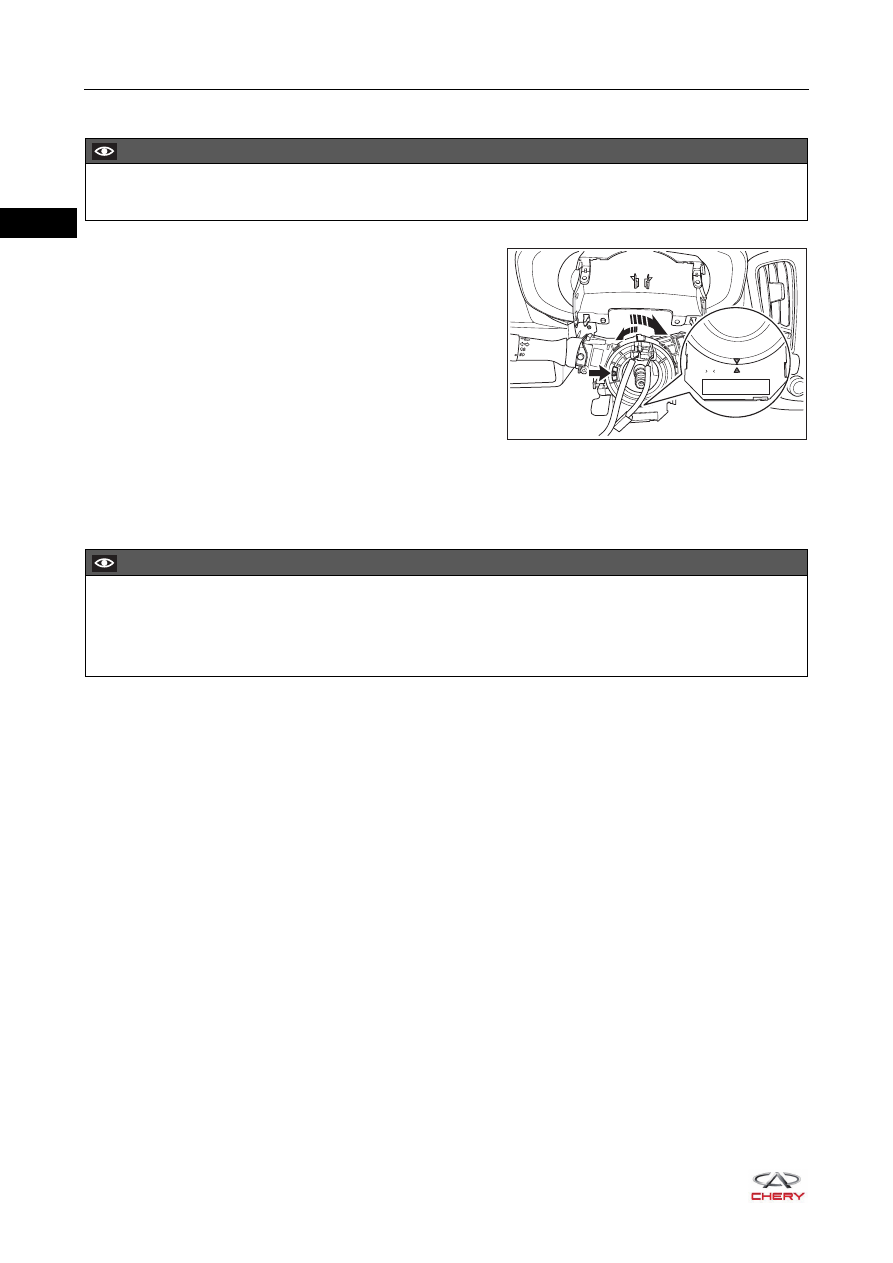

1. Adjust the spiral cable to correct position.

HINT:
Fully turn the spiral cable inner circle clockwise when
realigning the center, and then turn it counterclockwise to
align with ►◄ while yellow ball (arrow) occurs in the
clear vertical window. Failure to follow these instructions
may affect normal function of airbag system and cause
injury to driver.

2. Pass the airbag connector, horn connector through the hole of steering wheel assembly, and connect the

steering wheel quick button connector. Then align the matchmarks on steering wheel assembly and
steering column assembly to install the steering wheel assembly.

3. Other installation procedures are in the reverse order of removal.

CAUTION

 Check that front wheels are in the straight-ahead position before installing steering wheel assembly.

ON

OFF

REAR

INT

PULL

MIST

OFF
INT

LO
HI

OFF

PBT

RT21280070

CAUTION

 Tighten steering wheel assembly fixing nut to the specified torque.
 Install each connector in place.
 After repairing, check that airbag system operates normally.

28–

13

28

Combination Switch Cover

Removal

1. Set steering wheel to straight-ahead position.
2. Turn off all the electrical equipment and ignition switch.
3. Remove the combination switch cover.

HINT:
Remove the steering wheel assembly first, and then remove combination switch cover if necessary.

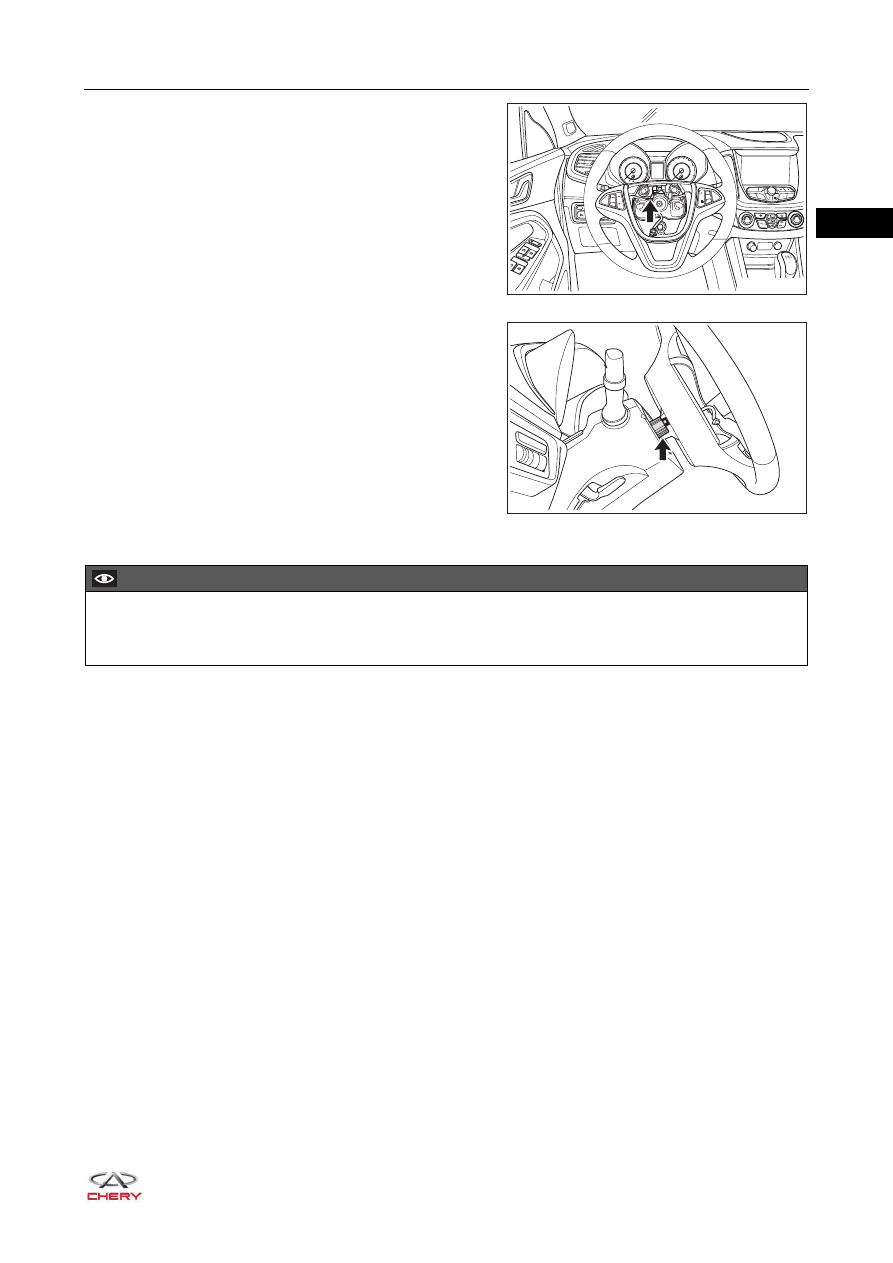

a. Turn the steering wheel to left, and remove the left

side fixing screw (arrow) from the combination switch
cover.



(Tightening torque: 2 ± 0.5 N·m)

b. Turn the steering wheel to right, and remove the right

side fixing screw (arrow) from the combination switch
cover.



(Tightening torque: 2 ± 0.5 N·m)

c. Remove the lower fixing screw (arrow) from the

combination switch cover.



(Tightening torque: 2 ± 0.5 N·m)

RT21280080

MODE

VOL+

<

<

VOL-

ON

OFF

RESI+

SETI-

60

40

20

220

MIST
OFF

INT

INT

LO

HI

PULL

0

BAND

NAVI

MENU

A/C

OFF ON

SET

<

<

RT21280090

L R

2

3

OFF

OFF

1

RT21280100
