Inspection

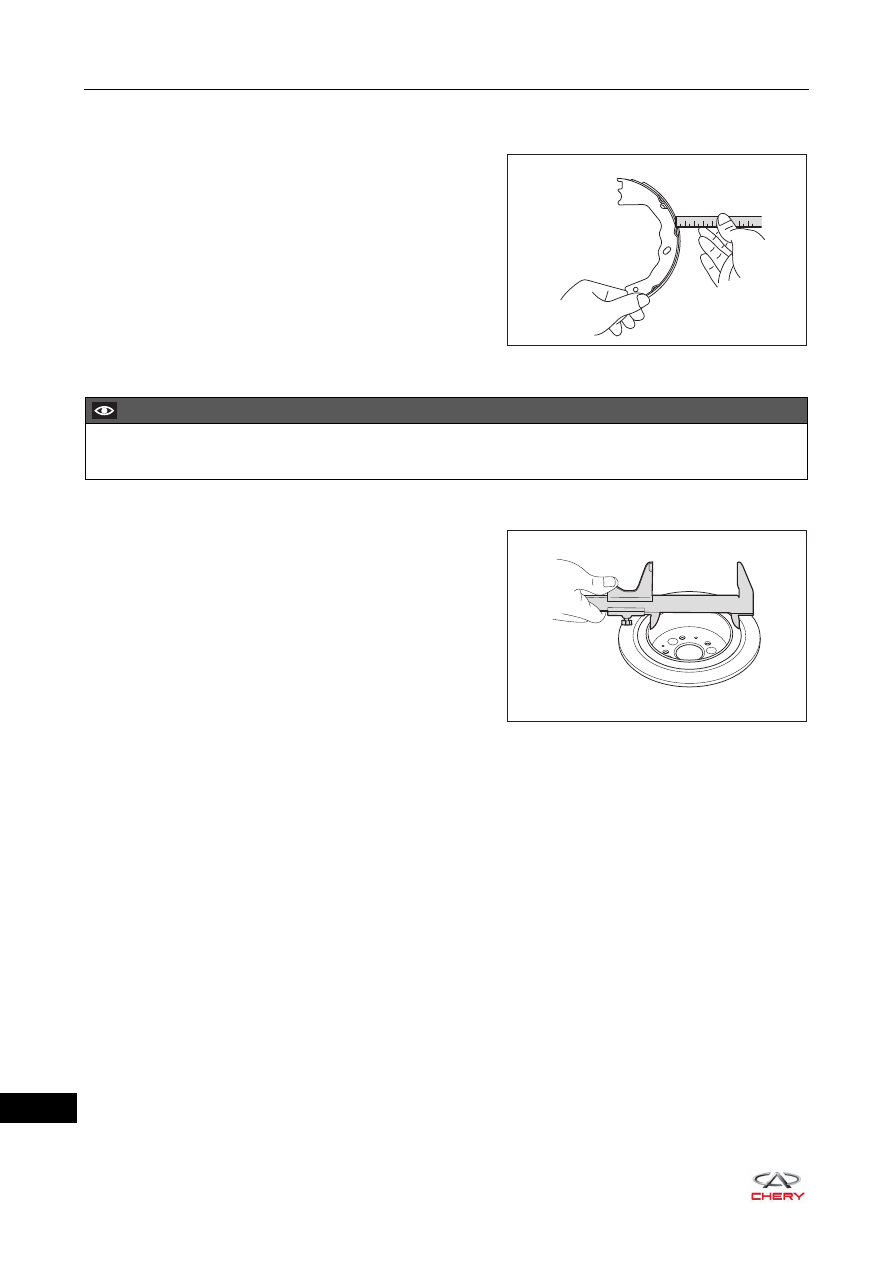

1. Check the thickness of brake shoe lining.
a. Using a ruler, measure the thickness of brake shoe
lining as shown in the illustration.
Standard thickness: 3 mm
Minimum thickness: 1 mm
b. If thickness of brake shoe lining is equal to or less than the minimum value, replace brake shoe lining.
2. Check the rear brake disc inner diameter.
a. Using a vernier caliper or equivalent, measure rear
brake disc inner diameter.
Standard inner diameter: 186 mm
Maximum inner diameter: 188 mm
b. If rear brake disc inner diameter is more than the maximum value, replace rear brake disc.
3. Check other components.
a. Check if brake shoe return tension spring (upper) is broken, bent, damaged or elasticity is weak.
Replace as necessary.
b. Check if brake shoe return tension spring (lower) is broken, bent, damaged or elasticity is weak.
Replace as necessary.
c. Check if parking push rod and pulling arm is broken, bent or damaged. Replace as necessary.
d. Check if parking pulling arm dust boot is worn, cracked or dirty. Replace as necessary.
e. Check if brake shoe stopper spring set is broken, bent, damaged or elasticity is weak. Replace as
necessary.
f. Check if brake shoe clearance adjustment mechanism assembly is struck, damaged or slides off.
Replace as necessary.
RT21270240
CAUTION
Replace brake shoe linings in pairs. DO NOT replace it alone.
RT21270250
