Chery Tiggo 5 (T21). Manual - part 302





27–

12

27

Installation

Installation is in the reverse order of removal.

HINT:
Be sure to check parking brake control mechanism stroke after installing parking brake control mechanism
assembly. Adjust parking brake control mechanism stroke to the proper position by adjusting parking brake
control mechanism locking nut if necessary.

CAUTION

 Always tighten coupling bolts and nuts to the specified torque.

27–

13

27

Parking Brake Rear Cable Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.
1. Remove the rear wheel (

See page 24-9

).

2. Remove the auxiliary fascia console assembly (

See page 45-9

).

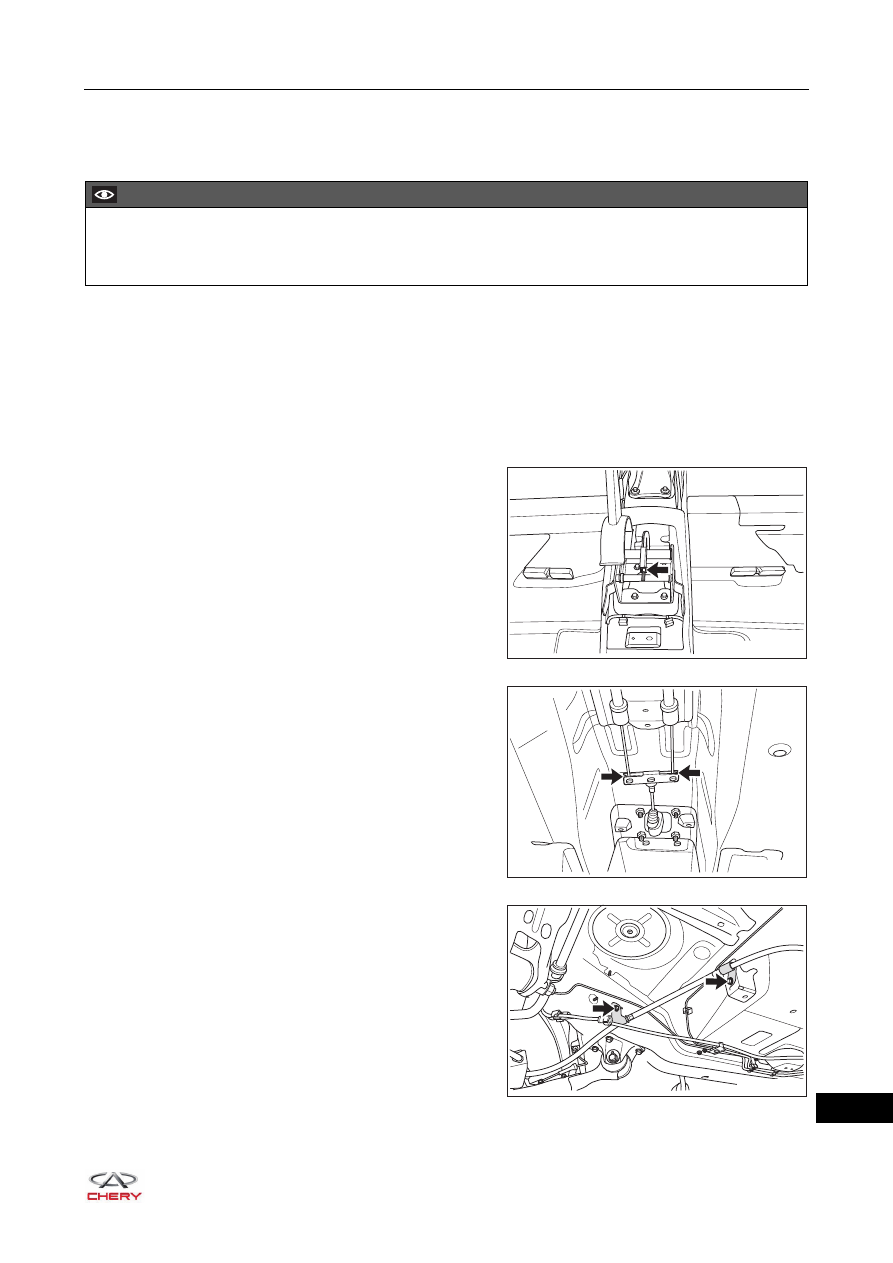

3. Remove the parking brake rear cable assembly.

a. Fully release the parking brake control mechanism.
b. Loosen the locking nut (arrow) of parking brake

control mechanism assembly to release the tension of
parking brake cable assembly as shown in the
illustration.

c. Disengage the parking brake rear cable assembly

from two grooves (arrow) on the rear of parking brake
front cable assembly.

d. Loosen the coupling bolts (arrow) between parking

brake rear cable assembly fixing bracket and body,
and disengage the cable fixing bracket.

(Tightening torque: 23 ± 2 N·m)

CAUTION

 Be sure to wear necessary safety equipment to prevent accidents when repairing.
 Try to prevent body paint surface from being scratched during removal and installation.

RT21270030

RT21270080

RT21270090

27–

14

27

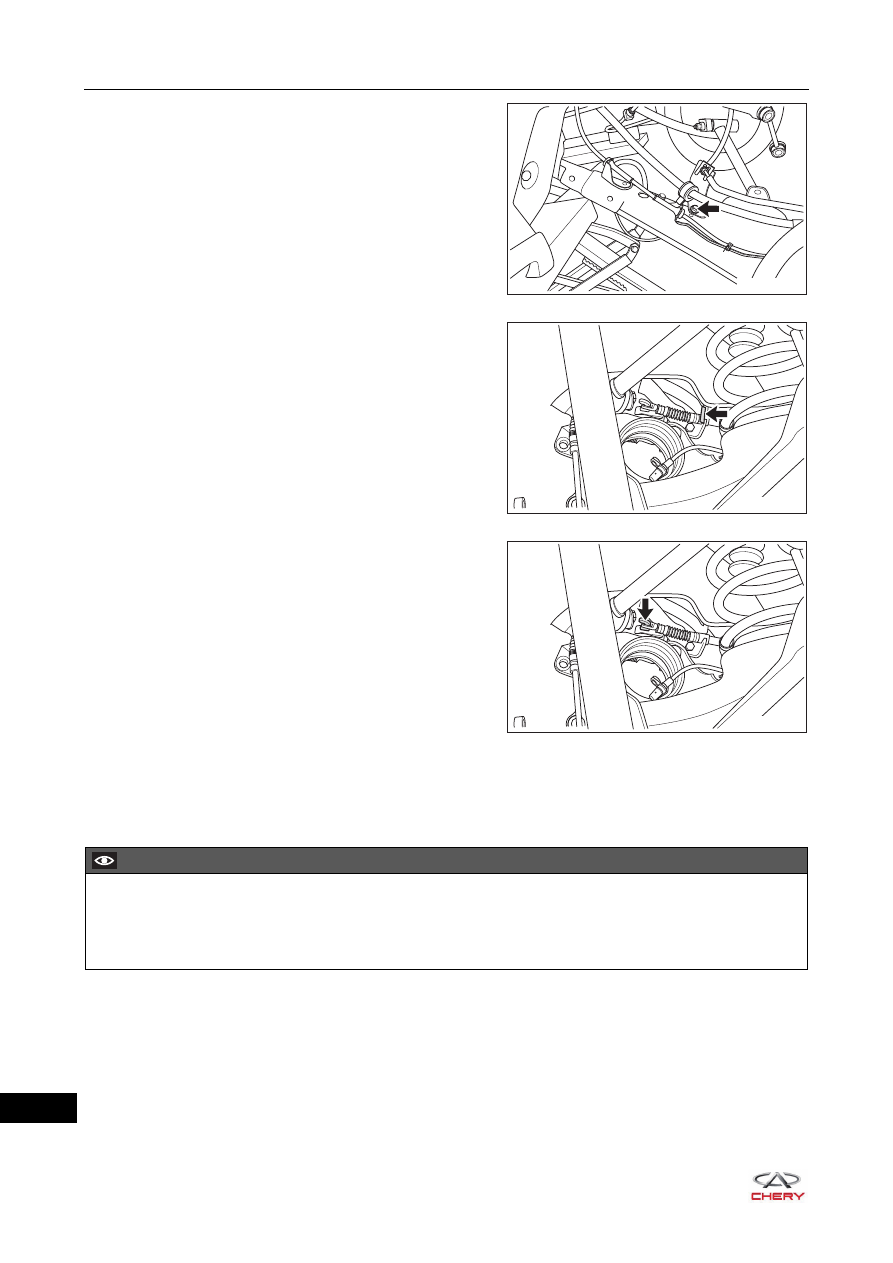

e. Loosen the coupling bolt (arrow) between parking

brake rear cable assembly fixing bracket and rear
trailing arm assembly, and disengage the cable fixing
bracket.

(Tightening torque: 23 ± 2 N·m)

f. Remove the fixing clamp (arrow) and disengage the

parking brake rear cable assembly from the fixing
bracket.

g. Disengage the parking brake rear cable assembly end

(arrow) from the parking brake pulling arm.



h. Remove the parking brake rear cable assembly.

Installation

Installation is in the reverse order of removal.

HINT:
Parking brake should be adjusted after replacing brake shoe or parking brake cable assembly. Check if
parking brake functions properly after adjustment is completed.

 Fully pull up parking brake control mechanism.
 Release parking brake control mechanism and check if rear wheels rotate freely.
 If wheels are difficult to rotate freely, repeat adjustment procedures.
 After driving for a period of time, parking brake control mechanism stroke should be readjusted because of

wear of rear brake shoe linings.

RT21230450

RT21270100

RT21270110

CAUTION

 Always tighten coupling bolts and nuts to the specified torque.
 During installation, make sure to align the positioning part of parking brake rear cable assembly fixing

bracket and the positioning hole on body.

27–

15

27

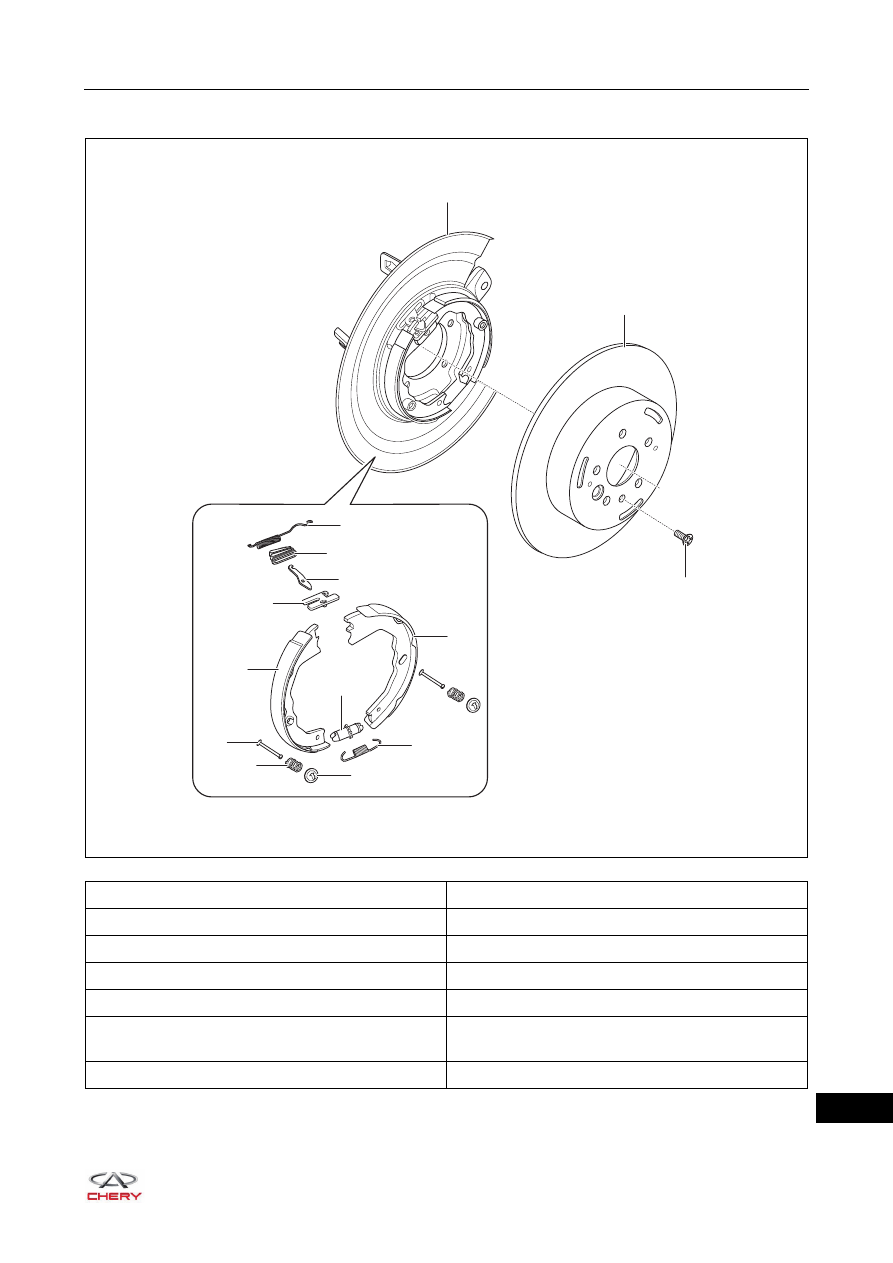

Rear Brake Assembly

1 - Rear Brake Disc

2 - Rear Brake Assembly

3 - Brake Shoe Return Tension Spring (Upper)

4 - Parking Pulling Arm Dust Boot

5 - Parking Pulling Arm

6 - Parking Push Rod

7 - Left Parking Brake Shoe Lining

8 - Compressed Spring Tie Rod

9 - Brake Shoe Compressed Spring

10 - Compressed Spring Seat

11 - Brake Shoe Return Tension Spring (Lower)

12 - Brake Shoe Clearance Adjustment Mechanism

Assembly

13 - Right Parking Brake Shoe Lining

14 - Rear Brake Disc Positioning Screw

RT21270111

3

4

5

6

7

8

9

2

1

12

13

10

11

14
