Chery Tiggo 5 (T21). Manual - part 300

27–

4

27

Description

All vehicles are equipped with a manual-operated parking brake control mechanism assembly, which is
mounted on the center position of front seats. The tension balance block is built into parking brake control
mechanism assembly. Each rear wheel has an individual parking brake rear cable assembly, which is
respectively connected with the parking brake control mechanism assembly and rear brake shoe assembly.
The parking brake cable is made of flexible wire.

Specifications

Torque Specifications

Rear DIH (Drum-in-hat)

Description

Tightening Torque (N·m)

Wheel Mounting Bolt

110 ± 10

Coupling Bolt Between Parking Brake Control
Mechanism Assembly and Body

23 ± 2

Coupling Bolt Between Parking Brake Rear Cable
Assembly Fixing Bracket and Body

23 ± 2

Coupling Bolt Between Parking Brake Rear Cable
Assembly Fixing Bracket and Rear Trailing Arm
Assembly

23 ± 2

Coupling Bolt Between Parking Brake Rear Cable
Assembly Fixing Bracket and Rear Brake Bottom
Board Assembly

23 ± 2

Coupling Bolt Between Rear Brake Line Fixing
Bracket and Rear Brake Bottom Board Assembly

23 ± 2

Description

Standard Thickness (mm)

Minimum Thickness (mm)

Rear Brake Shoe Lining

3

1

Description

Standard Inner Diameter (mm)

Maximum Inner Diameter (mm)

Rear Brake Disc

186

188

27–

5

27

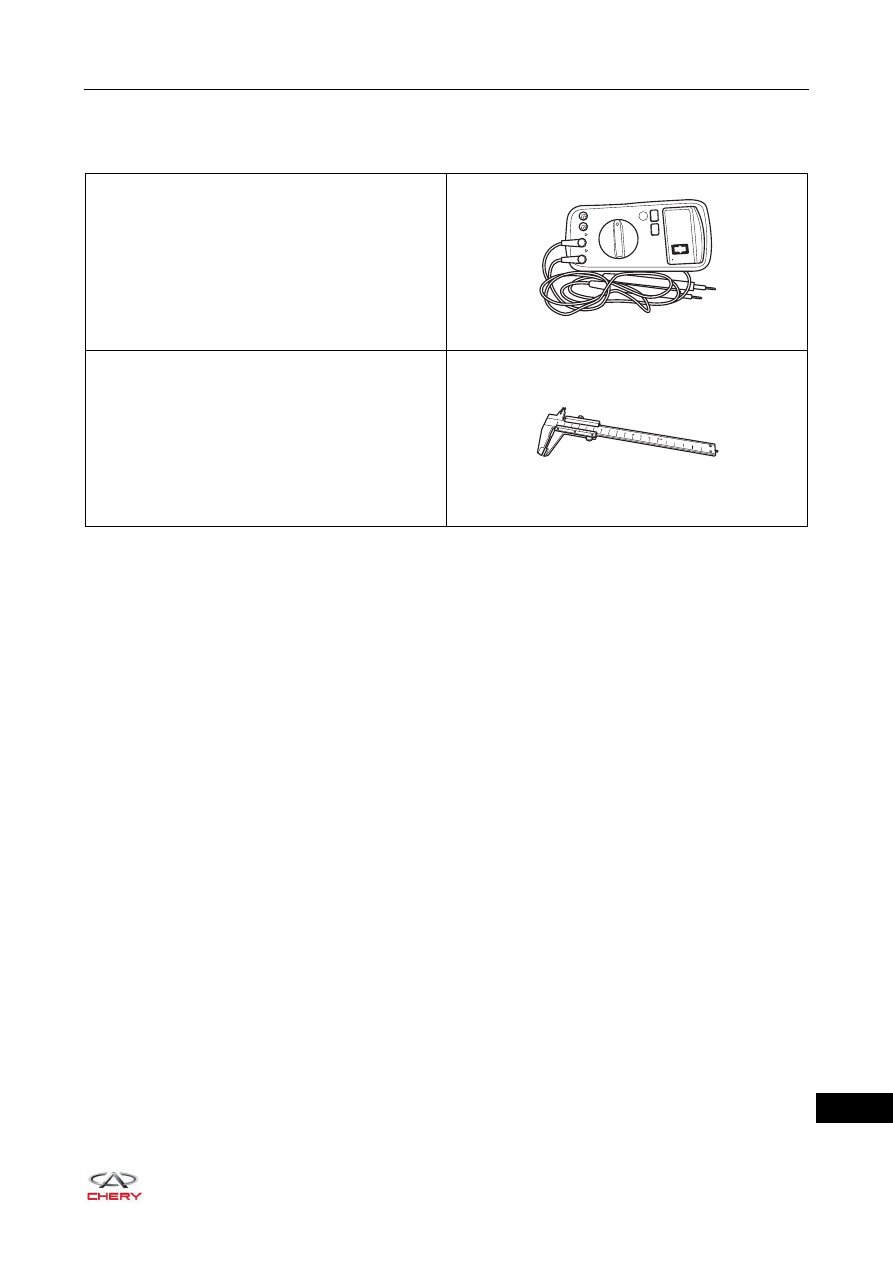

Tools

General Tools

Digital Multimeter

Vernier Caliper

RCH0000002

RCH0000019

27–

6

27

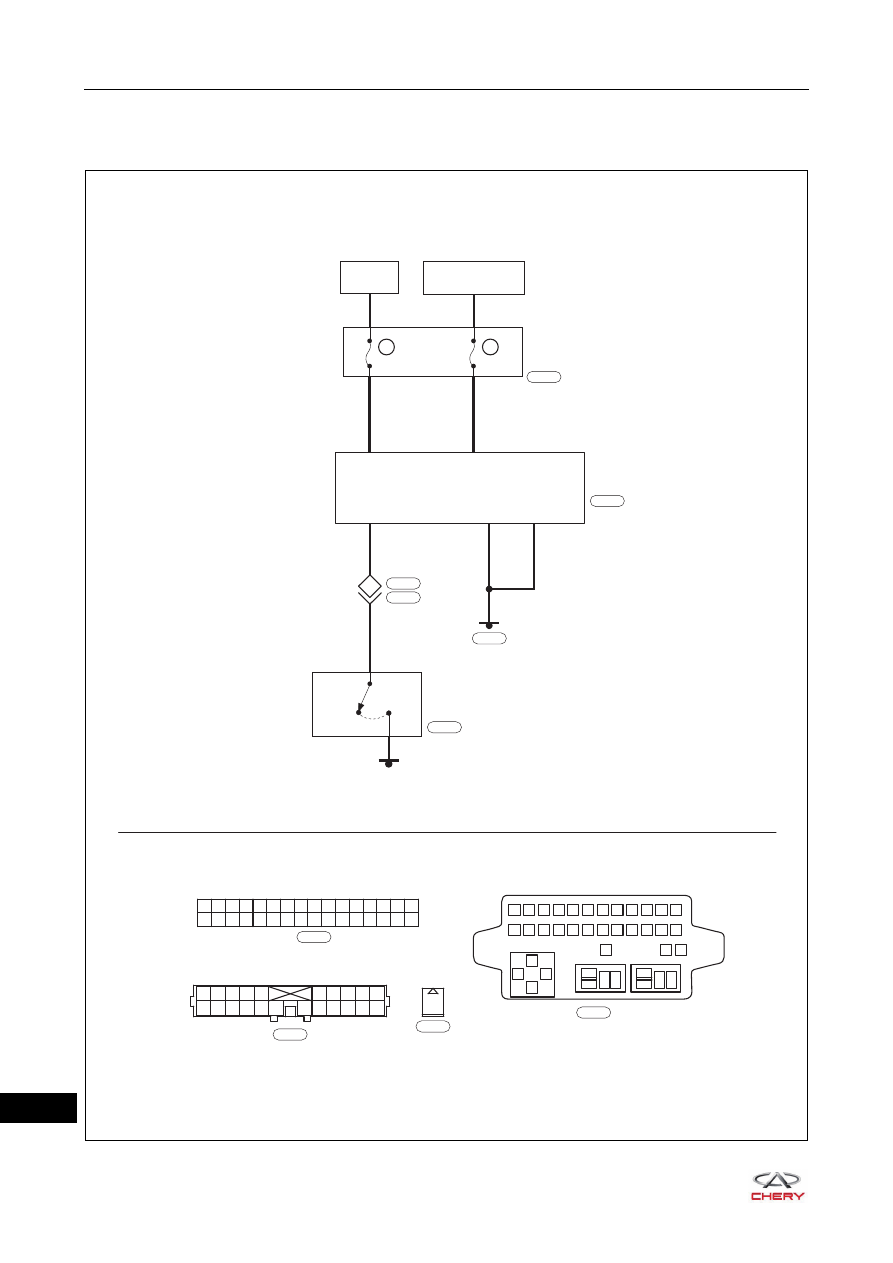

Circuit Diagram

Parking Brake System

ET21270010

I-003

I-006

B-003

INSTRUMENT
CLUSTER

INSTRUMENT
PANEL
FUSE AND
RELAY BOX

I-007

I-015

BATTERY

R

P

RF23

10A

23

10A

RF06

6

11

13

IGNITION SWITCH
    ON OR START

3

5

B

Br

18

BG

BG

14

1

APPLIED

RELEASED

PARKING
BRAKE
SWITCH

1

1

2

3

4

5

6

7

8

9 10 11 12

13

85

85

87

87 30

87 30

30

86

86

85

86

14 15 16 17 18 19 20 21 22 23 24

25

27

26

B

I-007

32

31

30

29

28

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

27

26

25

24

23

22

21

20

19

18

17

L

I-015

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

W

I-006

B

B-019

B-019

27–

7

27

DIAGNOSIS & TESTING

Problem Symptoms Table

HINT:
Use the table below to help determine the cause of the problem symptoms. Check each suspected area in
sequence. Repair or replace the faulty components, or adjust as necessary.

Symptom

Suspected Area

See page

Parking brake stuck

Parking brake control mechanism stroke
(incorrect)

27-8

Parking brake shoe clearance (incorrect)

27-8

Parking brake shoe return tension spring
(damaged)

27-15

Abnormal parking brake operation

Parking brake shoe (worn)

27-15

Rear brake disc (excessively worn)

26-40

Parking brake rear cable assembly
(improperly fixed)

27-13

Parking brake control mechanism
assembly (improperly fixed)

27-11

Parking brake control mechanism
assembly (stuck)

27-11

Brake warning light does not come on
when parking brake is applied

Warning light circuit (faulty)

27-9
