Chery Tiggo 5 (T21). Manual - part 299

26–

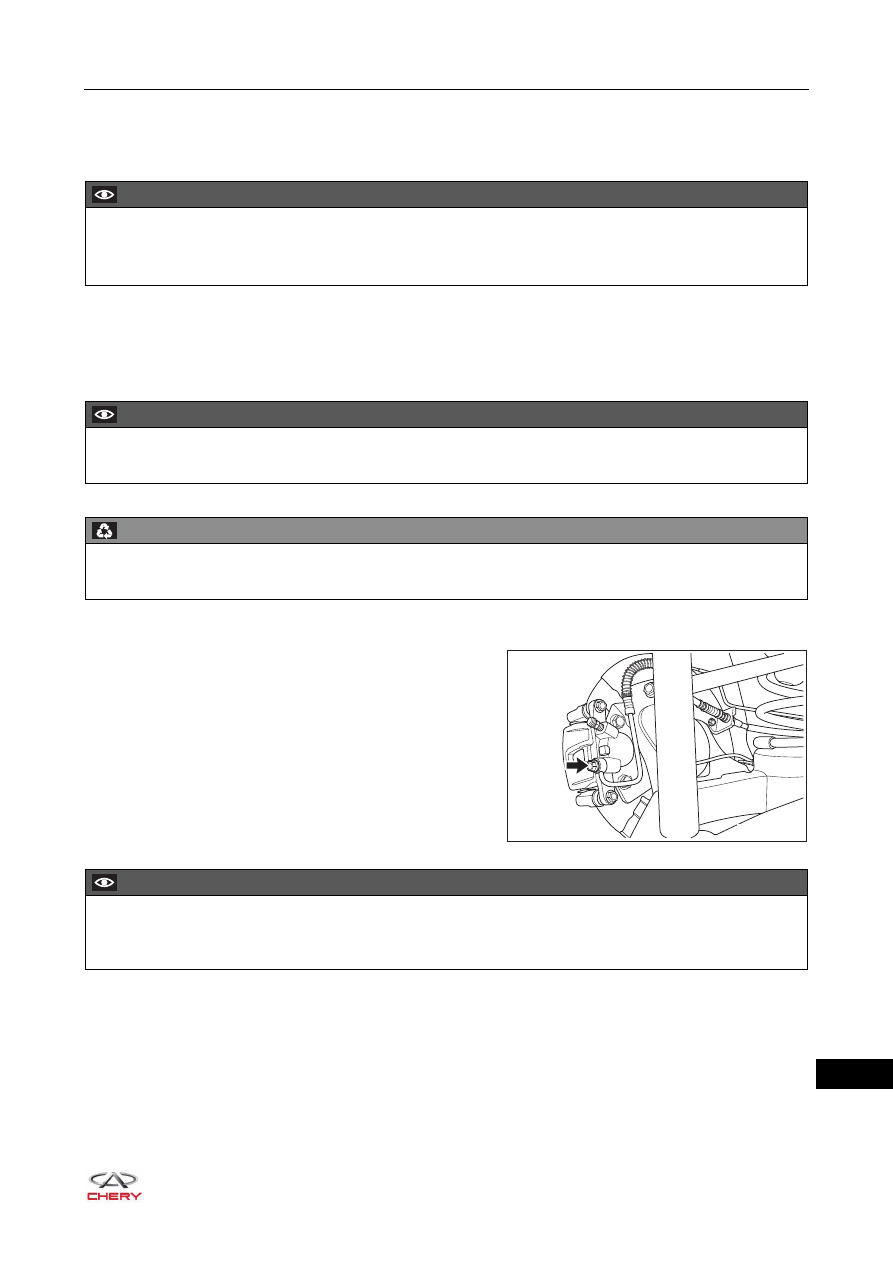

Rear Brake Hose Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.
1. Drain the brake fluid (

See page 26-13

2. Remove the rear left brake hose assembly.

a. Remove the coupling bolt and washer (arrow)

between rear left brake caliper assembly and rear left
brake hose assembly.



(Tightening torque: 20 ± 2 N·m)

CAUTION

 Be sure to wear necessary safety equipment to prevent accidents when repairing.
 Try to prevent body paint surface from being scratched during removal and installation.

CAUTION

 Wash off brake fluid immediately if it comes in contact with any paint surface.

ENVIRONMENTAL PROTECTION

 Drained brake fluid should be well kept in a container. Never discard it at will.

RT21260540

CAUTION

 DO NOT allow brake fluid to be sprayed on your clothes or skin when removing brake hose, as the brake

fluid is corrosive.

26–

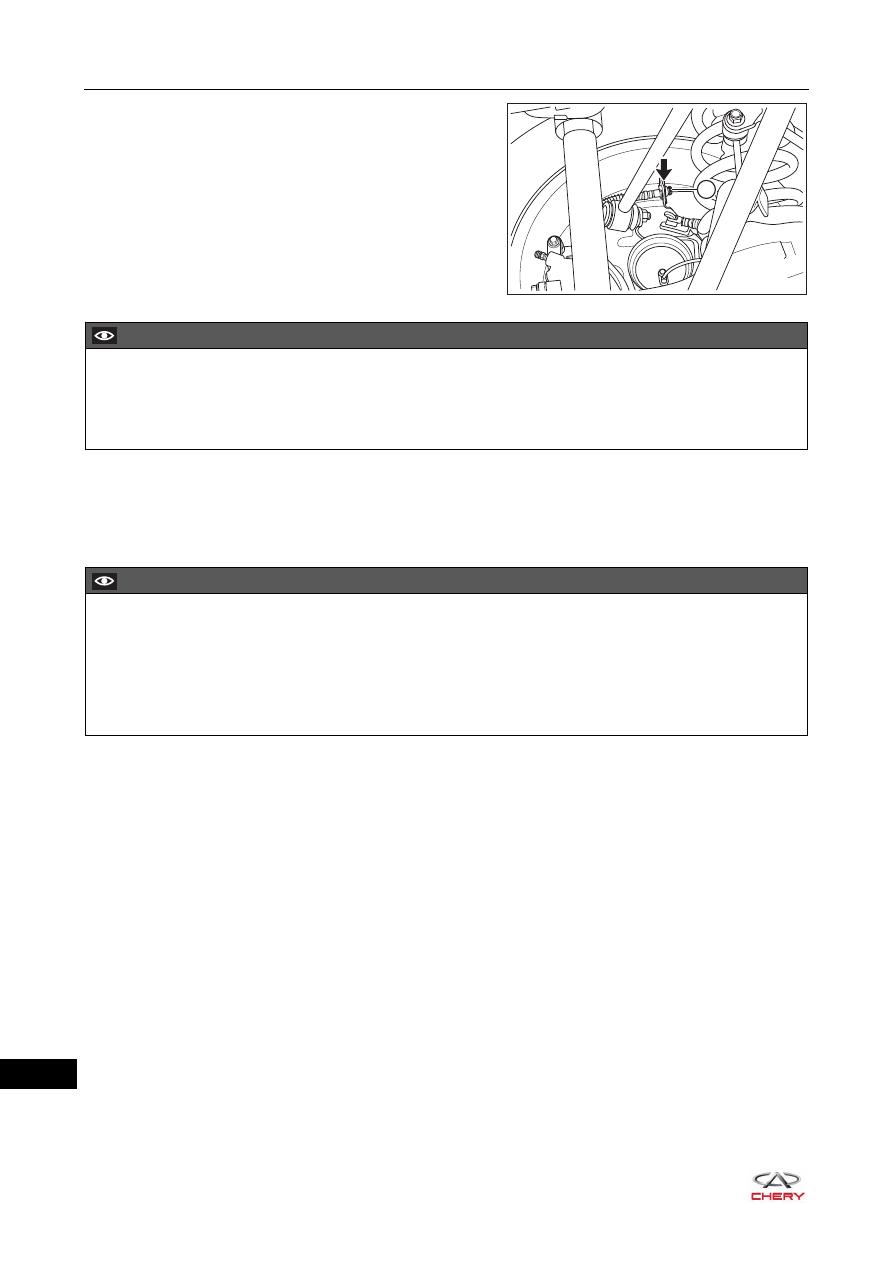

b. Disengage the fixing clamp (arrow) and loosen the

coupling plug (1) between rear brake hose assembly
and brake pipe.



(Tightening torque: 16 ± 2 N·m)

c. Remove the rear brake hose assembly.

Installation

Installation is in the reverse order of removal.

RT21260700

CAUTION

 DO NOT bend or damage brake tube.
 DO NOT allow any foreign matter such as dirt and dust to enter brake tube from joint parts.
 After removing brake line, perform sealing treatment to prevent foreign matter from entering.

CAUTION

 Make sure to tighten bolt and plug in place.
 Be sure to check brake system for leakage after installation. Repair or replace malfunctioning parts as

necessary.

 Be sure to perform bleeding procedures for brake system after installation.
 Be sure to add brake fluid to the proper level after installation.

27–

PARKING BRAKE

GENERAL INFORMATION

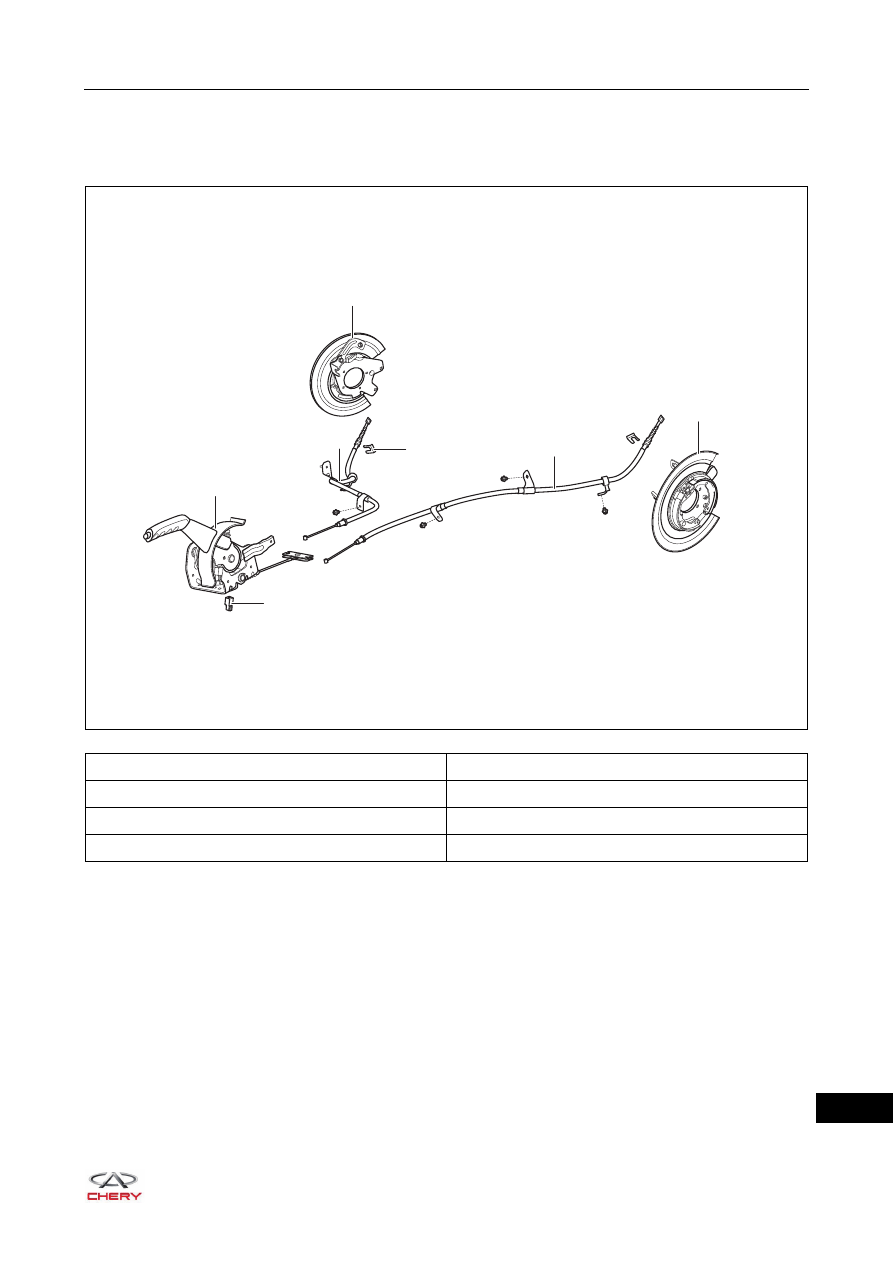

Parking Brake Assembly

1 - Parking Brake Control Mechanism Assembly

2 - Rear Right Parking Brake Cable Assembly

3 - Rear Right Brake Assembly

4 - Parking Brake Cable Fixing Clamp

5 - Rear Left Parking Brake Cable Assembly

6 - Rear Left Brake Assembly

7 - Parking Brake Switch Assembly

RT21270010
