Chery Tiggo 5 (T21). Manual - part 279

25–

49

25

DTC

C003A-00 Right Rear Wheel Speed Sensor

DTC

C003A-09 Right Rear Wheel Speed Sensor

DTC

C003A-11 Right Rear Wheel Speed Sensor

DTC

C003A-12 Right Rear Wheel Speed Sensor

DTC

C003A-13 Right Rear Wheel Speed Sensor

DTC

C003A-29 Right Rear Wheel Speed Sensor

25–

50

25

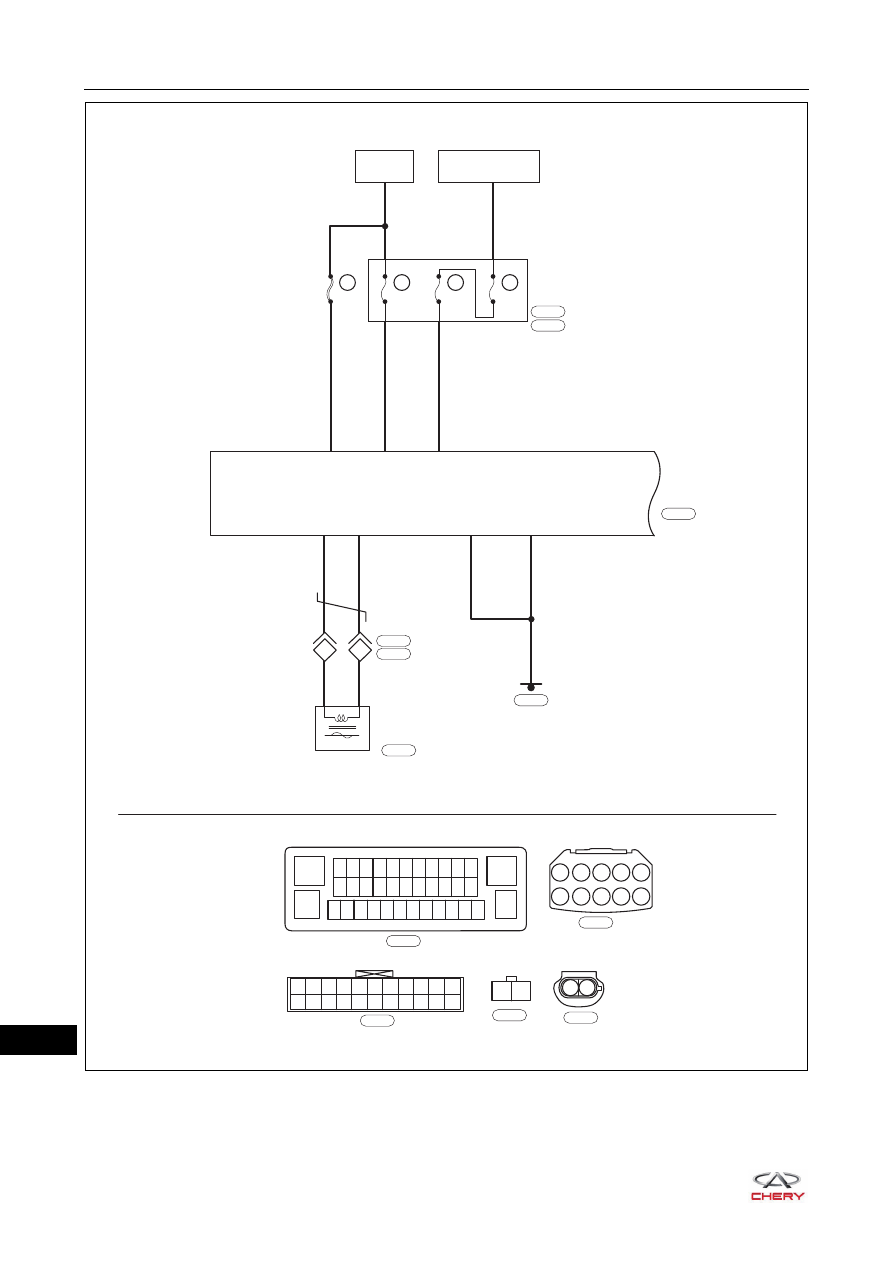

ET21250090

BATTERY

ABS
CONTROL
MODULE

IGNITION SWITCH
    ON OR START

EF47

25A

I1

A10

1

25

28

MF01

40A

EF34

20A

EF36

10A

ENGINE
COMPARTMENT
FUSE AND
RELAY BOX

R

RL

R

13

12 11 10 9 8 7 6 5 4 3 2

24 23 22 21 20 19 18 17 16 15 14

37 36 35 34 33 32 31 30 29 28 27 26

1

38

25

Gr

E-074

Gr

E-076

A1

A2

A3

A4

A5

A6

A7

A8 A9 A10

I2

I1

E-074
E-076

B

E-085

E-085

38

13

Br

B

E-042

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

2

1

W

E-029

B

B-009

17

29

2

1

REAR RIGHT
WHEEL SPEED
SENSOR

VB

V

VB

V

2

1

B-054

E-029

B-009

25–

51

25

Diagnosis Procedure

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect the rear right wheel speed sensor connector B-009.
d. Check if the wire harnesses are worn, pierced, pinched or partially broken.
e. Look for broken, bent, protruded or corroded terminals.
f. Check if related connector pins are in good condition.

DTC Code

DTC Definitions

DTC Detection

Conditions

Possible Cause

C003A-00

Right Rear Wheel
Speed Sensor

These DTCs occur
when any of the
following conditions is
met:
1. ABS control module

assembly detects
that the wheel
speed sensor signal
wire is short to
ground.

2. Wheel speed sensor

line is open.

3. ABS control module

assembly detects
that the wheel
speed sensor signal
wire is short to
power supply.

4. ABS control module

assembly detects
that the wheel
speed sensor power
supply wire is short
to ground.

5. Wheel speed sensor

signal is invalid.

 Wheel speed sensor signal wire is

connecting with the power supply wire
in reverse.

 Wheel speed sensor signal wire is

short to ground.

 Wheel speed sensor line is open,

connector is loose or broken.

 Wheel speed sensor signal wire is

short to power supply.

 Wheel speed sensor power supply

wire is short to ground.

 Sensor head or plug pin is damaged.
 Wheel speed sensor is interfered by

magnetic field outside (wheel or axle is
not demagnetized).

 Wheel speed sensor body is

malfunctioning.

 Ring gear is not installed, has teeth

missing, dirty, demagnetized or off
center.

 Clearance between sensor and ring

gear is excessive.

 Number of ring gear teeth is wrong.
 Tire size is not as specified.
 ABS control module assembly is

damaged.

C003A-09

Right Rear Wheel
Speed Sensor

C003A-11

Right Rear Wheel
Speed Sensor

C003A-12

Right Rear Wheel
Speed Sensor

C003A-13

Right Rear Wheel
Speed Sensor

C003A-29

Right Rear Wheel
Speed Sensor

CAUTION

 When performing electrical equipment diagnosis and test, always refer to the circuit diagram for related

circuit and component information.

1

Check rear right wheel speed sensor wire harness and connector

Repair or replace rear right wheel speed
sensor wire harness and connector

NG

25–

52

25

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Check rear right wheel speed sensor mounting bolt for looseness.
d. Check if excessive clearance exists between the installation position of rear right wheel speed sensor and

rear hub ring gear.

e. Check the installation position of rear right wheel speed sensor for dirt.

a. Connect X-431 3G diagnostic tester (the latest software) to Data Link Connector (DLC).
b. Drive the vehicle straight ahead, and read the data stream of rear right wheel speed sensor with X-431 3G

diagnostic tester.

c. Check if the data change of rear right wheel speed sensor matches the change of other wheel speed

sensors.

a. Remove the rear right hub assembly.
b. Check for foreign matter, missing teeth or damage on the rear right hub ring gear.
c. Check if the rear right hub assembly is securely installed.

2

Check installation of rear right wheel speed sensor

OK

Tighten mounting bolt properly, clean or
replace rear right wheel speed sensor

NG

OK

3

Check rear right wheel speed sensor

Replace rear right wheel speed sensor

NG

4

Check rear right hub ring gear

OK

Replace rear right hub ring gear

NG

OK
