Chery Tiggo 5 (T21). Manual - part 277

25–

41

25

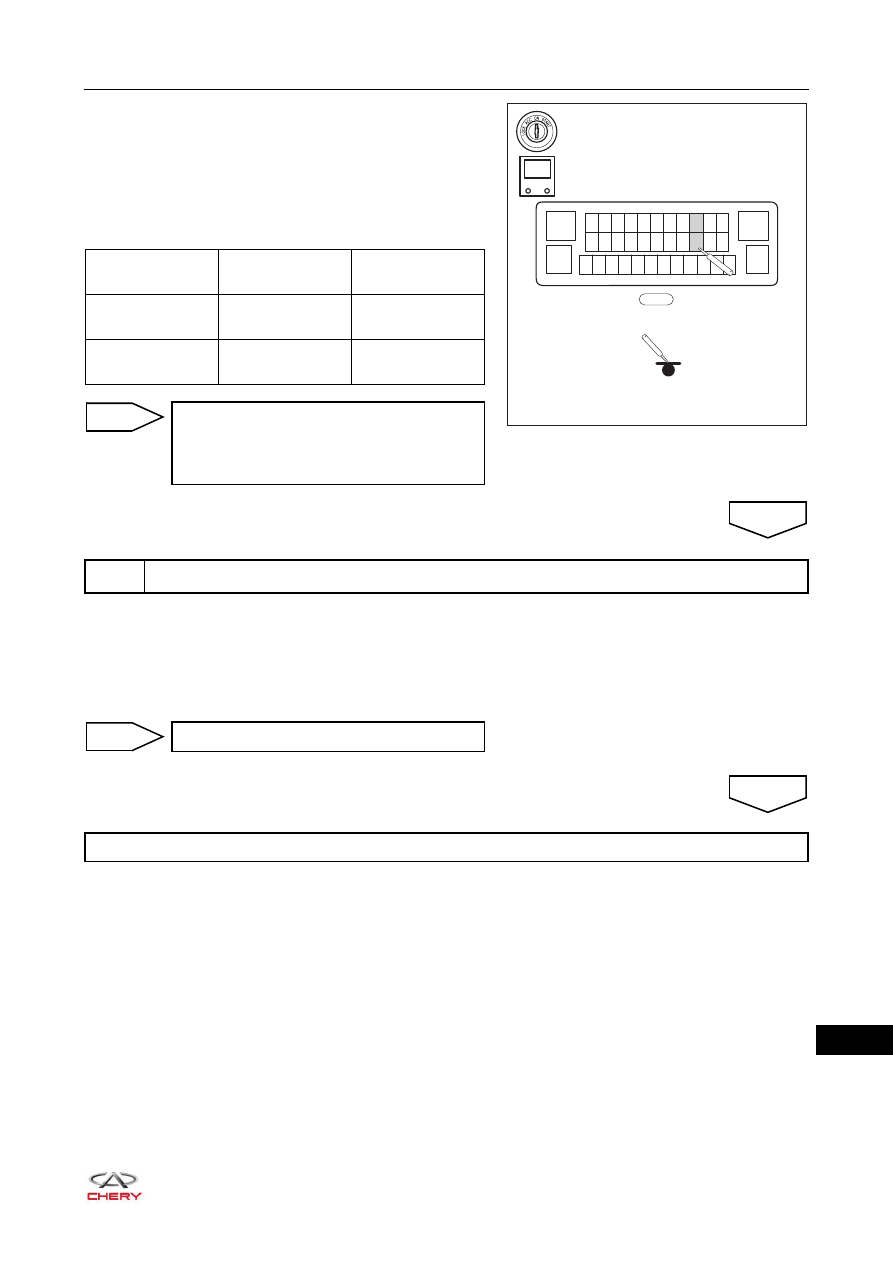

g. Connect the negative battery cable.
h. Turn ignition switch ON.
i. Using a digital multimeter, measure the voltage between

connector E-085 and body ground to check if the front
right wheel speed sensor is short to power supply
according to the table below.
Standard Voltage

a. Use X-431 3G diagnostic tester to clear the DTC.
b. Start the engine.
c. Drive the vehicle at 15 km/h or more, read the ABS control module assembly DTC again with X-431 3G

diagnostic tester.

d. Check if the same DTC is output.

RT21250280

E-085

13

12 11 10 9 8 7 6 5 4 3 2

24 23 22 21 20 19 18 17 16 15 14

37 36 35 34 33 32 31 30 29 28 27 26

1

38

25

-

+

V

Multimeter

Connection

Condition

Specified

Condition

E-085 (4) - Body

ground

Ignition switch ON Approximately 0 V

E-085 (16) - Body

ground

Ignition switch ON Approximately 0 V

Repair or replace wire harness and
connector between front right wheel
speed sensor and ABS control module
assembly

NG

6

Reconfirm DTCs

OK

System operates normally

NO

Replace ABS control module assembly

YES

25–

42

25

BRAKE CONTROL SYSTEM

DTC

C0037-00 Left Rear Wheel Speed Sensor

DTC

C0037-09 Left Rear Wheel Speed Sensor

DTC

C0037-11 Left Rear Wheel Speed Sensor

DTC

C0037-12 Left Rear Wheel Speed Sensor

DTC

C0037-13 Left Rear Wheel Speed Sensor

DTC

C0037-29 Left Rear Wheel Speed Sensor

25–

43

25

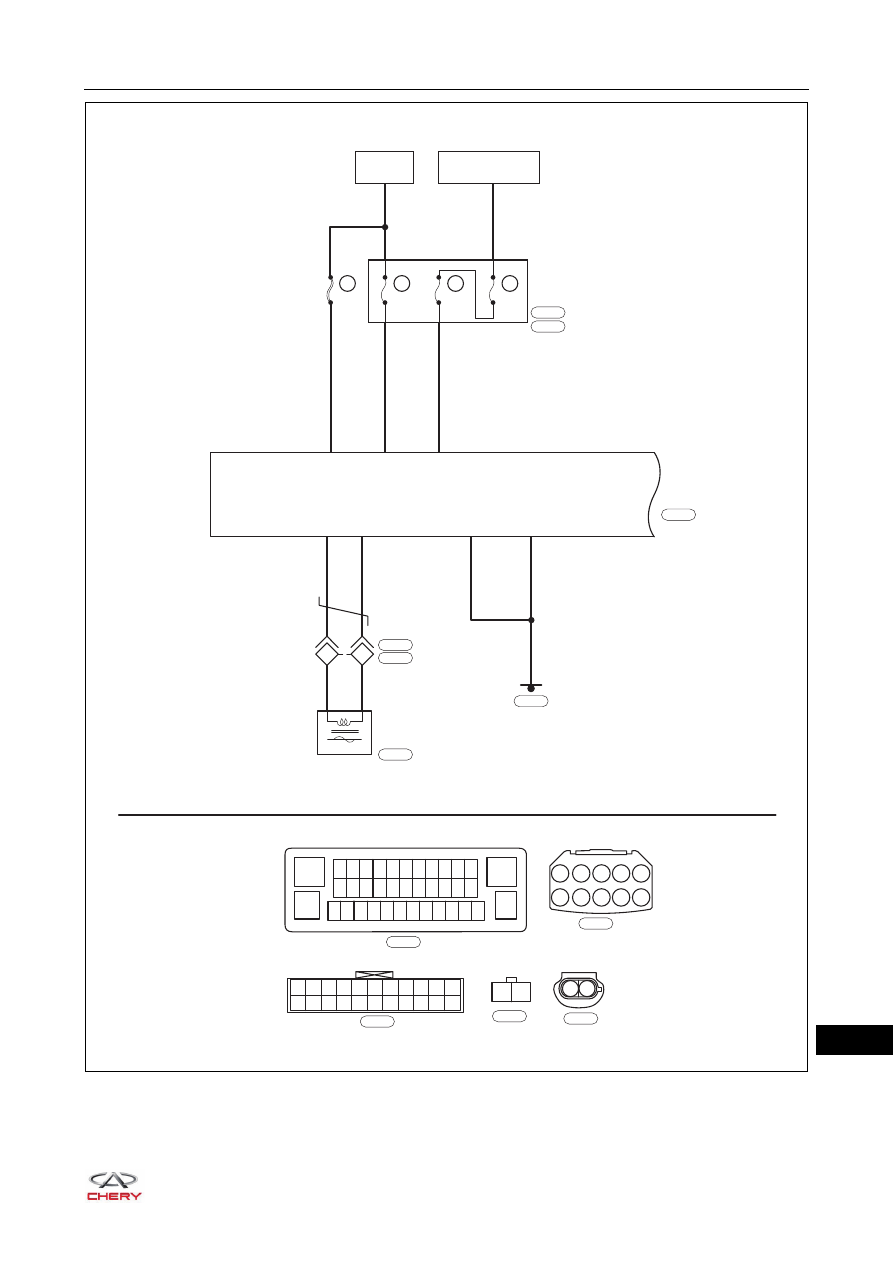

ET21250080

BATTERY

ABS
CONTROL
MODULE

IGNITION SWITCH
    ON OR START

EF47

25A

I1

A10

1

25

28

MF01

40A

EF34

20A

EF36

10A

ENGINE
COMPARTMENT
FUSE AND
RELAY BOX

R

RL

R

13

12 11 10 9 8 7 6 5 4 3 2

24 23 22 21 20 19 18 17 16 15 14

37 36 35 34 33 32 31 30 29 28 27 26

1

38

25

Gr

E-074

Gr

E-076

A1

A2

A3

A4

A5

A6

A7

A8 A9 A10

I2

I1

E-074
E-076

B

E-085

E-085

38

13

Br

B

E-042

31

18

2

1

REAR LEFT
WHEEL SPEED
SENSOR

GR

GW

GR

GW

9

20

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

2

1

W

E-029

B-054

E-029

B

B-029

B-029

25–

44

25

Diagnosis Procedure

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect the rear left wheel speed sensor connector B-029.
d. Check if the wire harnesses are worn, pierced, pinched or partially broken.
e. Look for broken, bent, protruded or corroded terminals.
f. Check if related connector pins are in good condition.

DTC Code

DTC Definitions

DTC Detection

Conditions

Possible Cause

C0037-00

Left Rear Wheel Speed
Sensor

These DTCs occur
when any of the
following conditions is
met:
1. ABS control module

assembly detects
that the wheel
speed sensor signal
wire is short to
ground.

2. Wheel speed sensor

line is open.

3. ABS control module

assembly detects
that the wheel
speed sensor signal
wire is short to
power supply.

4. ABS control module

assembly detects
that the wheel
speed sensor power
supply wire is short
to ground.

5. Wheel speed sensor

signal is invalid.

 Wheel speed sensor signal wire is

connecting with the power supply wire
in reverse.

 Wheel speed sensor signal wire is

short to ground.

 Wheel speed sensor line is open,

connector is loose or broken.

 Wheel speed sensor signal wire is

short to power supply.

 Wheel speed sensor power supply

wire is short to ground.

 Sensor head or plug pin is damaged.
 Wheel speed sensor is interfered by

magnetic field outside (wheel or axle is
not demagnetized).

 Wheel speed sensor body is

malfunctioning.

 Ring gear is not installed, has teeth

missing, dirty, demagnetized or off
center.

 Clearance between sensor and ring

gear is excessive.

 Number of ring gear teeth is wrong.
 Tire size is not as specified.
 ABS control module assembly is

damaged.

C0037-09

Left Rear Wheel Speed
Sensor

C0037-11

Left Rear Wheel Speed
Sensor

C0037-12

Left Rear Wheel Speed
Sensor

C0037-13

Left Rear Wheel Speed
Sensor

C0037-29

Left Rear Wheel Speed
Sensor

CAUTION

 When performing electrical equipment diagnosis and test, always refer to the circuit diagram for related

circuit and component information.

1

Check rear left wheel speed sensor wire harness and connector

Repair or replace rear left wheel speed
sensor wire harness and connector

NG
