25–

37

25

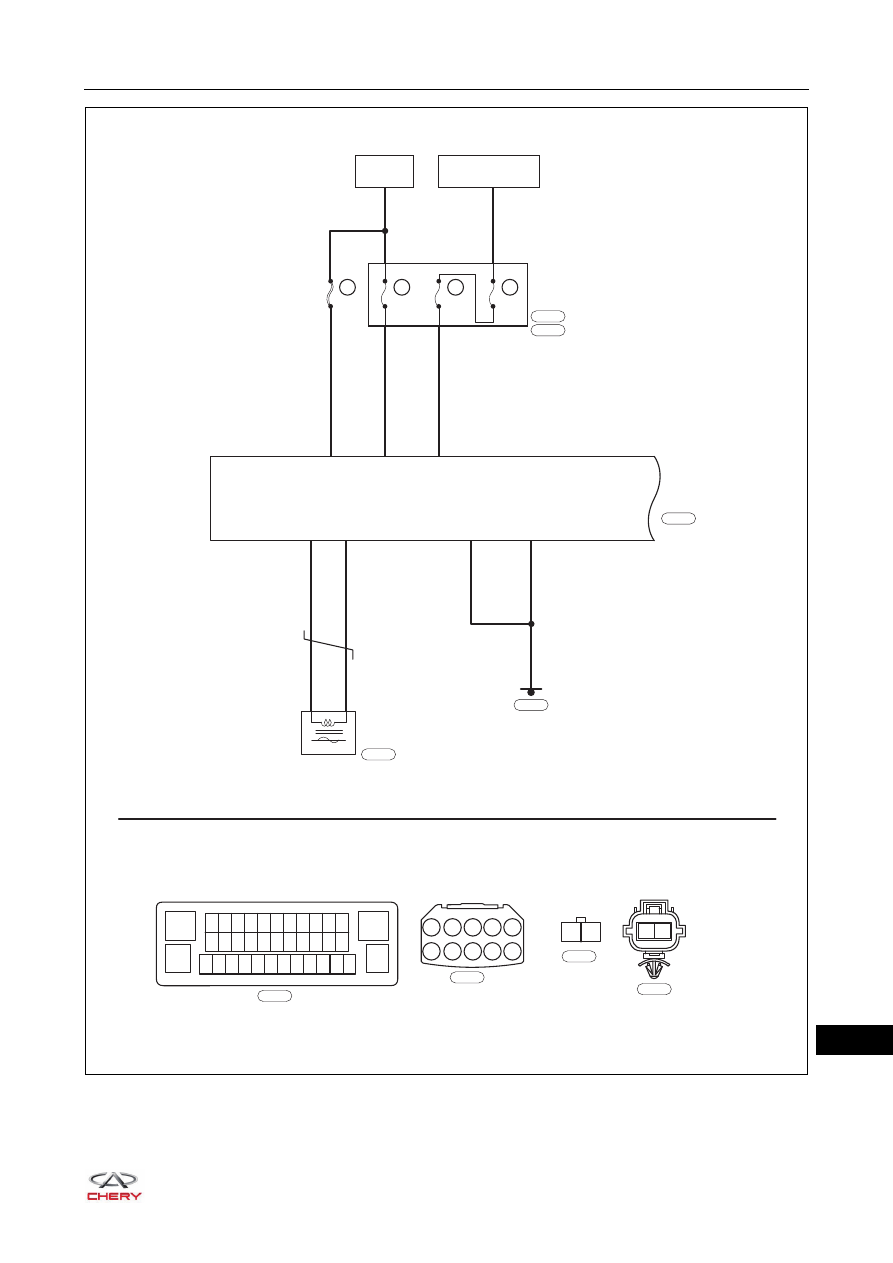

ET21250070

BATTERY

ABS
CONTROL
MODULE

IGNITION SWITCH
    ON OR START

EF47

25A

I1

A10

1

25

28

MF01

40A

EF34

20A

EF36

10A

ENGINE
COMPARTMENT
FUSE AND
RELAY BOX

R

RL

R

13

12 11 10 9 8 7 6 5 4 3 2

24 23 22 21 20 19 18 17 16 15 14

37 36 35 34 33 32 31 30 29 28 27 26

1

38

25

Gr

E-074

Gr

E-076

A1

A2

A3

A4

A5

A6

A7

A8 A9 A10

I2

I1

E-074
E-076

B

E-085

E-085

38

13

Br

B

E-042

16

4

1

2

FRONT RIGHT
WHEEL SPEED
SENSOR

GY

WY

B

E-036

1

2

E-036

25–

38

25

Diagnosis Procedure

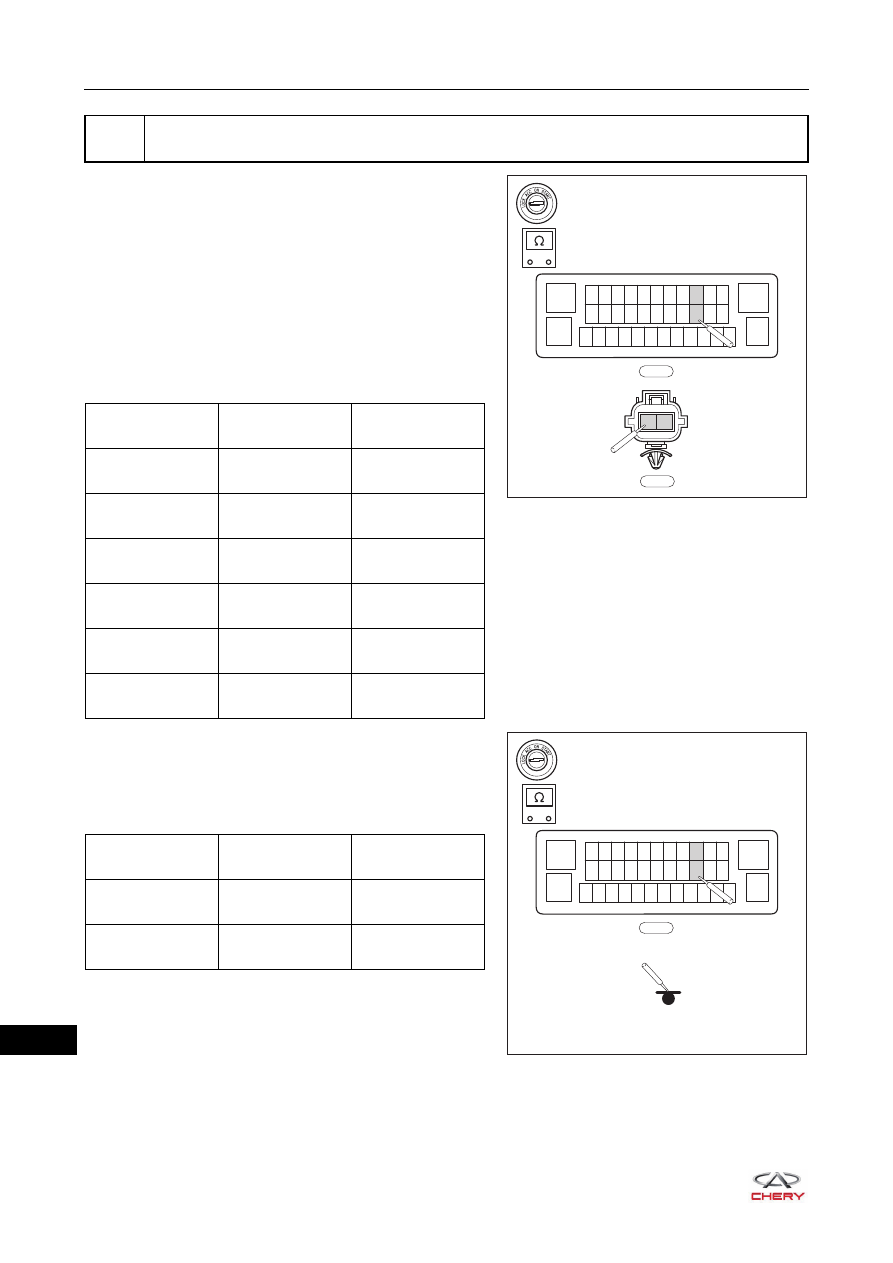

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect the front right wheel speed sensor connector E-036.
d. Check if the wire harnesses are worn, pierced, pinched or partially broken.
e. Look for broken, bent, protruded or corroded terminals.
f. Check if related connector pins are in good condition.

DTC Code

DTC Definitions

DTC Detection

Conditions

Possible Cause

C0034-00

Right Front Wheel
Speed Sensor

These DTCs occur
when any of the
following conditions is
met:
1. ABS control module

assembly detects
that the wheel
speed sensor signal
wire is short to
ground.

2. Wheel speed sensor

line is open.

3. ABS control module

assembly detects
that the wheel
speed sensor signal
wire is short to
power supply.

4. ABS control module

assembly detects
that the wheel
speed sensor power
supply wire is short
to ground.

5. Wheel speed sensor

signal is invalid.

 Wheel speed sensor signal wire is

connecting with the power supply wire
in reverse.

 Wheel speed sensor signal wire is

short to ground.

 Wheel speed sensor line is open,

connector is loose or broken.

 Wheel speed sensor signal wire is

short to power supply.

 Wheel speed sensor power supply

wire is short to ground.

 Sensor head or plug pin is damaged.
 Wheel speed sensor is interfered by

magnetic field outside (wheel or axle is
not demagnetized).

 Wheel speed sensor body is

malfunctioning.

 Ring gear is not installed, has teeth

missing, dirty, demagnetized or off
center.

 Clearance between sensor and ring

gear is excessive.

 Number of ring gear teeth is wrong.
 Tire size is not as specified.
 ABS control module assembly is

damaged.

C0034-09

Right Front Wheel
Speed Sensor

C0034-11

Right Front Wheel
Speed Sensor

C0034-12

Right Front Wheel
Speed Sensor

C0034-13

Right Front Wheel
Speed Sensor

C0034-29

Right Front Wheel
Speed Sensor

CAUTION

 When performing electrical equipment diagnosis and test, always refer to the circuit diagram for related

circuit and component information.

1

Check front right wheel speed sensor wire harness and connector

Repair or replace front right wheel speed
sensor wire harness and connector

NG

25–

39

25

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Check front right wheel speed sensor mounting bolt for looseness.
d. Check if excessive clearance exists between the installation position of front right wheel speed sensor and

front steering knuckle.

e. Check the installation position of front right wheel speed sensor for dirt.

a. Connect X-431 3G diagnostic tester (the latest software) to Data Link Connector (DLC).
b. Drive the vehicle straight ahead, and read the data stream of front right wheel speed sensor with X-431 3G

diagnostic tester.

c. Check if the data change of front right wheel speed sensor matches the change of other wheel speed

sensors.

a. Remove the front right hub assembly.
b. Check for foreign matter, missing teeth or damage on the front right hub ring gear.
c. Check if the front right hub assembly is securely installed.

2

Check installation of front right wheel speed sensor

OK

Tighten mounting bolt properly, clean or
replace front right wheel speed sensor

NG

3

Check front right wheel speed sensor

OK

Replace front right wheel speed sensor

NG

4

Check front right hub ring gear

OK

Replace front right hub ring gear

NG

OK

25–

40

25

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect the ABS control module assembly connector

E-085.

d. Disconnect the front right wheel speed sensor connector

E-036.

e. Using a digital multimeter, check for continuity between

the terminals of connector E-085 and connector E-036 to
check if there is an open in the wire harness and
connector according to the table below.
Standard Condition

f. Using a digital multimeter, check for continuity between

connector E-085 and body ground to check if the front
right wheel speed sensor is short to ground according to
the table below.
Standard Condition

5

Check wire harness and connector (front right wheel speed sensor - ABS control module
assembly)

RT21250260

E-085

13

12 11 10 9 8 7 6 5 4 3 2

24 23 22 21 20 19 18 17 16 15 14

37 36 35 34 33 32 31 30 29 28 27 26

1

38

25

-

+

E-036

1

2

Multimeter

Connection

Condition

Specified

Condition

E-085 (16) -

E-036 (1)

Always

Continuity

E-085 (4) -

E-036 (2)

Always

Continuity

E-085 (16) -

E-036 (2)

Always

No continuity

E-085 (4) -

E-036 (1)

Always

No continuity

E-036 (1) -

E-036 (2)

Always

No continuity

E-085 (4) -

E-085 (16)

Always

No continuity

RT21250270

E-085

13

12 11 10 9 8 7 6 5 4 3 2

24 23 22 21 20 19 18 17 16 15 14

37 36 35 34 33 32 31 30 29 28 27 26

1

38

25

-

+

Multimeter

Connection

Condition

Specified

Condition

E-085 (4) - Body

ground

Always

No continuity

E-085 (16) - Body

ground

Always

No continuity
