Drive shaft, which is a solid shaft, transmits torque between differential and drive wheels. Generally, the inner
end of drive shaft is connected with drive shaft gear by spline, and the outer end is connected to wheel hub.
The drive shaft transmits torque from differential to wheels, thus rotating the wheels to run vehicle.

Specifications

Torque Specifications

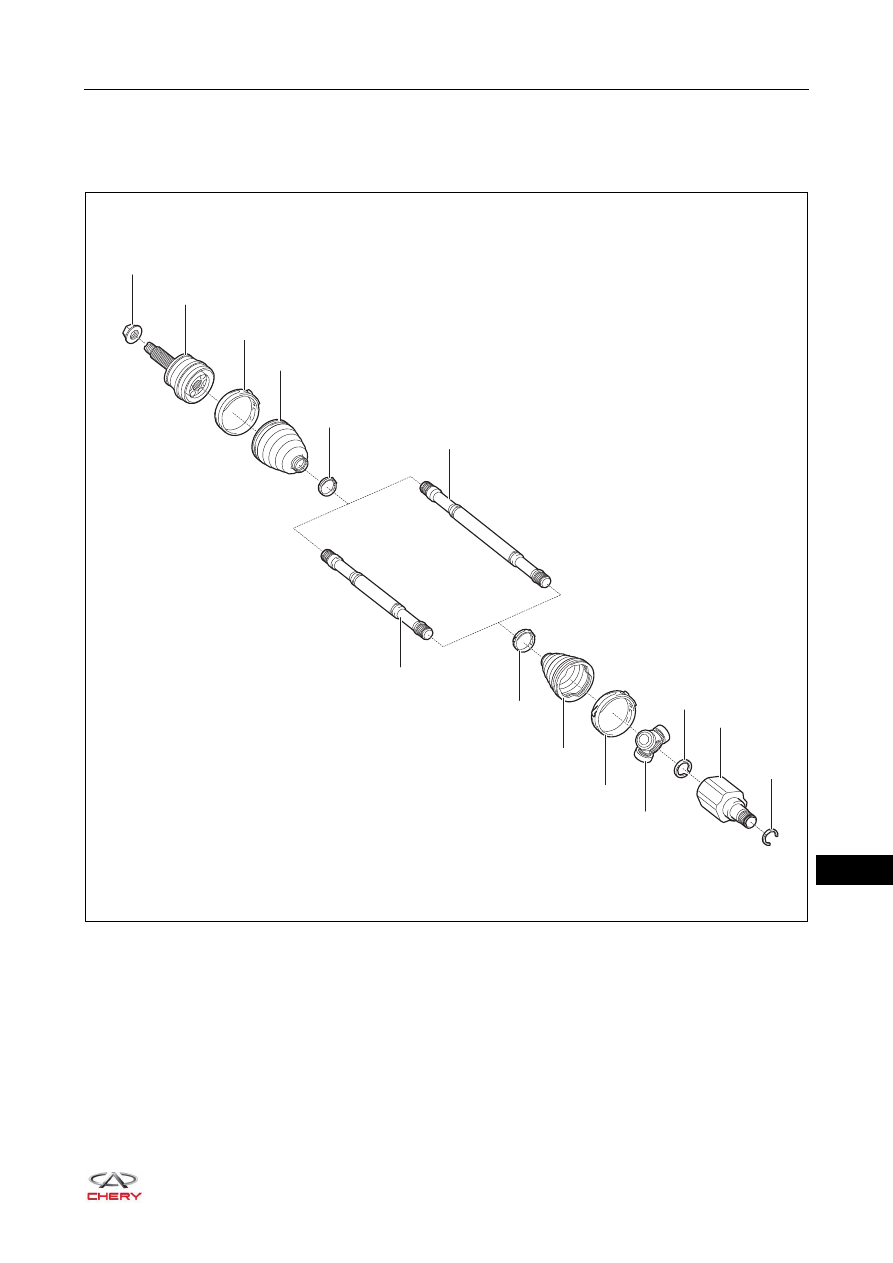

1 - Nut

2 - Outer Ball Cage

3 - Outer Dust Boot Clamp

4 - Outer Dust Boot

5 - Outer Dust Boot Clamp

6 - Right Drive Shaft

7 - Left Drive Shaft

8 - Inner Dust Boot Clamp

9 - Inner Dust Boot

10 - Inner Dust Boot Clamp

11 - Tripod

12 - Positioning Snap Spring

13 - Inner Ball Cage

14 - Set Ring

Description

Torque (N·m)

Drive Shaft Fixing Nut

300 ± 20

Coupling Nut Between Steering Knuckle and Control
Arm Ball Pin

180 ± 10

Coupling Bolt Between Front Left Wheel Speed
Sensor and Front Left Steering Knuckle Assembly

10 ± 1
