CLUTCH

GENERAL INFORMATION

Description

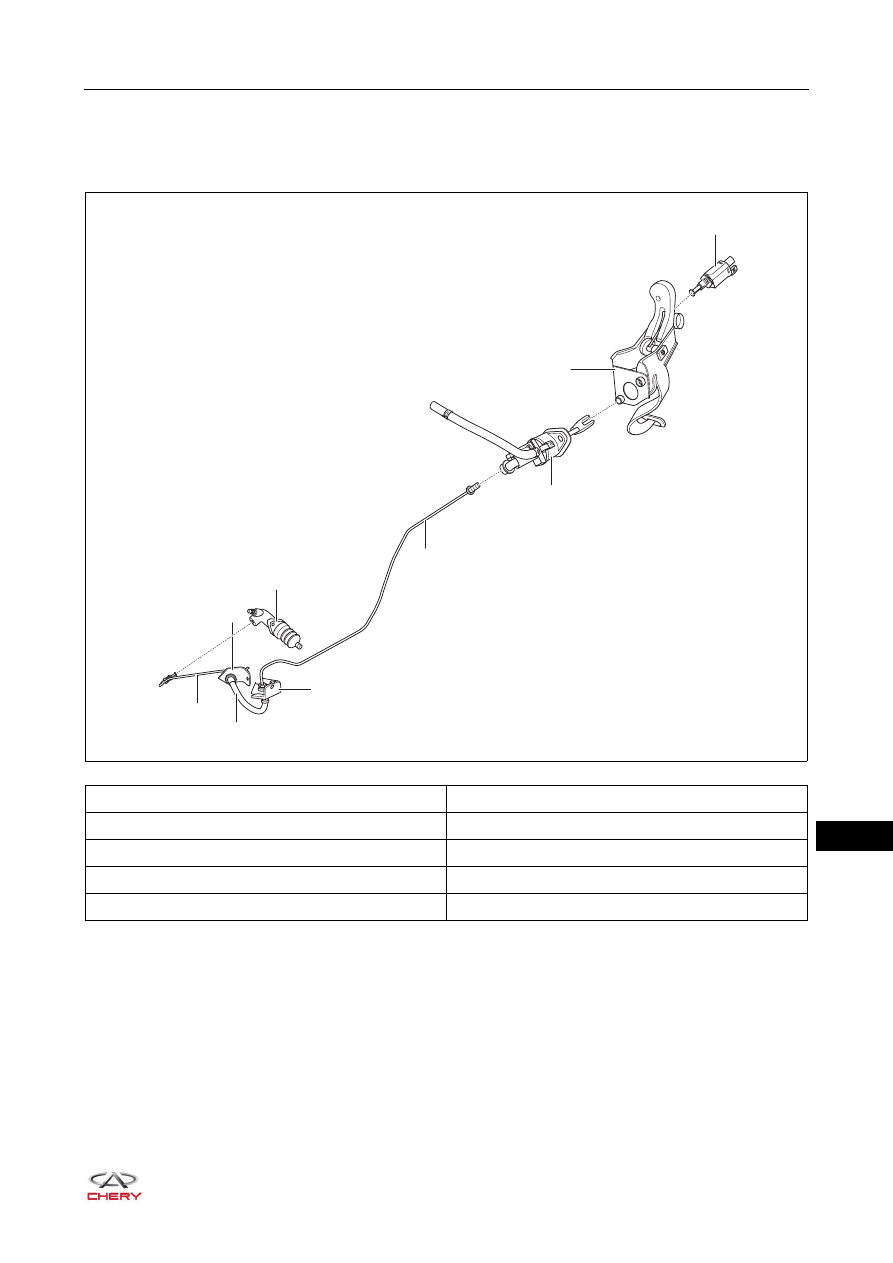

1 - Clutch Switch

2 - Clutch Pedal Assembly

3 - Clutch Master Cylinder with Inlet Hose Assembly

4 - Pipe Assembly I

5 - Bracket I

6 - Hose Assembly

7 - Bracket II

8 - Pipe Assembly II

9 - Clutch Release Cylinder Assembly

5

2

1

9

7

3

6

4

8

RT21190010

19–

4

19

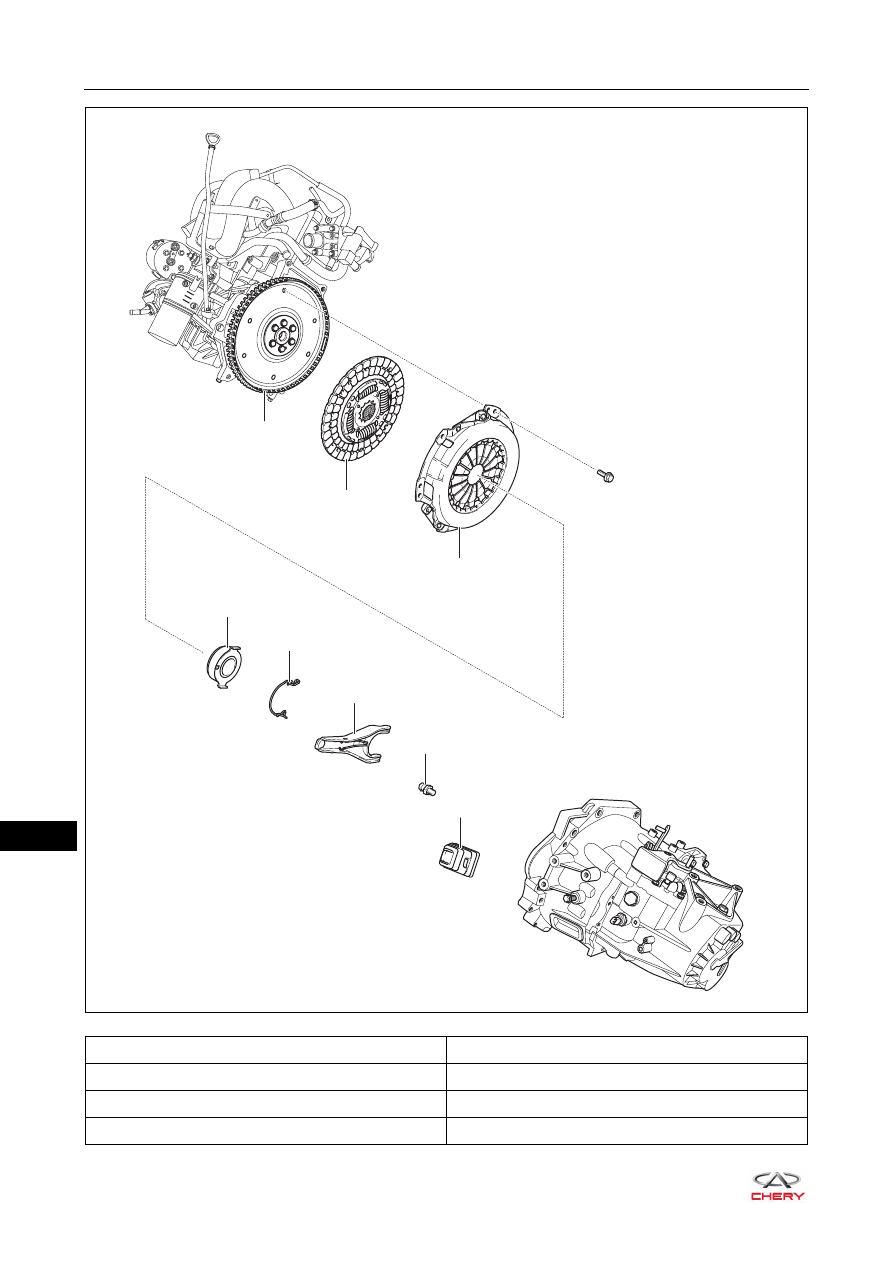

1 - Flywheel

2 - Clutch Driven Disc

3 - Clutch Pressure Plate

4 - Release Bearing

5 - Release Bearing Clip

6 - Clutch Release Fork

7 - Release Fork Ball Seat

8 - Dust Boot

RT21190020

2

3

4

5

6

7

8

1

×6

19–

5

19

Operation

Hydraulic clutch system mainly consists of clutch pedal, clutch master cylinder, clutch release cylinder, clutch
hydraulic line, etc. When depressing clutch pedal, clutch master cylinder generates pressure, and this
pressure is transmitted to integrated release bearing which is fitted with pressure plate diaphragm spring. As
external force is applied, release bearing presses the release finger of diaphragm spring inward until it
reaches the fulcrum. This operation makes pressure plate move backward, thus releasing clamping force
from clutch driven disc.
Clutch master cylinder consists of piston, cylinder block, push rod and hydraulic line. When depressing pedal,
push rod pushes the piston in master cylinder to discharge fluid in hydraulic line into release cylinder.

Specifications

Torque Specifications

Clutch Driven Disc Specifications

Description

Torque (N·m)

Clutch Pedal Fixing Nut

25 ± 2

Pipe Assembly II Joint

16 ± 2

Clutch Release Cylinder Fixing Bolt

22 ± 2

Clutch Pressure Plate

25 ± 2

Measurement Item

Specification (mm)

Clutch Driven Disc Standard Thickness

7.6 ± 0.2

Minimum Rivet Depth

1.2

19–

6

19

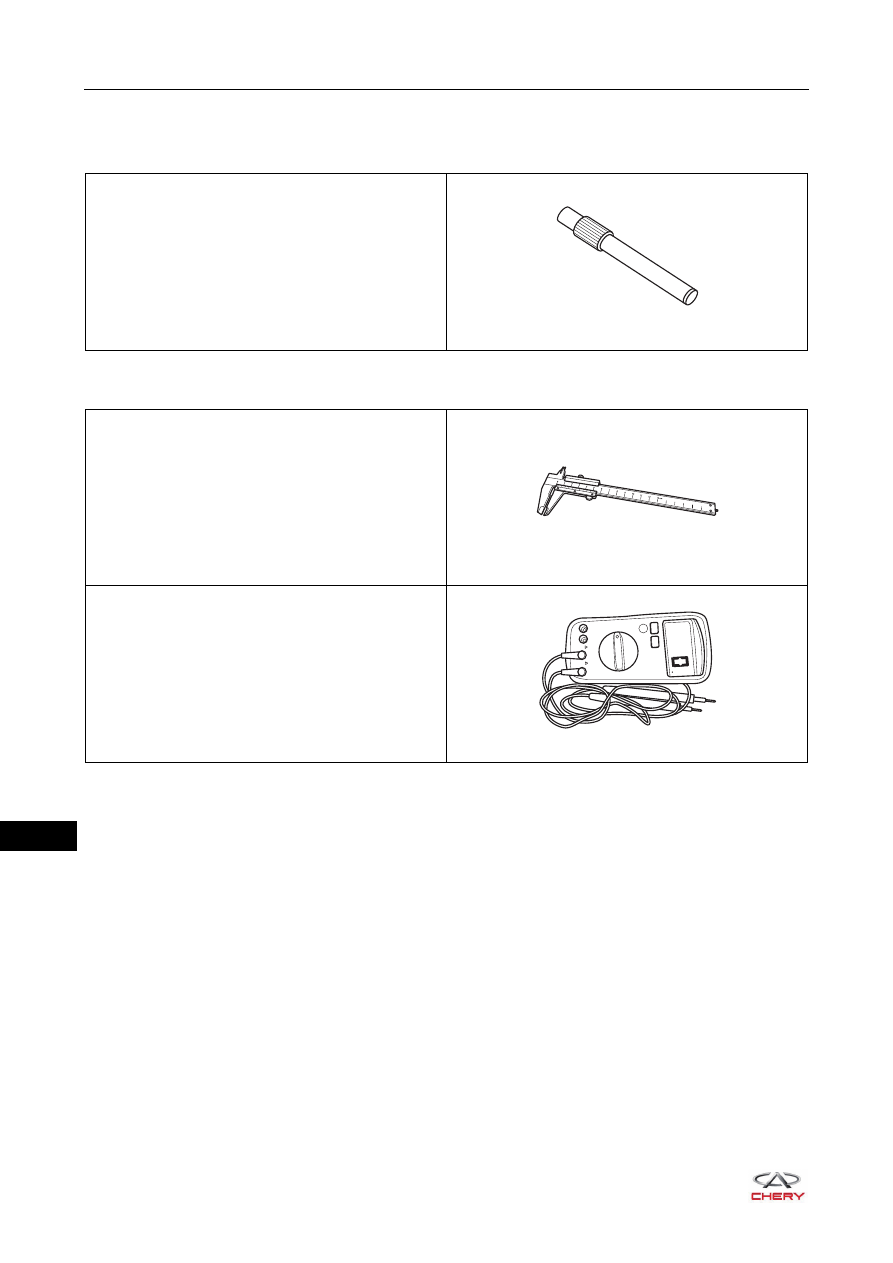

Tools

Special Tool

General Tools

Clutch Pressure Plate Installer

RCH0000018

Vernier Caliper

Digital Multimeter

RCH0000019

RCH0000002
