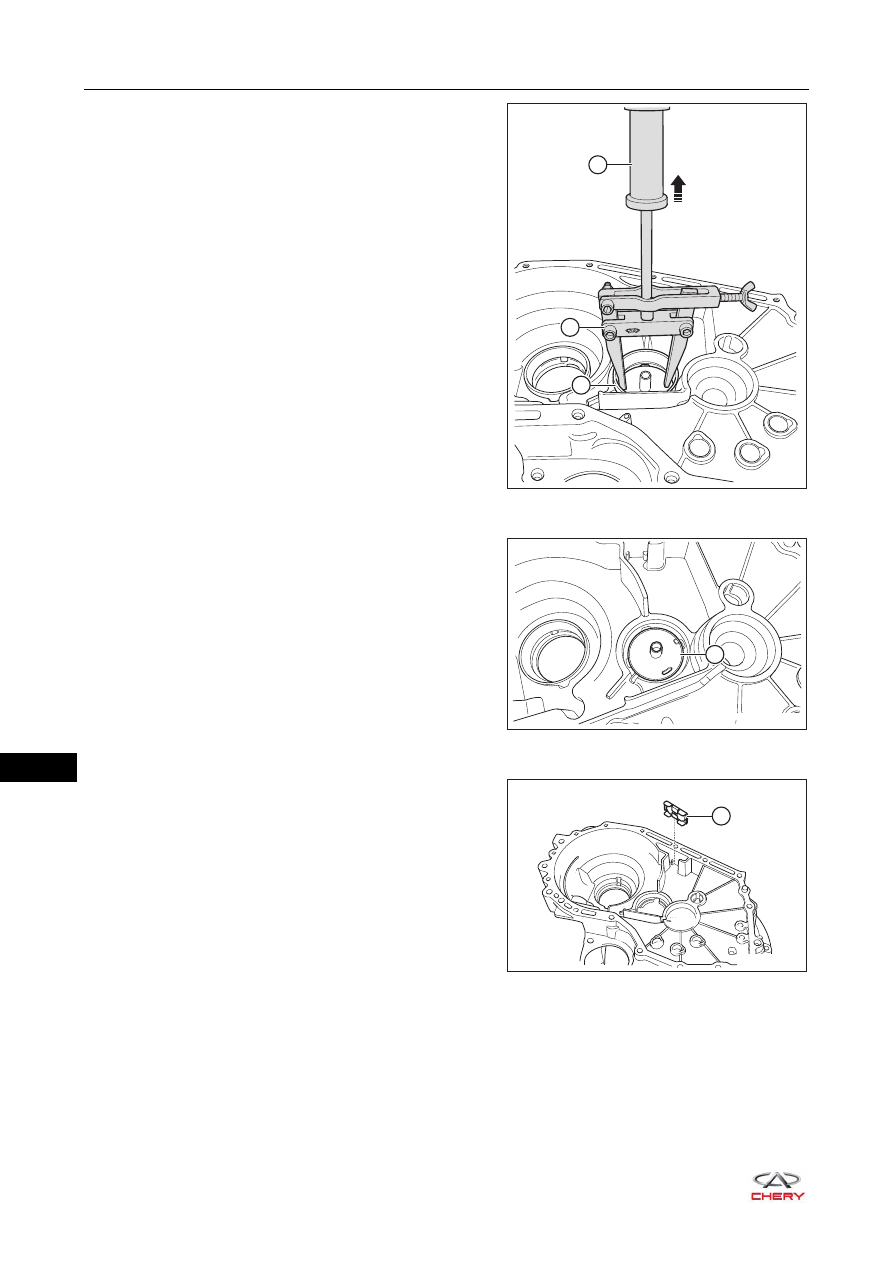

17–

62

17

b. Install the puller (1) to bearing outer race remover (2).
c. Using the puller, pull out the output shaft bearing outer

race (3).

5. Remove the oil deflector.

a. Remove the oil deflector (1) from clutch case.

6. Remove the magnet.

a. Remove the magnet (1) from clutch case.

RT21172040

2

3

1

1

RT21172050

1

RT21172060

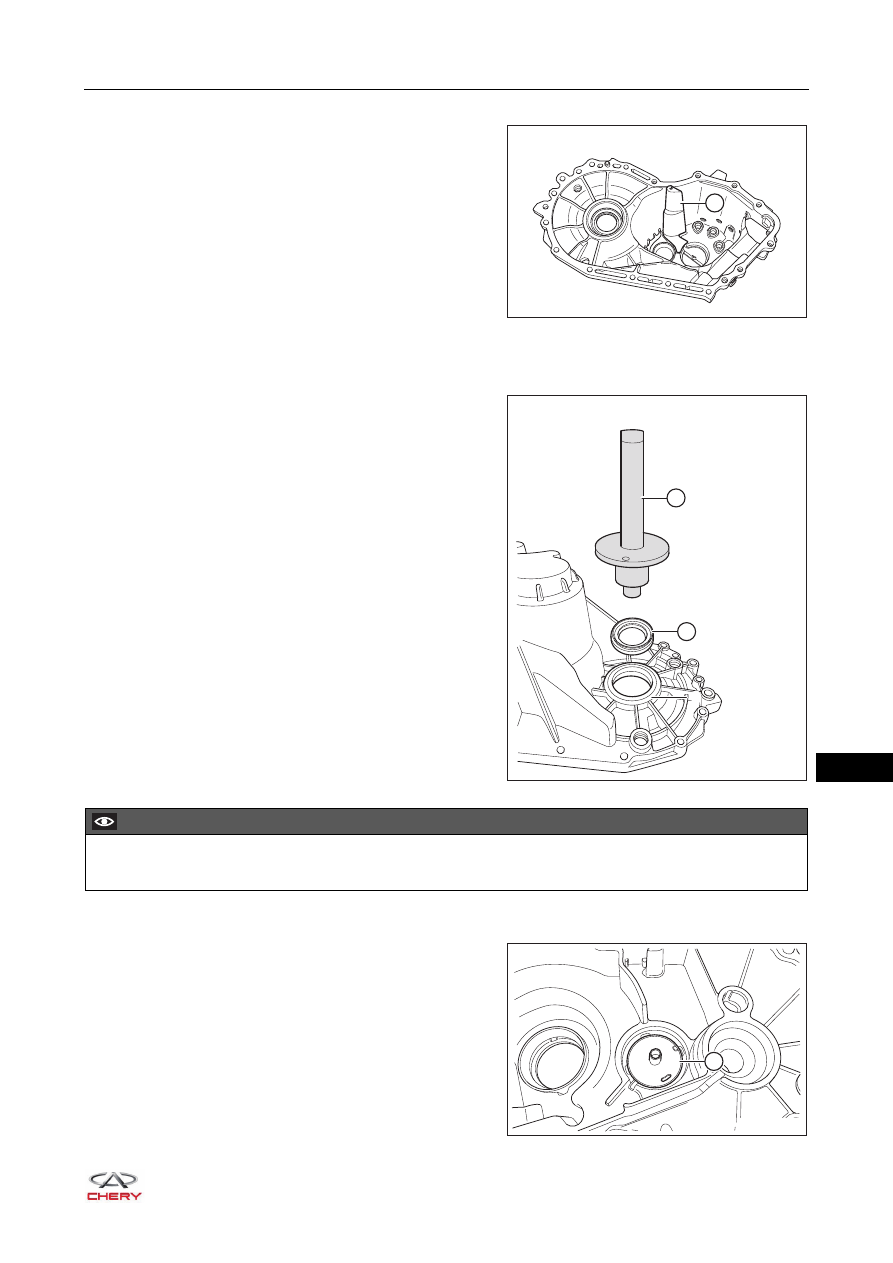

17–

63

17

7. Remove the oil guide.

a. Remove the oil guide (1) from transmission case.

Assembly

1. Install the drive shaft oil seal.

a. Using a drive shaft oil seal installer (1), install the drive

shaft oil seal (2) to the transmission case (3).

2. Install the oil deflector.

a. Install the oil deflector (1) to the clutch case.

1

RT21172070

3

1

2

RT21172080

CAUTION

 Apply a proper amount of transmission oil to the lip when installing the oil seal.

1

RT21172090

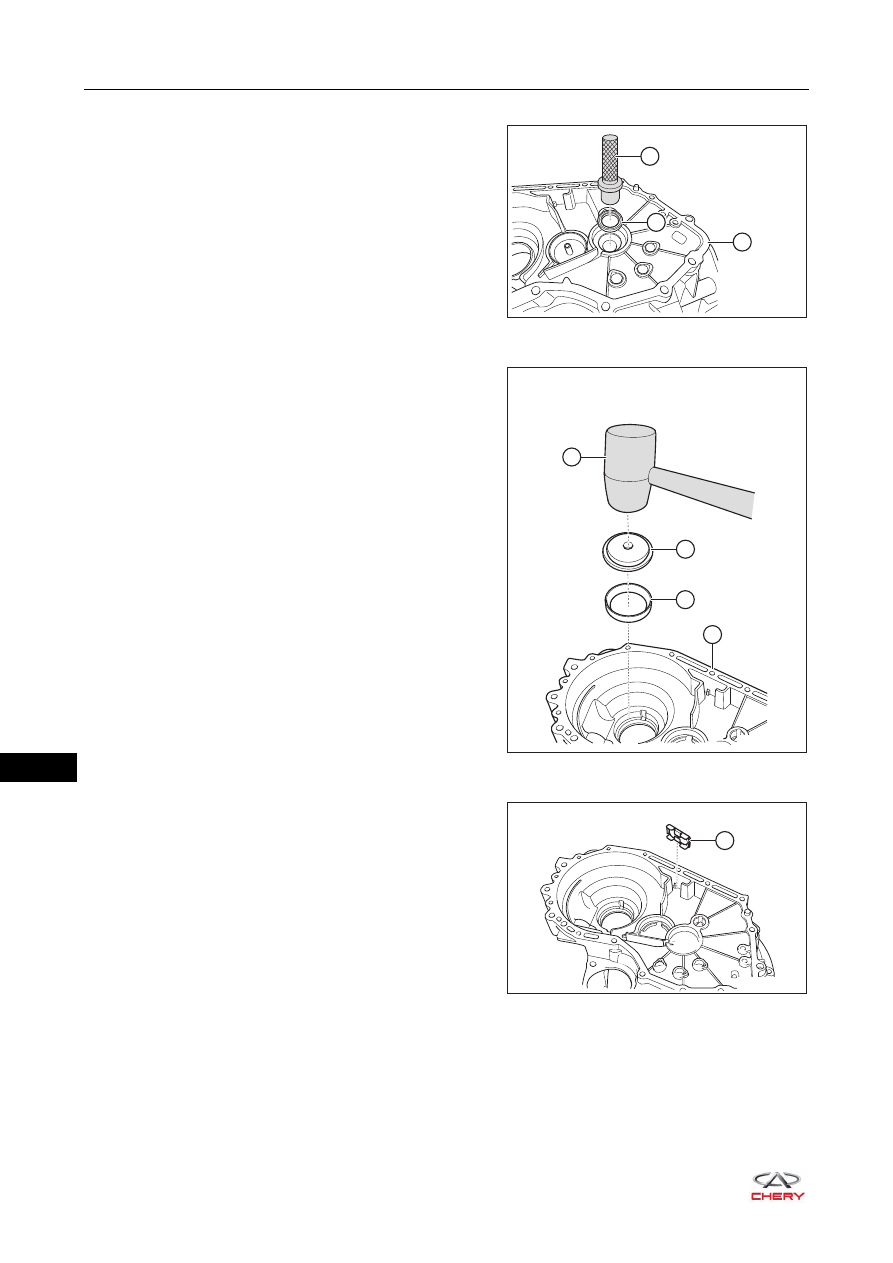

17–

64

17

3. Install the input shaft oil seal.

a. Using a input shaft oil seal installer (1), install the input

shaft oil seal (2) to the clutch case (3).

4. Install the differential bearing outer race.

a. Install the joint (1) to the bearing outer race (2), and

install the bearing outer race (2) to the case (3) with a
rubber hammer (4).

5. Install the magnet.

a. Install the magnet (1) to the clutch case.

1

3

2

RT21173000

1

2

4

3

RT21173010

1

RT21173020

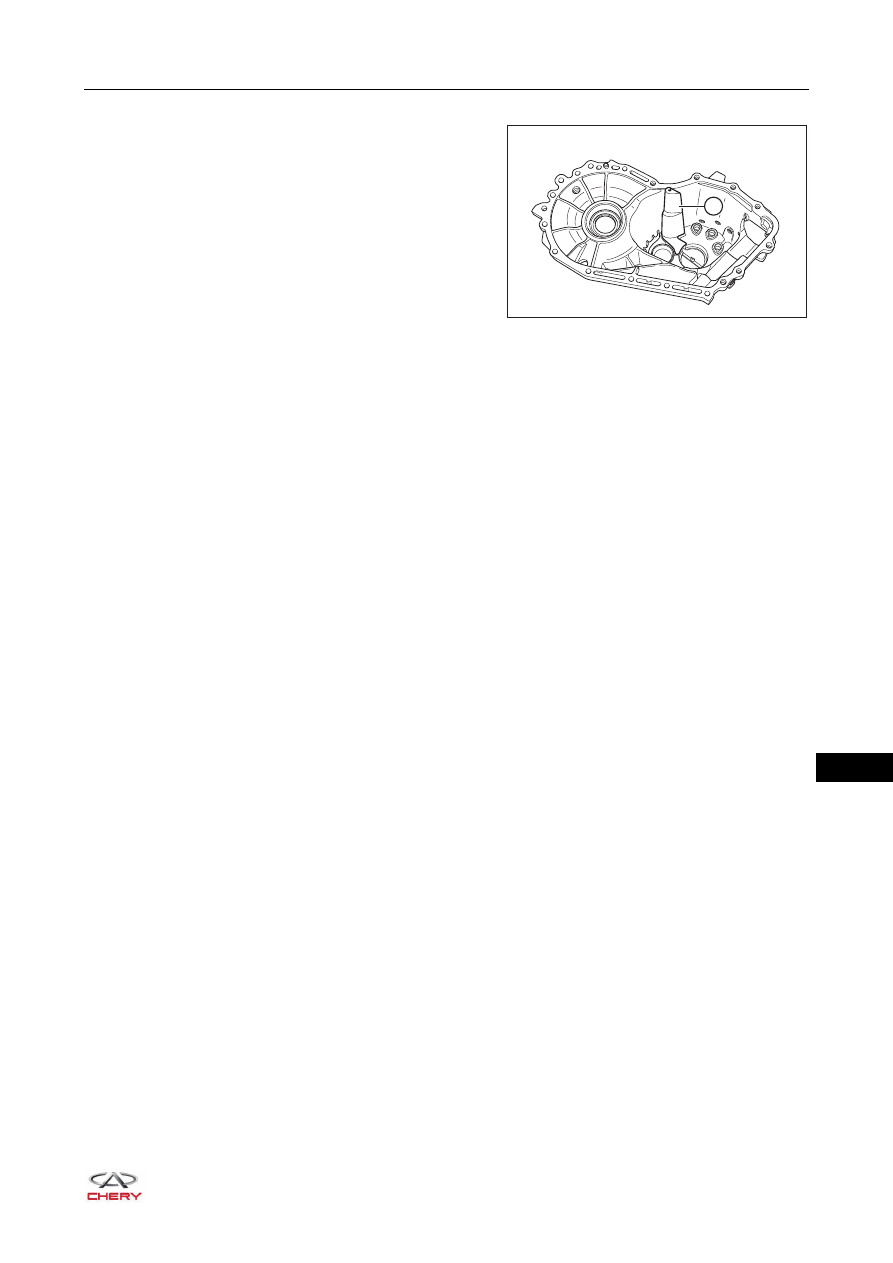

17–

65

17

6. Install the oil guide.

a. Install the oil guide (1) to the transmission case.

1

RT21173030
