17–

54

17

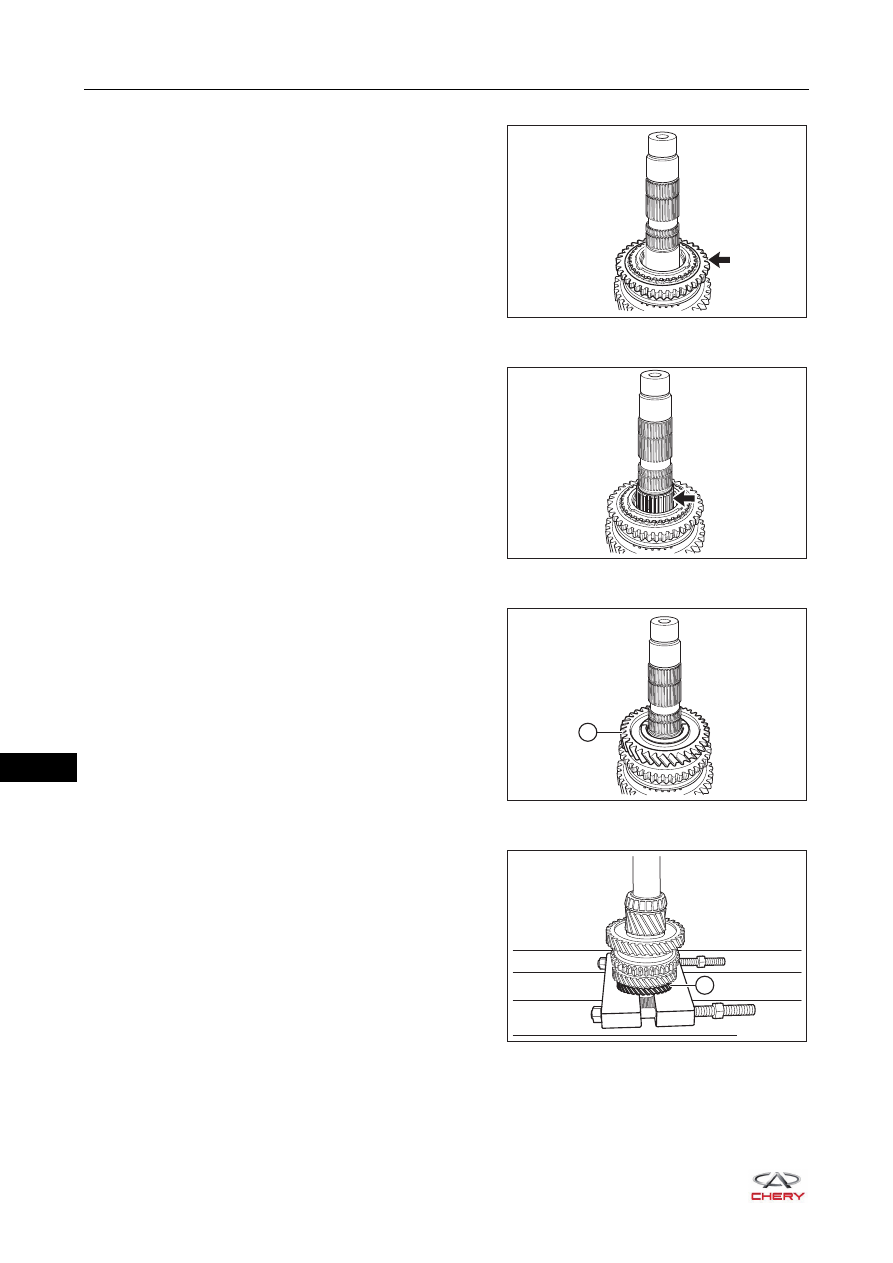

7. Install the synchronizer outer race.

a. Apply transmission oil to the synchronizer outer race

(arrow), and install it to the output shaft.

8. Install the 2nd needle roller bearing.

a. Apply transmission oil to the 2nd needle roller bearing

(arrow), and install it to the output shaft.

9. Install the 2nd driven gear.

a. Apply transmission oil to the 2nd driven gear (1), and

install it to the output shaft.

10.Install the 3rd driven gear.

a. Using a hydraulic press, press the 3rd driven gear (1)

into the output shaft.

RT21171010

RT21170880

1

RT21171020

RT21171030

1

17–

55

17

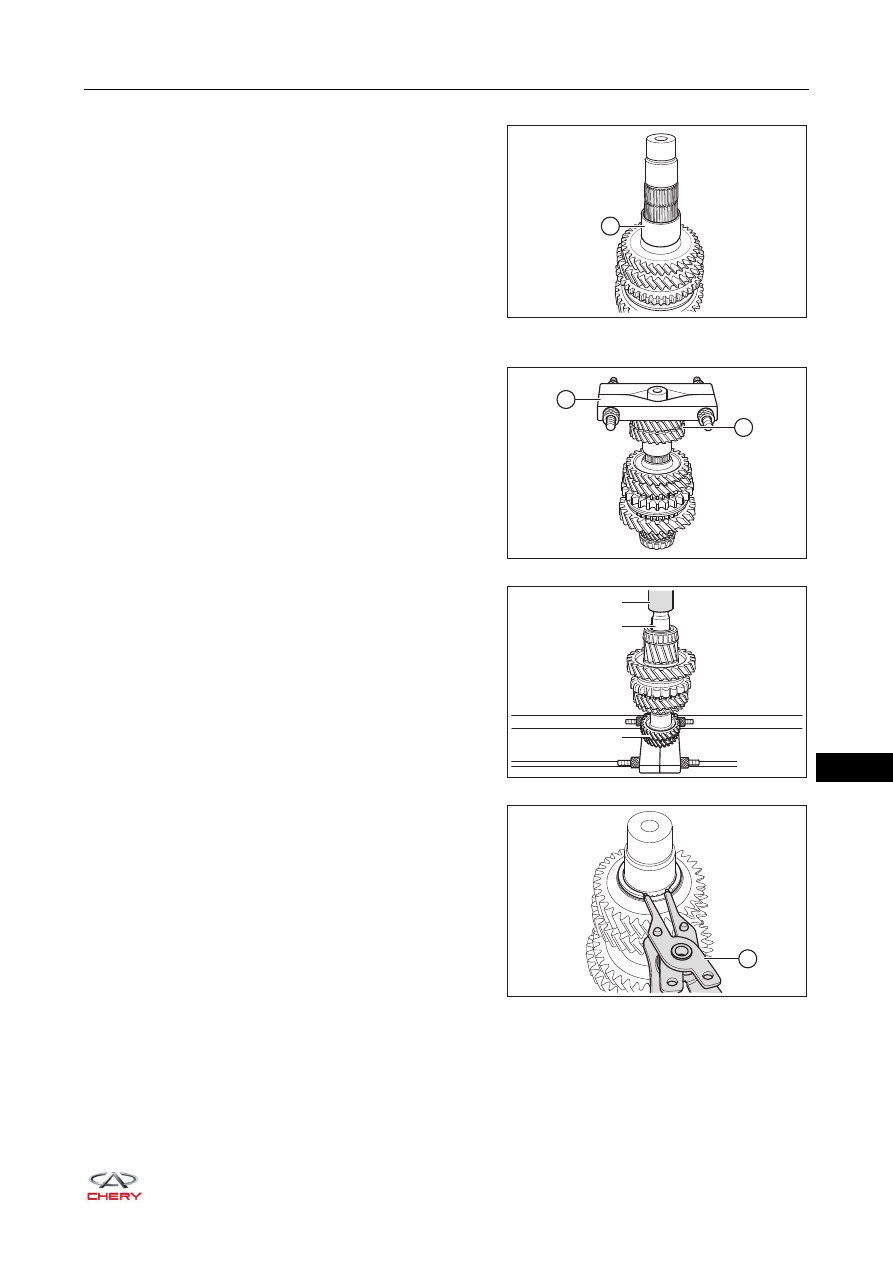

11.Install the gear shaft bushing.

a. Apply transmission oil to the gear shaft bushing (1),

and install it to the output shaft.

12.Install the 4th and 5th driven gears.

a. Using a special tool (1), secure the 4th and 5th driven

gears (2).

b. Using a hydraulic press (1), press the 4th and 5th

driven gears (3) into the output shaft (2).

c. Using snap spring calipers (1), install the snap ring.

1

RT21170850

2

1

RT21171040

1

2

3

RT21171050

1

RT21170820

17–

56

17

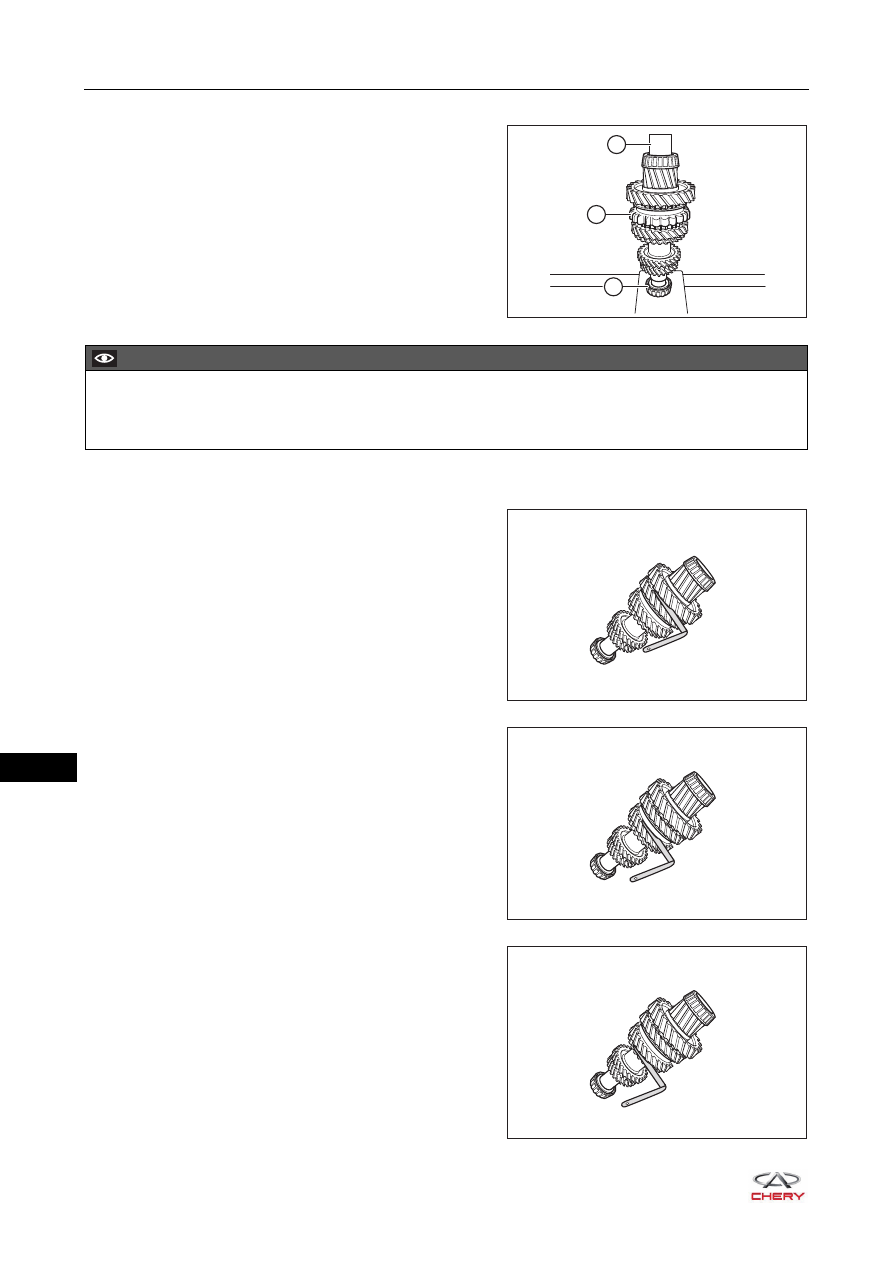

13.Install the output shaft rear bearing.

a. Using a hydraulic press (1), press the output shaft

rear bearing (3) into the output shaft (2).

Inspection

1. Using a feeler gauge, measure clearance between 1st

driven gear and synchronizer ring.
Standard value: 1.54 mm
Limit value: 1.240 - 1.840 mm

2. Using a feeler gauge, measure clearance between 2nd

driven gear and synchronizer ring.
Standard value: 1.54 mm
Limit value: 1.240 - 1.840 mm

3. Using a feeler gauge, measure clearance between 2nd

driven gear and 3rd driven gear.
Standard value: 1.2 mm
Limit value: 0.72 - 1.68 mm

1

2

3

RT21171060

CAUTION

 Check gears on the output shaft for smooth rotation after installation.
 Check engagement of gears on the output shaft for looseness or sticking.

RT21173051

RT21173052

RT21173053

17–

57

17

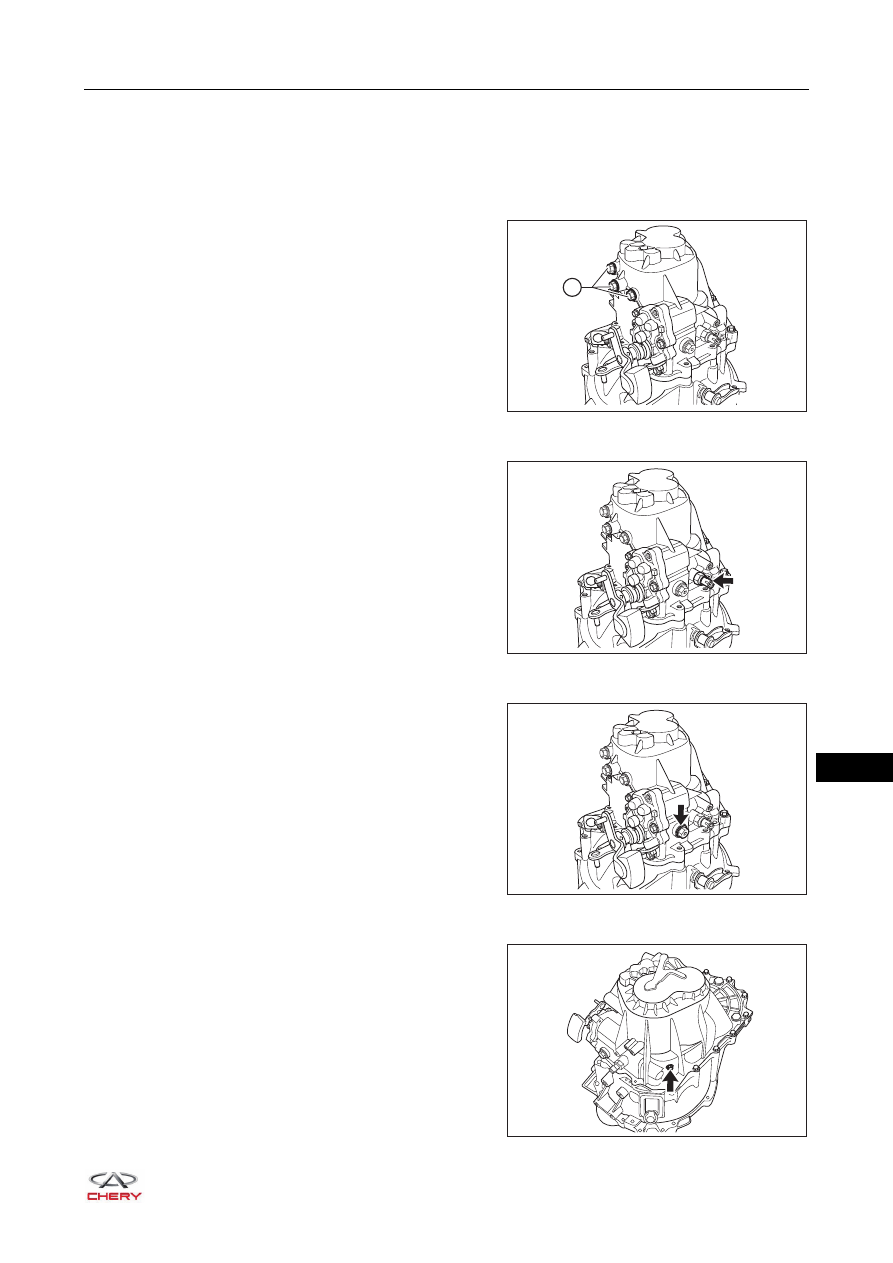

Transmission External Accessory

Removal

1. Shift transmission to the neutral position.
2. Remove the shift shaft locating bolt.

a. Remove the shift shaft locating bolts (1) from

transmission case.

3. Remove the back-up light switch.

a. Remove the back-up light switch (arrow) from

transmission case.

4. Remove the gear shift mechanism locating bolt.

a. Remove the gear shift mechanism locating bolt

(arrow) from transmission case.

5. Remove the reverse idler gear shaft locating bolt.

a. Remove the reverse idler gear shaft locating bolt

(arrow) from transmission case.

1

RT21171070

RT21170190

RT21170180

RT21171080
