Chery Tiggo 5 (T21). Manual - part 195

17–

34

17

Assembly

Assembly is in the reverse order of disassembly.

CAUTION

 Tighten bolts to the specified torque.
 Replace damaged dowel pins.

17–

35

17

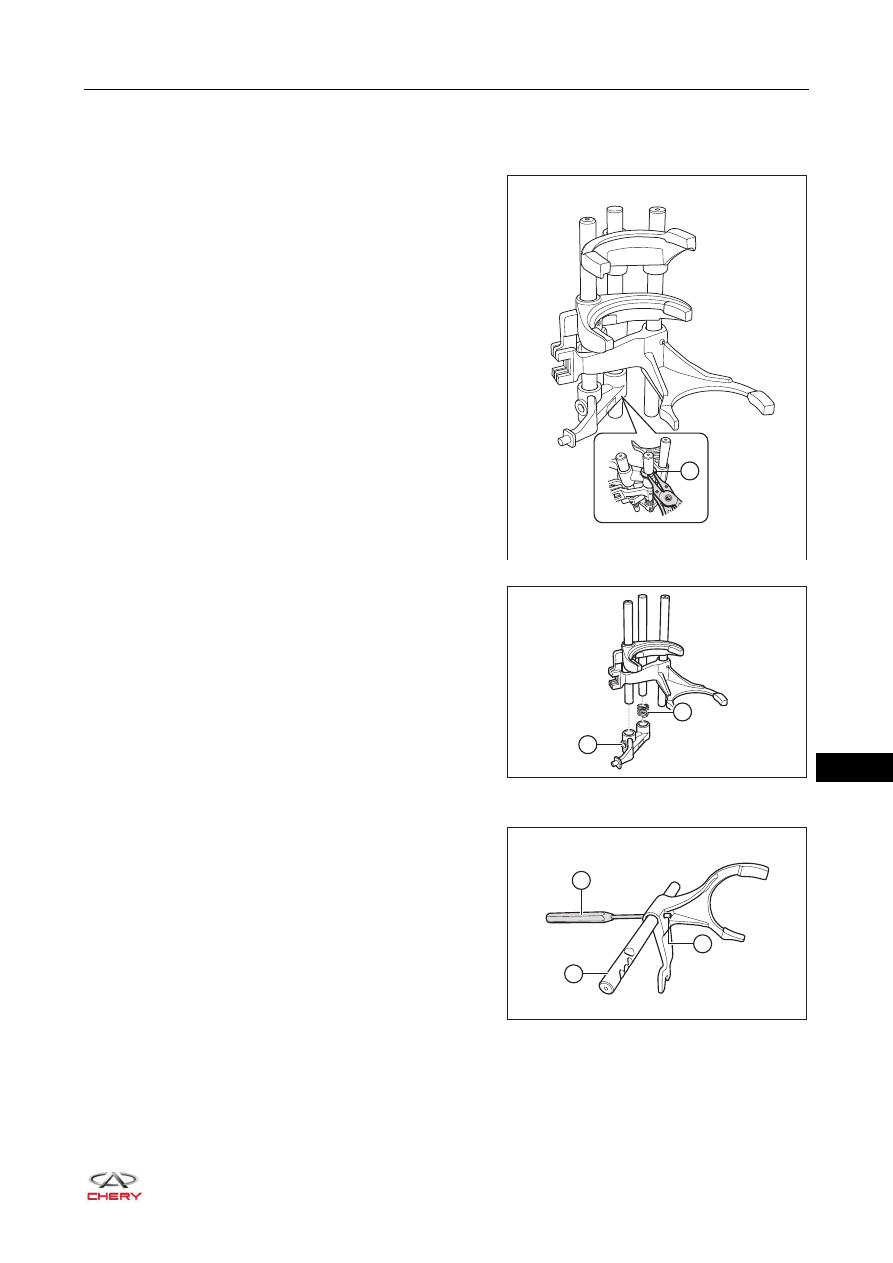

Shift Fork

Disassembly

1. Remove the reverse gear fork.

a. Using snap spring calipers, remove the snap ring (1).

b. Remove the reverse gear fork (1) and return spring

(2).

2. Remove the 3rd-4th gear shift fork.

a. Using a punch (1), tap out the dowel pin (3) from



3rd-4th gear shift shaft (2).

1

RT21170430

RT21170440

2

1

2

1

3

RT21170450

17–

36

17

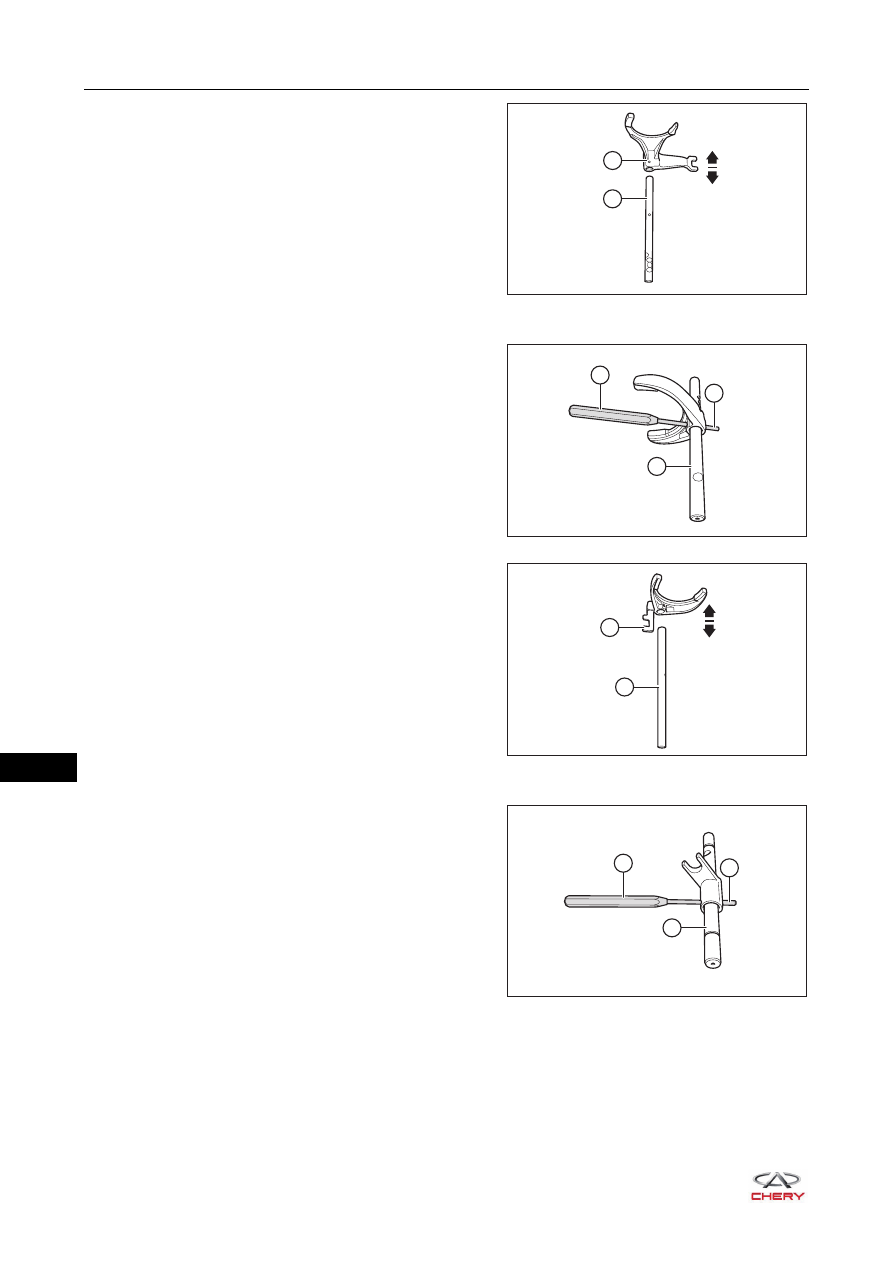

b. Separate the 3rd-4th gear shift fork (1) from the shift

shaft (2).

3. Remove the 1st-2nd gear shift fork.

a. Using a punch (1), tap out the dowel pin (3) from the

gear shift shaft (2).

b. Separate the 1st-2nd gear shift fork (1) from gear shift

shaft (2).

4. Remove the fork.

a. Using a punch (1), tap out the dowel pin (3) from gear

shift shaft (2).

RT21170460

1

2

RT21170470

2

1

3

RT21170480

1

2

RT21170490

2

1

3

17–

37

17

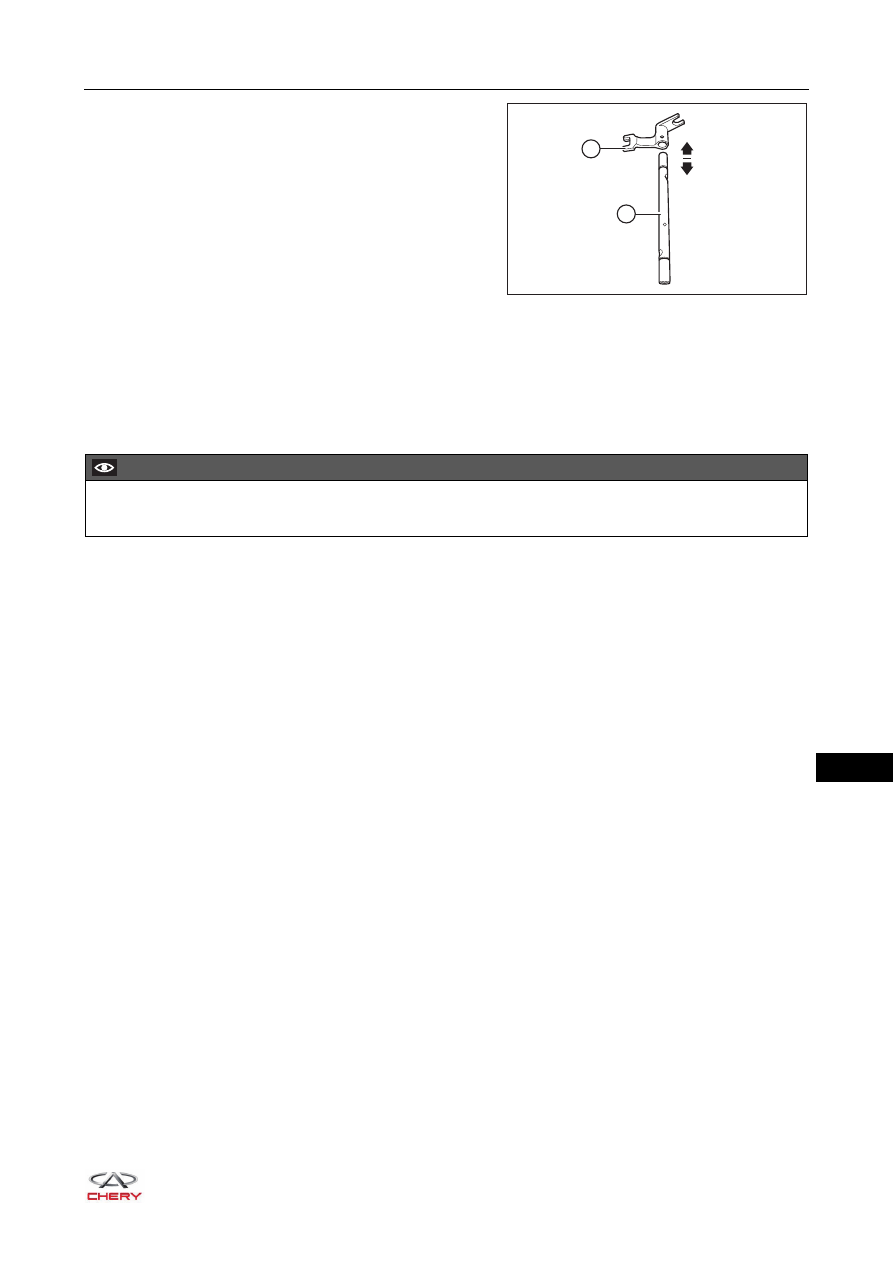

b. Separate the fork (1) from the gear shift shaft (2).

Inspection

1. Check gear shift shaft for excessive wear or damage. Replace if it is damaged.
2. Check release fork for excessive wear or damage. Replace if it is damaged.

Assembly

Assembly is in the reverse order of disassembly.

RT21170500

1

2

CAUTION

 When installing dowel pin, if there is excessive wear or damage, replace with a new one.
