Chery Tiggo 5 (T21). Manual - part 194





17–

30

17

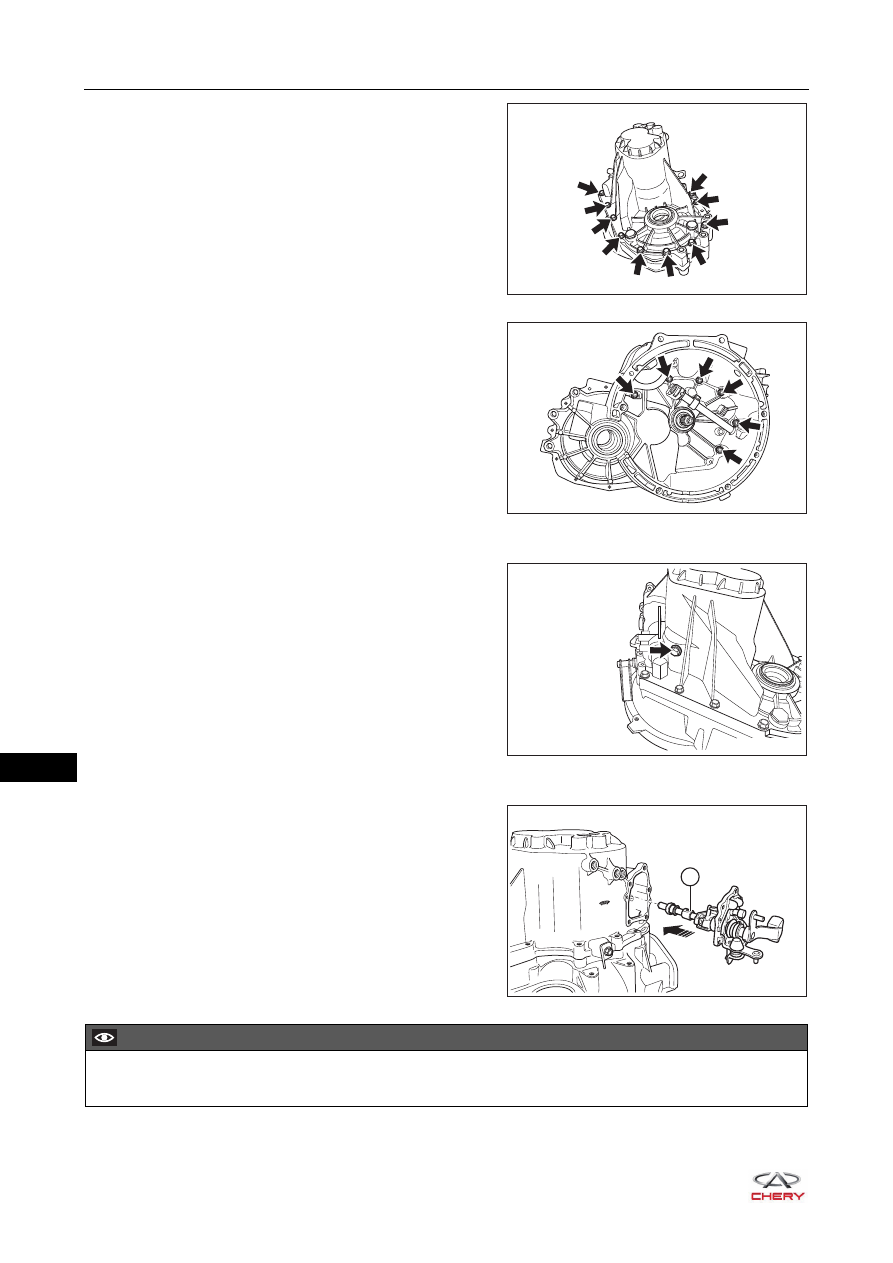

b. Install the transmission case fixing bolts (arrow) and

tighten them.

(Tightening torque: 25 ± 2 N·m)

c. Install the clutch case fixing bolts (arrow) and tighten

them.

(Tightening torque: 25 ± 2 N·m)

9. Install the reverse idler gear shaft locating bolt.

a. Install the reverse idler gear shaft locating bolt (arrow)

to the transmission case.

(Tightening torque: 40 ± 4 N·m)

10.Install the gear shift mechanism.

a. Install the gear shift mechanism (1) to the

transmission case.

RT21170250

RT21170240

RT21170230

1

RT21170380

CAUTION

 Clean the engagement portion of shifter case and transmission case, and apply seal gum evenly.

17–

31

17

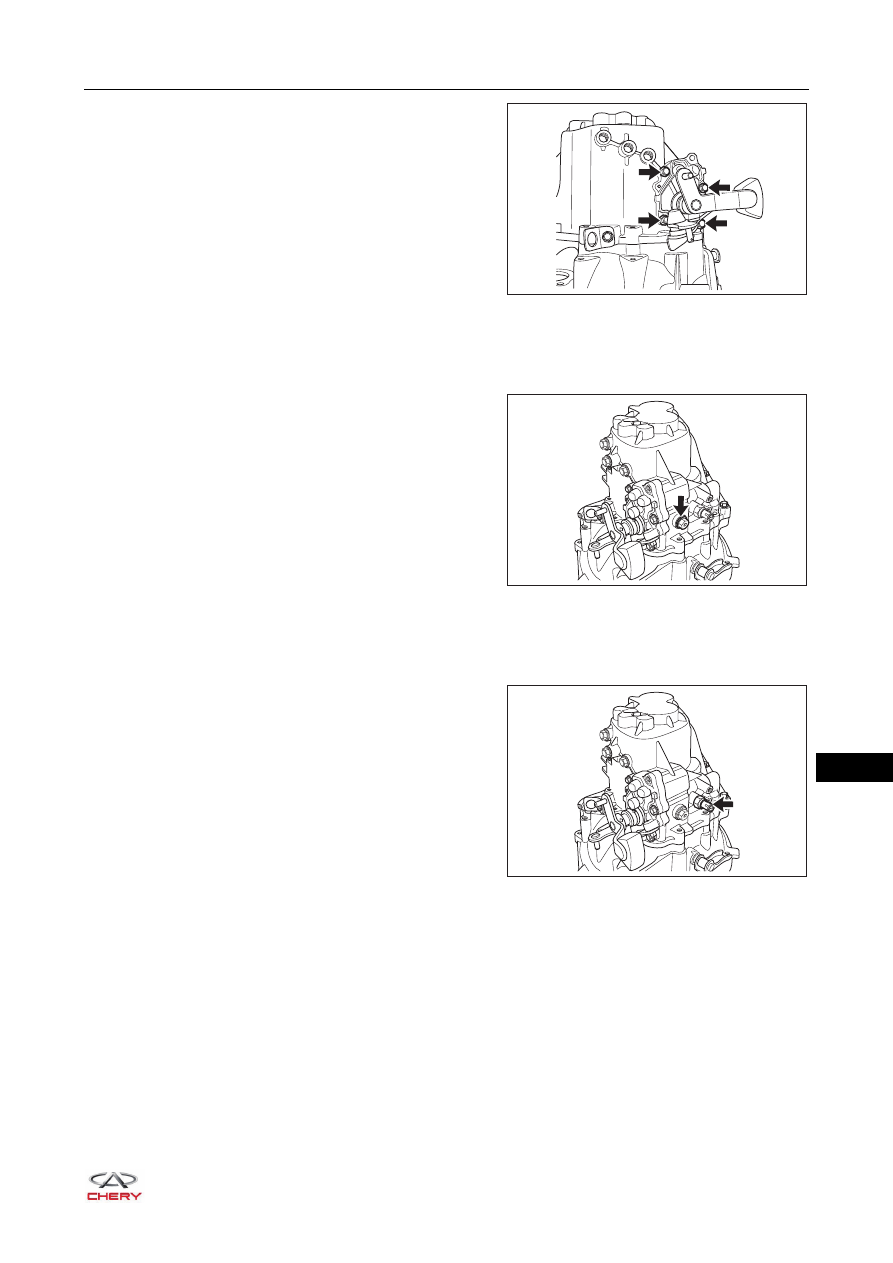

b. Install the coupling bolts (arrow) between gear shift

mechanism and transmission case.

(Tightening torque: 25 ± 2 N·m)

11.Install the gear shift mechanism locating bolt.

HINT:
Apply thread adhesive to thread before installation.

a. Install the gear shift mechanism locating bolt (arrow)

to the transmission case.

(Tightening torque: 35 ± 5.25 N·m)

12.Install the back-up light switch.

HINT:
Apply thread adhesive to thread before installation.

a. Install the back-up light switch (arrow) to the

transmission case.

(Tightening torque: 20 ± 2 N·m)

RT21170200

RT21170180

RT21170190

17–

32

17

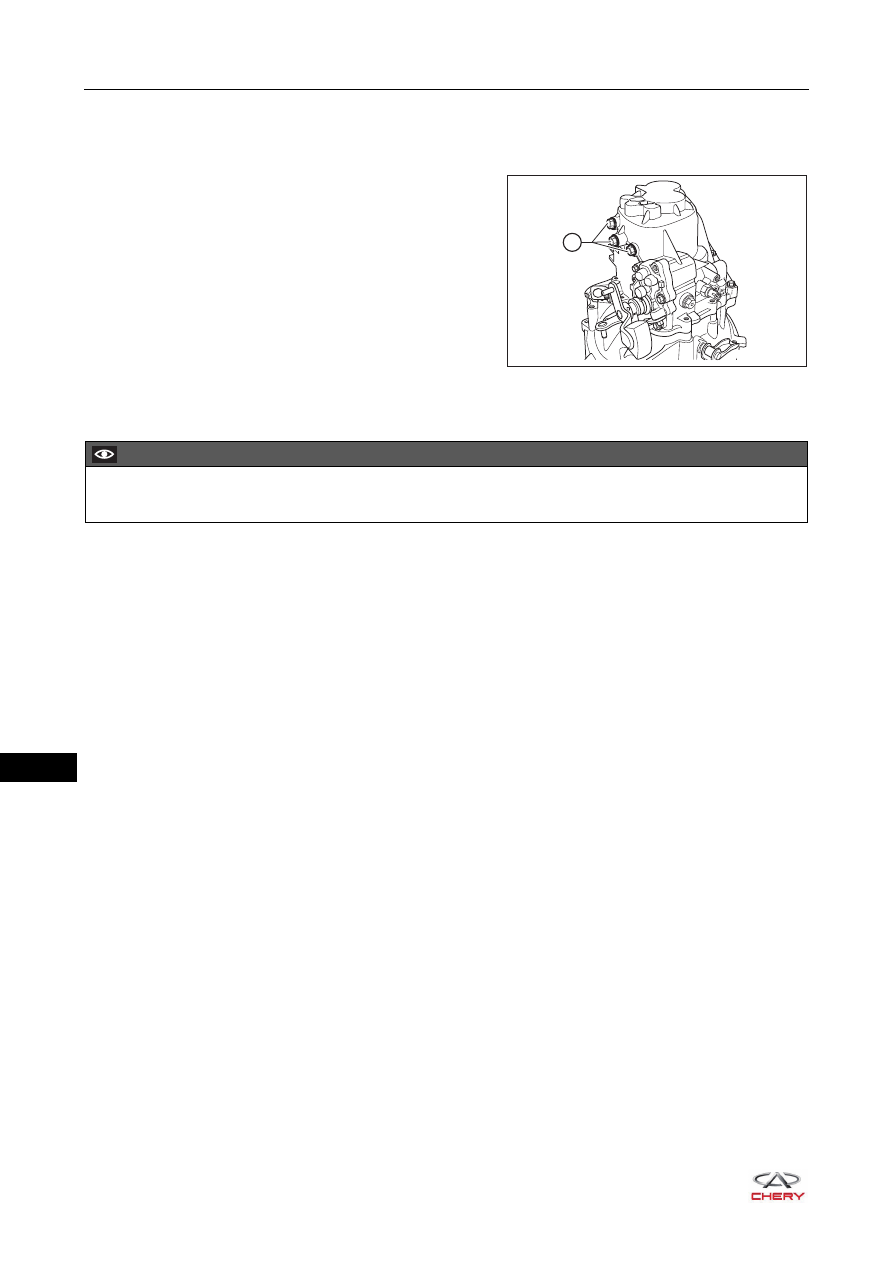

13.Install the shift shaft locating bolt.

HINT:
Apply thread adhesive to thread before installation.

a. Install the shift shaft locating bolts (1) to the

transmission case.

(Tightening torque: 35 ± 5.25 N·m)

Installation

Installation is in the reverse order of removal.

1

RT21171070

CAUTION

 After installation, add transmission oil and check the oil level.

17–

33

17

Gear Shift Mechanism

Disassembly

1. Loosen the shift arm bracket bolts (A).

(Tightening torque: 25 ± 2 N·m)

2. Remove the shift arm bracket (1).
3. Using snap spring calipers (2), remove the snap ring (3).
4. Loosen the fixing bolts (B) of reverse gear lock

mechanism.

(Tightening torque: 18 ± 2 N·m)

5. Remove the reverse gear lock mechanism (4).

6. Tap out the dowel pin (2) with a punch (1).
7. Remove the shift arm (3) and plate (4).

8. Tap out the dowel pin (2) with a punch (1).
9. Remove the shift finger (3).

RT21170400

B

A

1

4

3

2

3

2

4

1

RT21170410

2

1

3

RT21170420
