ON-VEHICLE SERVICE

Engine Trim Cover Assembly & Bracket

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.

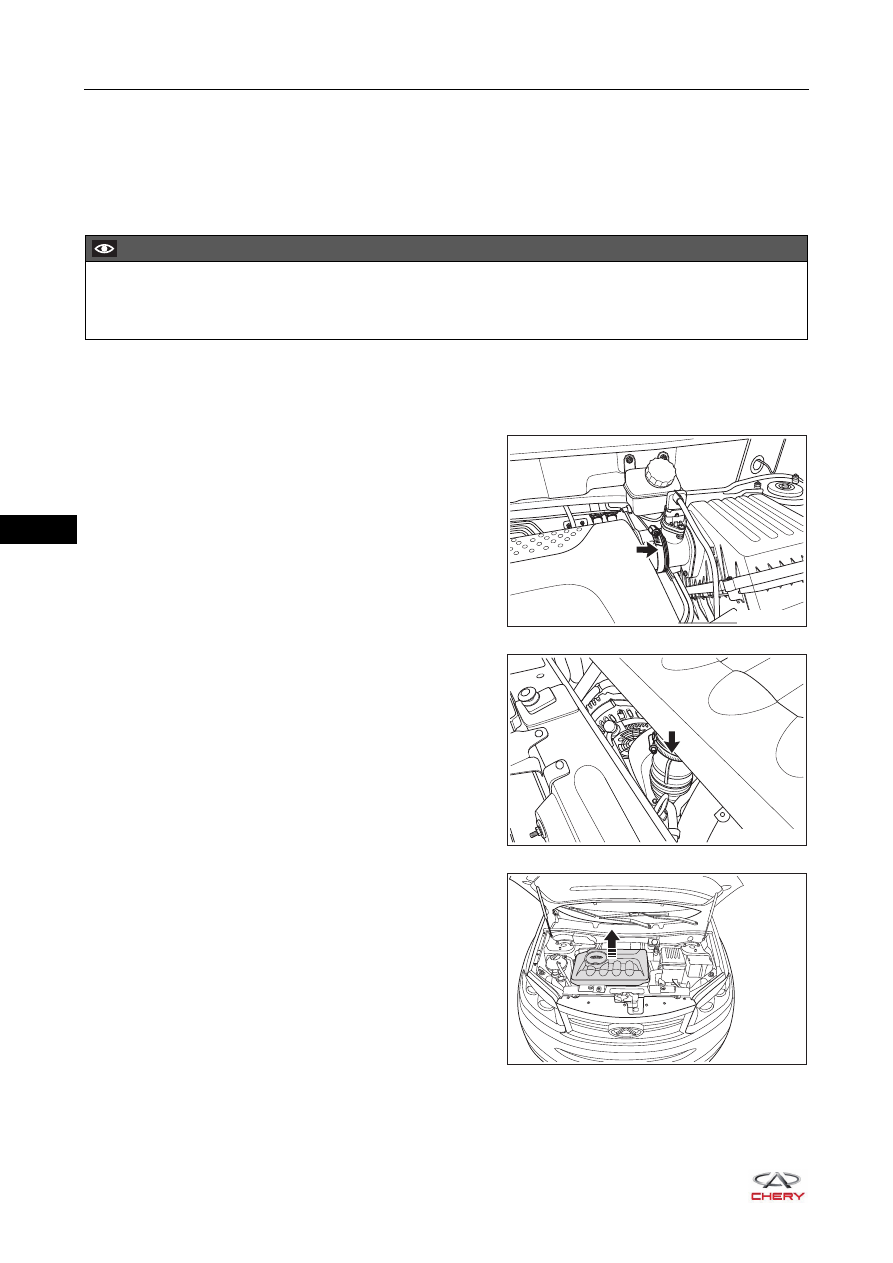

3. Remove the engine trim cover assembly.

a. Loosen the worm clamp (arrow) and disconnect the

connection between rear intake hose and hot wire air
flow meter.



(Tightening torque: 5 ± 0.5 N·m)

b. Loosen the worm clamp (arrow) and disconnect the

connection between front intake hose and engine trim
cover assembly.



(Tightening torque: 5 ± 0.5 N·m)

c. Remove the engine trim cover assembly from the

bracket.

CAUTION

 Be sure to wear necessary safety equipment when repairing to prevent accidents.
 Try to prevent body paint surface from being scratched during removal and installation.

RT21100020

RT21100030

RT21100040

10–

11

10

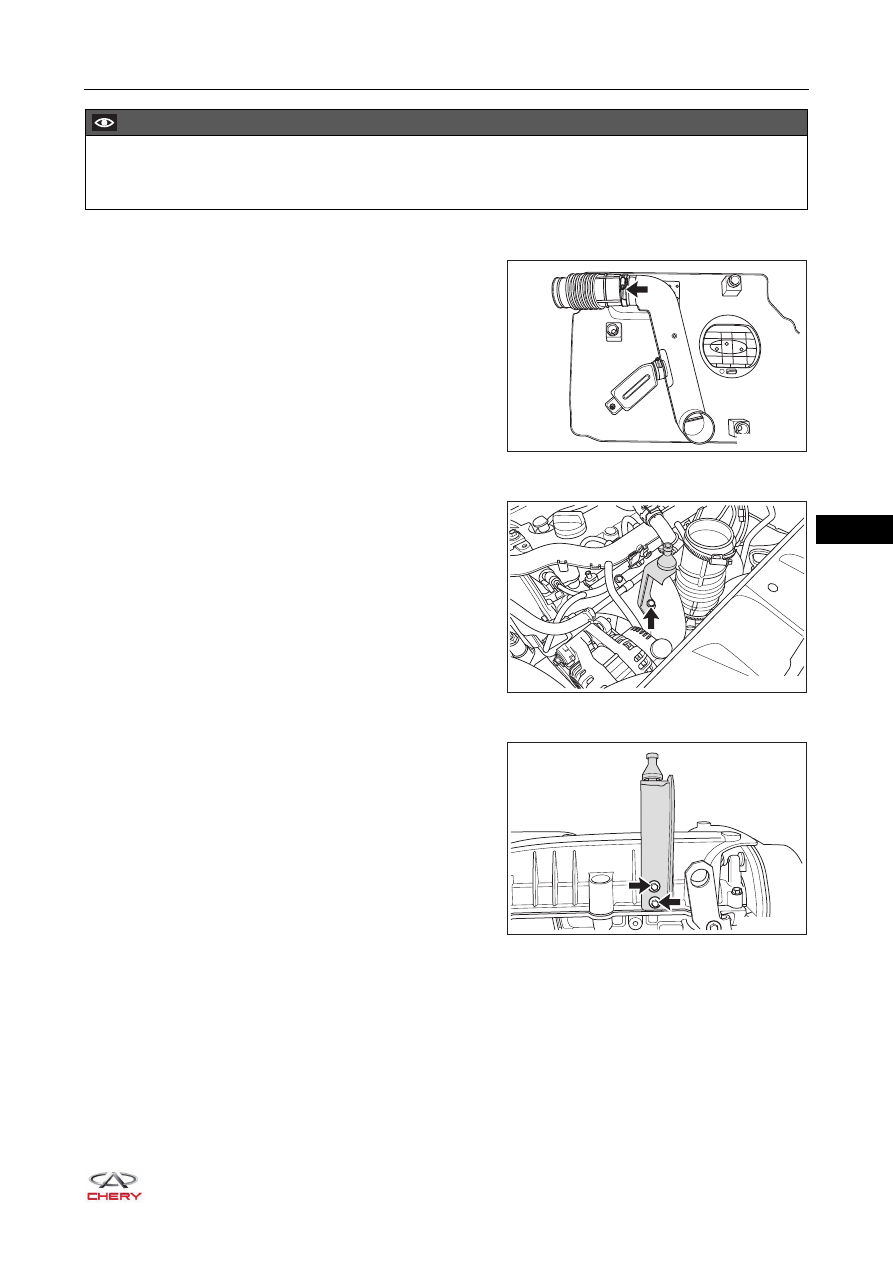

4. Remove the rear intake hose.

a. Loosen the worm clamp (arrow) and remove the rear

intake hose from the engine trim cover assembly.



(Tightening torque: 5 ± 0.5 N·m)

5. Remove the trim cover front bracket.

a. Remove the trim cover front bracket fixing bolt

(arrow), and remove the trim cover front bracket.



(Tightening torque: 7 ± 1 N·m)

6. Remove the trim cover rear right bracket.

a. Remove the exhaust manifold heat insulator.
b. Remove 2 fixing bolts (arrow) from the trim cover rear

right bracket, and remove the trim cover rear right
bracket.



(Tightening torque: 7 ± 1 N·m)

CAUTION

 Cover front intake hose with a plastic bag after removing engine trim cover assembly to prevent foreign

matter entering front intake hose.

RT21100050

RT21100060

RT21100070

10–

12

10

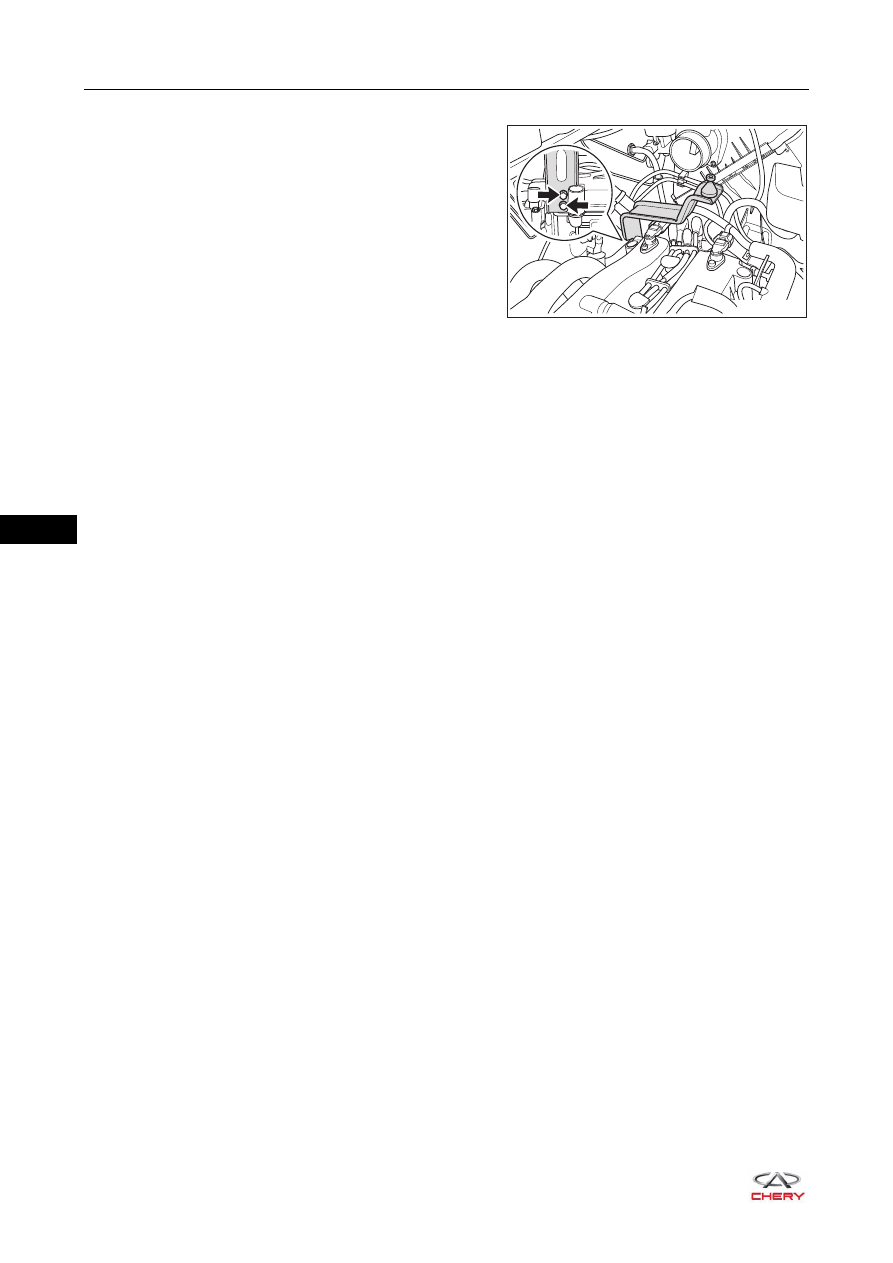

7. Remove the trim cover rear left bracket.

a. Remove 2 fixing bolts (arrow) from the trim cover rear

left bracket, and remove the trim cover rear left
bracket.



(Tightening torque: 7 ± 1 N·m)

Installation

Installation is in the reverse order of removal.

RT21100080

10–

13

10

Hot Wire Air Flow Meter

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the engine trim cover assembly (

See page 10-10

).

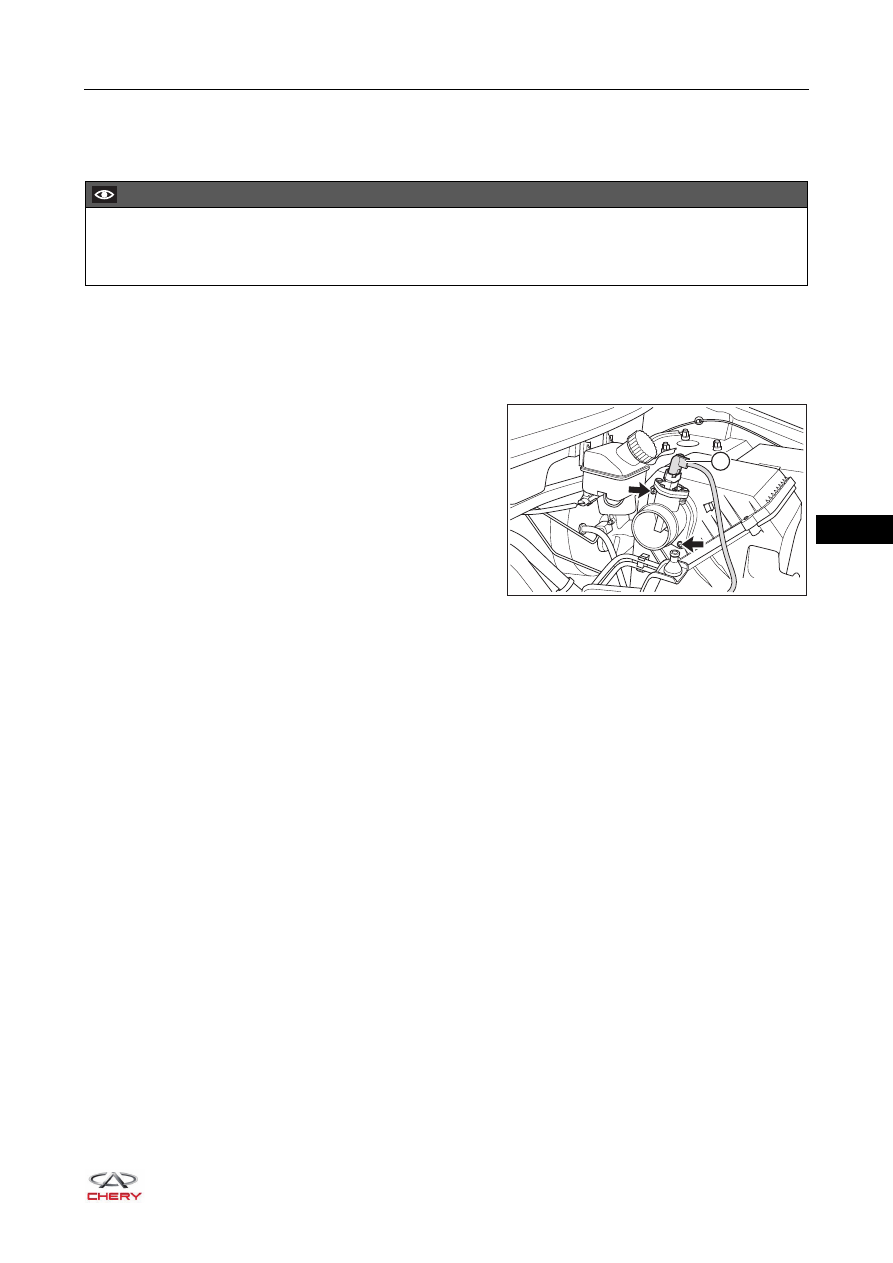

4. Remove the hot wire air flow meter.

a. Disconnect the hot wire air flow meter connector (1).
b. Remove 2 fixing bolts (arrow) from the hot wire air

flow meter.



(Tightening torque: 4.5 ± 0.5 N·m)

c. Remove the hot wire air flow meter.

Installation

Installation is in the reverse order of removal.

CAUTION

 Be sure to wear necessary safety equipment when repairing to prevent accidents.
 Try to prevent body paint surface from being scratched during removal and installation.

1
