Chery Tiggo 5 (T21). Manual - part 60

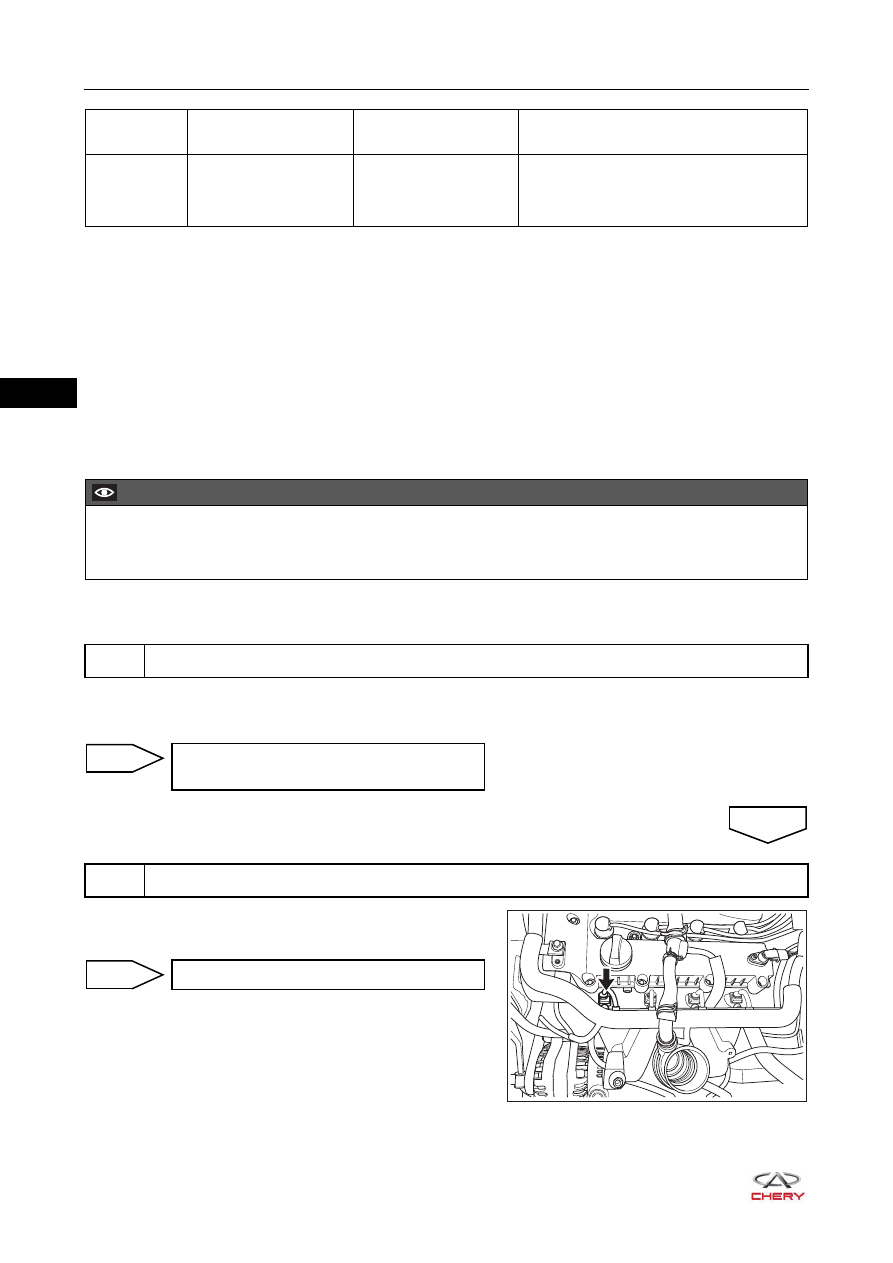

06–

82

06

DTC Confirmation Procedure

Confirm that battery voltage is over 12 V before performing the following procedures.
 Turn ignition switch to LOCK.
 Connect X-431 3G diagnostic tester (the latest software) to Data Link Connector (DLC).
 Turn ignition switch to ON.
 Use X-431 3G diagnostic tester to record and clear the DTCs stored in the ECM.
 Select Read Code.
 If the DTC is detected, the malfunction indicated by the DTC is current. Go to the diagnosis 

procedure - Step 1.

 If DTC is not detected, the malfunction indicated by the DTC is intermittent (

See page 06-18

).

Diagnosis Procedure

a. Turn ignition switch to LOCK.
b. Check ECM grounds E-026 and E-028 (

See page 06-18

).

a. Disconnect injector connector E-010 of cylinder 1.
b. Check injector connector.

DTC Code

DTC Definitions

DTC Detection

Conditions

Possible Cause

P0201-00

Cylinder 1 - Injector
Circuit

Engine running

 Injector of cylinder 1
 Wire harness or connector
 ECM

CAUTION

 When performing circuit diagnosis and test, always refer to the circuit diagram for specific circuit and

component information.

1

Check ECM ground point

Repair or replace ground wire harness or
ground point

NG

2

Check injector connector of cylinder 1

OK

RT21060150

Repair or replace connector

NG

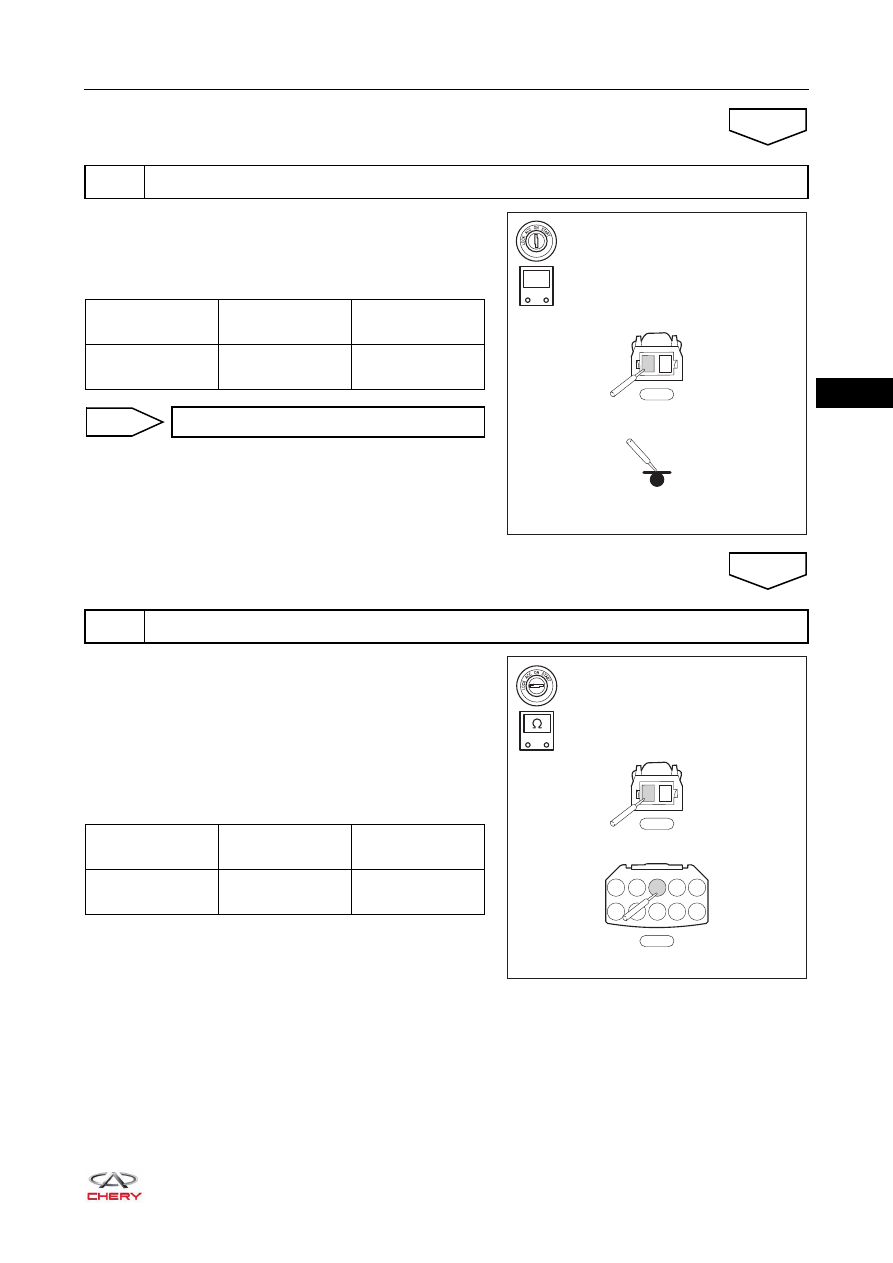

06–

83

06

a. Disconnect injector connector E-010 of cylinder 1.
b. Turn ignition switch to ON.
c. Check voltage between injector connector terminal of

cylinder 1 and body ground.

a. Turn ignition switch to LOCK.
b. Check fuse EF08 and main relay.
c. Disconnect engine compartment fuse and relay box

connector E-023.

d. Check wire harness between injector connector terminals

and engine compartment fuse and relay box connector
terminals.
Check for Open

3

Check injector power supply voltage of cylinder 1

OK

E-010

1

2

-

+

V

RT21065031

Multimeter

Connection

Condition

Specified

Condition

E-010 (1) - Body

ground

Ignition switch ON

11 to 14 V

Go to step 5

OK

4

Check injector power supply circuit of cylinder 1

NG

E-010

E-023

1

2

C1

C2

C3 C4

C5

C6

C7

C8 C9 C10

-

+

RT21065032

Multimeter

Connection

Condition

Specified

Condition

E-010 (1) - E-023

(C3)

Always

Continuity

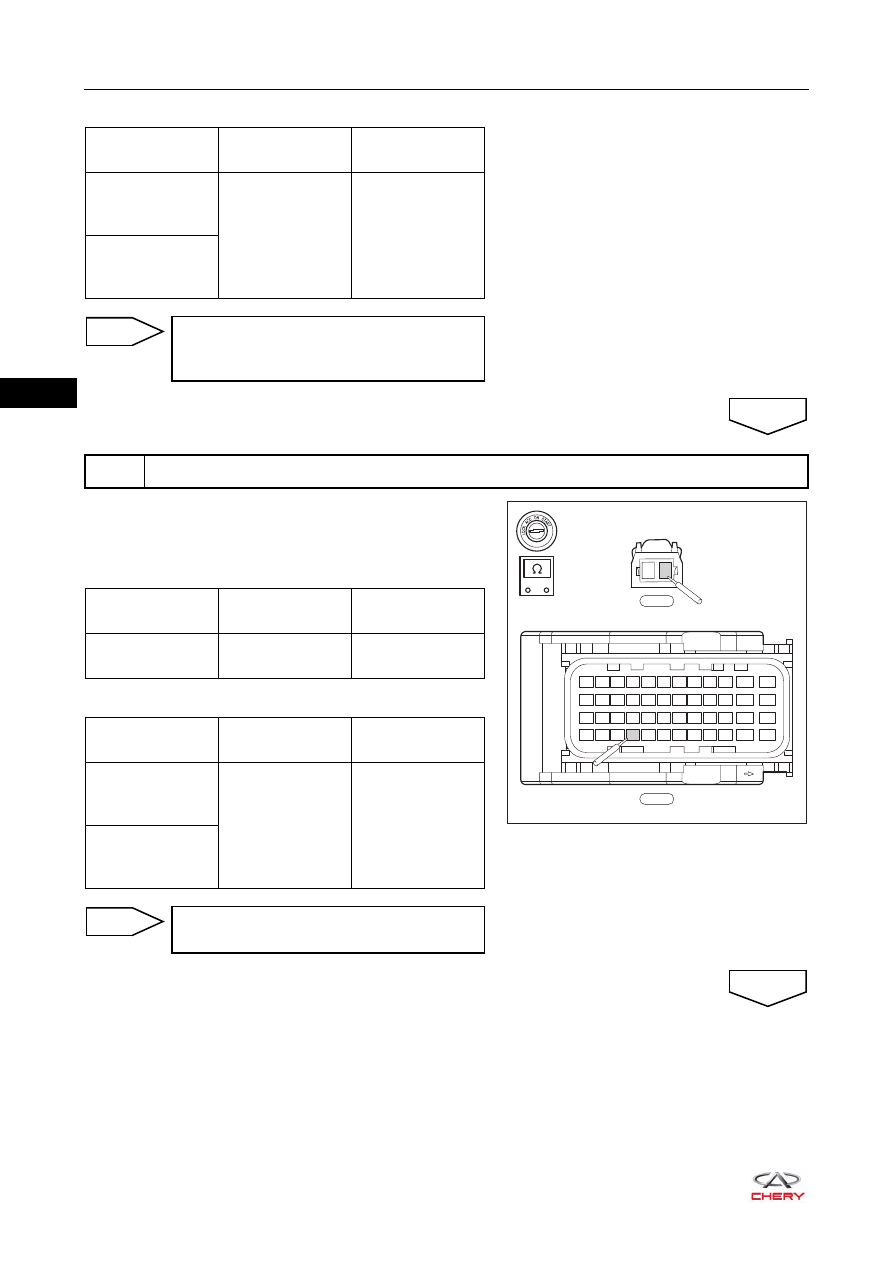

06–

84

06

Check for Short

a. Disconnect ECM connector E-035.
b. Check wire harness between injector connector terminals

and ECM connector terminals.
Check for Open

Check for Short

Multimeter

Connection

Condition

Specified

Condition

E-010 (1) or

E-023 (C3) - Body

ground

Always

No continuity

E-010 (1) or

E-023 (C3) -

Battery positive

Repair or replace wire harness or
connector (injector of cylinder 1 - engine
compartment fuse and relay box)

NG

5

Check injector control circuit of cylinder 1

OK

E-010

E-035

37 38 39 40 41 42 43 44 45 46

47

48

25 26 27 28 29 30 31 32 33 34

35

36

13 14 15 16 17 18 19 20 21 22

23

24

1

2

3

4

5

6

7

8

9 10

11

12

1

2

-

+

RT21065033

Multimeter

Connection

Condition

Specified

Condition

E-010 (2) - E-035

(4)

Always

Continuity

Multimeter

Connection

Condition

Specified

Condition

E-010 (2) or

E-035 (4) - Body

ground

Always

No continuity

E-010 (2) or E-

035 (4) - Battery

positive

Repair or replace wire harness or
connector (injector of cylinder 1 - ECM)

NG

OK

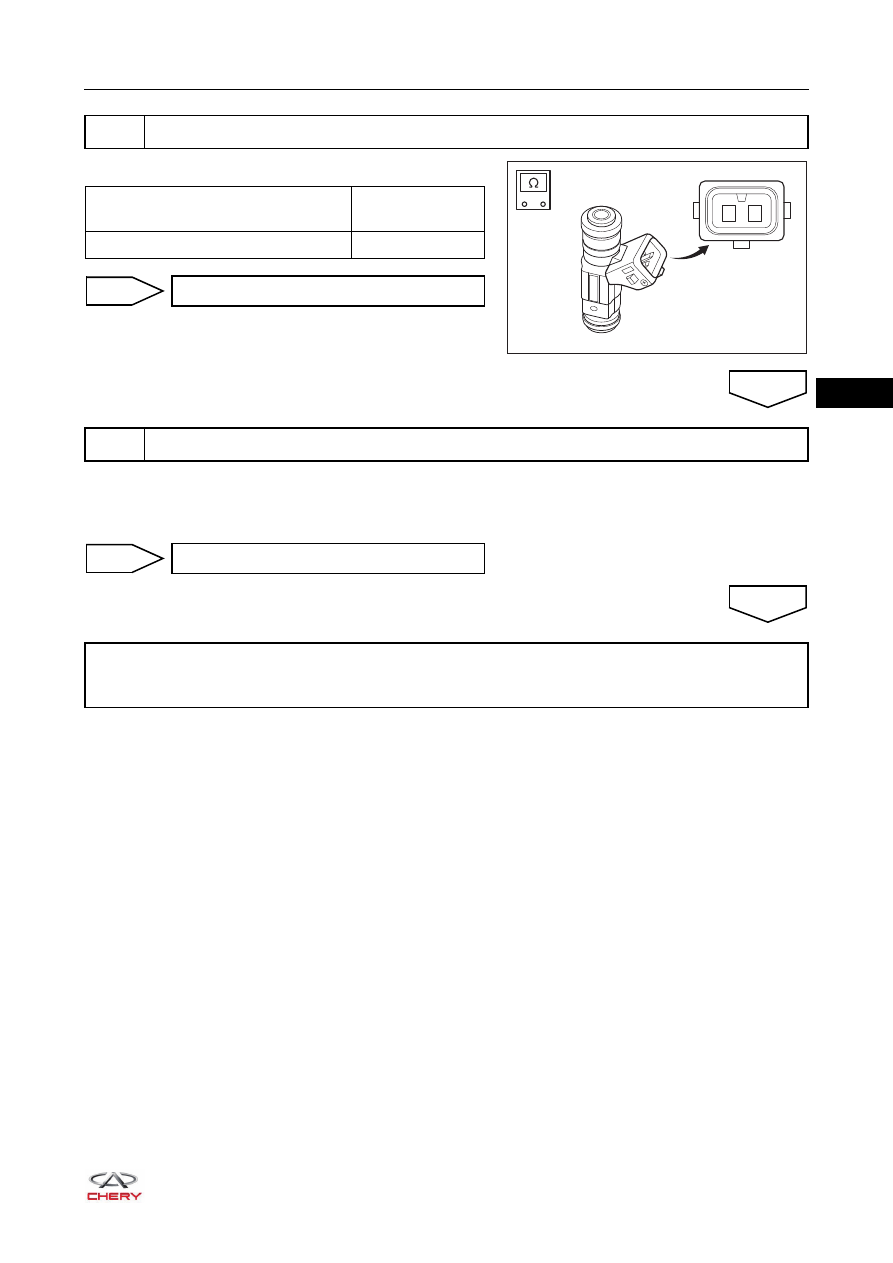

06–

85

06

a. Check resistance of injector of cylinder 1.

a. Use X-431 3G diagnostic tester to read the ECM DTC.
b. Refer to "DTC Confirmation Procedure".
c. Check if DTC P0201-00 still exists.

6

Check injector of cylinder 1

1

2

RT21080290

-

+

Multimeter Connection

Specified

Condition

1 - 2

 12 Ω (at 20°C)

Replace injector of cylinder 1

NG

7

Check for DTCs

OK

Replace ECM

NG

System is operating normally.
Reassemble vehicle and perform a road test to confirm that malfunction reported by customer has
been repaired.

OK
