CHERY A21 SERVICE MANUAL



MECHANISM OF 2.0NALC ENGINE

17





2.1.3



Installation steps

The  installing  steps  are  reverse  to  those  for
removal.

2.2



Replace  camshaft,  bearing  bushings,
valve and valve oil seal.

2.2.1



Needed tools and auxiliary materials

Special  tools  for  valve  oil  seal,  engine
transmission  oil,  a  set  of  sleeve  tools,  an
adjustable  spanner,  special  tools  for  timing
and a set of Allen wrenches

2.2.2



Removal

1)



Remove  the  dynamo  belt  (see  “removal
of dynamo belt” for details).

2)



Remove

the

timing

belt

(see

“replacement  of  engine  timing  belt  and
timing calibration” for details).

3)



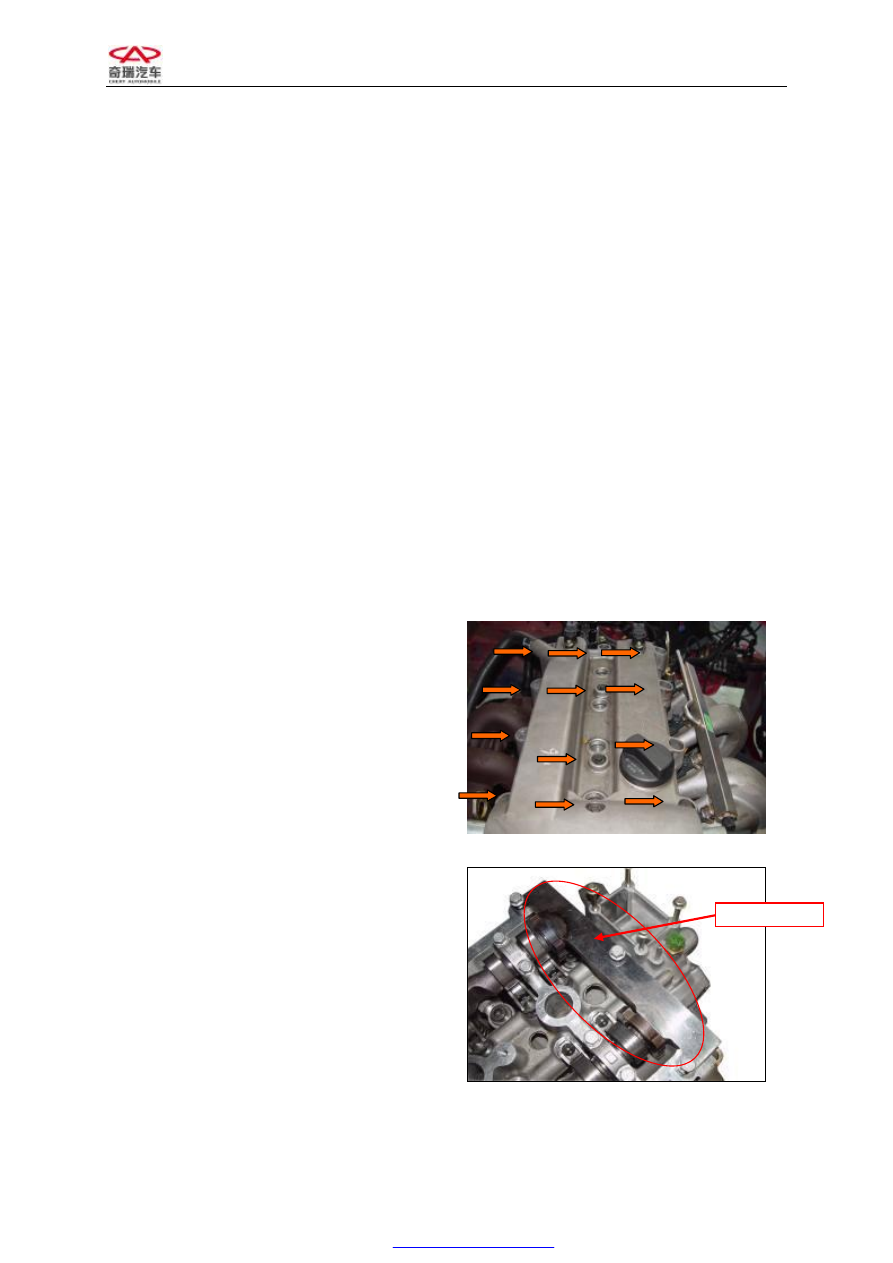

Remove  the  cover  of  engine  valve
chamber.



4)

Clamp  the  timing  special  tool  into
camshaft slot and fasten the bolt.







Camshaft Tool



CHERY A21 SERVICE MANUAL



MECHANISM OF 2.0NALC ENGINE

18



5)

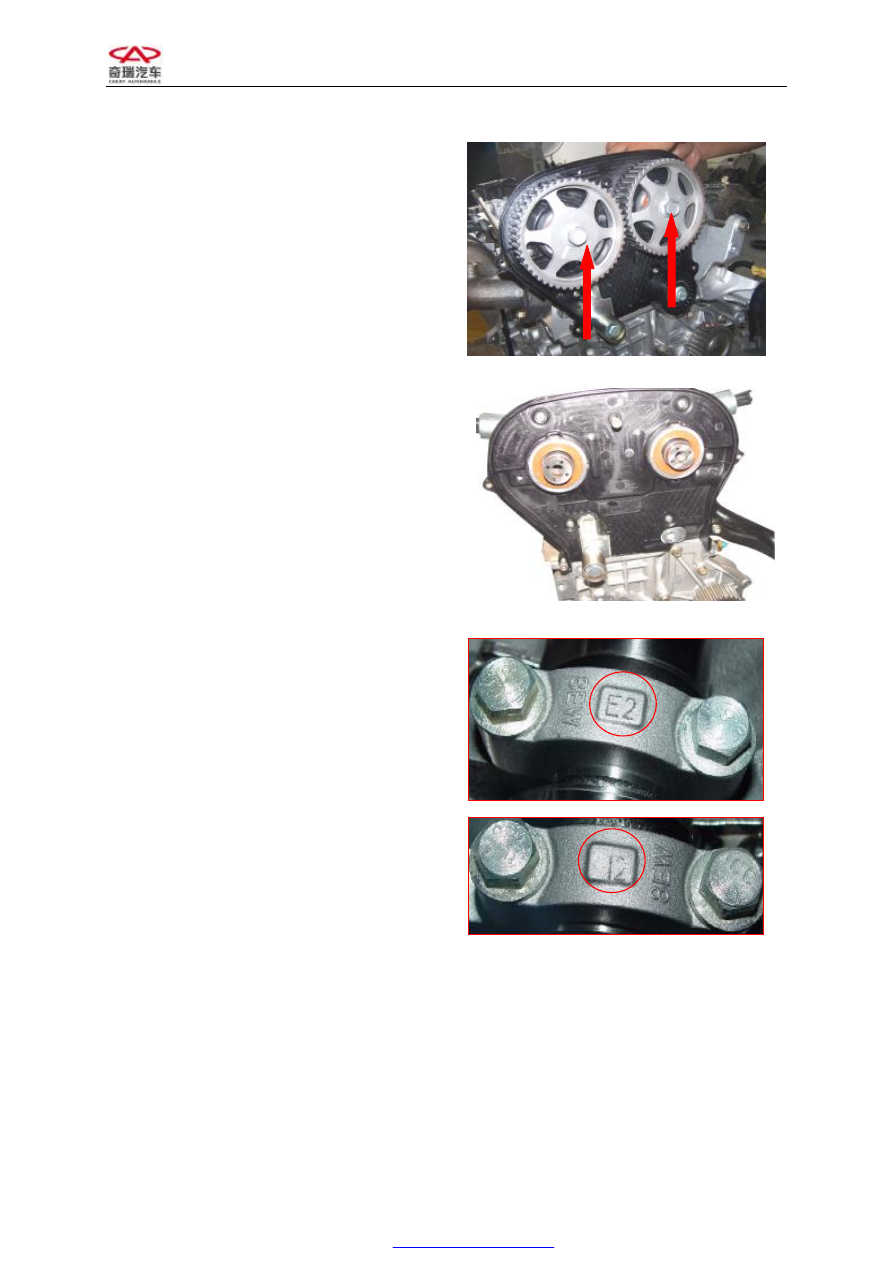

Dismantle  the  belt  pulley  of  air  intake
and  exhaust  camshafts  with  torque
wrench.





6)

Remove the back cover of timing belt.



7)

Dismantle the bearing  caps of air  intake
and  exhaust  camshaft  respectively  and
put them down in the sequence.

Note:  The  second,  third,  fourth  and  fifth
camshaft bearing caps are marked with I1, I2,
I3, I4  (E1,  E2,  E3, E4),  which  stands  for the
corresponding  bearing  cap  of  1,  2,  3,  4
cylinder  respectively.  (“I”  refers  to  intake
camshaft, “E” refers to exhaust camshaft).

Torque:











CHERY A21 SERVICE MANUAL



MECHANISM OF 2.0NALC ENGINE

19

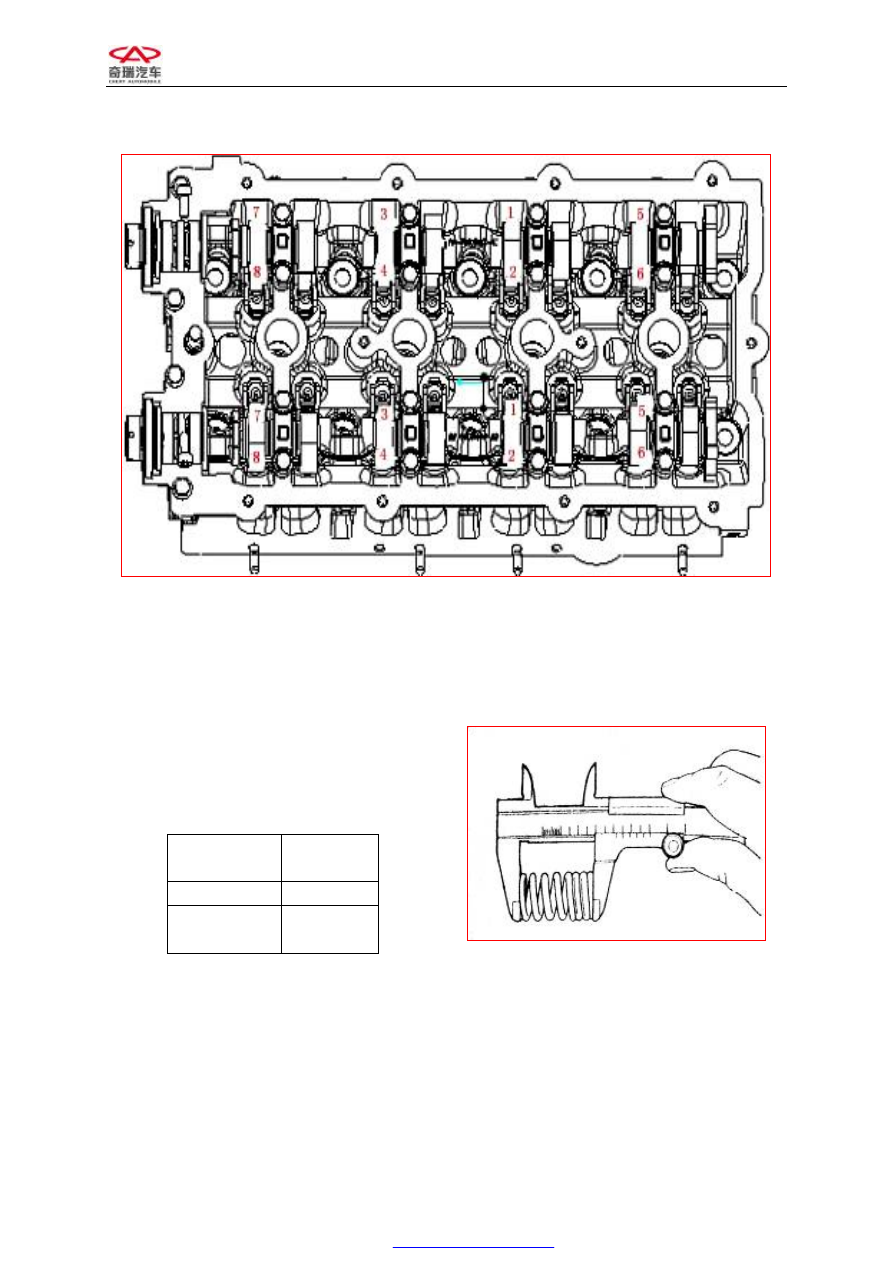

See the following picture for removal sequence of intake and exhaust camshaft-bearing caps:



8)  Take out the camshaft and the hydraulic tappet.

9)  Remove the valve spring with special tools.

(Picture is unavailable)



10)  Remove the used valve oil seal with special tools.

(Picture is unavailable)

2.2.3

  Inspection



1)



Check the valve spring.

Measure  the  free  length,  the  verticality  and
the length under special pressure with caliper.



Standard

Value(mm)

Free length

47.7

Length of

620N

32

Replace  with  the  new  valve  spring  if  the
measured value exceeds the limit value.





CHERY A21 SERVICE MANUAL



MECHANISM OF 2.0NALC ENGINE

20



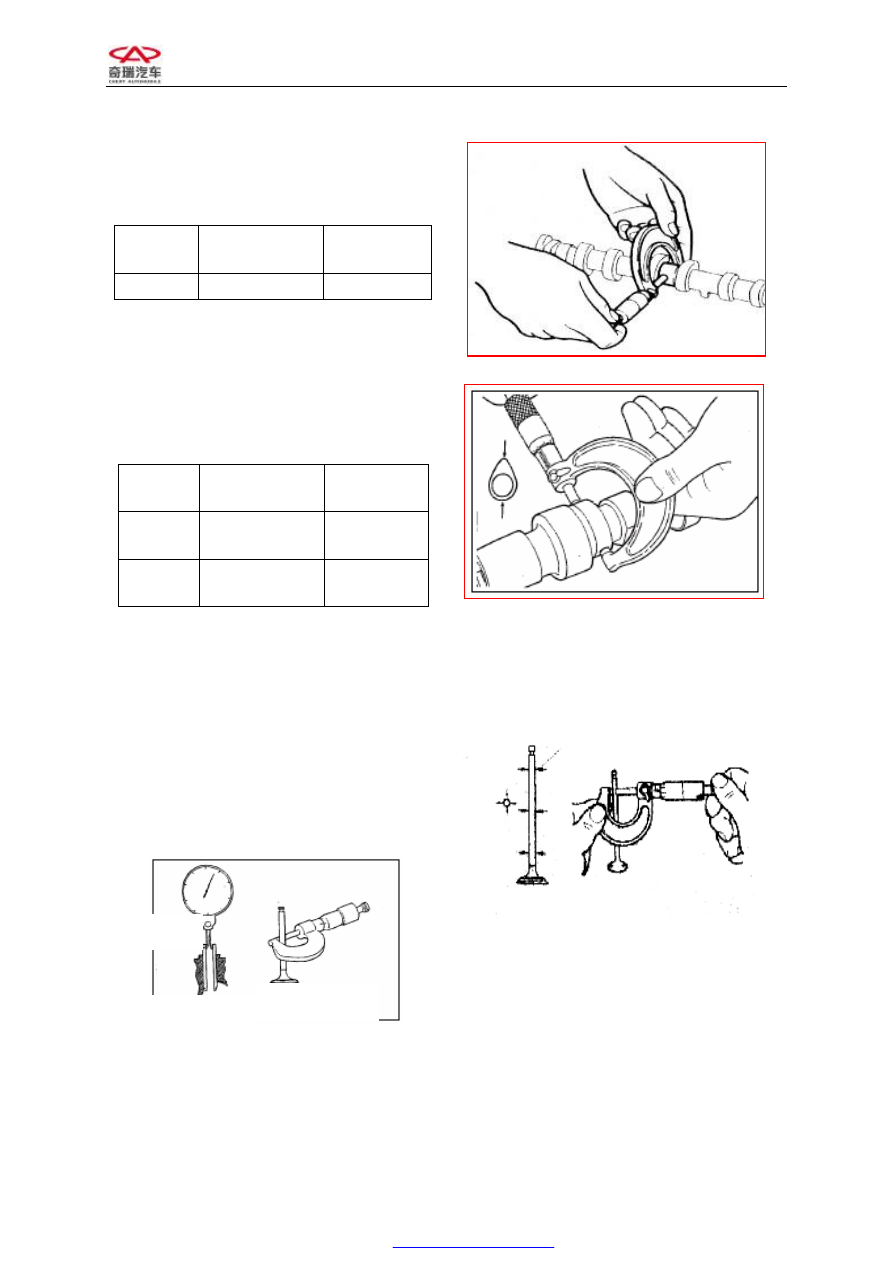

2)  Check camshaft

Measure

the

camshaft

diameter

with

micrometer caliper.



Standard Value

(mm)

Limit Value

(mm)

Diameter

¢24

-0.053

-0.040



Replace  with  the  new  camshaft  if  the
measured value exceeds the limit value.





3)  Examine camshaft

Measure  the  high  of  cam  with  micrometer
caliper.



Standard Value

(mm)

limit value

(mm)

Intake

Cam

37.15



Exhaust

Cam

37.05



Replace  with  the  new  camshaft  if  the
measured value exceeds the limit value.





4)

Examine diameter of valve stem

a:

Measure the diameter of valve stem with
micrometer caliper.

See the picture for measuring points: they are
26, 52, and 78 mm from measure positions to
bottom of valve.









Valve

Guide

External Diameter

Of Valve Stem

Internal Diameter

Of Valve Guide



Measuring Point
