2.VVT PROFILE

VVT Principle

VVTi  is  the  abbreviation  of  variable  valve  timing  with  intelligent.  During  the  operation  of
engine,  the  valve  opening  time  is  called  as  valve  timing.  When  the  engine  operates  at
different rotation speeds, we need different valve timings to provide the optimal valve closing
control,  so  that  the  power  and  combustion  efficiency  can  achieve  the  best  effect.  For  this
purpose, we shall  install VVTi  mechanism onto the camshaft controlling the air  intake valve
to regulate  valve  timing.  The  VVTi  system  installed on  the  air  intake  camshaft  of engine  is
equipped with oil- pressure clutch device between the camshaft and drive sprocket, which can
alter  the  rotation  phase  difference  between  the  air  intake  camshaft  and  drive  sprocket.  The
controlled oil pressure mechanism connects with the engine oil system, and can be regulated
by  solenoid  valve  and  control  loop.  When  the  engine  operates  at  different  rotation  speeds,
there are different angles  between the camshaft and sprocket, which  facilitates the air  intake
valve to open and close at different times in an effort to achieve variable valve timing. On the
other  hand,  when  the  engine  operates  at  different  rotation  speeds,  abundant  and  appropriate
oil gas can be supplied to generate mighty power.

When the car engine  equipped with VVT-I system  fails abnormally, ECUs controlled  by the
engine  shall  automatically  lock  the  preset  parameter  value  (come-home  function),  ensuring
the  driver  to  drive  the  car  to  the  maintenance  station.  This  kind  of  engine  lodges  a  strictly
demand  for  the  quality  of  petroleum  and  lubricant;  therefore,  you  must  adopt  the  standard
materials  in  compliance  with  the  stipulations  of  original  car  manufacturer  in  order to  avoid
unnecessary damages.



33



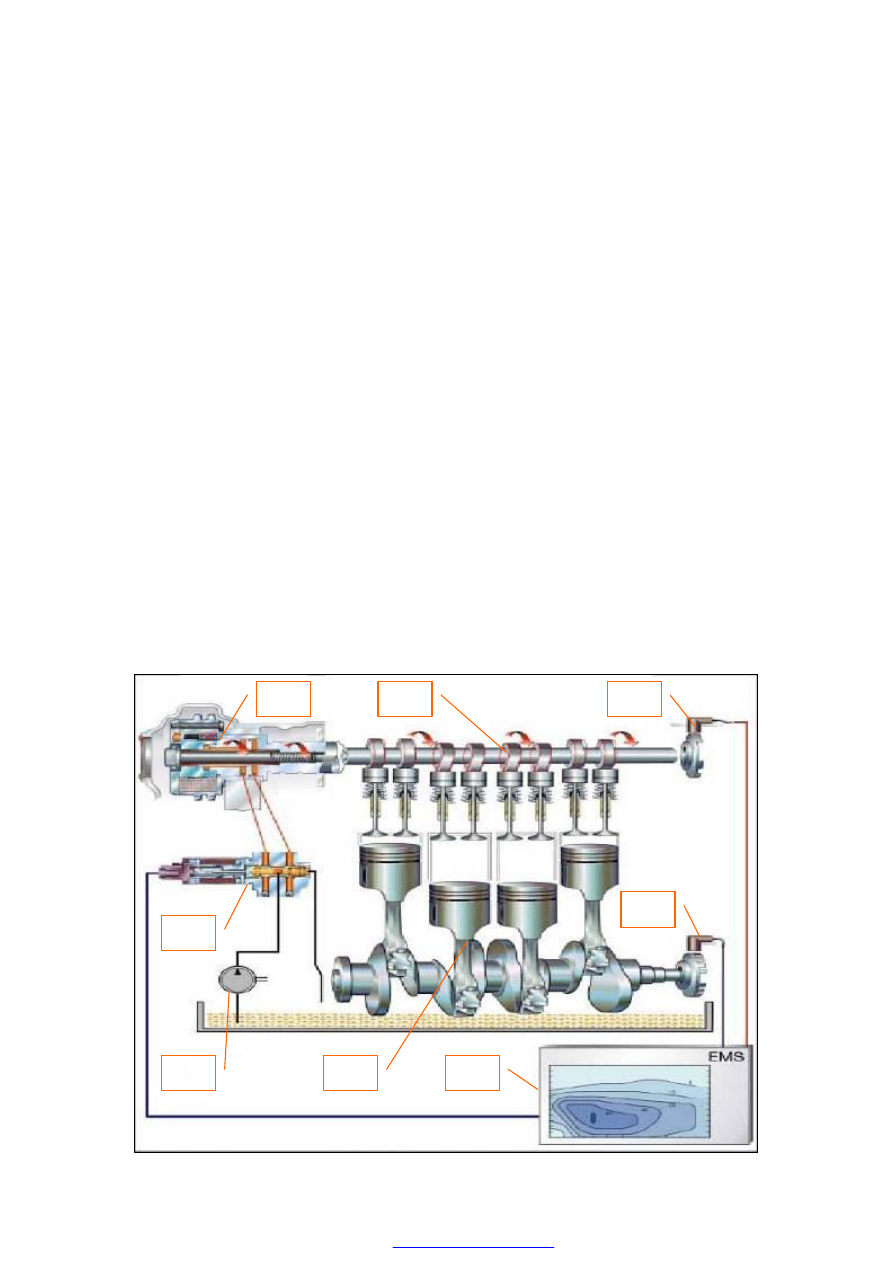

1. Camshaft Phaser Assembly

2. Control Valve-Camshaft Phaser Assembly

3. Oil Pump Assembly

4. Engine Piston

5. Engine ECU

6. Crankshaft Position Sensor

7. Camshaft Position Sensor

8. Camshaft



SECTION III SHORT ENGINE

I. STRUCTURE DIAGRAM



34

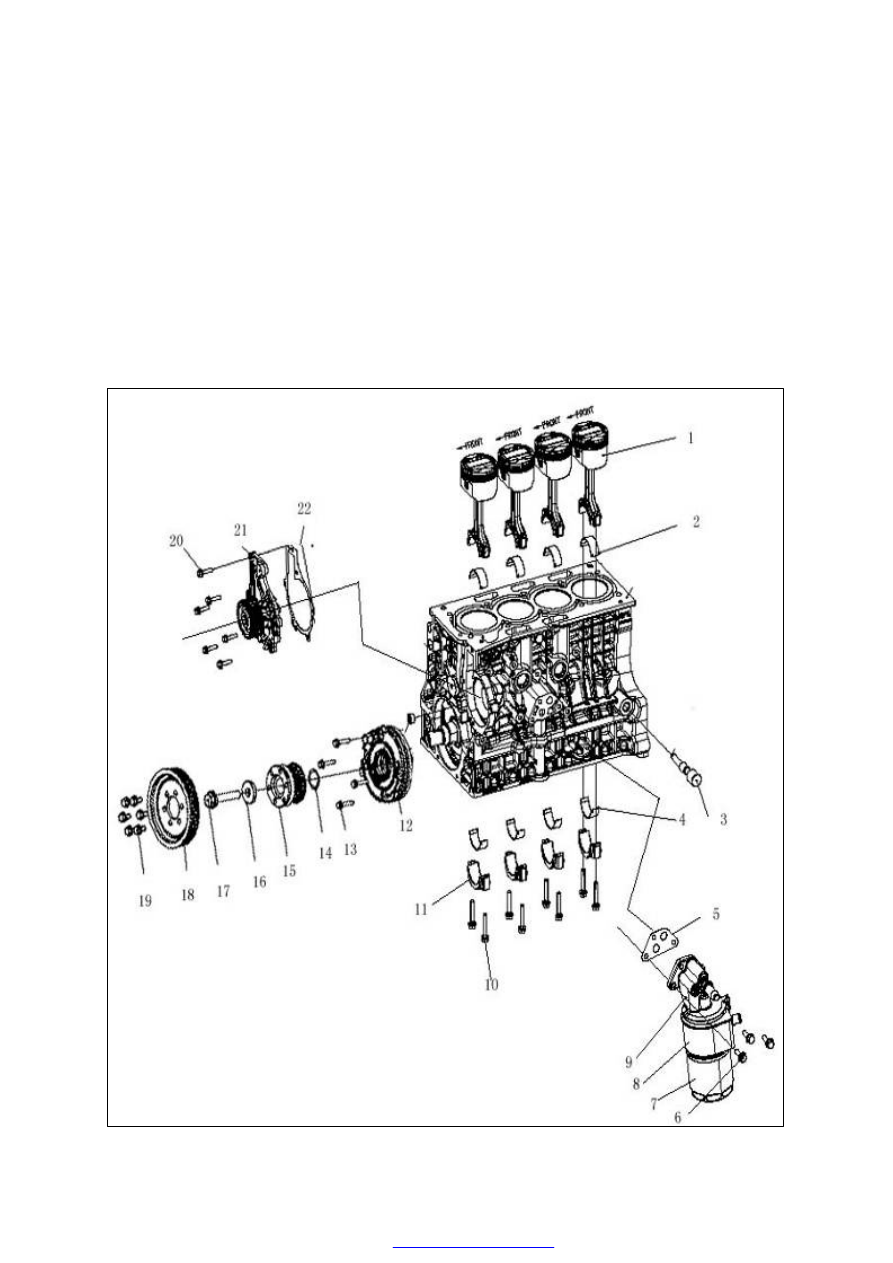

1. Piston

2. Connecting Rod Upper Bearing

3. Timing Hole Plug

4. Connecting Rod Lower Bearing

5. Pad

6. Bolt (M)

7. Oil Filter

8. Oil Cooler

9. Oil Filter Seat

10. Connecting Rod Bolt

11. Connecting Rod Bearing Cap

12. Oil Pump

13. Bolt

14. Gasket

15. Crankshaft Timing belt pulley

16. Gasket

17. Bolt

18. Crankshaft Pulley

19. Bolt

20. Bolt

21. Coolant pump

22. Coolant Pump Gasket



35

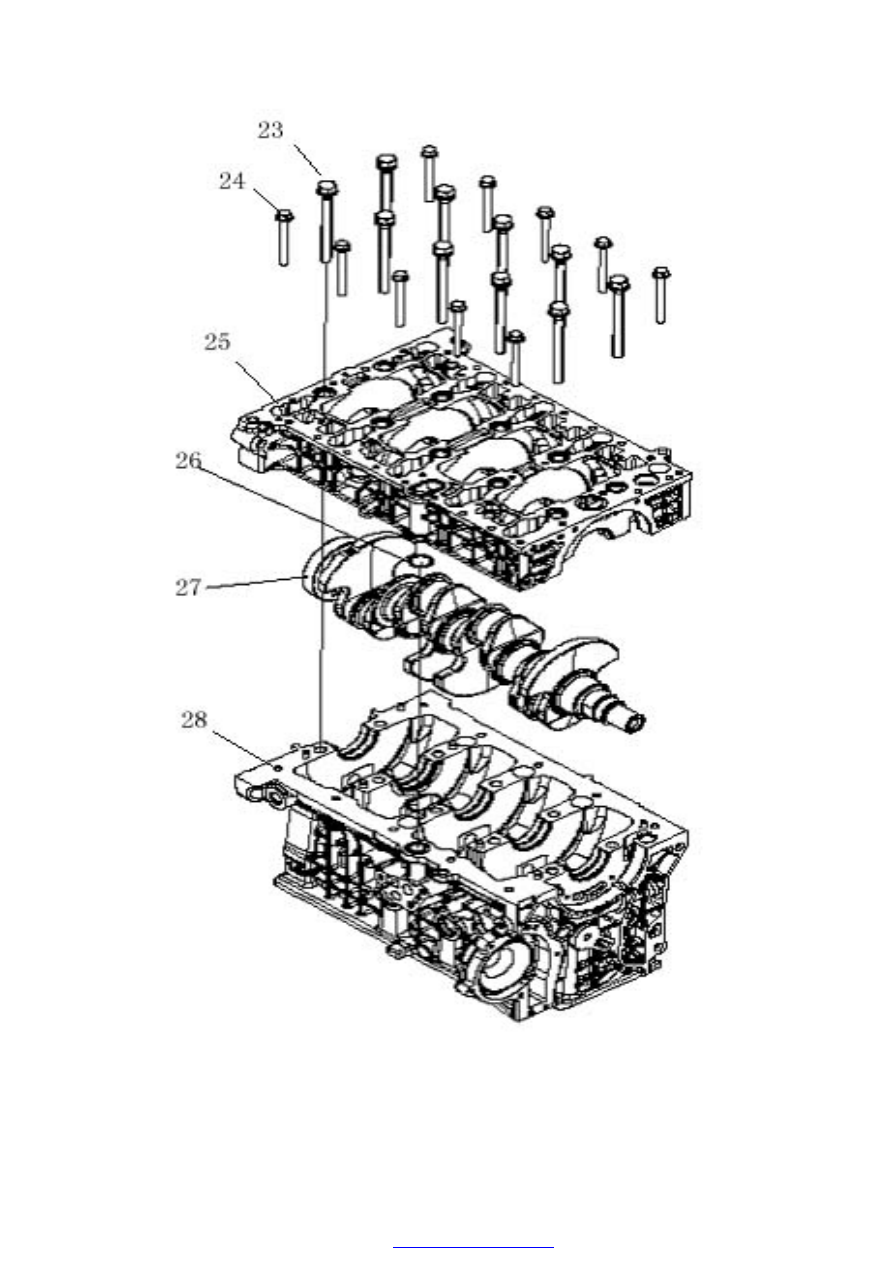

23. Crankshaft Main Bearing Bolt

24. Frame Bolt

25. Frame

26. O-Type Ring

27. Crankshaft

28. Cylinder Block
