Chery Amulet Engine. Manual - part 2







Catalogue



Introduction………………………………………………………………………………………1
Engine  configuration  view  and  sectional  view…………………………………………………  3
Main engine  technical  indexes  and  operation  parameters………………………………………11
Engine  structural  features………………………………………………………………………13
Engine  removal  and  assembly  procedure………………………………………………17
[1]  Positioning  no.1  cylinder  top  dead  center  (compression)  …………………………………17
[2] Upper and lower timing gear cover assemblies removal and installation……………………18
[3]  Crankshaft  pulley  removal  and  installation…………………………………………………18
[4] Valve cover and seal gasket removal and  installation………………………………………19
[5] Timing belt removal, installation and adjustment……………………………………………20
[6] Tension pulley, crankshaft gear and camshaft gear removal, check and  installation………22
[7]  Camshaft  oil  seal  removal  and  installation…………………………………………………23
[8] Valve mechanism and cylinder head removal, check and installation………………………24
[9] Piston and connecting rod assembly removal and installation………………………………33
[10] Flywheel assembly and rear oil seal bracket assembly removal and installation …………36
[11]  Crankshaft,  crankshaft  thrust  washer,  bearing  bushing  and  main  bearing  cap  removal  and

installation  ……………………………………………………………………………38

[12]  Oil  baffle  assembly  removal  and  installation……………………………………………41
[13]  Engine  oiling  system………………………………………………………………………42
[14]  Engine  cooling  system……………………………………………………………………49
[15]  Engine  air  intake  and  exhaust  system……………………………………………………53
[16]  Engine  crankcase  ventilation  system………………………………………………………58
[17]  Engine  fuel  supply  system…………………………………………………………………62
Carburetor  engine  malfunction,  cause  and  correction………………………………………67






Introduction



CAC478, CAC480 series vehicle gasoline engines, which are the products introduced from Ford
(Britain) corporation CVH production line, are made by Anhui Chery automobile Corp. Products
are made up of carburetor type, single-point electric control fuel injection type and electric
control fuel injection type, which may meet the requirements for different performance and
emission.



Single-point electric control fuel injection system and multipoint electric control fuel injection
system of the above engines are developed though the joint effort with Italy M & M Corp.



With advanced product performance, reliable structure,CAC478、CAC480 series automobile
gasoline engines may be applied for both car and light-duty vehicles.

Specifications, covering major parameters, structural features, assembly and adjustment,
common operation repair and maintenance, trouble shooting for CAC478, CAC480 carburetor
and single-point electric control fuel injection engine, may be referred by mechanic, driver,
technologist and management section.

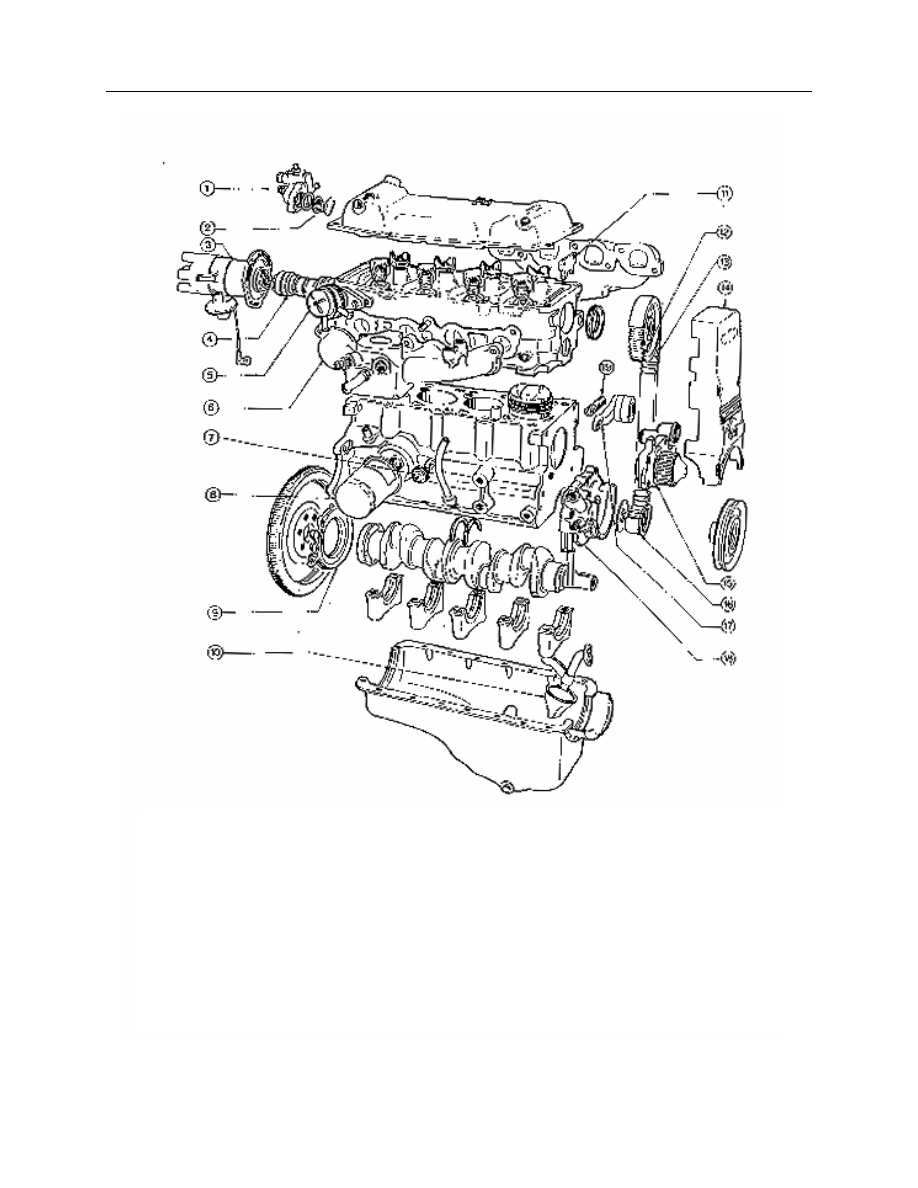

1.Temperature regulator seat assembly              11. Camshaft thrust plate
2.Temperature regulator seat                              12. Camshaft timing gear



3. Distributor                                                      13. Timing belt



4. Camshaft assembly                                        14. Upper\ lower timing gear cap assembly



5. Fuel pump assembly                                      15. Water pump assembly



6. Air intake manifold assembly                        16. Camshaft timing gear



7. Fuel pressure switch                                      17. Tensioner pulley assembly



8. Oil filter assembly                                          18. Oil pump assembly



9. Rear oil sealing carrier assembly                  19. Camshaft oil sealing



10. Oil collector assembly



Main engine technical indexes and operation parameters

SQR480

Type

Line, 4-cyl, four strokes, water-cooling

Cylinder bore diameter (mm)

79.94

Stroke (mm)

79.52

Total displacement (L)

1.596

Compression ratio

9.75 : 1

Nominal power/RPM

62/5500

(kW/r/min)(Total power)

Output maximum torque/RPM

(Nm/r/min)(Total power)

128/3000-2500

Minimum fuel consumption of total power

for external characteristic (g/KW·h)

290

Fuel supply system

Single-point

Combustion chamber shape

Hemisphere type

Cylinders Working Order

1-3-4-2

Direction of crankshaft rotation

Clockwise (Viewed from the front)

Lubrication

Mechanical lubrication+Splash feed

Weight (kg)(lbs)

108 (238)

Overall dimensions (mm)
(Length * width * height)

620×610×650

Ignition angle at idle

(Crankshaft angle Before top dead center)

10°±1°

Valve timing (Crankshaft angle)

Intake valve opened

Before top dead center 18°

Intake valve closed

After bottom dead center 57°

Exhaust valve opened

before bottom dead center 60°

Exhaust valve closed

After top dead center 15°
