DISASSEMBLY  AND  ASSEMBLY  OF
INTERIOR CEILING

Disassembly:

Remove  the  armrest,  sun  visor  and  bracket
according to the instruction.

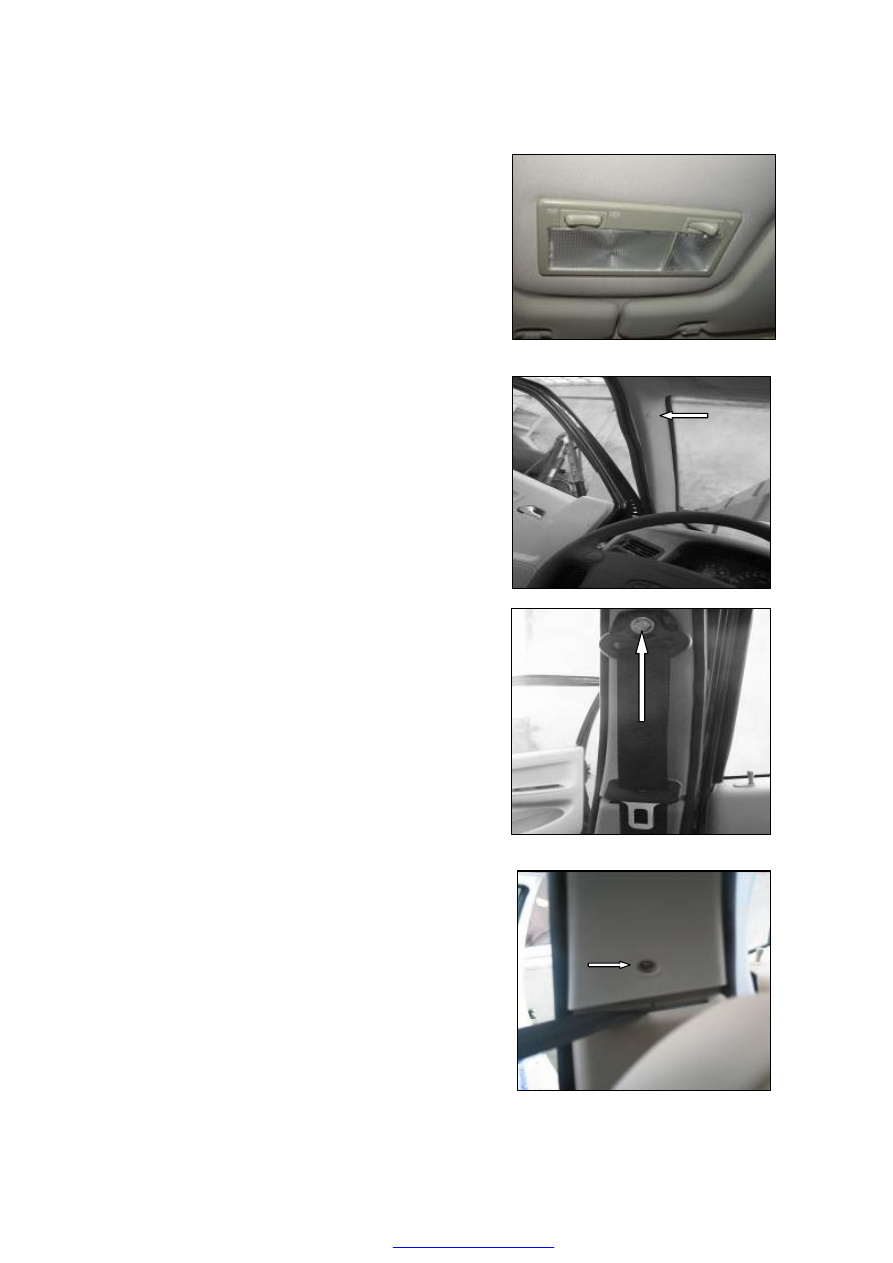

Pry  the  mirror  and  the  interior  lamp  in  the
headliner with a minus screwdriver and remove
them. Remove two lamps if the car is equipped
with two lamps.







REMOVE COLUMN A.

Take  off  the  decorative  cap,  and  remove  the
seal  of  the  door  opening  partially  within  the
working area.

Loosen the lock nut between the internal lining
and column A, and remove column A.



DISASSEMBLY OF COLUMN B:

Take  off  the  cap,  loosen  the  lock  nut  between
the  internal  lining  and  column  B;  Remove  the
seal  of  the  door  opening  partly  within  the
working area.



Remove the decorative cap, loosen the lock nut
between  the  internal  lining  and  column  B  and
remove column B.







DISASSEMBLY OF COLUMN C:

Remove  the  decorative  cap,  after  that  loosen
the  lock  nut  between  the  internal  lining  and
column C.

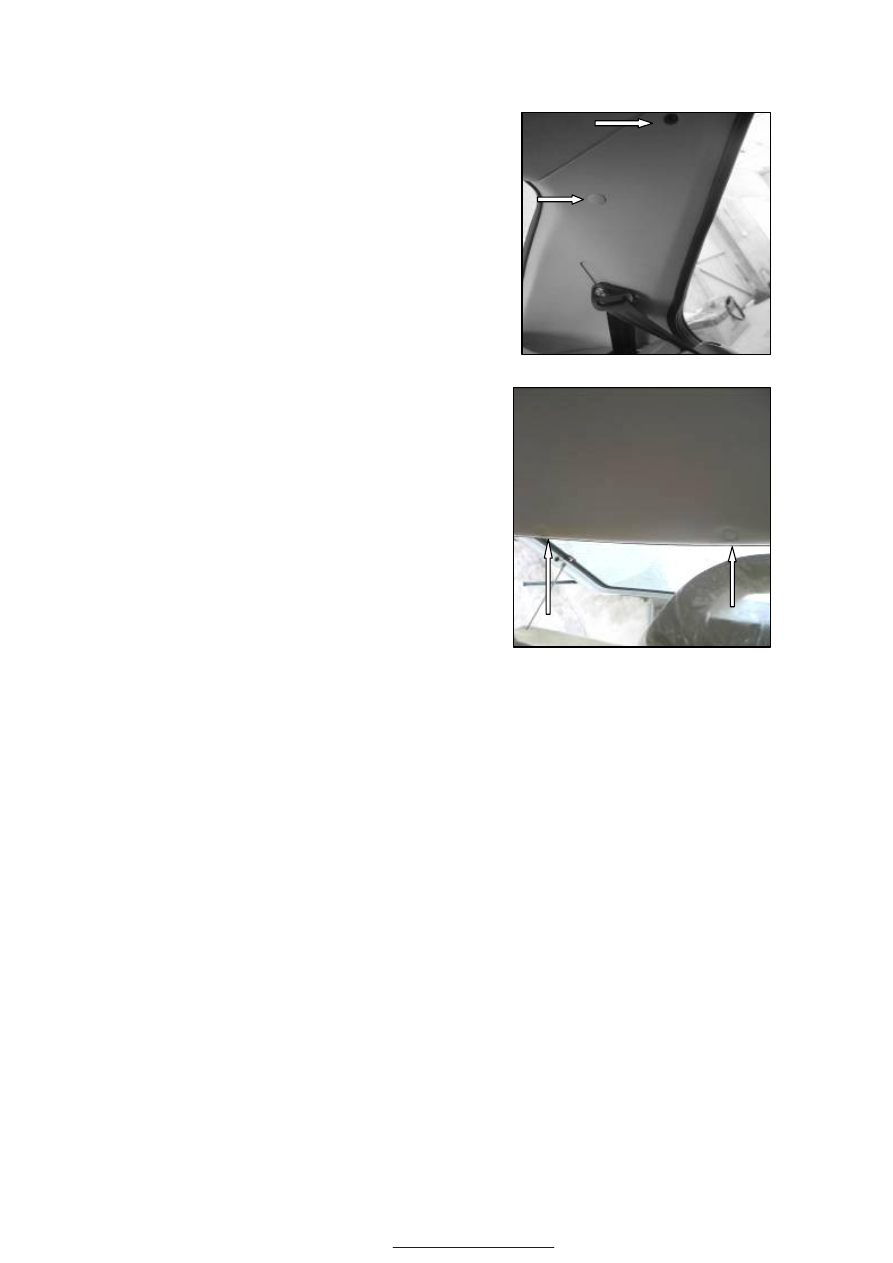

Use  a  plug  extraction  tool  to  remove  the
fastening  plug  in  the  headliner  of  the  car
ceiling.

Other  worker  will  remove  the  headliner  and
pull it out from the rear door opening.

Assembly:

The  steps  are  the  reverse  of  disassembly.  The
installing  angle  for  the  retractor  assembly  of
left/right  front  safety  belt  is  0º,  the  tightening
torque  of  the  locking  bolt  is  50±10N·m,  the
tightening  torque  of  the  fastening  bolt  for
adjusting  the  sliding  guide  rail  is  24±5N·m  ,
the  tightening  torque  of  the  guide  ring
fastening  bolt  is  50±10N·m.  The  installing
angle  for  the  retractor  assembly  of  left/right
rear safety belt is 30º, and the tightening torque
is 50±10N·m.

Note: Appropriate measures should be taken to
avoid  dirtying  the  car  during  disassembly  and
assembly.







DISASSEMBLY AND ASSEMBLY OF
REAR DOOR TRIM PANEL

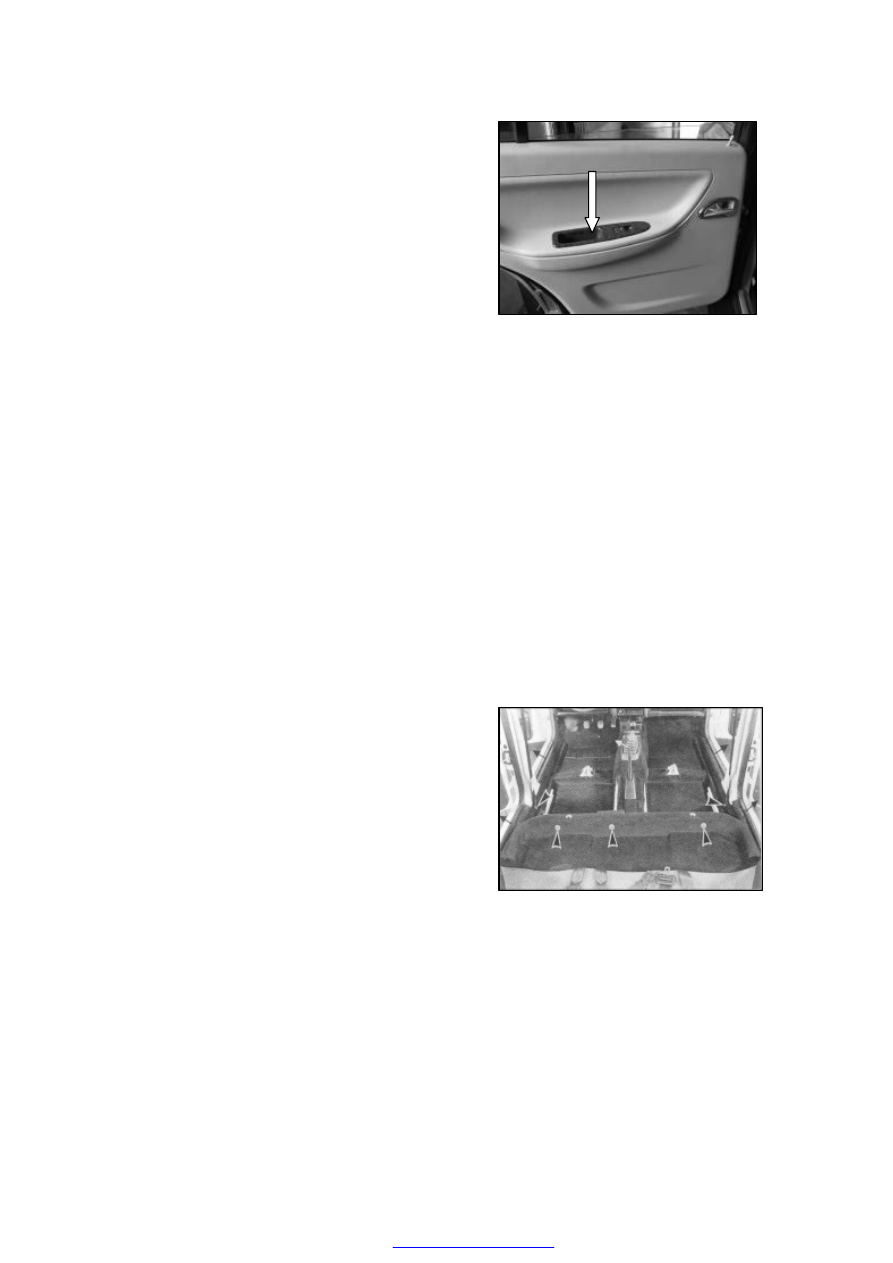

Disassembly:

1.  Remove  the  armrest  decorative  fastening

bolt,  and  dismantle  the  armrest  cover  and
armrest  base.  Remove  the  inner  door  open
handle  guard  frame.  Remove  the  safety
handle.

2. Remove the fastening bolt between the trim

panel and doorframe.

Assembly:

Assembly is the reverse of disassembly.

The tightening torque of the screw for the inner
handle assembly is 1.5±0.15N·m.

Note: Appropriate measures should be taken to
avoid dirtying the working area during
disassembly and assembly. It is very important
to maintain the cleanliness inside the car
during working.





























DISASSEMBLY/ASSEMBLY OF CARPET
FOR PASSENGER COMPARTMENT

Disassembly:

Remove the fixed decoration between the seal
and the carpet. Loosen the fastening bolt
between the floor and the safety belts of
passenger seats. Remove the oil pan. Use a
plug extraction tool to remove the fastening
plug for the carpet

Assembly:

Assembly is the reverse of disassembly.

Remember that the tightening torque of safety
belt is 50±10N·m.





















DISASSEMBLY AND ASSEMBLY OF
SEATS

DISASSEMBLY AND ASSEMBLY OF
FRONT SEATS.

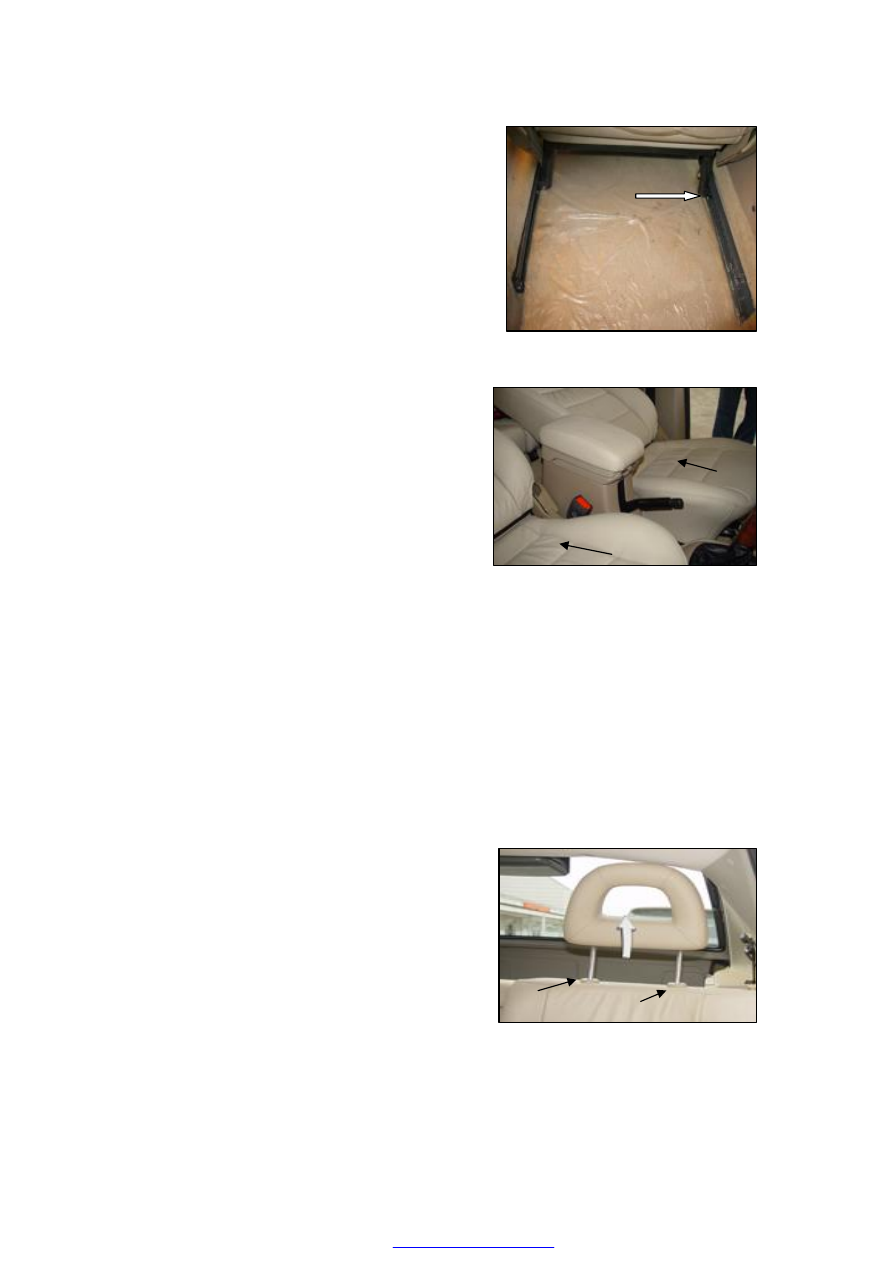

Disassembly:

1. Move the seat forward, remove the rear

brake. Loosen the fastening bolt of the
regulator and remove the guide rail.



2.Loosen the nut and remove the locking bolts.

3. Loosen the adjusting level of seats, move the

seats  backward  and  disconnect  the  guide
rail.

4. Disconnect the power line of seat safety belt

5. Remove the guard plate of the sliding rail of

the seat.

Assembly:

When  installing,  the  steps  are  the  reverse  of
disassembly.

The  tightening  torque  of  the  seat  stopper  bolts
is  2.5±0.5N·m.  The  position  arrangement  for
the  left/right  front  seats  should  meet  the
requirement in such that the space between the
front and rear seats is 740±20mm.

















DISASSEMBLY AND ASSEMBLY OF
HEADREST

Disassembly:

Pull the headrest upwards until the contact
point of the side level. Remove the fastening
clamp between the headrest side rod and the
rear slot of the seat with a screwdriver.

Assembly:

When installing, remember the position of the
spring clamp, and install it before inserting the
headrest side rod.
