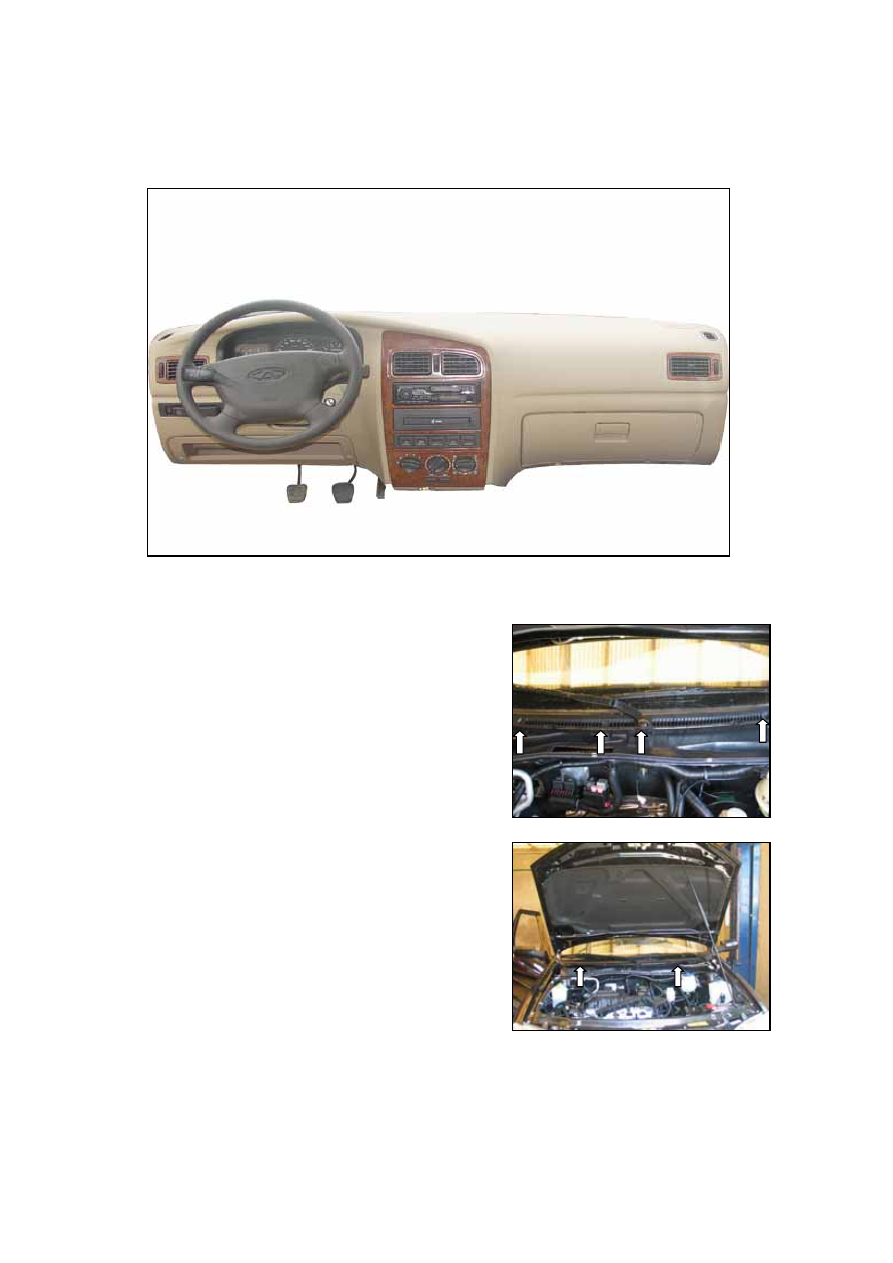

INTERIOR ACCESSORIES (A15 INTERIOR TRIM)























DISASSEMBLY AND ASSEMBLY OF

INSTRUMENT PANEL



Disassembly:



A. Begin from engine compartment

1. Remove the negative grid of battery.



2. Remove the right-hand-side wiper of

windshield. Loosen the four fastening
clamps at the bottom side of the windshield
trim plate.

Remove the cover of box.

3. Remove two fastening screws from the

instrument panel located in the cowl top
grille.









S-18

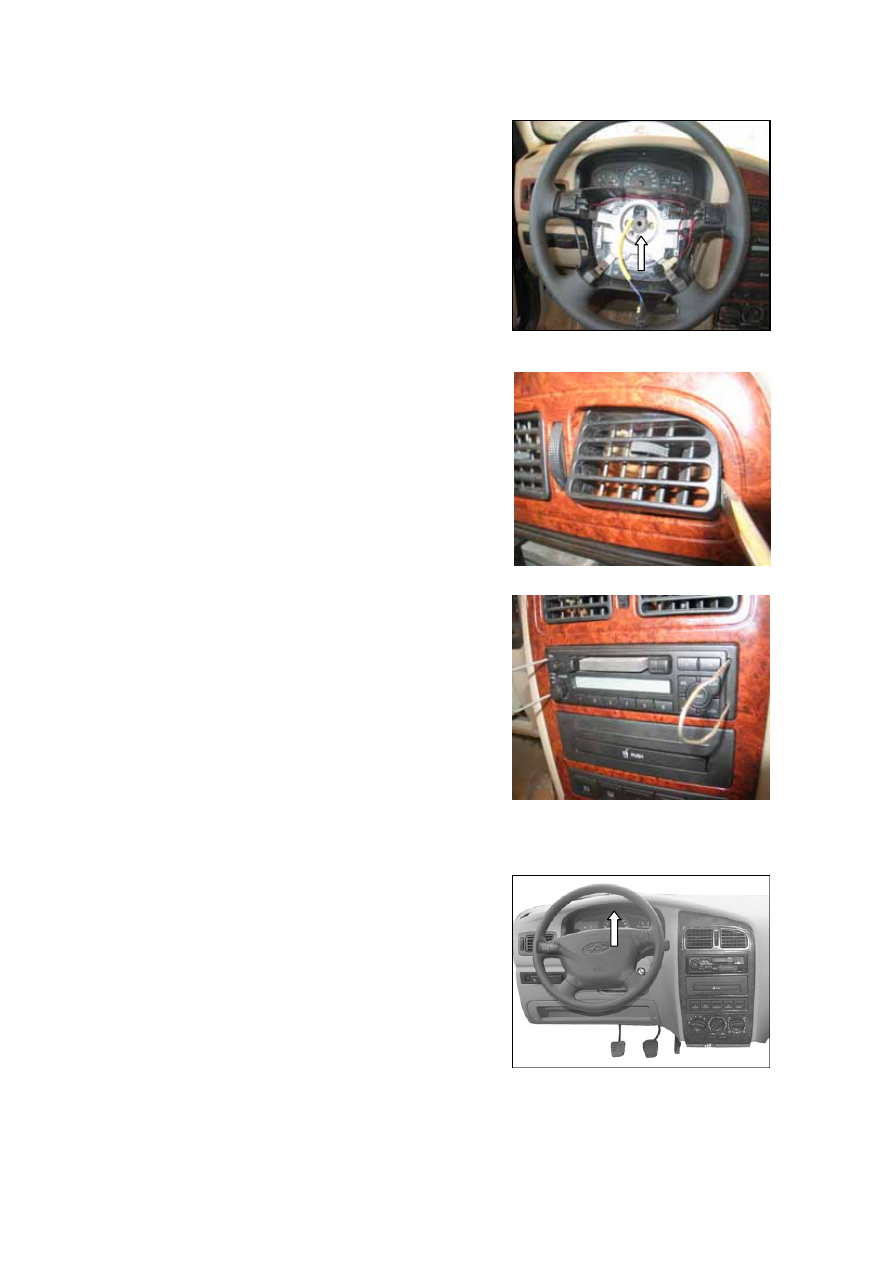

B. Begin the disassembly process from the
interior part of the car

Dismantle the steering wheel, pull the airbag
upwards and then remove it. (See disassembly
of airbag)
1. Loosen the lock nut between the steering
wheel and the Steering-axis.

2. Remove the control and protective switch
for the steering gear lamp.





3. Overcome the restraining force of the
fastening clamps and remove the three vents of
radiator.





Remove the cover of cup bracket and then
loosen the two fastening screws at the interior
sides.



Attention:



Do not damage the clamps of the housing.
Remove the switch and cover at the two
sides of the instrument panel. Remove the
radio cover and the air condition cover.

















S-19

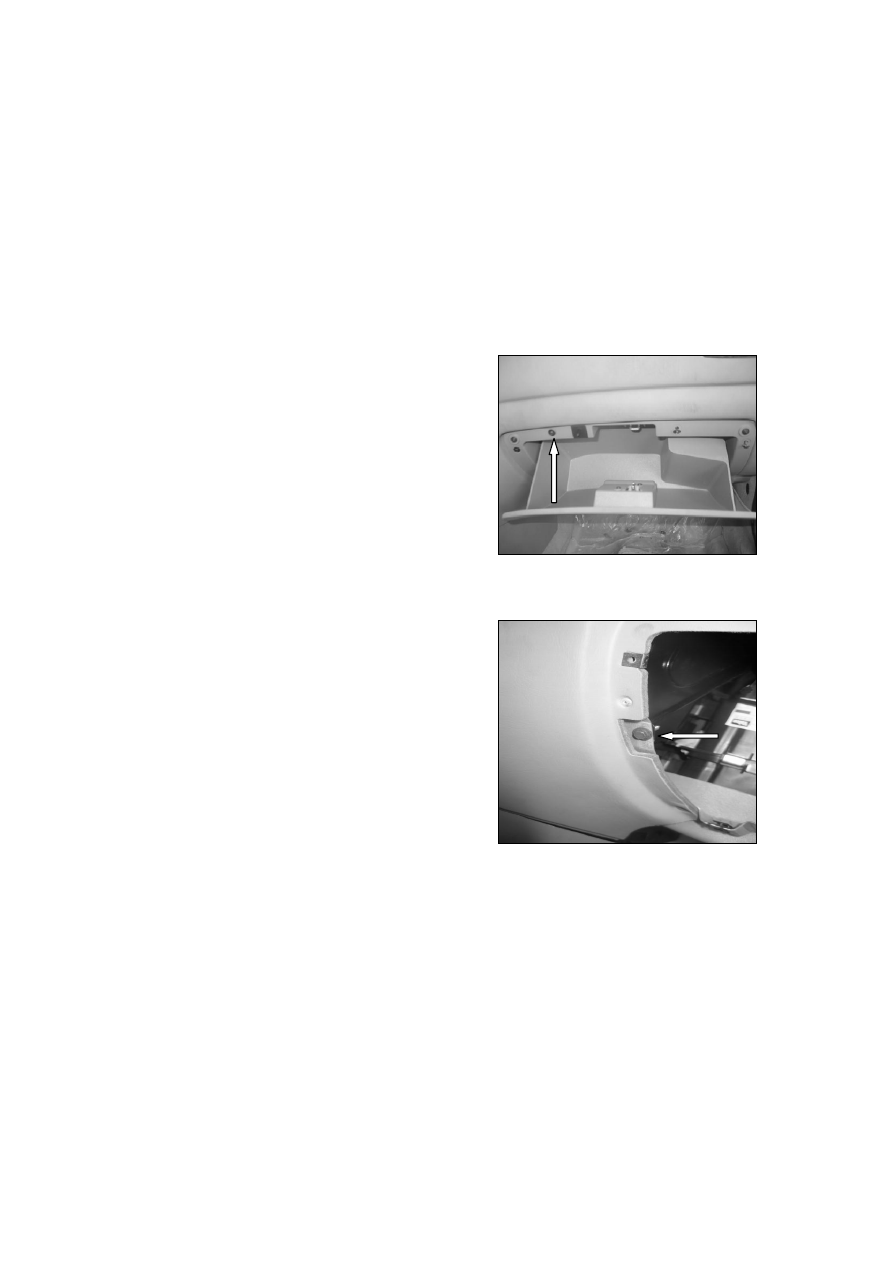

4. Loosen two fastening screws of the cover of

the instrument panel and remove the cover.

5. Remove the instrument fastening screws on

the partition in the driving compartment and
remove the instrument panel. Dismantle the
switch and the left bottom side cover of the
steering wheel. Dismantle the left bottom
side cover of the tool case.





6. Remove the plug; loosen the right-hand-side

fastening screws of the instrument panel and
the screws located in the space at the left
bottom side of the tool box.











7. As for those cars with plastic molded

supporting frame, you need to remove the
anti-rust leather sheath of the shift lever, the
instrument panel and the fastening screws of
the car floor plates first before disassembly.













S-20

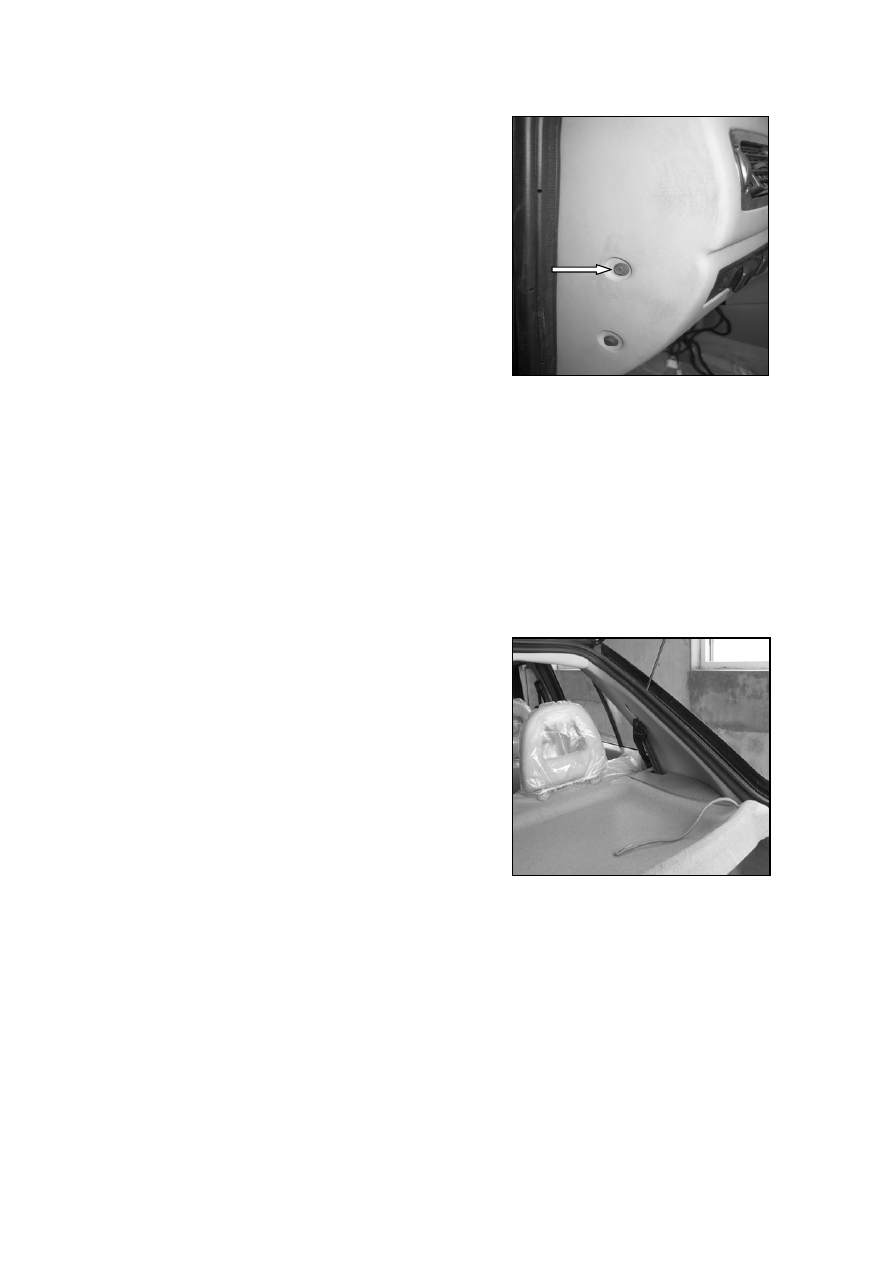

8. Remove the plug; loosen the fastening

screws in the left side of instrument panel
and the screws of the left bottom side of the
supporting frame. Loosen the fastening
screws of the control device.

9. Remove the instrument panel, separate the

cable from the clamps and dismantle the
necessary electrical components.

Assembly

Assembly is the reverse of disassembly.

Remember the tightening torque of lock nut
should be 40N.m. During disassembly and
assembly, steps must be taken to avoid
dirtying those places that are very difficult to
clean. Keeping clean in the car is very
important.







DISASSEMBLY AND ASSEMBLY OF

PACKAGE TRAY TRIM PANEL

DISASSEMBLY

Pull out the lifting stem of the rear door frame,
after that pull out the rear chassis so as to loose
it from the fastening position of the frame.

Assembly:

Assembly steps are the reverse of disassembly.







S-21
