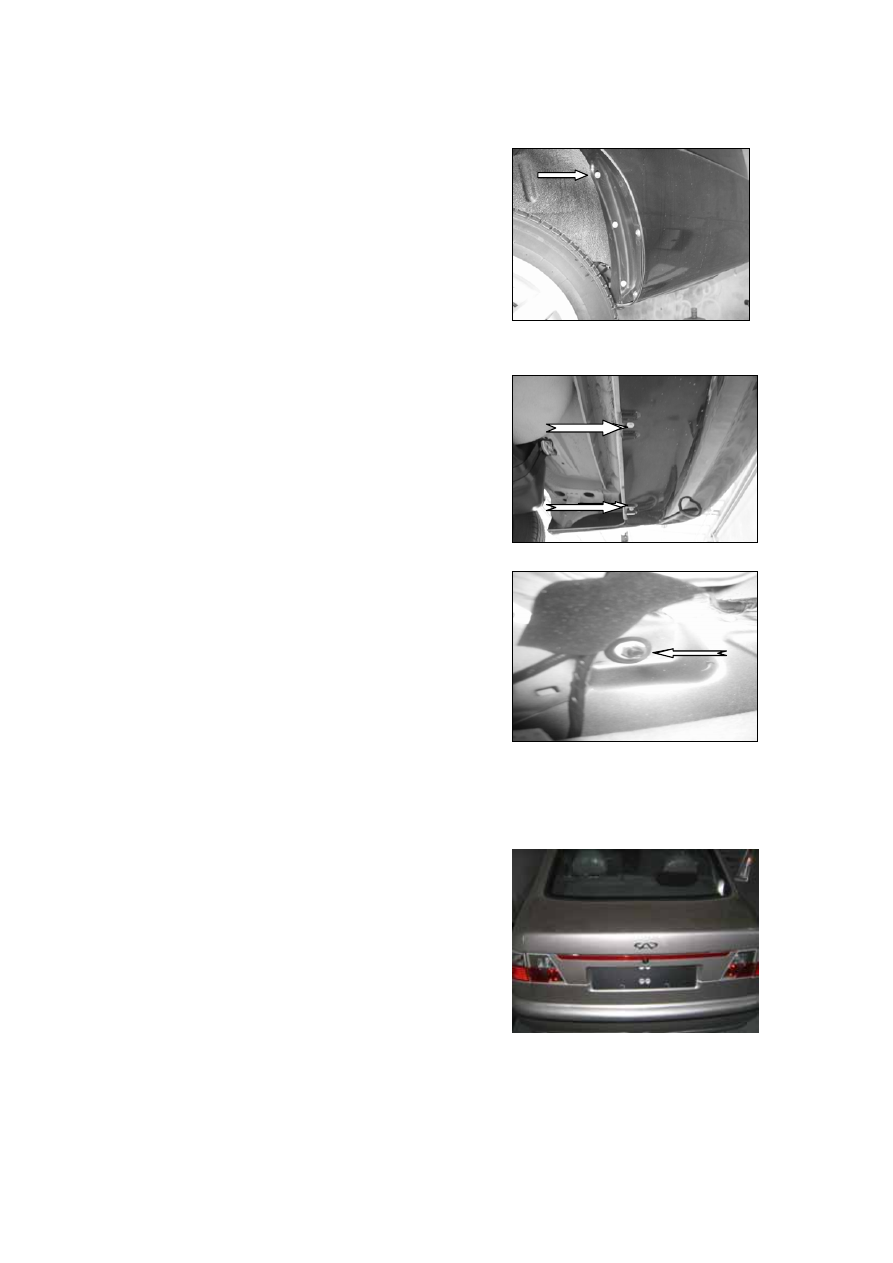

REMOVAL & INSTALLATION OF REAR BUMPER



REMOVAL:
----Remove partial lining of rear wheel house.

Loosen the bolts between the lining and
rear bumper.










----Loosen the bolts between trunk support

and trunk floor.










----Loosen the bolt between rear bumper and

trunk.

----Remove the bolt between rear bumper and

floor bottom.

----Slide the bumper backward until it is

disconnected with its bracket.








REMOVAL OF BRACKETS



----Loosen the bolts between bumper and its

brackets to remove the brackets.

----Install the bumper in the reverse order

of removal. Note that tightening torque
for the bolt between the brackets and
floor cross member is 25N·m. Place the
brackets horizontally with ground.











S-10

INTERIOR ACCESSORIES（A11 INTERIOR TRIM）

REMOVAL & INSTALLATION OF INSTRUMENT PANEL



REMOVAL:




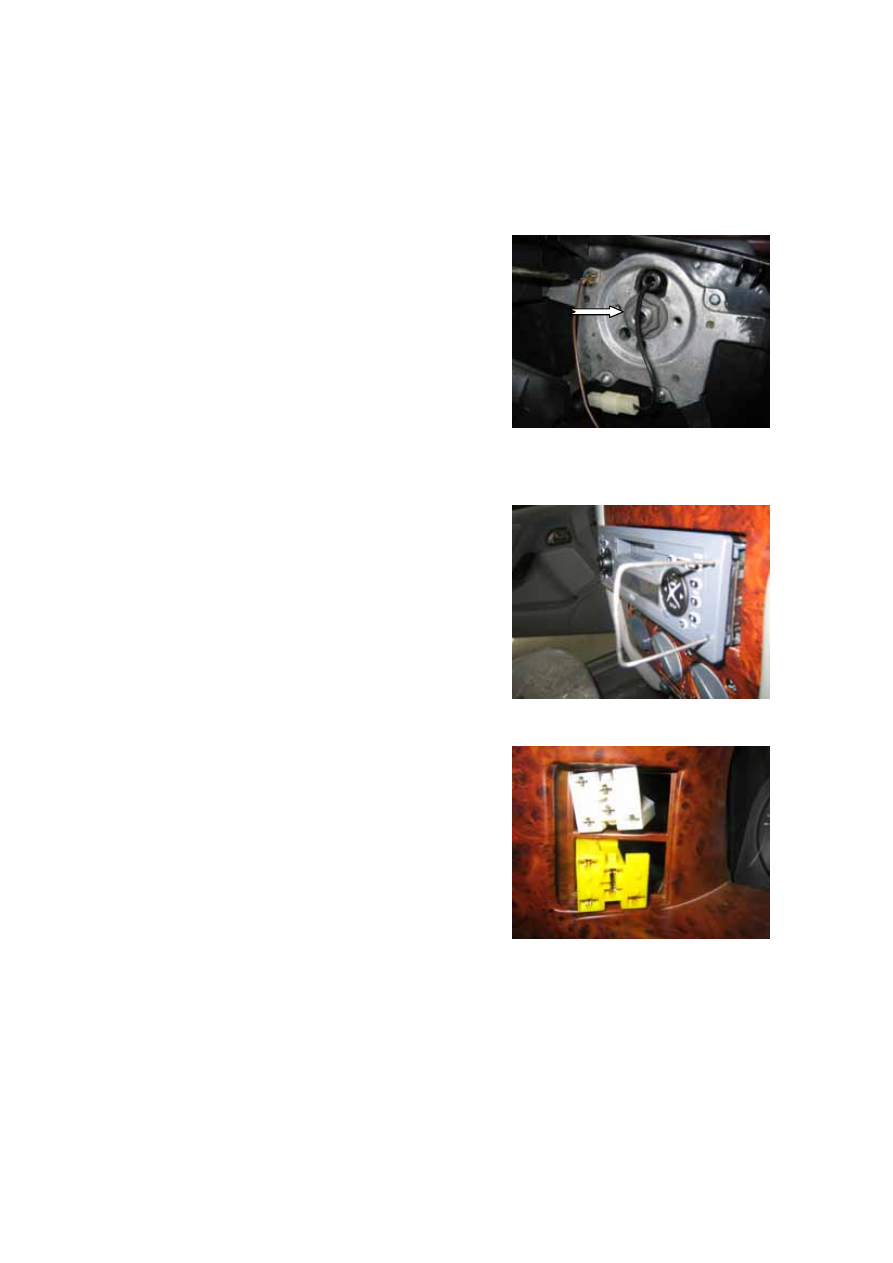

------Disconnect the negative cable of battery

and pry open the trim panel of steering
wheel. Loosen the locking nut of steering
wheel and take the wheel off.

------Remove the screw under steering column

cover and disconnect the combination
switch wiring harness connector. Take the
switch off.







------Insert a special tool as shown in the right

figure into the four holes of radio to pull
the radio out.

------Disconnect the wiring harness connector

behind the radio.



------Pry out the four light switches from

instrument panel with screwdriver and
disconnect the connectors.












S-11

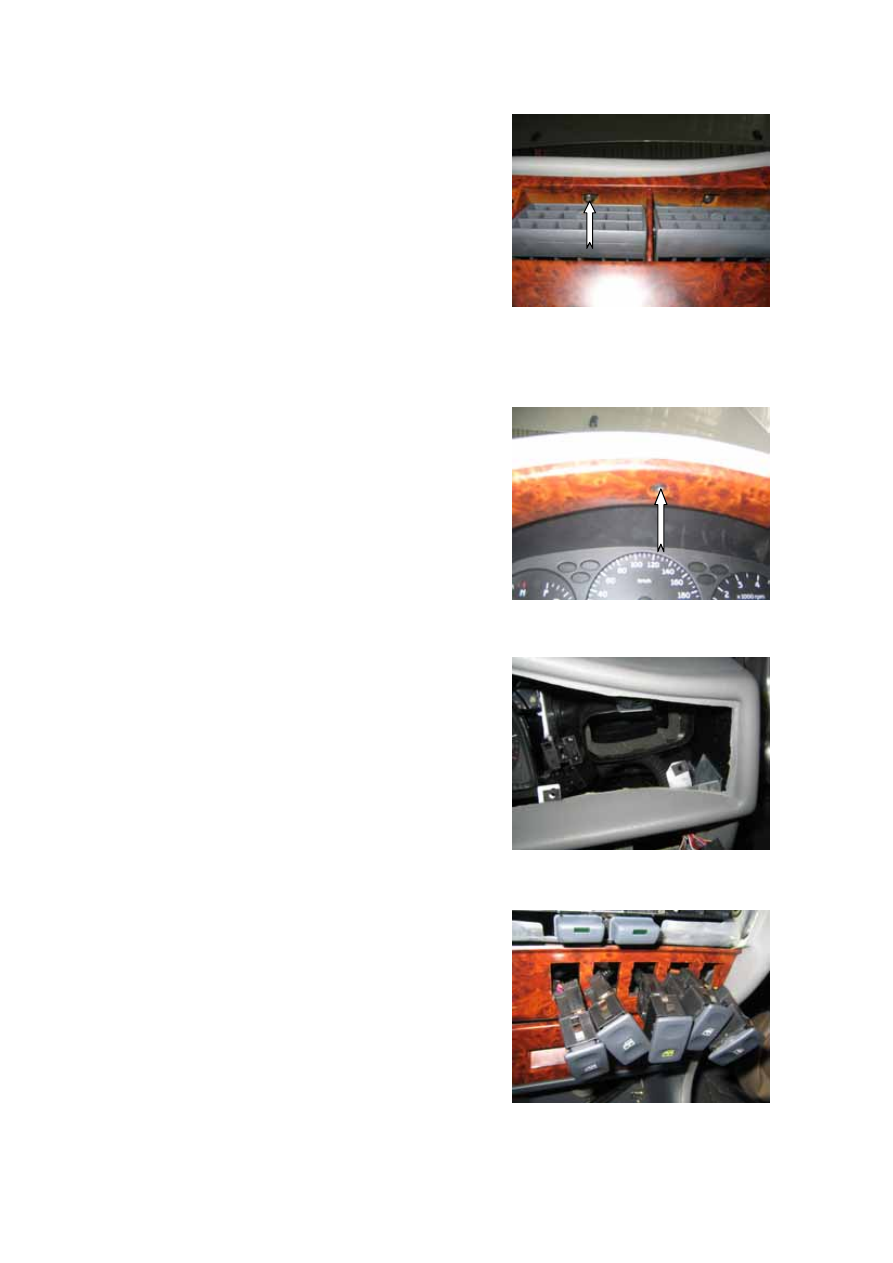

----Pry out the vents from instrument panel

with screwdriver and remove the six
screws of instrument panel.

----Open up the glove box and remove the

four screws on the top and two sides of
glove box. Pull outward the upper part
of the box to take out the glove box.





















-----Pull outward the instrument panel to take
it out.












------Pull out the five connectors of power

window switch and disconnect them.









S-12

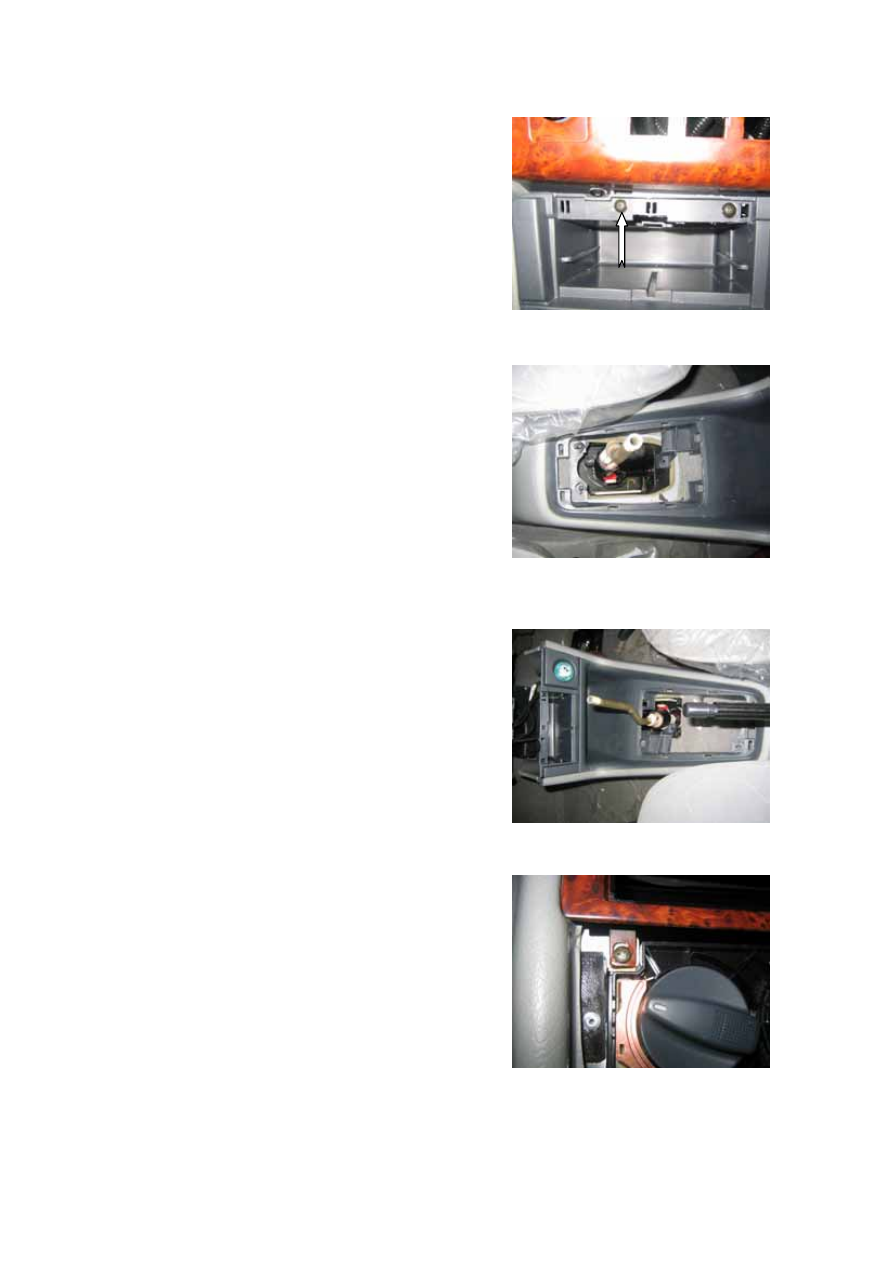

------Take the ash tray out and remove the clip

on the top of the ash tray. Remove the
two screws behind central console and
instrument panel.











------Pull out the clip of shift lever dust boot

and central console. Turn in counter
clockwise way the shift lever to remove
it. Remove the screw connecting the
central console and lever bracket.










------Pull upward the back of central console

to disconnect the clip and raise the central
console up from the front to disengage it.











------Take off the A/C panel.














S-13
