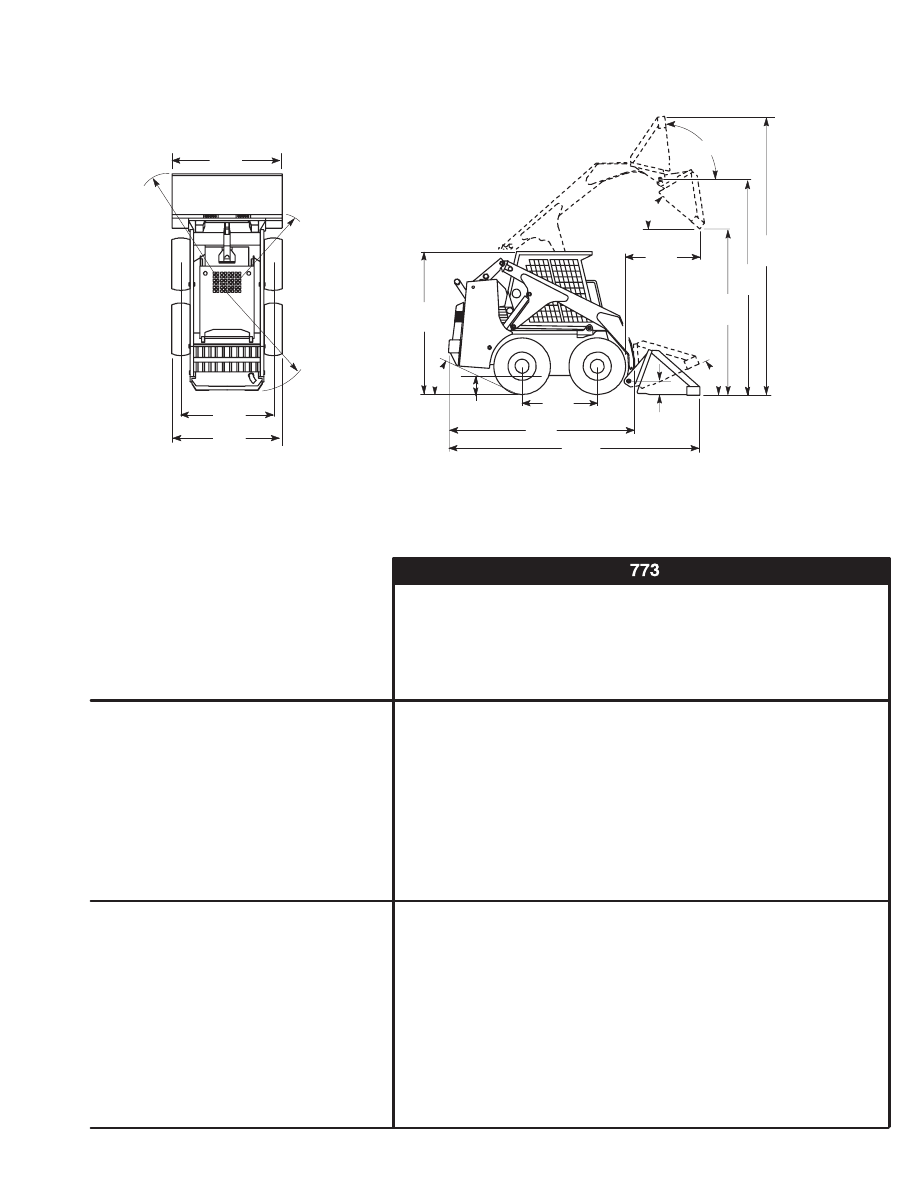

PERFORMANCE Rated Operating Capacity (SAE) 1700 lbs. (770 kg) . . . . . . Tipping Load (SAE Rating) 3800 lbs. (1720 kg) . . . . . . . . . . . Operating Weight 5476 lbs. (2480 kg) . . . . . . . . . . . . . . . . . . . SAE Breakout Force – Lift 3040 lbs. (13522 kg) . . . . . . . . . . . . – Tilt 3200 lbs. (14234 kg) . . . . . . . . . . . . . Axle Torque 4700 ft.–lbs. (6373 Nm) . . . . . . . . . . . . . . . . . . . . . . . . Travel Speed 0–7.0 MPH (11,2 km/hr.) . . . . . . . . . . . . . . . . . . . . . . . CONTROLS Vehicle Steering Direction and Speed controlled by two hand levers. . . . . . . . . . . . . . . . . . . . . Loader Hydraulics Lift and Tilt Controlled by separate foot pedals or optional hand controls. . . . . . . . . . . . . . . . . . . . . . . . . Front Auxiliary (Optional) Controlled by electrical switch on RH steering lever. . . . . . . . . . . . . Rear Auxiliary (Optional) Controlled by electrical switch on LH steering lever. . . . . . . . . . . . . Engine Hand lever throttle: Key–Type starter switch and shutdown. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Starting Aid Glow Plug– Rocker Switch activated. . . . . . . . . . . . . . . . . . . . . . . . . . BOSS activated glow plugs (If so equipped). Service Brake Two independent hydrostatic systems controlled by two hand . . . . . . . . . . . . . . . . . . . . . operated steering levers. Secondary Brake One of the hydrostatic transmissions . . . . . . . . . . . . . . . . . . Parking Brake Mechanical Disc, foot operated pedal. . . . . . . . . . . . . . . . . . . . . . . ENGINE Make/Model Kubota/V2203EB . . . . . . . . . . . . . . . . . . . . . . . . Fuel/Cooling Diesel/Liquid . . . . . . . . . . . . . . . . . . . . . . . . Horsepower (SAE) Gross: 50 HP (37 kW) Net: 46 HP (34 kW) . . . . . . . . . . . . . . . . . . Maximum Governed RPM 2800 RPM . . . . . . . . . . . . High Idel RPM 2950–3050 RPM Low Idle RPM 1125–1175 RPM Torque @ 1600 RPM (SAE) Gross: 114 ft.–lbs. (154 Nm) Net: 102.5 ft.–lbs. (138 Nm) . . . . . . . . . . Number of Cylinders Four . . . . . . . . . . . . . . . . . Displacement 134.0 cu. in. (2195 cm 3 ) . . . . . . . . . . . . . . . . . . . . . . . Bore/Stroke 3.43/3.64 (87.0/92.4) . . . . . . . . . . . . . . . . . . . . . . . . Lubrication Pressure System W/Filter . . . . . . . . . . . . . . . . . . . . . . . . . Crankcase Ventilation External . . . . . . . . . . . . . . . . Air Cleaner Dry replaceable cartridge w/safety element . . . . . . . . . . . . . . . . . . . . . . . . . Ignition Diesel–Compression . . . . . . . . . . . . . . . . . . . . . . . . . . . . MC–1525 SKID STEER LOADER • Dimensions are given for loader equipped with standard tires and dirt bucket and may vary with other bucket types. All dimensions are shown in inches. Respective • Where applicable, specification conform to SAE or ISO standards and are subject to change without notice. ‘‘A” 10 – 16.5 TIRES – 66.0 in. (1676 mm) or 60.0 in. (1524 mm) ‘‘B” 10 – 16.5 TIRES – 54.5 in. (1383 mm) or 48.5 in. (1231 mm) ‘‘C” 60 in. BUCKET WIDTH – 61.0 in. (1549 mm) Changes of structure or weight distribution of the loader can cause changes in control and steering response and can cause failure of the SPECIFICATIONS ‘‘B” ‘‘A” ‘‘C” 78.3 (1989) 46.8 (1189) 62.1 (1577) 7.5 (191) 76.3 (1938) 40.6 (1030) 101.7 (2583) 130.1 (3305) 28.9 (734) 87.5 (2223) 115.0 (2921) 148.7 (3777) 8.6 (218) 93 ° 43 ° 25 ° 26 ° 773 BICS Loader –9–3– Service Manual Revised June 01 |
