21

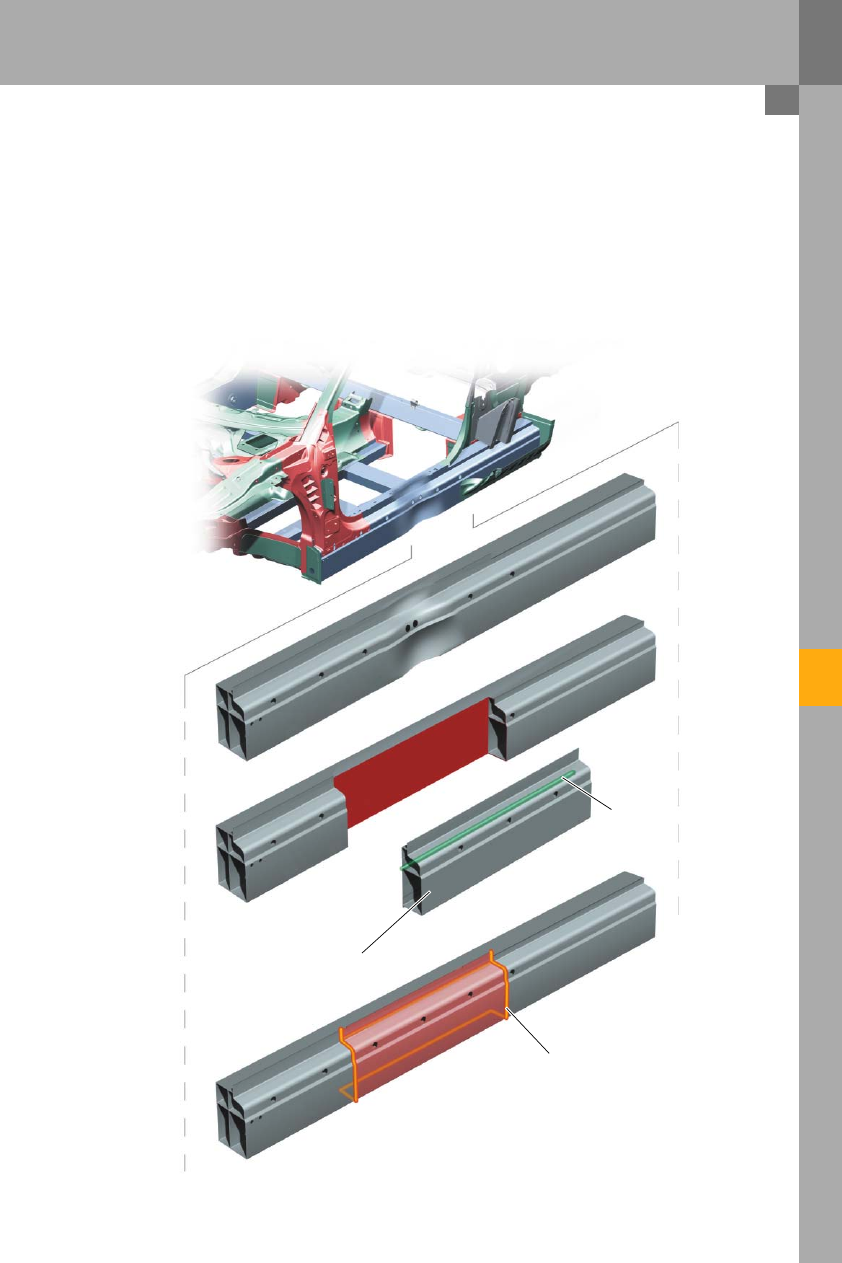

The four-chamber extruded section is located
beneath the sill moulding.A special repair method
was developed for damaged outer chambers. When
repair work is needed, the extruded section is split
vertically so that the two rear chambers including
the centre ridge of the four-chamber profile remain.

A dual-chamber genuine part developed specially
for this repair solution is welded to the remainder of
the sill profile using a continuous MIG weld seam at
the top and bottom. In addition, the U-shaped chan-
nel in the genuine part is filled with an adhesive
bead which provides additional strength and elimi-
nates noise transmission between the two sills.

383_039

MIG weld seam

Adhesive bead

New part

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

22

Repair concept

Steel repairs

The rear end of the Audi TT is only area where it is
possible to carry out repair work involving only steel
parts and where the aluminium-steel joint is fully
intact.

This repair work can be carried out on the

–   rear end section
–   rear side member (body side section undamaged)
–   rear floorpan

Basically, the repair procedure is the same as for all-
steel-bodied vehicles. Due to the danger of contact
corrosion in aluminium body parts, however, special
safety precautions must be taken. Grinding dust of
steel parts, particularly flying sparks caused by cut-
ting or welding work, must not be allowed to drop
onto the aluminium parts.

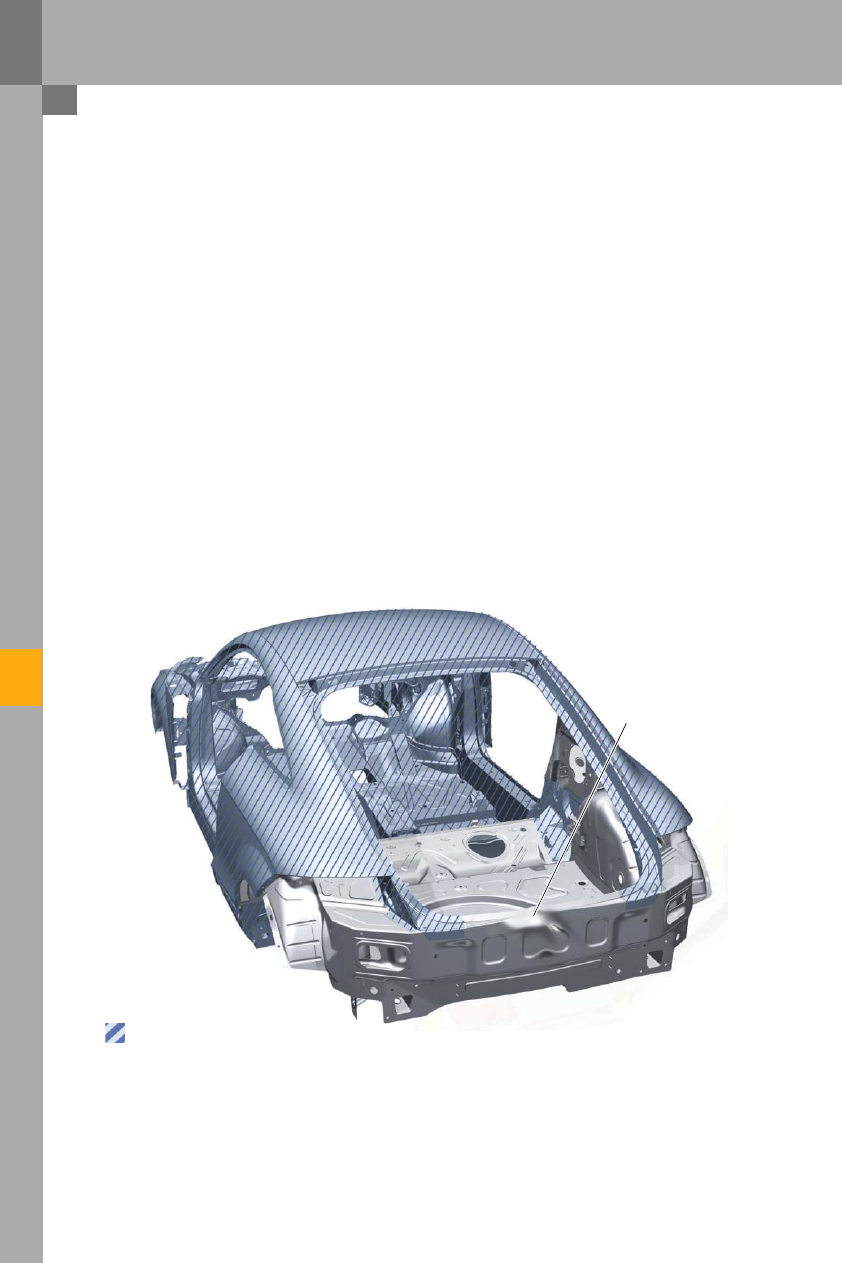

383_040

body parts which must be covered when carrying out steel repairs

Damage to be
repaired

This also applies to painted aluminium parts! Red
hot steel parts can damage the paintwork and steel
particles can come into contact with the aluminium
body parts, leading to contact corrosion on the
undamaged aluminium body.
Therefore, the complete bodyshell must be pro-
tected carefully when carrying out steel repairs. This
is done by using suitable protective covers and by
masking the body with masking tape. Furthermore,
cutting work may only be performed using a body
saw. If grinding work is needed, this must be done
using grinding discs which produce little or no fly-
ing sparks. The spot welding machine should be
used for welding work where possible, because it
produces less weld spatter during the welding proc-
ess.

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

23

Aluminium-steel repairs

In the case of body side or rear-end damage, both
aluminium and steel body parts may become dam-
aged. This is the case, for example, when the body
side section (aluminium) and rear wheel arch (steel)
are damaged. After removing the damaged parts,
the new genuine parts are installed in accordance
with the repair procedures described in the previous
sections. Joining of steel and aluminium parts must
be carried out with the greatest care in order to
eliminate the possibility of future contact corrosion.

Two-component car body adhesive DA 001 730 A1
and rivets or screws are used for joining. As in
series production, an insulating layer is placed
between the two materials to prevent contact corro-
sion. When welding steel body parts, the aluminium
parts must be carefully covered and masked!

Reference

All body repair work must be performed in
accordance with the guidelines set out in the
current workshop literature!

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

24

Repair concept

Workshop equipment

A special tool is required for repair work on alumin-
ium-bodied vehicles. The basis is work scope 2010.

In addition to the special equipment and machines
for stud welding, dent removal, bonding and rivet-
ing, the aluminium welding technology is of special
importance.

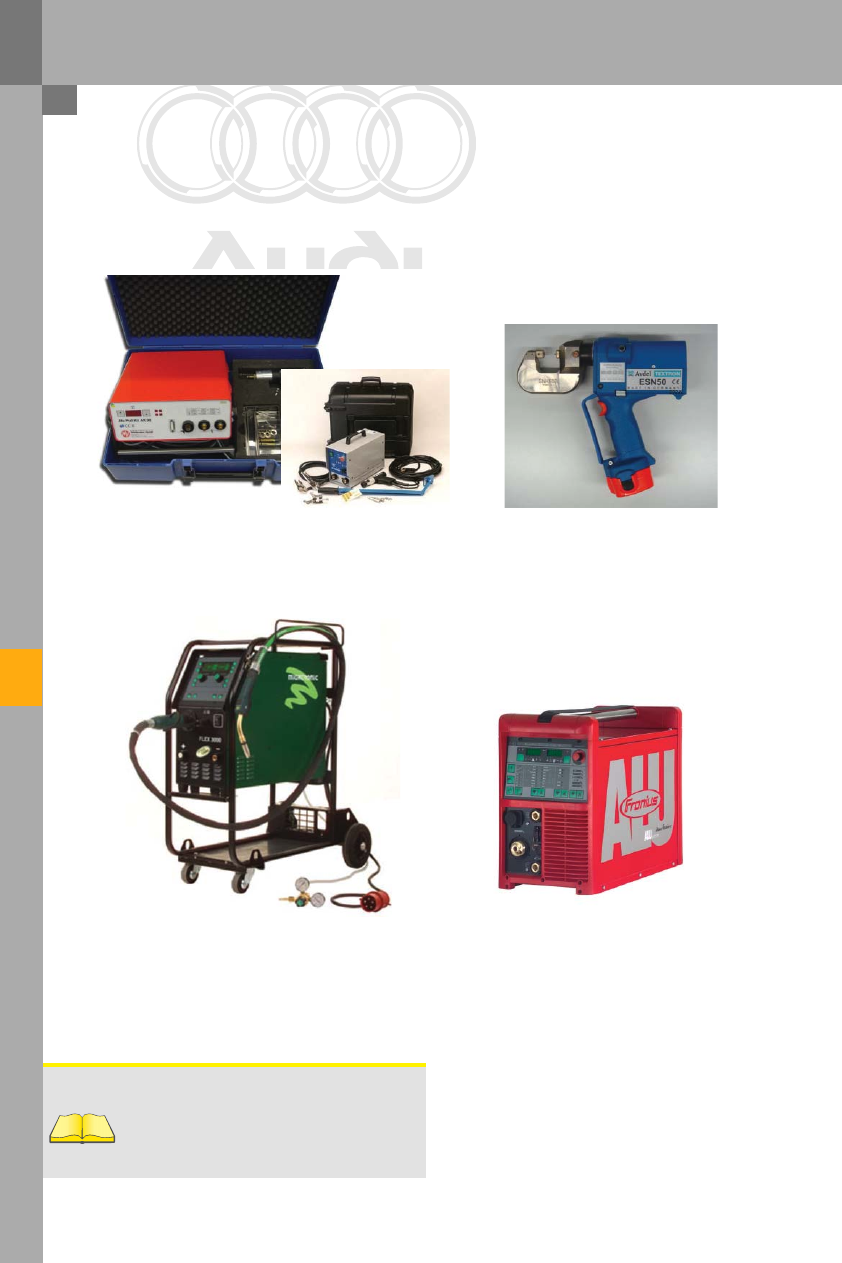

383_026

Aluminium body dent removal tools VAS 5196 and VAS 6049

383_076

Cordless punch riveter VAS 5279A

Aluminium inert gas welder VAS 6388

383_029

383_028

Aluminium inert gas welder V.A.G 2001B

There are now two appliances with modern control
systems which
are ideal for welding work on the Audi aluminium
body.
The welding appliances, when used properly, pro-
duce perfect aluminium welded joints which have
optimum strength.

Reference

For further information on the workshop equip-
ment for Audi aluminium-bodied vehicles, refer
to the workshop literature and the Audi Service
Net.
