Audi TT (2007 year). Manual - part 249





Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

29

Integration of the function into the vehicle

The "electrically adjustable rear spoiler" function is implemented in the convenience system central control
unit J393. The control unit activates the adjustable rear spoiler motor V52 and reads in the two limit switches
F135 and F136, which are used to identify both limit positions of the rear spoiler.

The convenience system control unit J393 also reads in the adjustable rear spoiler switch E127 and activates
the adjustable rear spoiler warning lamp K242 in the button according to the current status.

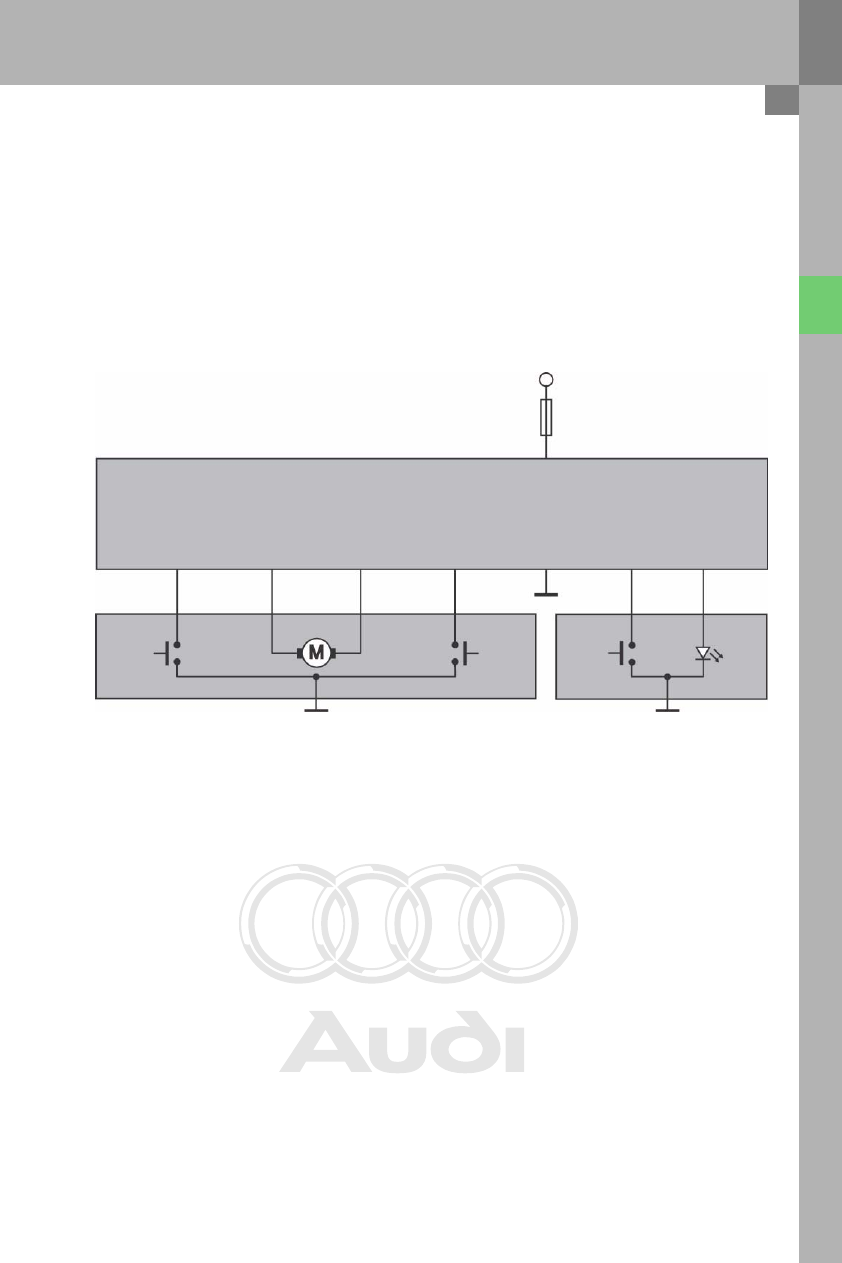

382_008

Legend

E127 Adjustable rear spoiler switch
F135 Rear spoiler adjustment limit switch 1
F136 Rear spoiler adjustment limit switch 2
J393 Convenience system central control unit
K242  Adjustable rear spoiler warning lamp
V52

Adjustable rear spoiler motor

Convenience system central control unit

J393

F135

V52

F136

E127

K242

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

30

Electrical system and convenience electronics

Design of the "electrically adjustable rear spoiler"

The "electrically adjustable rear spoiler" consists of two components which can be ordered separately:

the rear spoiler module

the spoiler wing

A DC motor mounted on the rear spoiler module transmits a rotary movement to the input shaft vi a gear and
special joint (four-way joint). The shaft converts this movement to a lifting movement by means of left and
right reversing mechanisms. The lifting movement moves the spoiler wing mounted on the rear spoiler
module from the lower limit position to the upper limit position or vice versa, depending on momentary
position of the rear spoiler.
Two limit switches for detecting the lower and upper limit positions are actuated by the four-way joint.

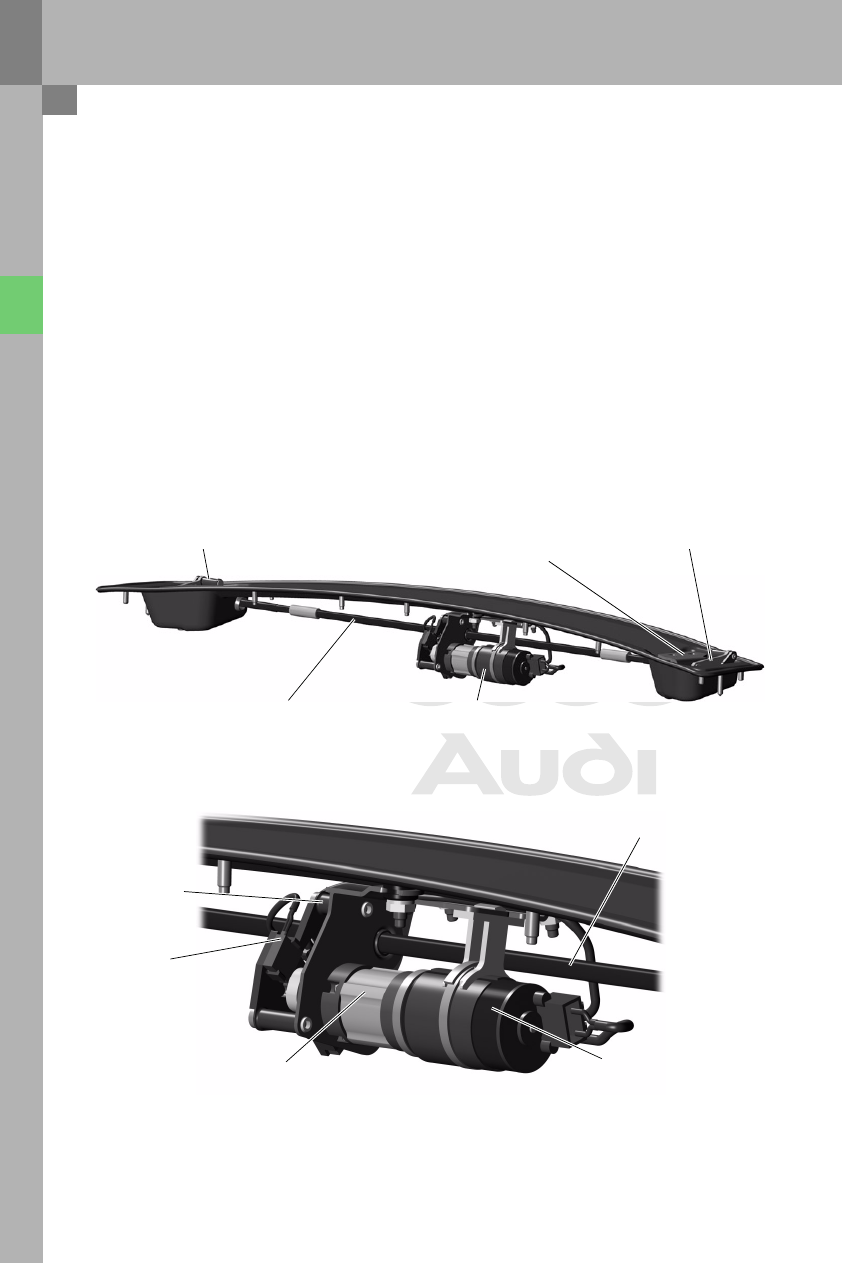

382_004

Four-way joint

Rear spoiler adjustment limit
switch 1 F135
(the second limit switch F136
is not shown)

Drive shaft

Gear

DC motor

Adjustable rear spoiler drive unit

382_005

Complete rear spoiler module without mounted spoiler wing

Reversing mechanism

Drive shaft

Drive unit

Reversing mechanism

Plate for mounting
the spoiler wing

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

31

Diagnosis

The scope of diagnosis in the convenience system central control unit J393 has been extended to include the
new function.Address word 46 is assigned to the convenience system central control unit in the diagnostic
tester.

There is a new data block for the "electrically adjustable rear spoiler" function. It contains the following
information:

Switch for detecting the end position "rear spoiler retracted" is actuated or not actuated

Switch for detecting the end position "rear spoiler extended" is actuated or not actuated

Adjustable rear spoiler switch E127 is actuated or not actuated

Warning lamp K242 in the adjustable rear spoiler switch E127 is on or off

There is adaption or final control diagnostics function for the electrically adjustable rear spoiler. It is not
included in the coding either, but is standard equipment in the TT Coupé.

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

32

Electrical system and convenience electronics

New features of the antitheft alarm system

In the Audi TT Coupé ´07 the interior monitor
sender/receiver module 1 G303 and the antitheft/tilt
system control unit J529 are combined as a unit -
the antitheft alarm system sensor G578.
This means that the convenience system central
control unit J393 in combination with the optional
"antitheft alarm system" two LIN users in the
Audi TT Coupé ´07.

The new antitheft alarm system sensor G578 is
integrated in the overhead module of the
Audi TT Coupé ´07.
It has a 4-pin connector and is connected via a LIN
bus line to the convenience system central control
unit J393.

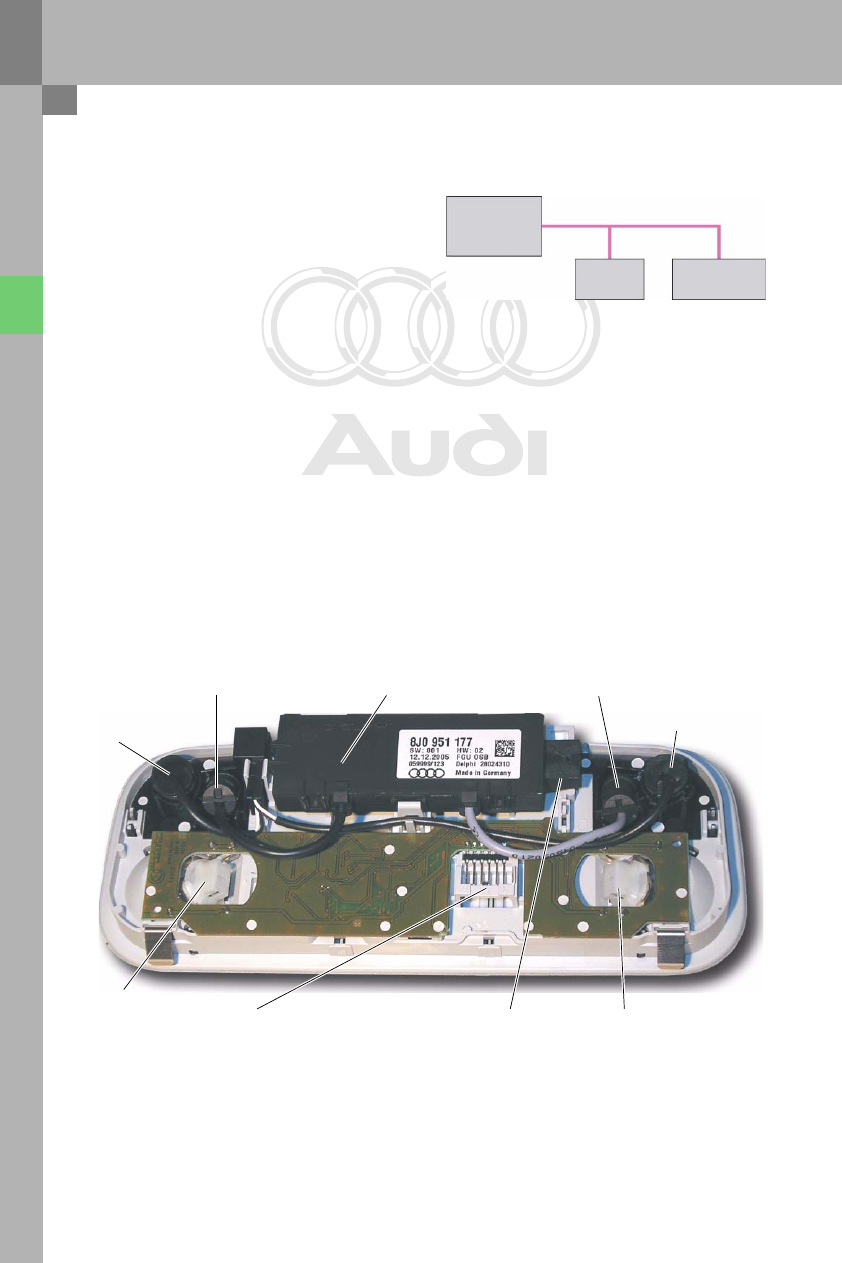

382_018

Microphone

Ultrasonic sensor

Anti-theft alarm system sensor G578

Ultrasonic sensor

Microphone

Convenience

system central

control unit

J393

Alarm horn

H12

Anti-theft alarm

system sensor

G578

382_015

Overhead module connector
(interior light)

Connector of the antitheft alarm
system sensor

Interior light
driver side

Interior light
Front passenger side
