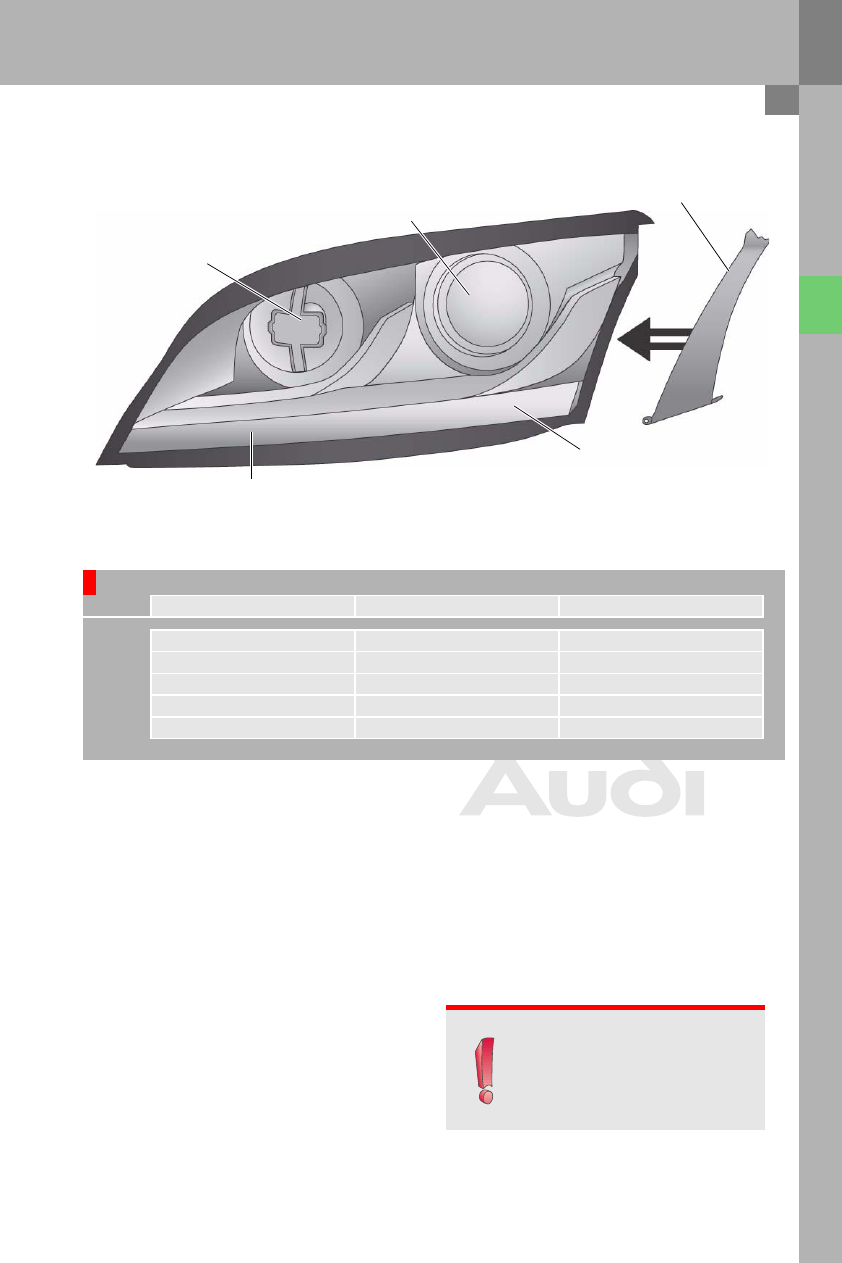

Configuration of the front lights in the bi-xenon headlight and bi-xenon headlight with AFS variants

382_023

Daytime driving lights

Low-beam headlight /
main-beam headlight

Indicator

Side light / sidemarking light (SAE)

12 V bulb

Type

Rated power

Side light

H6W

6 watts

Low beam headlight

D1S

35 watts

Main-beam headlight

D1S

35 watts

Indicator

H21W

21 watts

Sidemarking lights (SAE)

WY5W

5 watts

The following bulbs are used in the bi-xenon headlight or bi-xenon with AFS variant:

Light bulb replacement

All light bulbs in the headlights can be replaced
using the vehicle tool kit.
The headlights can be removed without taking off
the bumper.

For information on light bulb replacement, refer to
the Audi TT Coupé ´07 Owner's Manual.

Since gas discharge lamps are subject to special
safety requirements, replacement of such lights
should be referred to an authorised workshop.

Note

For instructions for removing the
headlights and details of safety
requirements for gas discharge
lamps, please refer to the current
service literature.

Side reflector

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

22

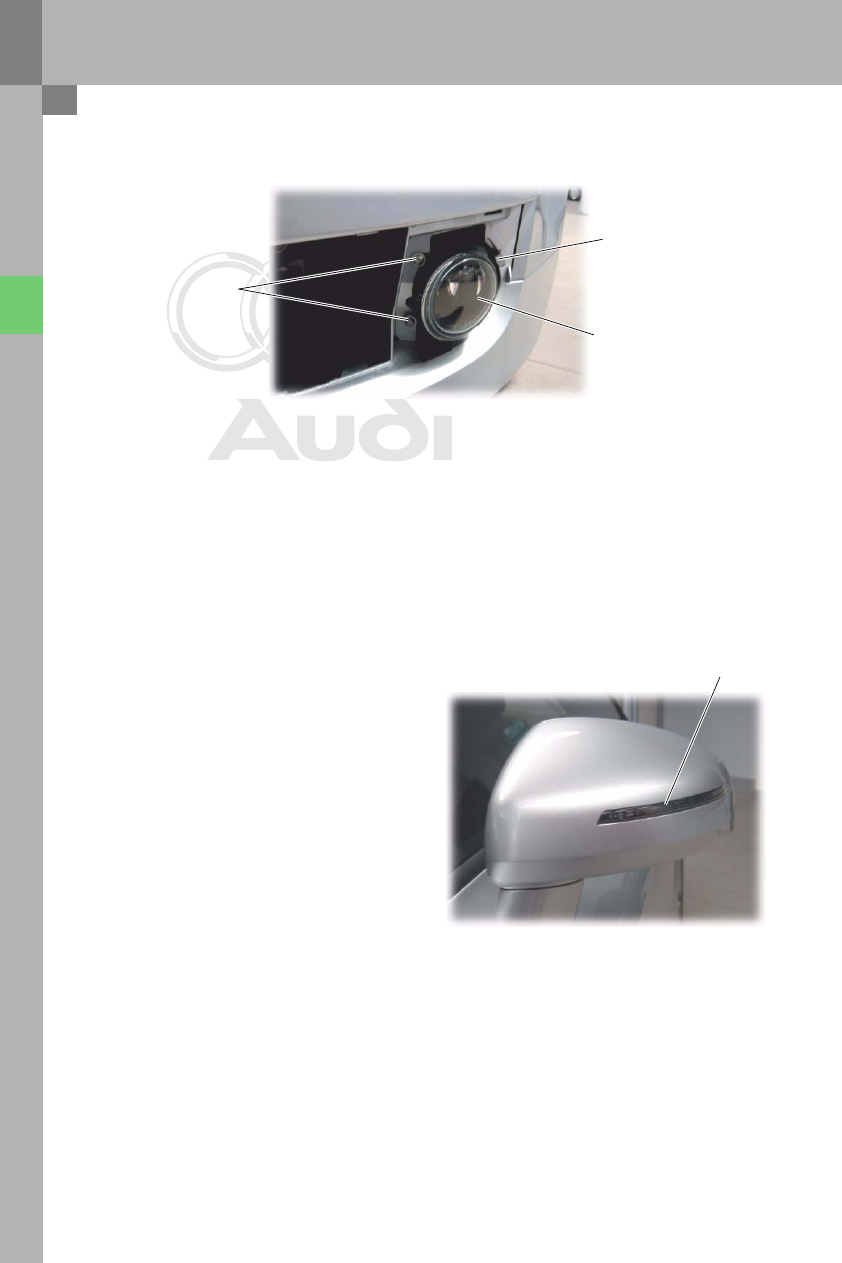

Fog light

Electrical system and convenience electronics

Sidelight

The sidelight uses LED technology and is housed in
the door mirror housing. The sidelight is activated
by the respective door control unit. The sidelight
and the electrically adjustable outer mirror glass
drive motor can be replaced individually by the
service workshop.

Refer to the current Workshop Manual!

382_027

Fastening bolts

Mounting bracket

Fog light

The fog lights on the Audi TT Coupé ´07 are located in the bumper. An H11 bulb with a rating of 55 watts is
used as a lighting element.The bulb can be replaced with the vehicle tool kit.

For instructions for removing the fog lights, refer to the Audi TT Coupé ´07 Owner's Manual.

382_038

Sidelight

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

23

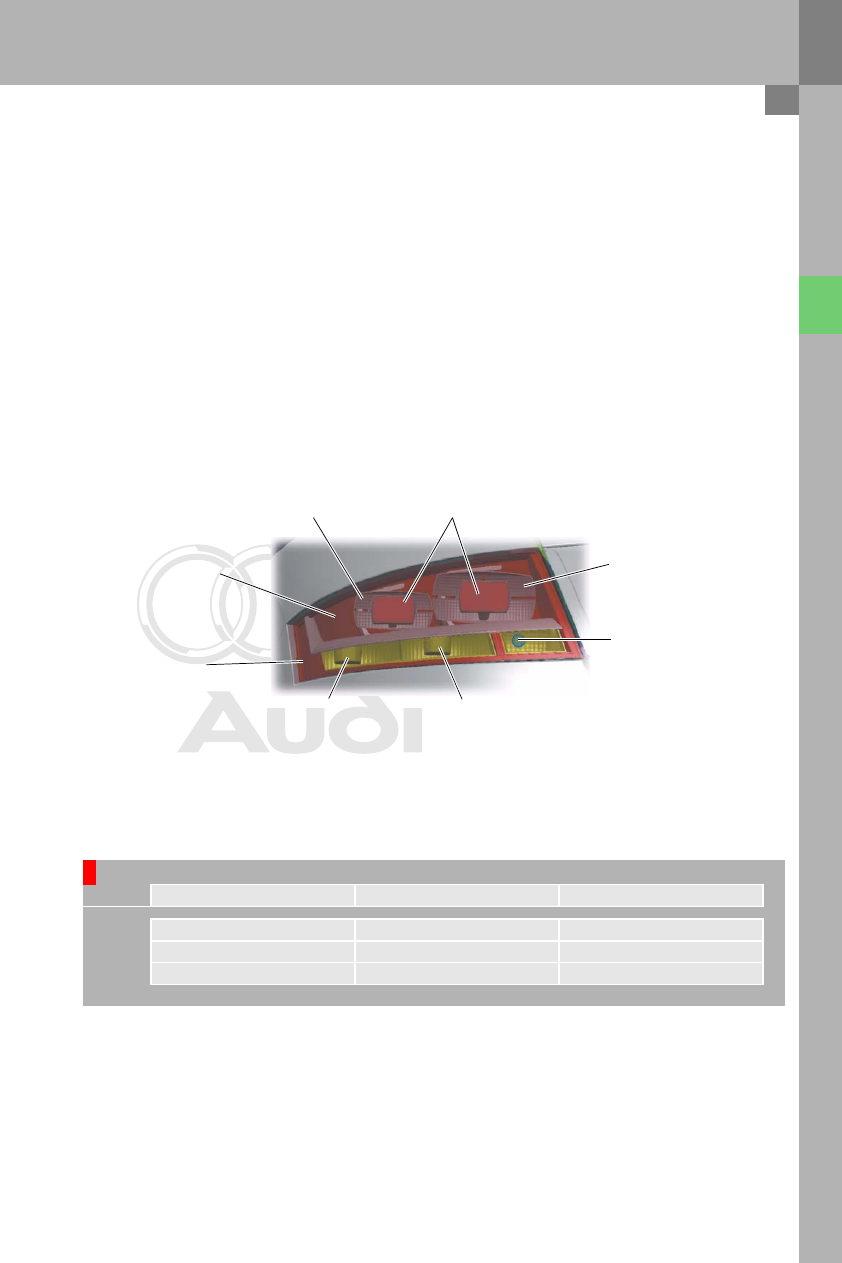

Rear outside light

The rear lights on the Audi TT Coupé ´07 are available in two variants:

–

ECE variant for the European market

–

SAE variant for the North American market

The differences between the two rear lights relate to the indicator and sidemarker lights:

–

ECE variant: reflector in the area of the indicator in yellow-brown and rear lights without sidemarker light

–

SAE variant: reflector in the area of indicators in red and rear lights with sidemarker light

382_025

Outer taillight and brake light

Reflector

Sidemarker light (SAE only)

Side reflector

Inner taillight, brake and
parking light

Outer indicator

Inner indicator

Reversing light

12 V bulb

Type

Rated power

Taillight and brake light

P21W

21 watts

Reversing light

W16W

16 watts

Indicator

W16W

16 watts

The following lighting elements are used in the rear lights on the Audi TT Coupé ´07:

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

24

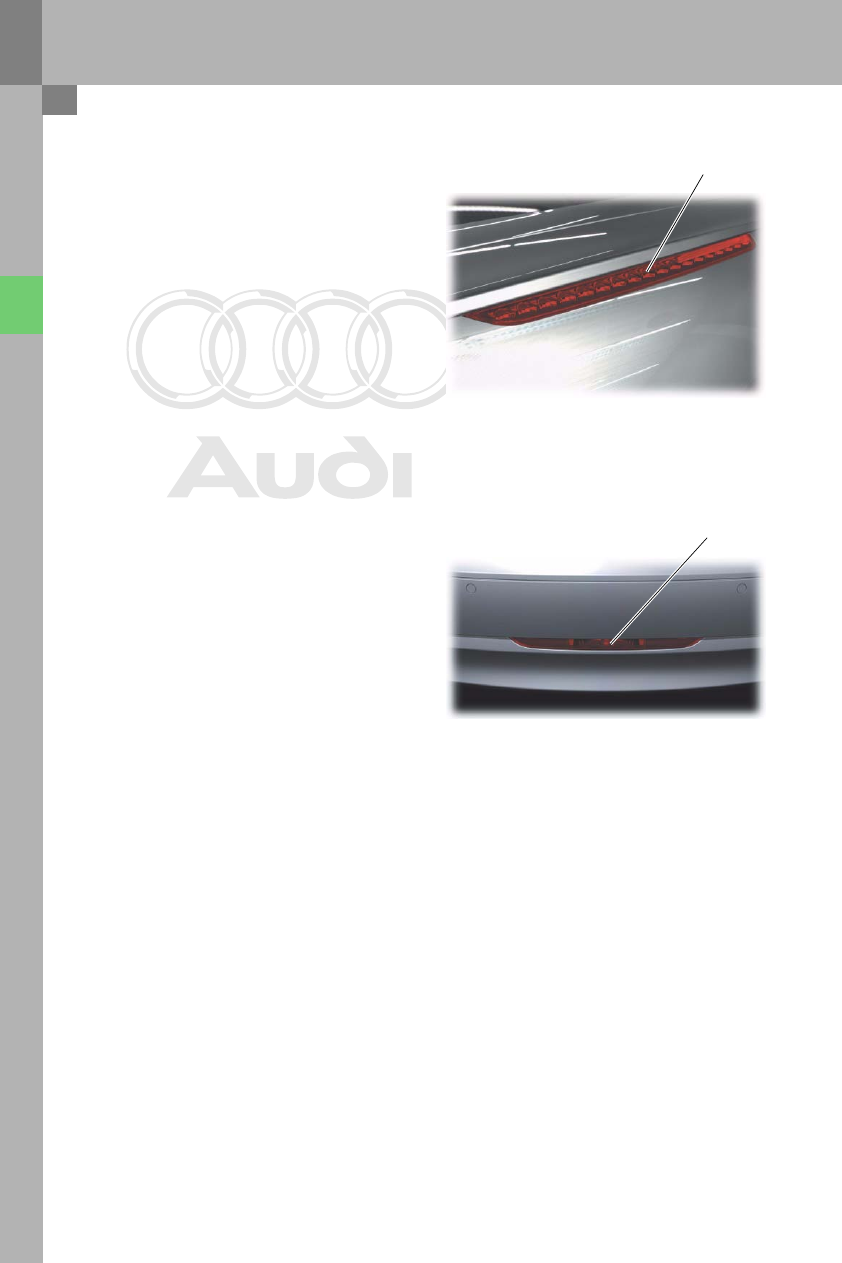

Third brake light

The third brake light is located in the bootlid under
the rear spoiler.
It uses LED technology and can only be replaced as
a complete assembly. Replacement of the third
brake light should be referred to an authorised
workshop.
Refer to the current Workshop Manual.

Rear fog light

The rear fog light in the Audi TT Coupé ´07 is fitted
at the centre of the rear bumper. An H21W bulb with
a rating of 21 watts is used as a lighting element.
The bulb can be replaced from below without taking
off the bumper. The lamp socket is secured in the
lamp housing by means of a bayonet fitting.

Electrical system and convenience electronics

382_039

Third brake light

382_037

Rear fog light
