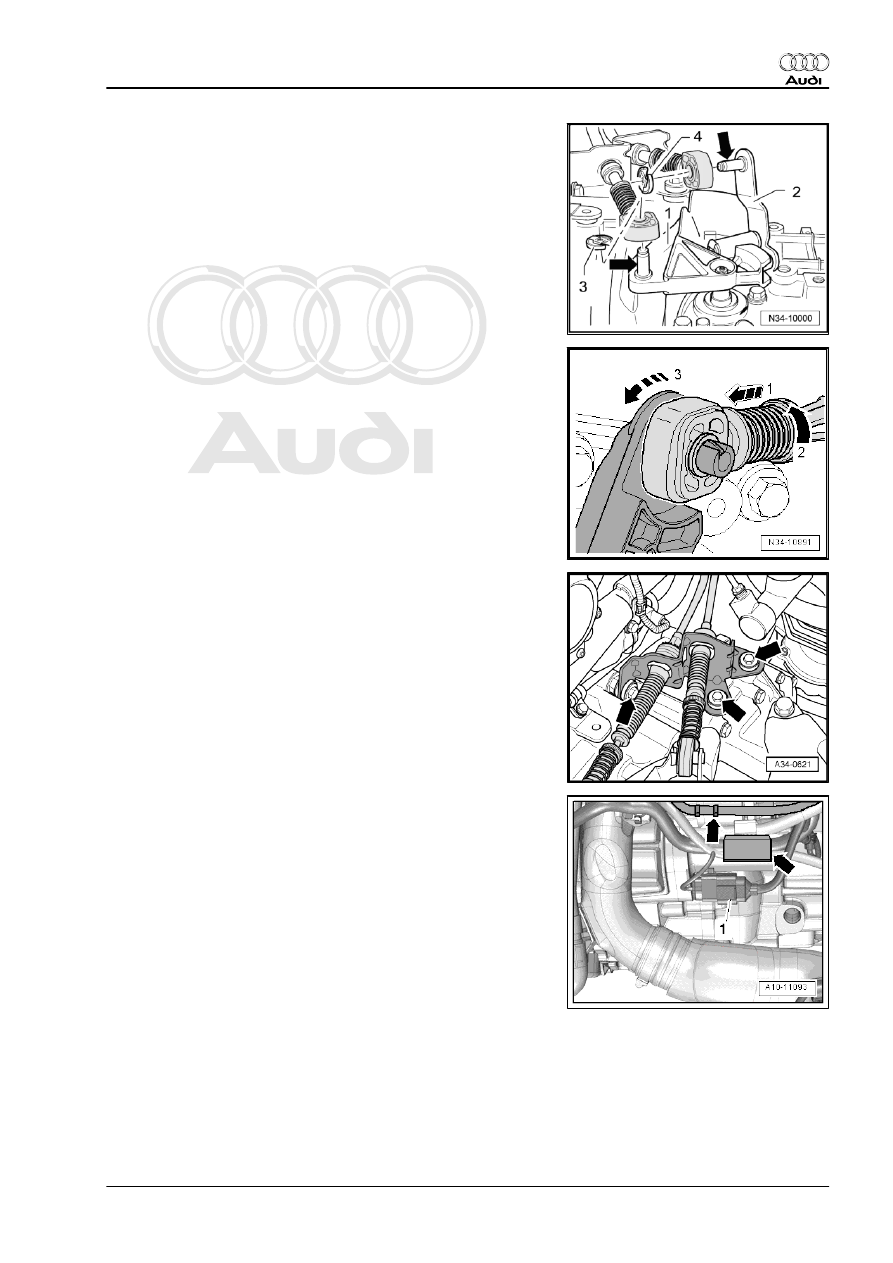

– Detach securing clip -3- for gear selector cable from gearbox

selector lever -1- and pull cable off pin -arrow-.

Metal selector relay lever:
– Detach securing clip -4- for gate selector cable from selector

relay lever -2- and pull cable off pin -arrow-.

Plastic selector relay lever:
• To prevent damage to gate selector cable, cable end-piece

must be detached from gate selector cable before removing.

– Pull locking device forwards onto stop -arrow 1- and lock by

turning anti-clockwise -arrow 2-.

– Press selector relay lever towards front -arrow 3-.

All vehicles (continued):
– Remove cable support bracket -arrows- from gearbox and

place to one side (selector cables remain fitted).

– Move clear wiring harnesses -arrows- and electrical connector

-1- at bracket.

2. Cylinder head

107

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

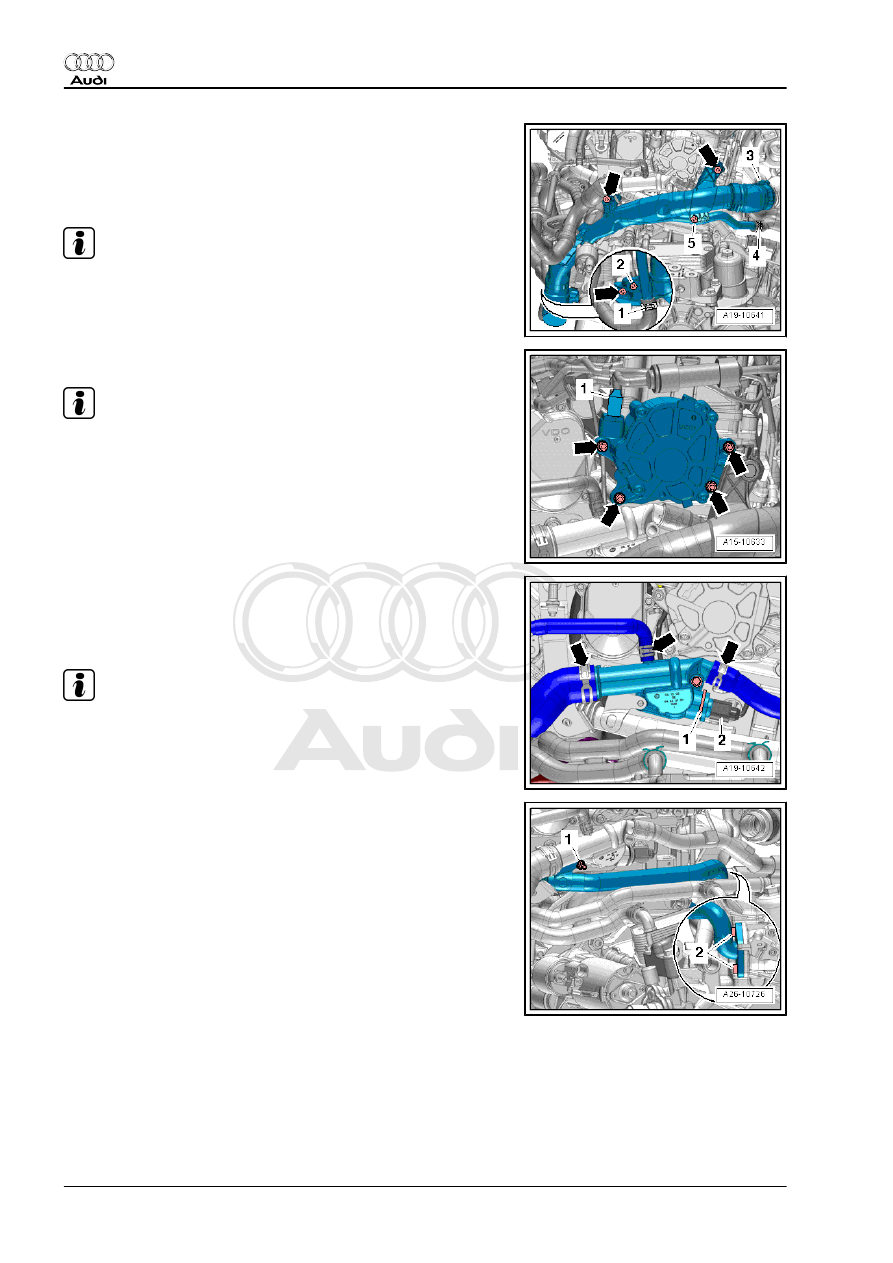

– Remove bolts -2, 5- and -arrows-.
– Using removal lever -80 - 200- , move clear electrical wiring

and hoses at air pipe (left-side).

– Loosen hose clip -3- and detach air pipe (left-side).

Note

Disregard -items 1, 4-.

– Disconnect vacuum hose -1- from vacuum pump.

Note

Disregard -arrows-.

– Unplug electrical connector -2- at coolant temperature sender

-G62- .

– Slacken hose clips -arrows- and detach coolant hoses from

connection.

Note

Disregard -item 1-.

– Remove nut -1- and bolts -2-, detach exhaust gas recirculation

pipe.

108

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

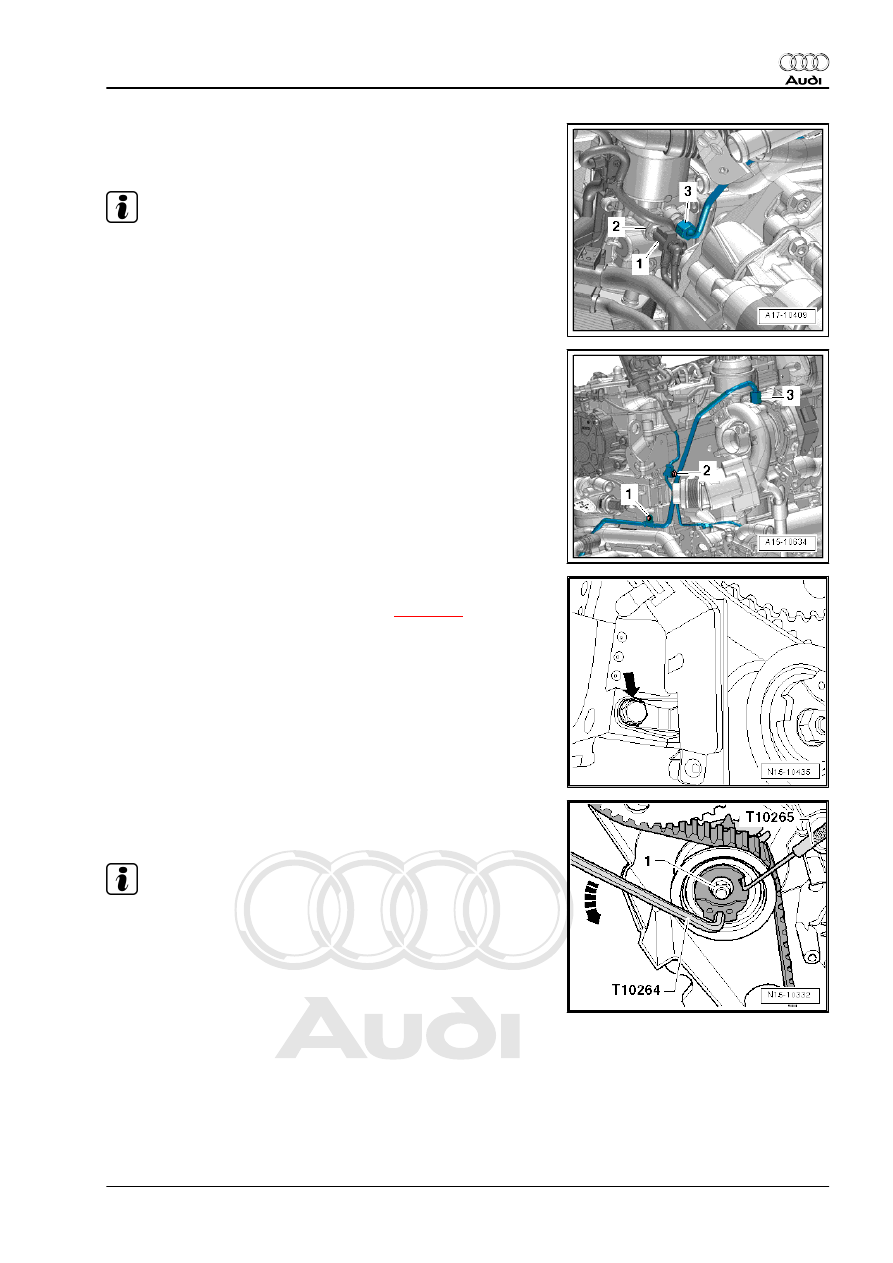

– Disconnect oil supply line from connection on oil filter bracket.

To do so, counterhold at hexagon flats with an open-end span‐

ner and loosen union nut -3-.

Note

Disregard -items 1, 2-.

– Remove nut -2- at retaining clip for vacuum line.
– Remove bolt -1-.
– Unscrew oil supply line from connection on turbocharger. To

do so, counterhold at hexagon flats with an open-end spanner

and slacken union nut -3-.

– Remove bolt -arrow- securing rear cover for toothed belt.
– Take toothed belt off camshaft sprocket

⇒ page 86

 .

– Remove locking tool -T10265- .
– Remove nut -1-.

Note

Disregard -arrow-.

2. Cylinder head

109

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

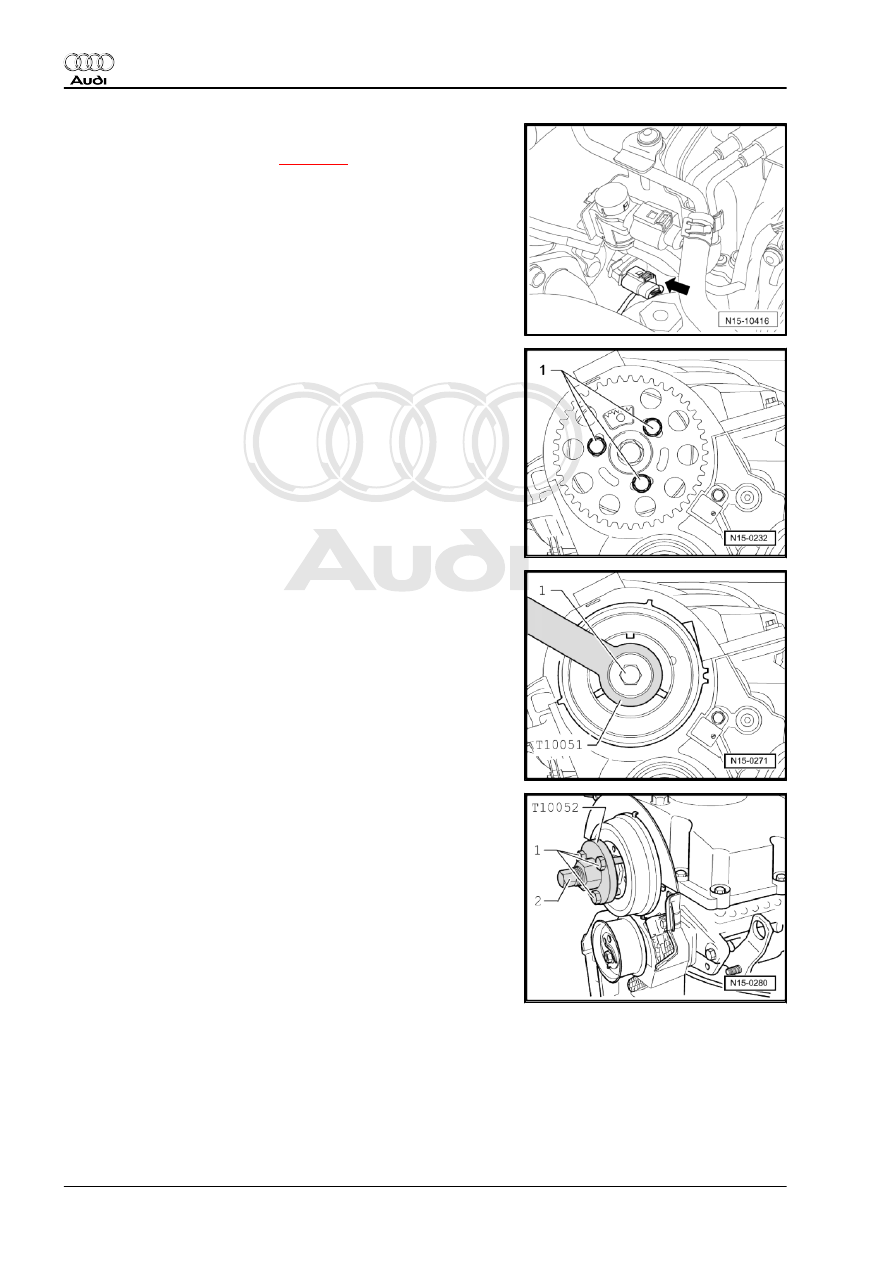

– Unplug electrical connector -arrow- at Hall sender -G40- .
– Remove cylinder head cover

⇒ page 98

 .

– Unplug electrical connectors on glow plugs.

– Remove bolts -1- and detach camshaft sprocket.

– Counterhold using counterhold tool -T10051- and loosen bolt

-1- for camshaft hub.

– Unscrew bolt approx. 2 turns.

– Apply puller -T10052- to camshaft hub and and screw bolts

-1- into hub.

– Counterhold on hexagon flats (30 mm) of puller and screw in

bolt -2- to pull off camshaft hub.

– Detach hub from taper of camshaft.
