1.3

Removing and installing tensioner for

poly V-belt

Removing
– Detach poly V-belt from tensioner

⇒ “1.2 Removing and installing poly V-belt - vehicles with ten‐

sioner and air conditioner compressor”, page 44

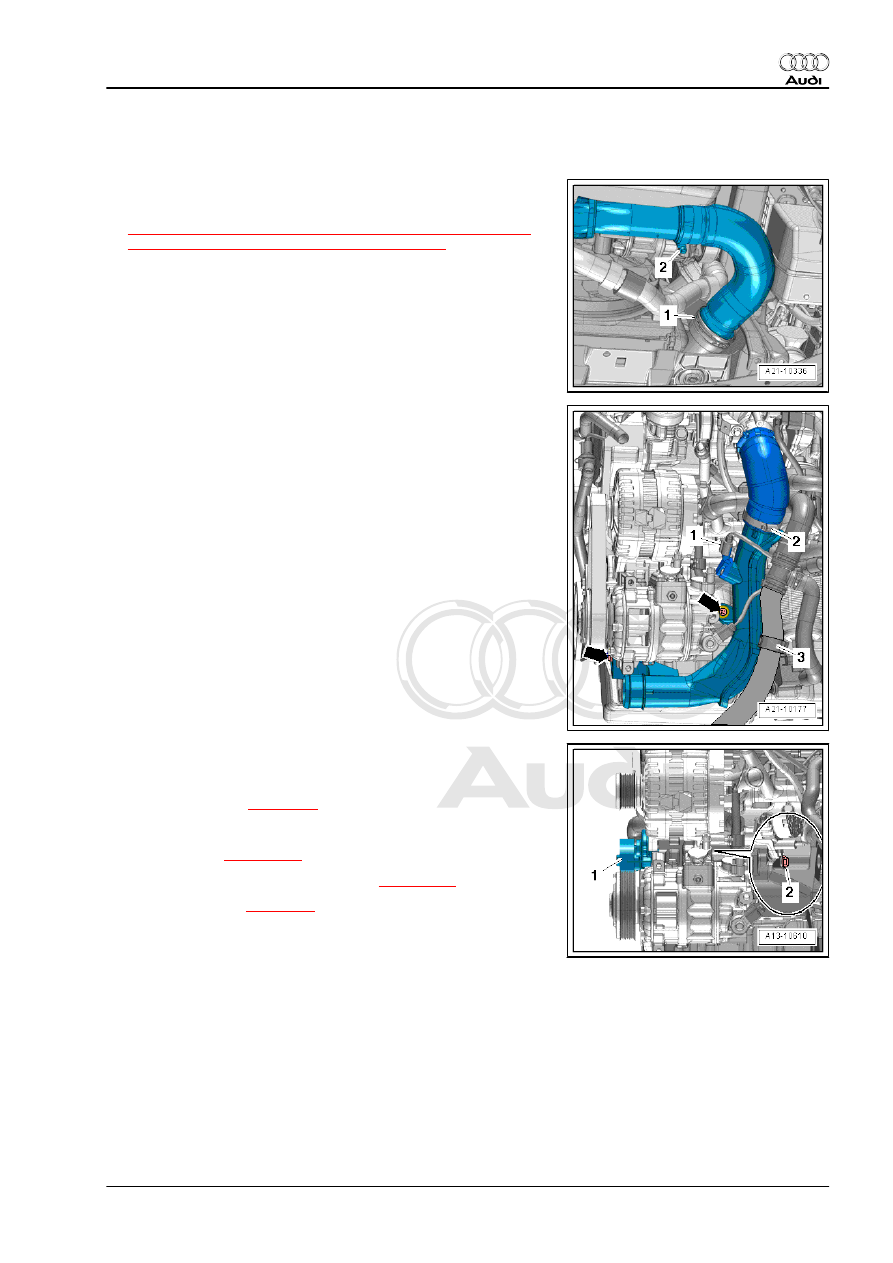

– Release hose clip -2-, lift retaining clip -1- slightly and remove

air hose.

– Remove bolts -arrows-.
– Move coolant hose -3- clear.
– Loosen hose clip -2-.
– Unplug electrical connector -1- at charge pressure sender -

G31- and detach air pipe.

– Remove bolt -2- and take off tensioner -1- for poly-V-belt.
Installing
• Tightening torque

⇒ page 43

Installation is carried out in the reverse order; note the following:
– Install air pipe

⇒ page 208

– Install air hose with plug-in connector

⇒ page 209

– Install poly V-belt

⇒ page 44

1. Cylinder block (pulley end)

1.4

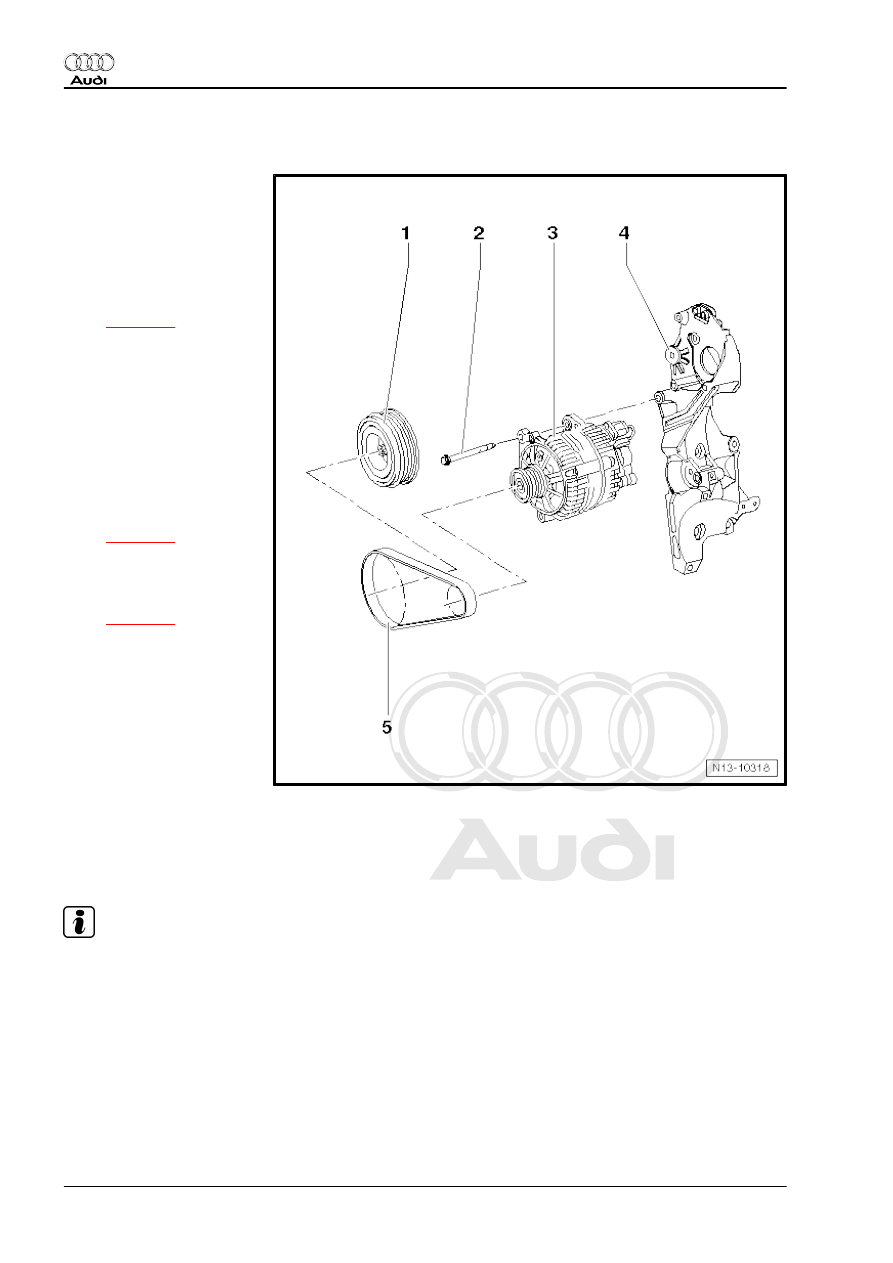

Poly V-belt drive without air conditioner compressor - exploded view

1 - Vibration damper

❑ With poly V-belt pulley
❑ Installation position:

hole in vibration damper

must be positioned over

raised section of crank‐

shaft sprocket

❑ Removing and installing

⇒ page 49

2 - Bolt

❑ Tightening torque ⇒

Electrical system; Rep.

Gr. 27

3 - Alternator

❑ Removing and installing

⇒ Electrical system;

4 - Bracket for ancillaries

❑ Removing and installing

⇒ page 50

5 - Poly V-belt

❑ Renew.
❑ Removing and installing

⇒ page 48

1.5

Removing and installing poly V-belt - ve‐

hicles without air conditioner compres‐

sor

Note

The poly V-belt tensioner is not installed on vehicles without air

conditioner (equipment version).

Special tools and workshop equipment required
♦ Poly V-belt repair set with assembly tool ⇒ Electronic parts

catalogue

Procedure

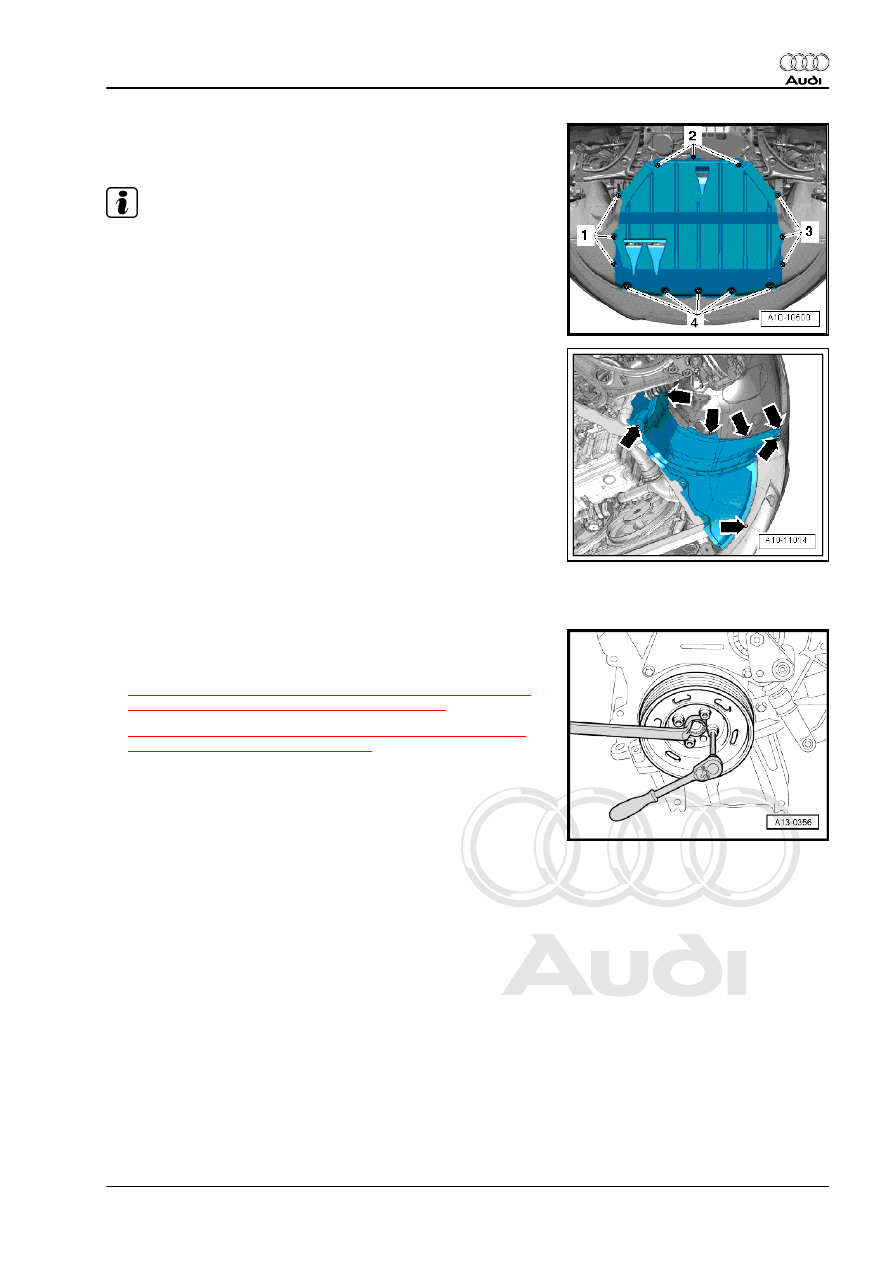

– Release fasteners -1 ... 4- and remove centre noise insulation.

Note

The poly V-belt repair set with assembly tool contains the assem‐

bly tool -T10367- and illustrated instructions.

– Remove front right wheel.

– Release fasteners -arrows- and remove right wheel housing

liner (bottom section).

– Follow procedure specified in illustrated instructions.
Installation is carried out in the reverse order; note the following:
– Install front section of wheel housing liner (front section) ⇒

1.6

Removing and installing vibration damp‐

Removing
– Removing poly V-belt
♦

⇒ “1.2 Removing and installing poly V-belt - vehicles with ten‐

sioner and air conditioner compressor”, page 44

♦

⇒ “1.5 Removing and installing poly V-belt - vehicles without

air conditioner compressor”, page 48

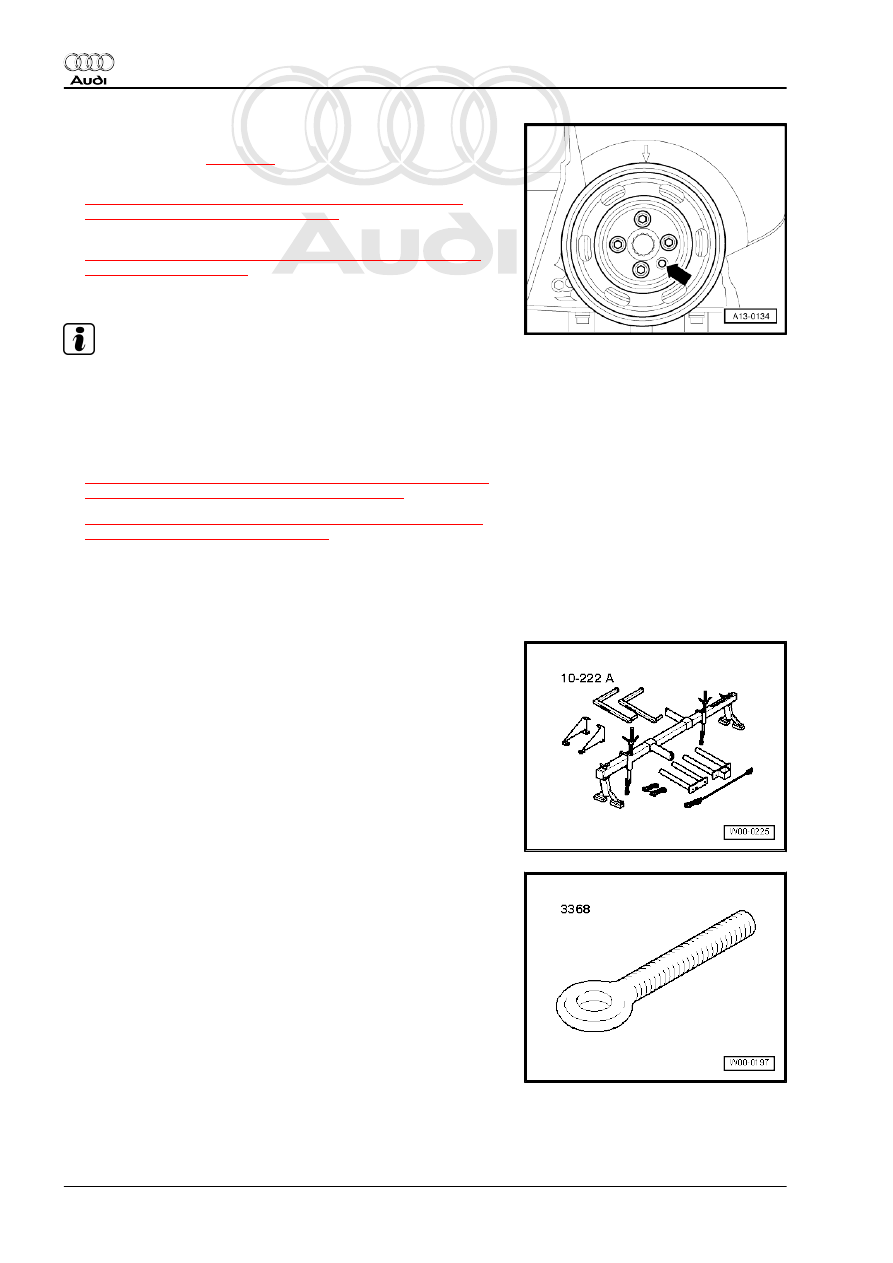

– Counterhold by applying ring spanner to bolt for crankshaft

sprocket and slacken bolts for vibration damper.

– Remove bolts and take off vibration damper.

1. Cylinder block (pulley end)
