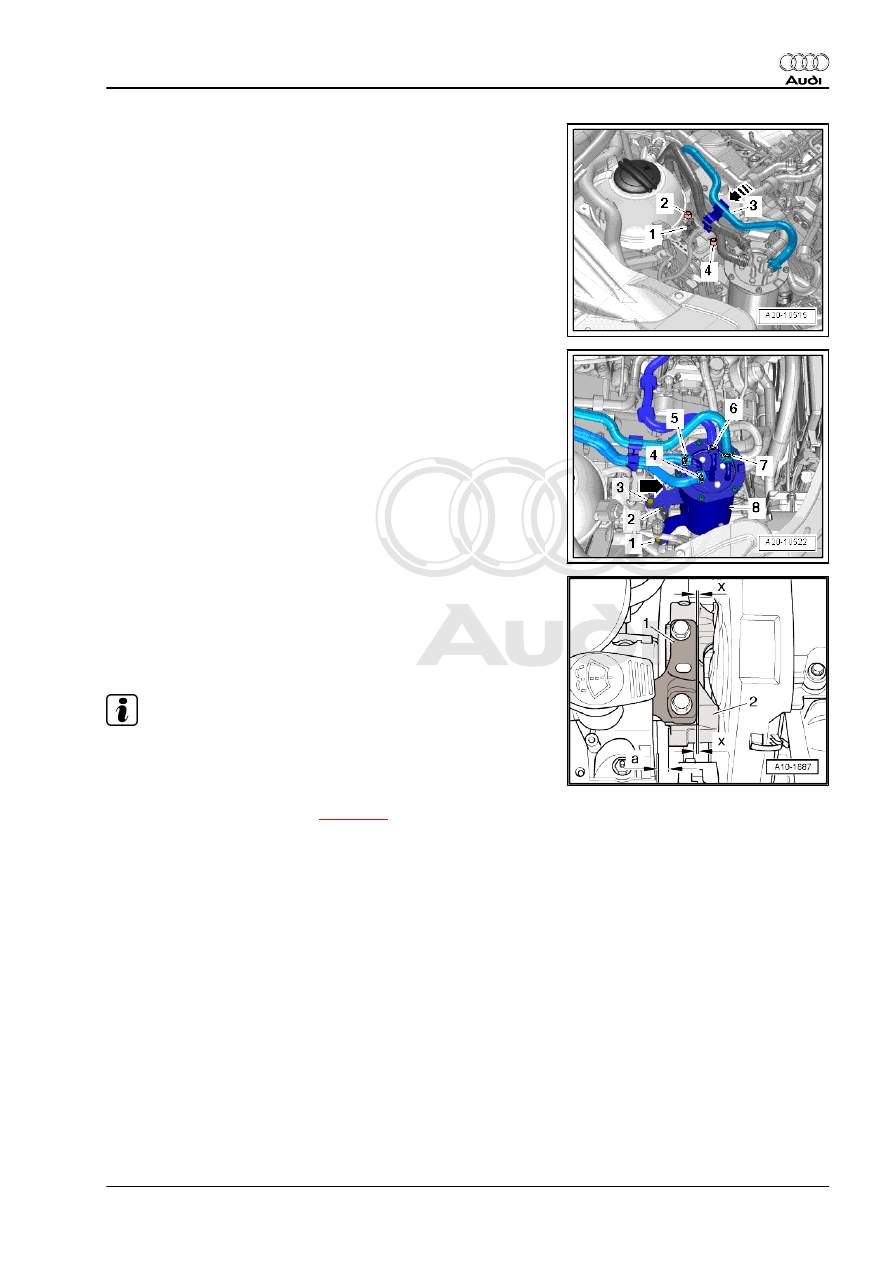

– Disengage fuel hose -3- at bracket.
– Pull off bracket for fuel lines towards right -arrow- and move

clear to one side.

– Unplug electrical connector -1- at supplementary fuel pump -

V393- .

– Remove bolts -2- and -4-, detach bracket with supplementary

fuel pump -V393- and move clear to one side.

– Loosen bolt -1-.
– Remove nut -2- and bolt -3-.
– Detach hose retainer -arrow- from fuel filter and move fuel filter

-8- clear to one side with fuel hoses -4 ... 7- connected.

The following specifications must be obtained:
• There must be a distance of -a- = 13.5 mm between engine

support -2- and longitudinal member (right-side).

• The side of the engine support casting -2- must be aligned

parallel to the support arm -1- (distance -x- = distance -x-).

Note

Distance -a- = 13.5 mm can also be checked with a metal rod of

suitable size, or similar.

– If the distance measured is too large or small, the assembly

mountings must be adjusted

⇒ page 39

 .

Assembling
Installation is carried out in the reverse order; note the following:
– Install fuel filter and supplementary fuel pump -V393- ⇒  Rep.

Gr.  20 .

5.3

Adjusting assembly mountings

Special tools and workshop equipment required

5. Assembly mountings

39

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

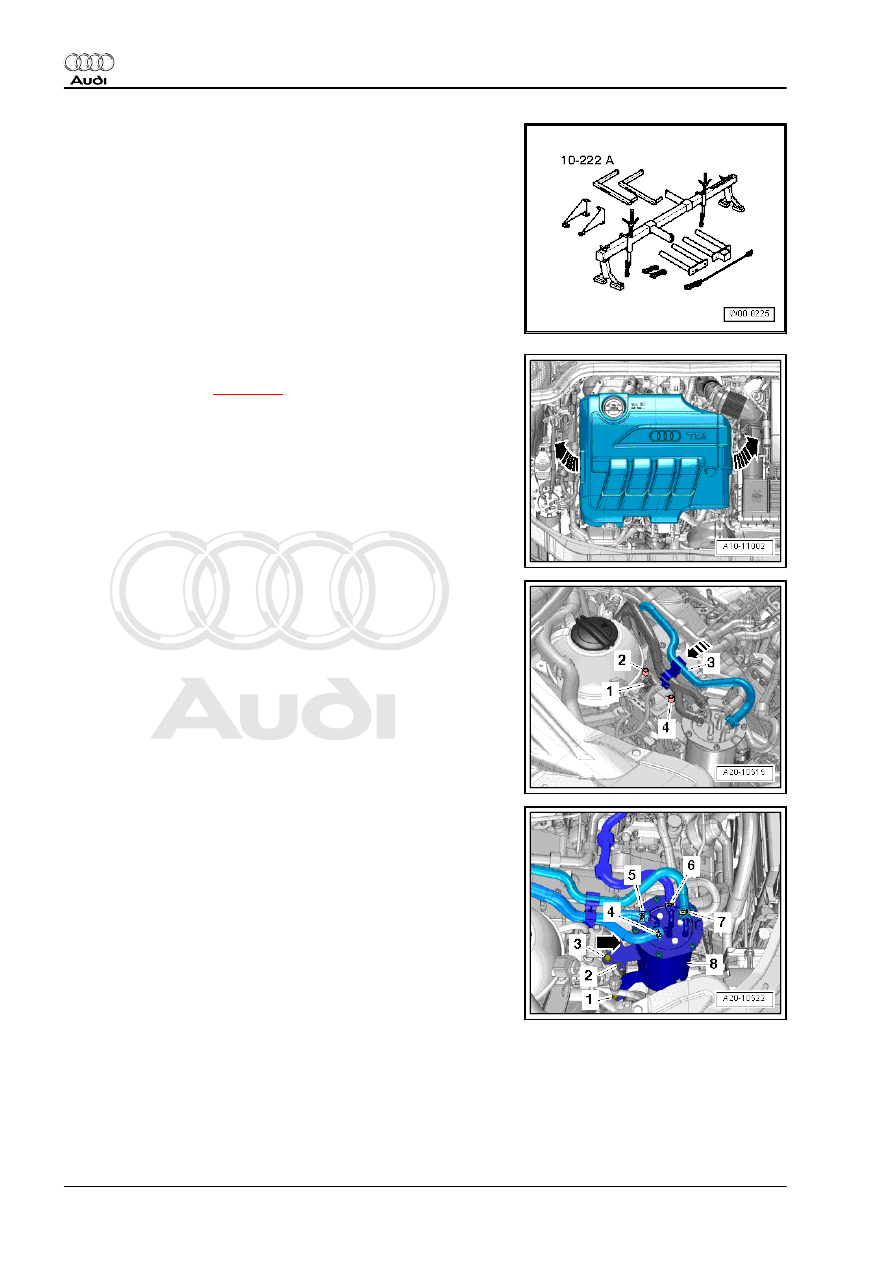

♦ Support bracket -10 - 222 A-

Procedure
• Tightening torques

⇒ page 37

– Remove engine cover panel -arrows-.

– Disengage fuel hose -3- at bracket.
– Pull off bracket for fuel lines towards right -arrow- and move

clear to one side.

– Unplug electrical connector -1- at supplementary fuel pump -

V393- .

– Remove bolts -2- and -4-, detach bracket with supplementary

fuel pump -V393- and move clear to one side.

– Loosen bolt -1-.
– Remove nut -2- and bolt -3-.
– Detach hose retainer -arrow- from fuel filter and move fuel filter

-8- clear to one side with fuel hoses -4 ... 7- connected.

40

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

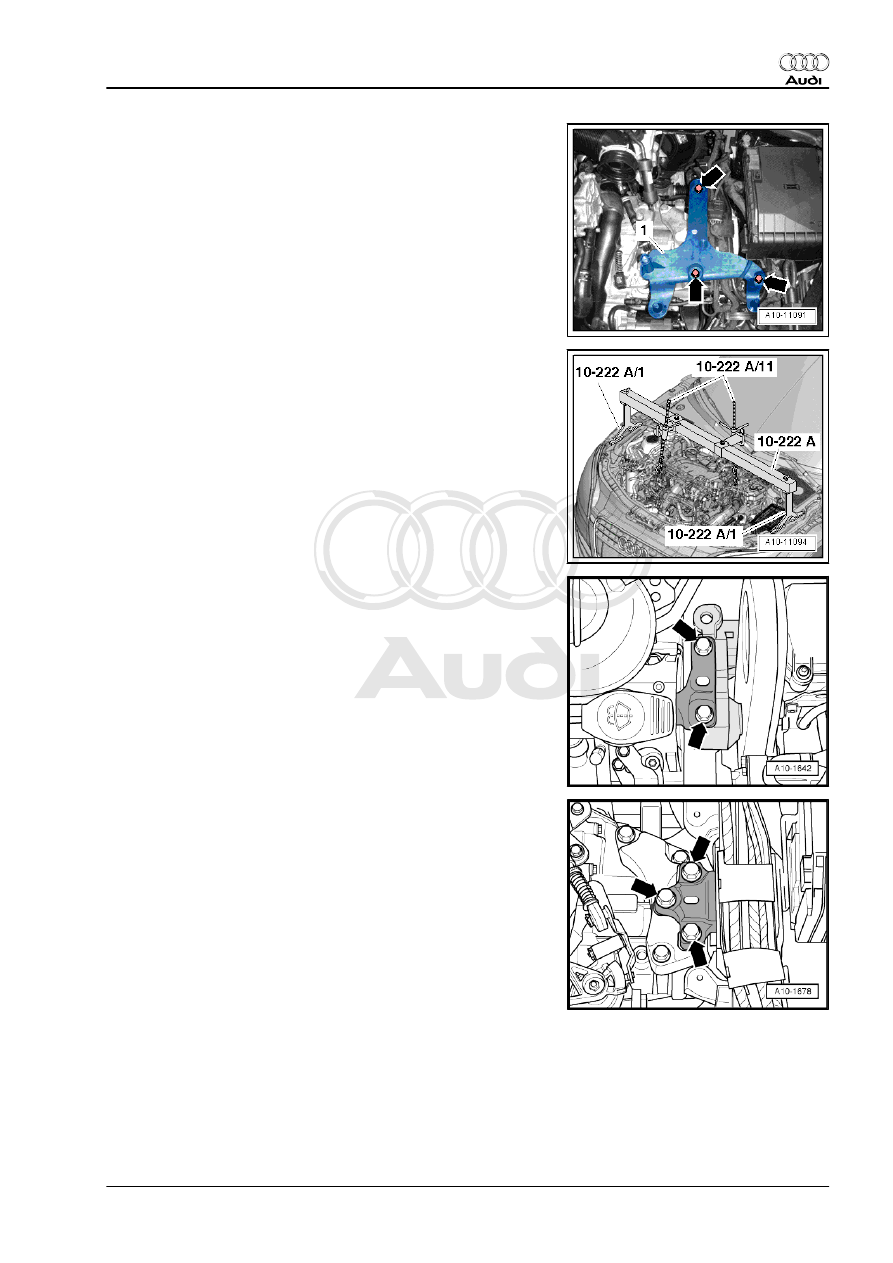

housing.

– Position support bracket -10 - 222 A- with spindles -10 - 222

A /11- on bolted flanges of wing panels as shown in illustration.

– Attach hooks of spindles to engine lifting eyes.
– Take up weight of engine/gearbox assembly evenly with both

spindles (do not raise assembly).

– Remove bolts -arrows- for assembly mounting (engine end)

one by one and renew (if they were not renewed when instal‐

ling engine).

– Initially fit bolts hand-tight.

– Remove bolts -arrows- for assembly mounting (gearbox end)

one by one and renew (if they were not renewed when instal‐

ling engine).

– Initially fit bolts hand-tight.

5. Assembly mountings

41

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

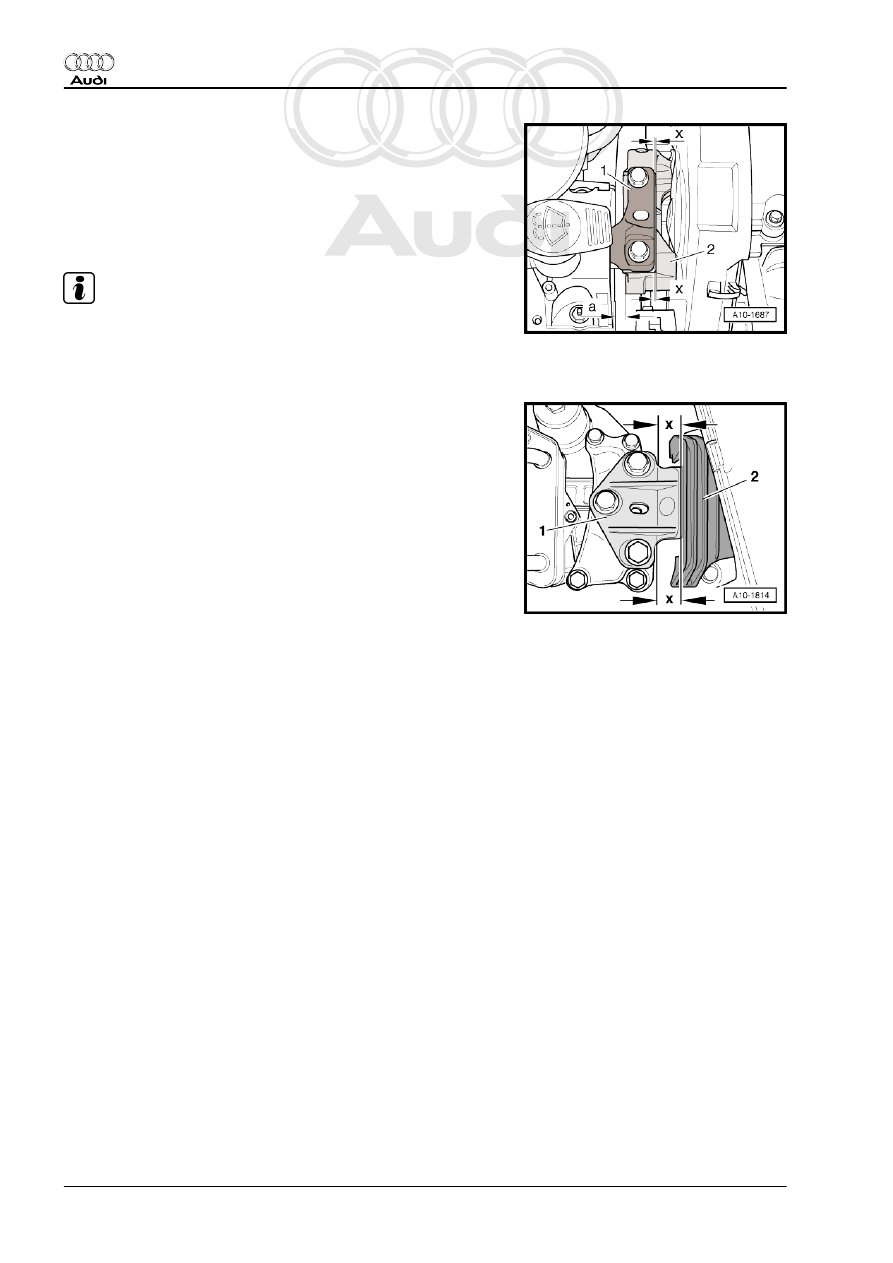

– Using assembly lever, adjust engine/gearbox assembly be‐

tween engine mounting and support arm -1- until specifica‐

tions listed below are attained:

• There must be a distance of -a- = 13.5 mm between engine

support -2- and longitudinal member (right-side).

• The side of the engine support casting -2- must be aligned

parallel to the support arm -1- (distance -x- = distance -x-).

Note

Distance -a- = 13.5 mm can also be checked with a metal rod of

suitable size, or similar.

– Tighten bolts for assembly mounting (engine end).

– Ensure that the edges of the support arm (on the gearbox as‐

sembly mounting) -1- and gearbox mounting -2- are parallel.

Gr.  20 .
