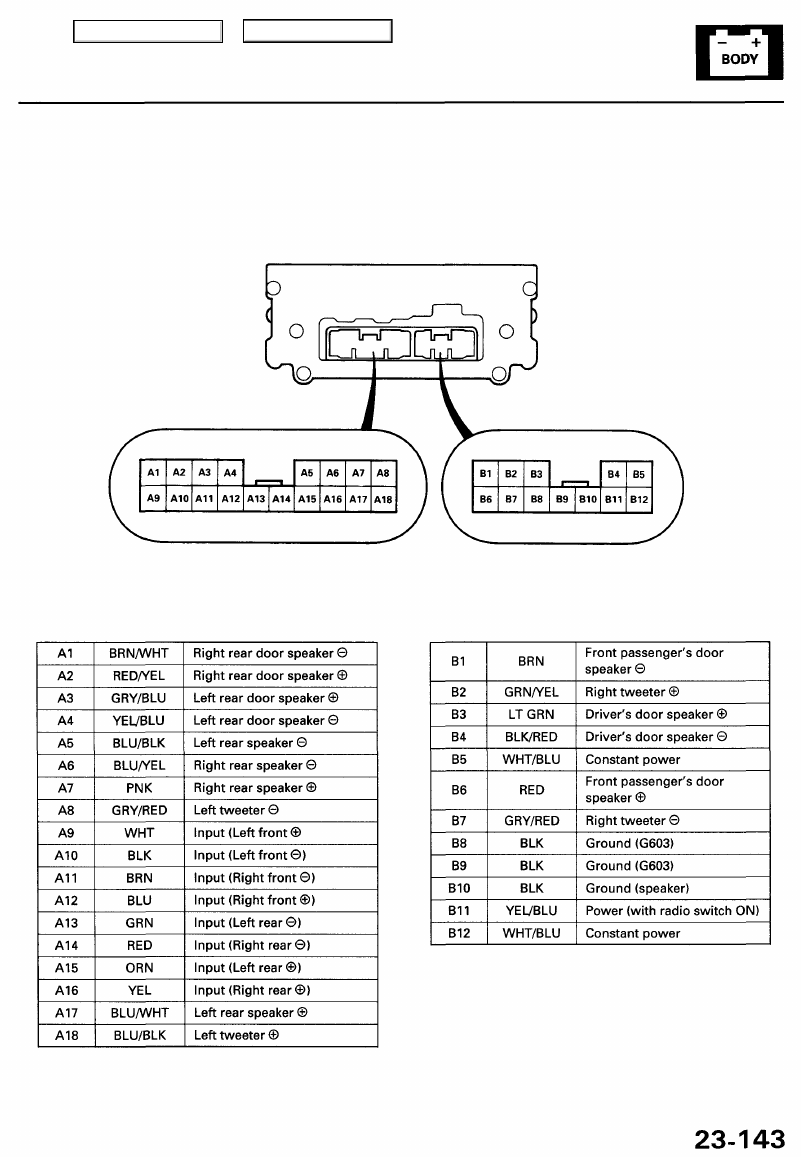

Stereo Amplifier Terminals (With Bose Sound System)

Cavity Wire Connects to

Main Menu

Table of Contents

Stereo Sound System

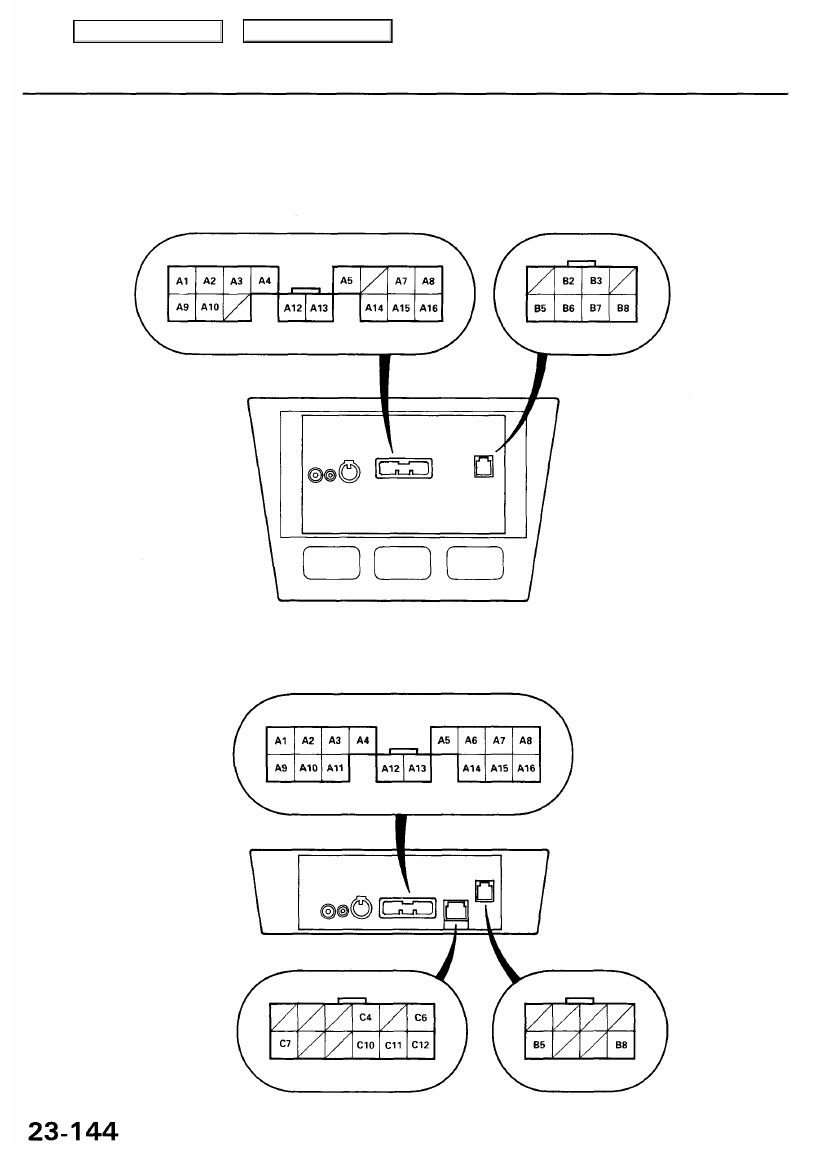

Audio Unit Terminals

'96 - 98 models - Standard Sound System:
'99 - 01 models - Bose Sound System (without navigation system):

'96 - 98 models - Bose Sound System:
'99 - 01 models - Bose Sound System (with navigation system):

Main Menu

Table of Contents

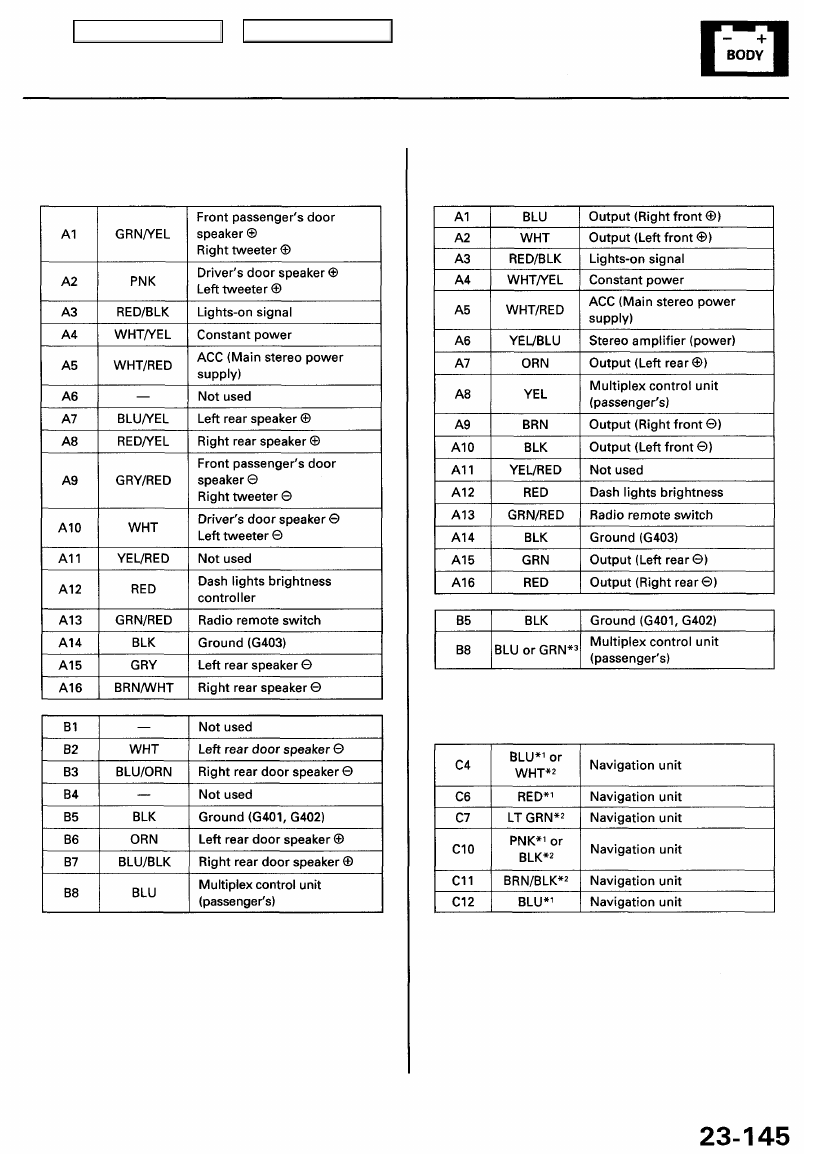

Terminal C1, C2, C3, C5, C8 and C9 are not used.

*1: '96 -99 models
*2: '00-01 models
*3: With navigation system

Bose Sound System:

Standard Sound System:

Cavity Wire Connects to

Terminals B1, B2, B3, B4, B6 and B7 are not used.

With Navigation System:

Main Menu

Table of Contents

Stereo Sound System

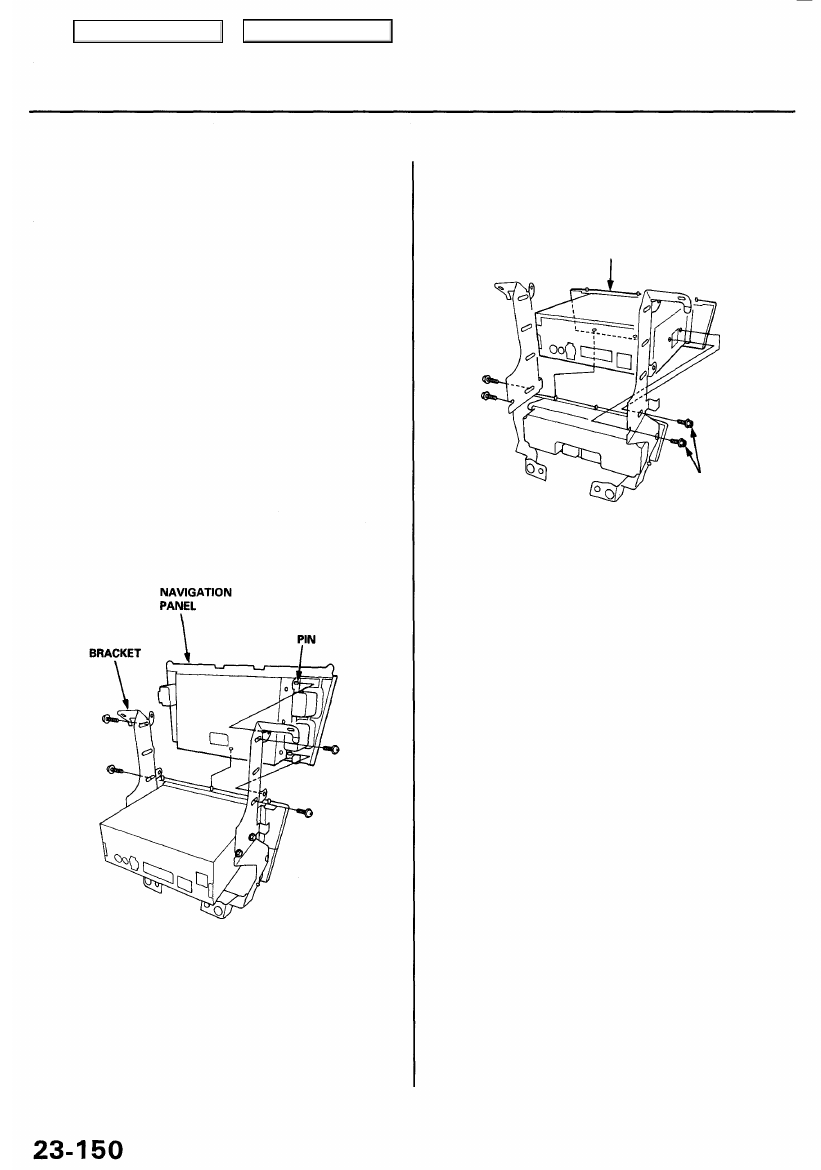

Audio Unit Removal

SRS components are located in this area. Review the
SRS component locations, precautions, and procedures

in the SRS (

) before performing repairs or

service.

With navigation system:

1. Make sure you have the anti-theft code for the radio

and the navigation system, then write down the fre-
quencies for the radio's preset buttons.

2. Remove the navigation panel and audio panel

assembly (see

3. Remove the four mounting screws, then remove the

navigation monitor.

4. Loosen the audio unit mounting screws.

5. Remove the pins from the bracket, then remove the

navigation panel.

7. Install in the reverse order of removal.

8. After installing the audio unit, enter the anti-theft

code for the radio and the navigation system, then
enter the customer's radio station presets.

6. Remove the four screws, then remove the audio unit.

AUDIO UNIT

SCREWS
