Acura CSX. Manual - part 589

＊０４

＊０５

−

From terminal

To terminals

YES

Navigation

unit connector

XM receiver

connector

Wire color

YES

23-73

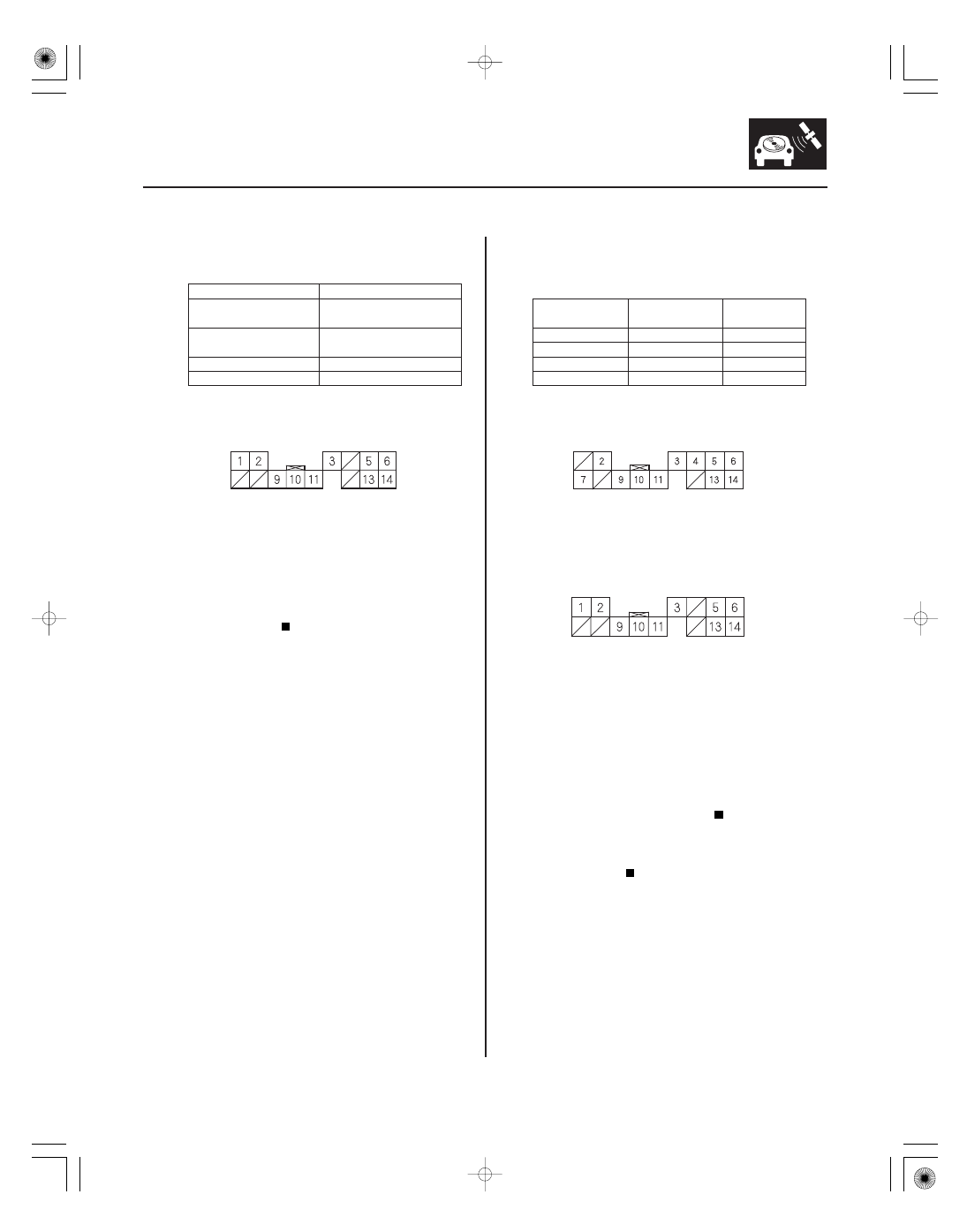

XM RECEIVER CONNECTOR A (14P)

NAVIGATION UNIT CONNECTOR E (14P)

7. Check for continuity between terminals of XM

receiver connector A (14P) according to the table.

A4 (GRY)

A5 (WHT), A6 (RED),
A13 (BLK), A14 (GRN)

A5 (WHT)

A6 (RED), A13 (BLK),
A14 (GRN)

A6 (RED)

A13 (BLK), A14 (GRN)

A13 (BLK)

A14 (GRN)

Short in the wires between the navigation

unit and the XM receiver. Replace the affected
shielded harness.

Go to step 8.

8. Check for continuity between navigation unit

connector E (14P) and XM receiver connector A
(14P) according to the table.

WHT

RED

E13

A13

BLK

E14

A14

GRN

Substitute a known-good XM receiver

(see page 23-82), then reconnect all of the
connectors, and recheck. If the symptom/indication
goes away, replace the original XM receiver. If the
symptom/indication is still present, replace the
navigation unit (see page 23-155).

Open in the wire(s) between the navigation

unit and the XM receiver. Replace the affected
shielded harness.

Wire side of female terminals

Is ther e continuity between any of the ter minals?

Is ther e continuity?

08/08/21 14:05:34 61SNR030_230_0076

ＳＮＲ９Ａ０ＫＪ１０３００００００００ＦＥＡＴ０１

ＳＮＲ９Ａ０ＫＪ１０３００００００００ＦＥＡＴ０２

Special Tools Required

Left/Right Channel ID

Phase Test

23-74

Audio System

Sound Quality Diagnosis

Diagnostics CD 07AAZ-SDBA100

Use the following tests to check sound quality.

NOTE: Before beginning the following tests, write down
the client’s bass, treble, fader and balance settings, and
then set them to their center positions for testing.

Do this test to confirm proper channel routing.

1. Insert the diagnostics CD (T/N: 07AAZ-SDBA100)

into the navigation unit or audio unit.

2. Play track No. 1 (left, both, right channel ID) at a

normal, or slightly higher than normal, volume
level.

3. The voice should be audible only from the channel

or channels when indicated.

• If the channel ID is correct for each side, go to the

phase test.

• If the channel ID is not correct, check for;

– Shorted speaker wire
– Faulty amplifier (Type S model)
– Faulty navigation unit
– Faulty audio unit

Diagnostics CD 07AAZ-SDBA100

Do this test to confirm proper speaker phasing.

1. Insert the diagnostics CD (T/N: 07AAZ-SDBA100)

into the navigation unit or audio unit.

2. Play track No. 2 (phase) at a normal, or slightly

higher than normal, volume level.

3. The voice should sound centered and focused

when it is in-phase.

4. The voice should sound diffused, and have less

bass when it is out of phase.

• If the voice changes from in-phase to out of

phase as indicated by the prompt, the phasing is
correct. Go to electrical noise test.

• If the voice always sounds out of phase, phasing

is not correct. Check for;
– Crossed speaker wires
– Faulty amplifier (Type S model)
– Faulty navigation unit
– Faulty audio unit

08/08/21 14:05:34 61SNR030_230_0077

ＳＮＲ９Ａ０ＫＪ１０３００００００００ＦＥＡＴ００

Special Tools Required

Electrical Noise Test

23-75

Diagnostics CD 07AAZ-SDBA100

Do this test to check for electrical noise being induced
into the audio system.

NOTE: Electrical noise may be caused by outside
sources that cannot be handled by the audio system.
Make sure you remove any cell phones and/or turn off
any aftermarket device before beginning this test.

1. Insert the diagnostics CD (T/N: 07AAZ-SDBA100)

into the navigation unit or audio unit.

2. Play track No. 4 (digital zero) at a normal, or slightly

higher than normal, volume level.

3. Operate any electrical device that may create

electrical noise in the audio system, including
starting the engine.

4. Play track No. 5 (near digital zero) at a normal, or

slightly higher than normal, volume level.

5. Operate any electrical device that may create

electrical noise in the audio system, including
starting the engine.

6. Play track No. 6 (SNR) at a normal, or slightly

higher than normal, volume level.

7. Operate any electrical device that may create

electrical noise in the audio system, including
starting the engine.

• If no abnormal noise is heard, go to individual

speaker test.

• If the noise is present only during the SNR track,

replace the navigation unit or audio unit.

• If the noise is heard during the digital zero or

near digital zero track, check for;
– Poor ground for the audio unit, amplifier,

engine or battery cable

– Pinched or shorted speaker or amplifier wire
– Faulty amplifier (Type S model)
– Faulty navigation unit
– Faulty audio unit
– Other faulty components causing excessive

electrical noise (ignition coils, alternator, door
lock actuators, etc.). Disconnect any suspect
components, and then replay the tracks that
were originally noisy. If the noise is gone,
check the component’s circuit and the
component.

08/08/21 14:05:34 61SNR030_230_0078

ＳＮＲ９Ａ０ＫＪ１０３００００００００ＦＥＡＴ１１

ＳＮＲ９Ａ０ＫＪ１０３００００００００ＦＥＡＴ６３

Special Tools Required

Individual Speaker Test

Sound Balance Test

23-76

Audio System

Diagnostics CD 07AAZ-SDBA100

Do this test to identify a faulty speaker.

1. Insert the diagnostics CD (T/N: 07AAZ-SDBA100)

into the navigation unit or audio unit.

2. Play track No. 30 (steady 300 Hz tone) at a normal,

or slightly higher than normal, volume level.

3. Listen to each speaker for poor sound compared to

the other speakers. Use the audio unit’s fader and
balance settings to help isolate the channel with the
problem.

• If the sound quality produced by a specific

speaker is poor, substitute it with a known-good
speaker. If the poor sound quality continues, go
to the sound balance test.

• If the sound quality is OK, go to the sound

balance test.

Diagnostics CD 07AAZ-SDBA100

Perform this test to identify a faulty channel or speaker.

1. Insert the diagnostics CD (T/N: 07AAZ-SDBA100)

into the navigation unit or audio unit.

2. Confirm the bass and treble are set to the center

positions.

3. Play track No. 3 (pink noise) at a normal, or slightly

higher then normal, volume level.

4. A static type sound should be heard through all

speakers.

5. Insert the diagnostics CD (T/N: 07AAZ-SDBA100)

into the navigation unit or audio unit of a known-
good vehicle.

6. Set the bass and treble to the center position.

7. Play track No. 3 (pink noise) all the same level as

was played in step 3.

8. Compare the sounds made by the two vehicles.

• If the noise sounds made by the two vehicles are

very similar, go to the Frequency Sweep Test
(see page 23-77).

• If the sound does not have as much bass, check

the subwoofer and circuit.

• If the sound does not have enough hiss, check

the tweeters and their circuits.

08/08/21 14:05:34 61SNR030_230_0079
