０１

ＳＮＲ９ＡＡ７Ｋ７２１０００９２１２７ＦＡＡＴ３０

−

YES

DTC P2127:

11-257

APP SENSOR 6P CONNECTOR

SG5 (LT BLU)

VCC5 (GRY)

12. Turn the ignition switch to LOCK (0).

13. Replace the accelerator pedal module; K20Z2

engine (see page 11-269), K20Z3 engine (see page
11-270).

14. Reconnect all connectors.

15. Turn the ignition switch to ON (II).

16. Reset the ECM/PCM with the HDS.

17. Do the ECM/PCM idle learn procedure (see page

11-310).

18. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the APP sensor and the ECM/PCM,
then go to step 1.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

19. Reconnect all connectors.

20. Update the ECM/PCM if it does not have the latest

software (see page 11-227), or substitute a known-
good ECM/PCM (see page 11-7).

21. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the APP sensor and the ECM/PCM. If
the ECM/PCM was updated, substitute a known-
good ECM/PCM (see page 11-7), then recheck. If the
ECM/PCM was substituted, go to step 1.

If the ECM/PCM was updated, troubleshooting

is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see page 11-228). If
any other Temporary DTCs or DTCs are indicated,
go to the indicated DTC’s troubleshooting.

NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

1. Turn the ignition switch to ON (II).

2. Check APP SENSOR B in the DATA LIST with the

HDS.

Go to step 3.

Intermittent failure, the system is OK at this

time. Check for poor connections or loose terminals
at the APP sensor and the ECM/PCM.

3. Turn the ignition switch to LOCK (0).

4. Disconnect the APP sensor 6P connector.

5. Turn the ignition switch to ON (II).

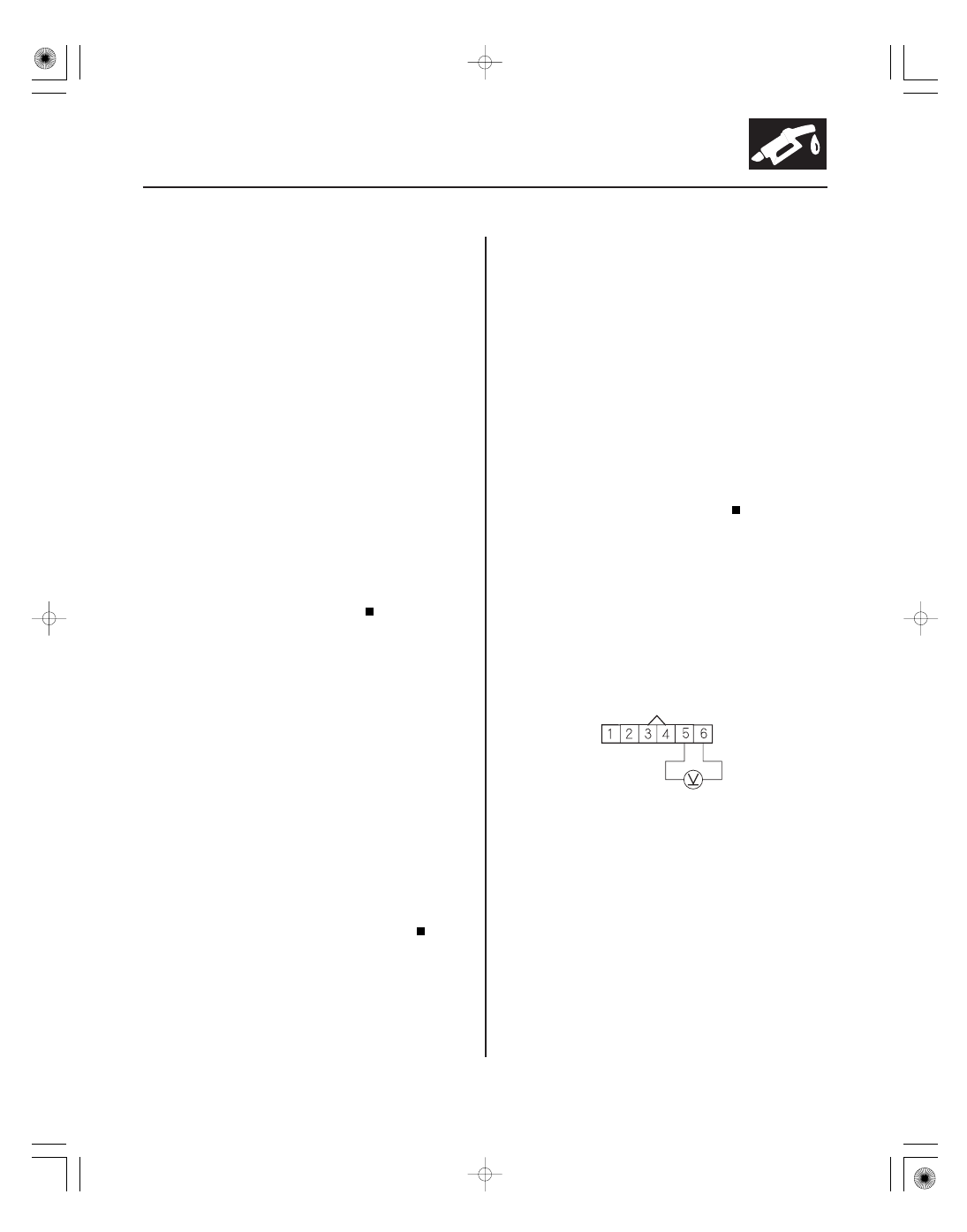

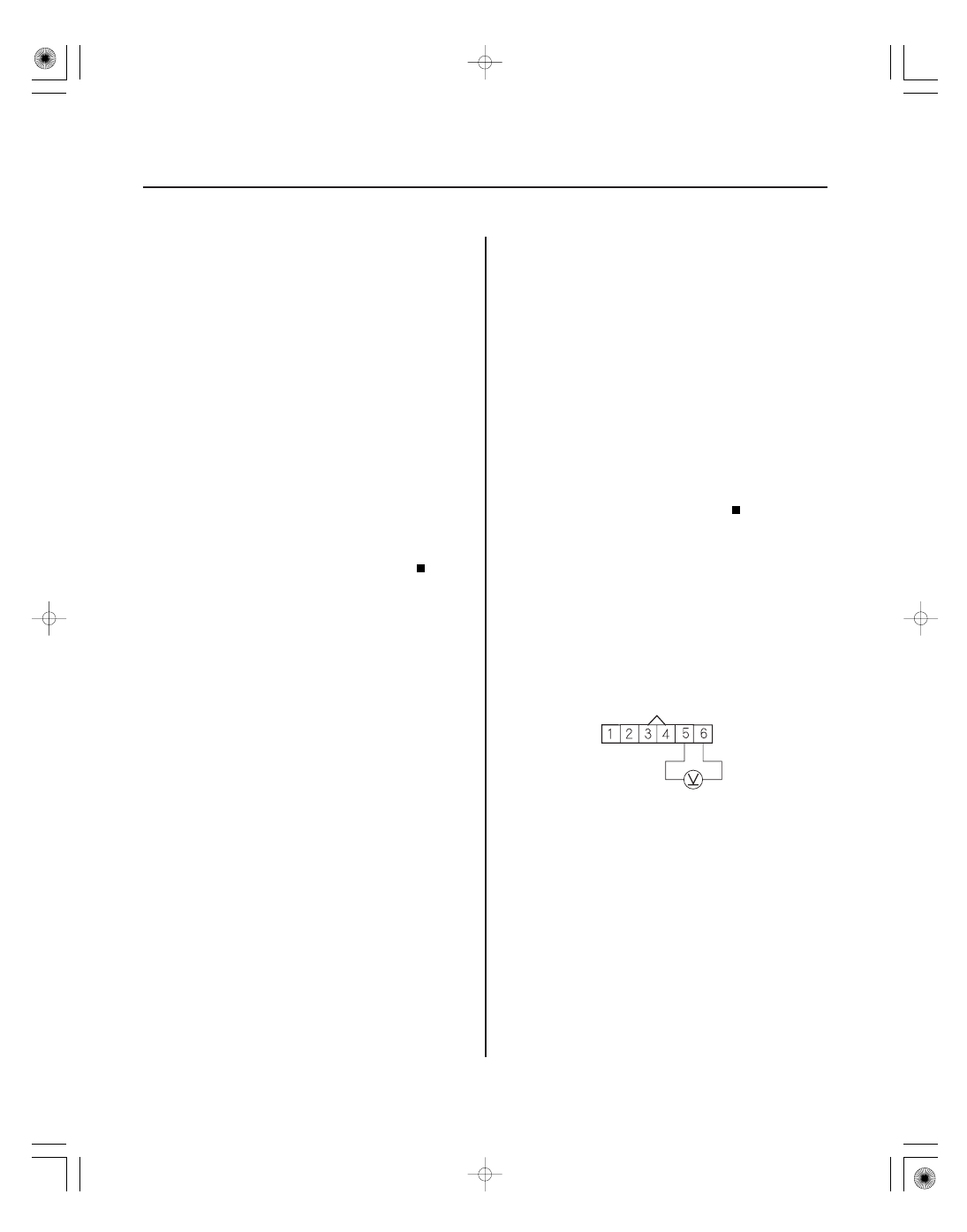

6. Measure the voltage between APP sensor 6P

connector terminals No. 5 and No. 6.

Go to step 7.

Go to step 17.

APP Sensor B (TP Sensor E)

Circuit Low Voltage

Wire side of female terminals

Is DT C P2123 indicated?

Is ther e about 0.2 V or less?

Is ther e about 5 V ?

08/08/21 14:26:47 61SNR030_110_0257

０２

０３

０４

０５

−

YES

11-258

Electronic Throttle Control System

APP SENSOR 6P CONNECTOR

APSB (PUR)

APP SENSOR 6P CONNECTOR

APSB (PUR)

JUMPER WIRE

ECM/PCM CONNECTOR A (44P)

APSB (PUR)

APP SENSOR 6P CONNECTOR

VCC5 (GRY)

JUMPER WIRE

APSB (PUR)

7. Turn the ignition switch to LOCK (0).

8. Jump the SCS line with the HDS.

9. Disconnect ECM/PCM connector A (44P).

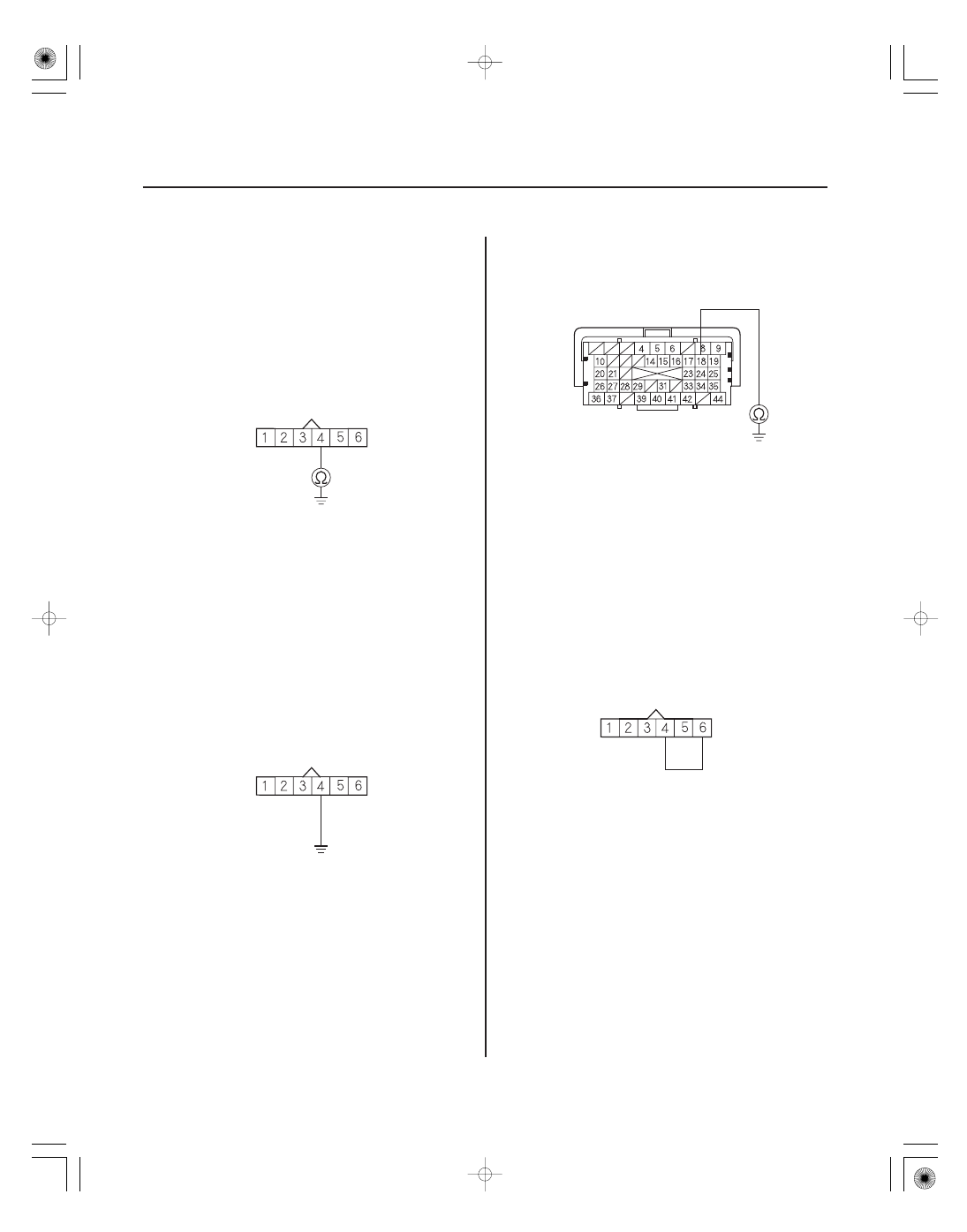

10. Check for continuity between APP sensor 6P

connector terminal No. 4 and body ground.

Repair short in the wire between the ECM/

PCM (A18) and the APP sensor, then go to step 24.

Go to step 11.

11. Connect APP sensor 6P connector terminal No. 4 to

body ground with a jumper wire.

12. Check for continuity between ECM/PCM connector

terminal A18 and body ground.

Go to step 13.

Repair open in the wire between the ECM/

PCM (A18) and the APP sensor, then go to step 24.

13. Reconnect ECM/PCM connector A (44P).

14. Connect APP sensor 6P connector terminals No. 4

and No. 6 with a jumper wire.

Wire side of female terminals

Terminal side of female terminals

Wire side of female terminals

Is ther e continuity?

08/08/21 14:26:48 61SNR030_110_0258

０６

０７

−

YES

11-259

APP SENSOR 6P CONNECTOR

VCC5 (GRY)

JUMPER WIRE

ECM/PCM CONNECTOR A (44P)

VCC5
(GRY)

15. Turn the ignition switch to ON (II).

16. Check APP SENSOR B in the DATA LIST with the

HDS.

Go to step 29.

Go to step 22.

17. Turn the ignition switch to LOCK (0).

18. Jump the SCS line with the HDS.

19. Disconnect ECM/PCM connector A (44P).

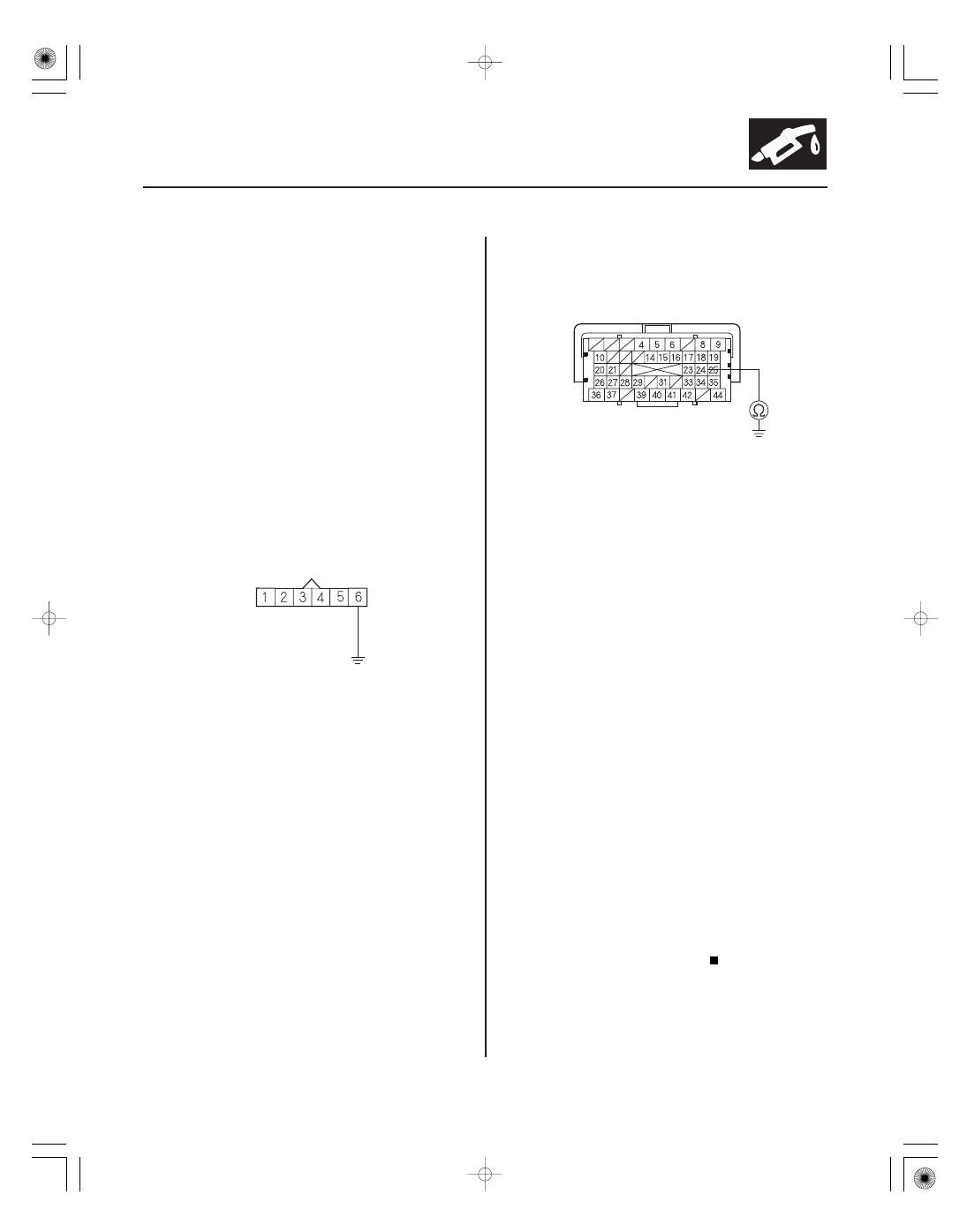

20. Connect APP sensor 6P connector terminal No. 6 to

body ground with a jumper wire.

21. Check for continuity between ECM/PCM connector

terminal A24 and body ground.

Go to step 30.

Repair open in the wire between the ECM/

PCM (A24) and the APP sensor, then go to step 24.

22. Turn the ignition switch to LOCK (0).

23. Replace the accelerator pedal module; K20Z2

engine (see page 11-269), K20Z3 engine (see page
11-270).

24. Reconnect all connectors.

25. Turn the ignition switch to ON (II).

26. Reset the ECM/PCM with the HDS.

27. Do the ECM/PCM idle learn procedure (see page

11-310).

28. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the APP sensor and the ECM/PCM,
then go to step 1.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

Wire side of female terminals

Terminal side of female terminals

Is ther e about 0.2 V or less?

Is ther e continuity?

Is DT C P2127 indicated?

08/08/21 14:26:48 61SNR030_110_0259

０１

ＳＮＲ９ＡＡ７Ｋ７２１０００９２１２８ＦＡＡＴ３０

−

YES

DTC P2128:

11-260

Electronic Throttle Control System

APP SENSOR 6P CONNECTOR

SG5 (LT BLU)

VCC5 (GRY)

29. Turn the ignition switch to LOCK (0).

30. Reconnect all connectors.

31. Update the ECM/PCM if it does not have the latest

software (see page 11-227), or substitute a known-
good ECM/PCM (see page 11-7).

32. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the APP sensor and the ECM/PCM. If
the ECM/PCM was updated, substitute a known-
good ECM/PCM (see page 11-7), then recheck. If the
ECM/PCM was substituted, go to step 1.

If the ECM/PCM was updated, troubleshooting

is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see page 11-228). If
any other Temporary DTCs or DTCs are indicated,
go to the indicated DTC’s troubleshooting.

NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

1. Turn the ignition switch to ON (II).

2. Check APP SENSOR B in the DATA LIST with the

HDS.

Go to step 3.

Intermittent failure, the system is OK at this

time. Check for poor connections or loose terminals
at the APP sensor and the ECM/PCM.

3. Turn the ignition switch to LOCK (0).

4. Disconnect the APP sensor 6P connector.

5. Turn the ignition switch to ON (II).

6. Measure the voltage between APP sensor 6P

connector terminals No. 5 and No. 6.

Go to step 12.

Go to step 7.

APP Sensor B (TP Sensor E)

Circuit High Voltage

Wire side of female terminals

Is DT C P2127 indicated?

Is ther e about 4.9 V or mor e?

Is ther e about 5 V ?

08/08/21 14:26:48 61SNR030_110_0260
