０１

０２

０３

ＳＮＲ９ＡＡ７Ｋ７２１０００９２１２２ＦＡＡＴ３０

−

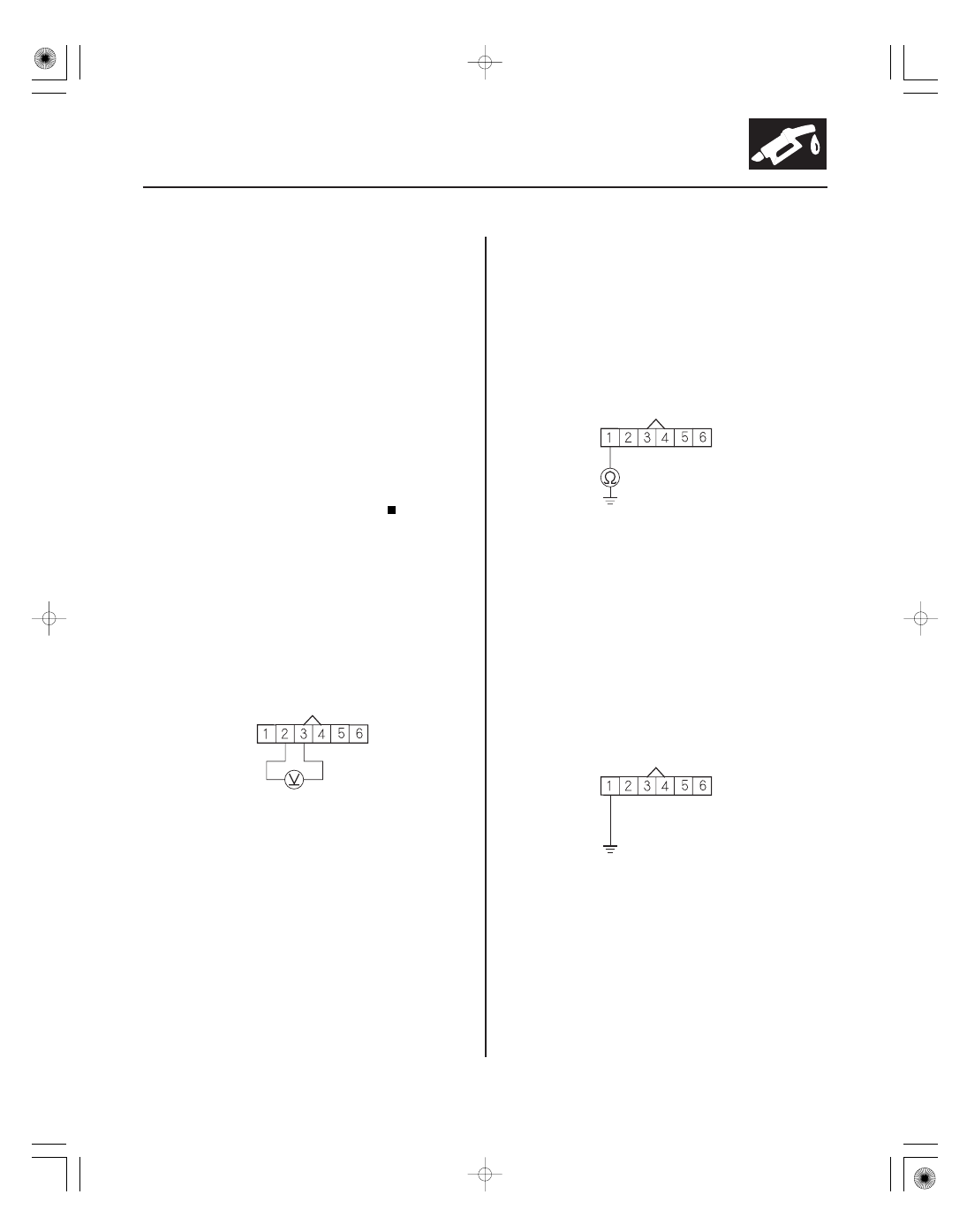

DTC P2122:

YES

11-253

APP SENSOR 6P CONNECTOR

SG4 (BLU)

VCC4 (BRN)

APP SENSOR 6P CONNECTOR

APSA (YEL)

APP SENSOR 6P CONNECTOR

APSA (YEL)

JUMPER WIRE

APP Sensor A (TP Sensor D)

Circuit Low Voltage

NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

1. Turn the ignition switch to ON (II).

2. Check APP SENSOR A in the DATA LIST with the

HDS.

Go to step 3.

Intermittent failure, the system is OK at this

time. Check for poor connections or loose terminals
at the APP sensor and the ECM/PCM.

3. Turn the ignition switch to LOCK (0).

4. Disconnect the APP sensor 6P connector.

5. Turn the ignition switch to ON (II).

6. Measure the voltage between APP sensor 6P

connector terminals No. 2 and No. 3.

Go to step 7.

Go to step 17.

7. Turn the ignition switch to LOCK (0).

8. Jump the SCS line with the HDS.

9. Disconnect ECM/PCM connector A (44P).

10. Check for continuity between APP sensor 6P

connector terminal No. 1 and body ground.

Repair short in the wire between the ECM/

PCM (A17) and the APP sensor, then go to step 24.

Go to step 11.

11. Connect APP sensor 6P connector terminal No. 1 to

body ground with a jumper wire.

Wire side of female terminals

Is ther e about 0.2 V or less?

Is ther e about 5 V ?

Is ther e continuity?

08/08/21 14:26:45 61SNR030_110_0253

０４

０５

０６

−

YES

11-254

Electronic Throttle Control System

ECM/PCM CONNECTOR A (44P)

APSA (YEL)

APP SENSOR 6P CONNECTOR

VCC4 (BRN)

JUMPER WIRE

APSA (YEL)

APP SENSOR 6P CONNECTOR

VCC4 (BRN)

JUMPER WIRE

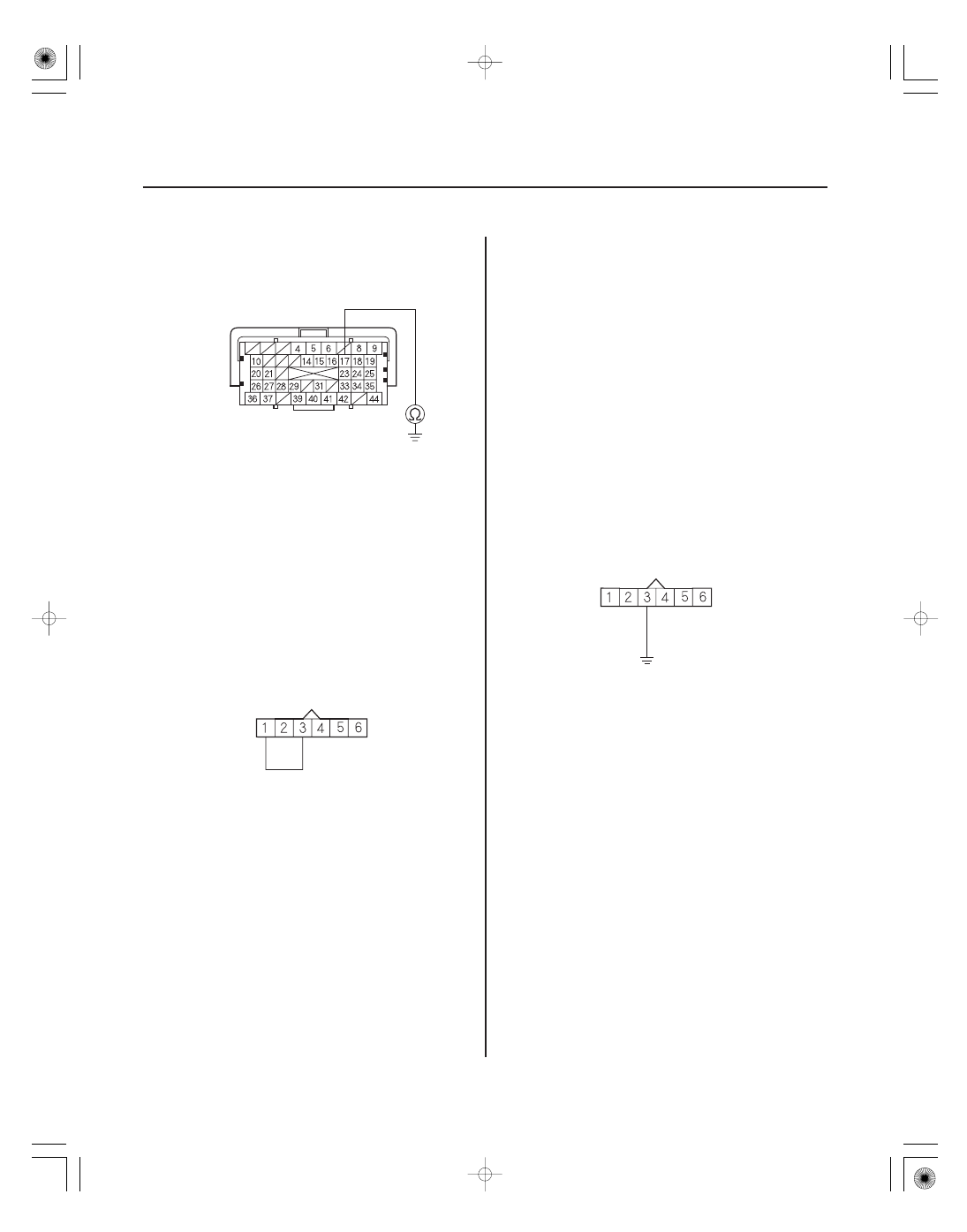

12. Check for continuity between ECM/PCM connector

terminal A17 and body ground.

Go to step 13.

Repair open in the wire between the ECM/

PCM (A17) and the APP sensor, then go to step 24.

13. Reconnect ECM/PCM connector A (44P).

14. Connect APP sensor 6P connector terminals No. 1

and No. 3 with a jumper wire.

15. Turn the ignition switch to ON (II).

16. Check APP SENSOR A in the DATA LIST with the

HDS.

Go to step 29.

Go to step 22.

17. Turn the ignition switch to LOCK (0).

18. Jump the SCS line with the HDS.

19. Disconnect ECM/PCM connector A (44P).

20. Connect APP sensor 6P connector terminal No. 3 to

body ground with a jumper wire.

Terminal side of female terminals

Wire side of female terminals

Is ther e continuity?

Is ther e about 0.2 V or less?

08/08/21 14:26:46 61SNR030_110_0254

０７

−

YES

11-255

ECM/PCM CONNECTOR A (44P)

VCC4
(BRN)

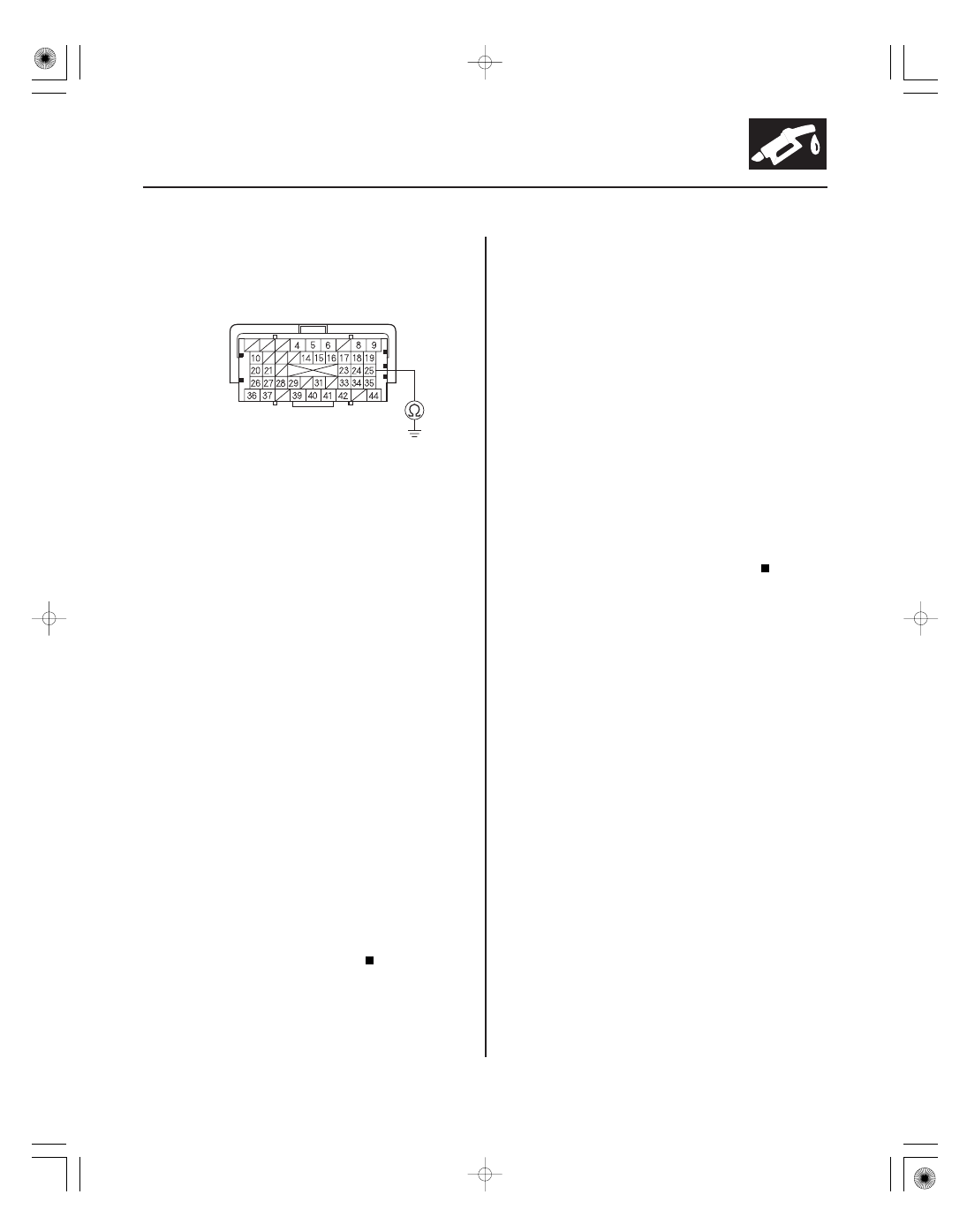

21. Check for continuity between ECM/PCM connector

terminal A25 and body ground.

Go to step 30.

Repair open in the wire between the ECM/

PCM (A25) and the APP sensor, then go to step 24.

22. Turn the ignition switch to LOCK (0).

23. Replace the accelerator pedal module; K20Z2

engine (see page 11-269), K20Z3 engine (see page
11-270).

24. Reconnect all connectors.

25. Turn the ignition switch to ON (II).

26. Reset the ECM/PCM with the HDS.

27. Do the ECM/PCM idle learn procedure (see page

11-310).

28. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the APP sensor and the ECM/PCM,
then go to step 1.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

29. Turn the ignition switch to LOCK (0).

30. Reconnect all connectors.

31. Update the ECM/PCM if it does not have the latest

software (see page 11-227), or substitute a known-
good ECM/PCM (see page 11-7).

32. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the APP sensor and the ECM/PCM. If
the ECM/PCM was updated, substitute a known-
good ECM/PCM (see page 11-7), then recheck. If the
ECM/PCM was substituted, go to step 1.

If the ECM/PCM was updated, troubleshooting

is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see page 11-228). If
any other Temporary DTCs or DTCs are indicated,
go to the indicated DTC’s troubleshooting.

Terminal side of female terminals

Is ther e continuity?

Is DT C P2122 indicated?

08/08/21 14:26:46 61SNR030_110_0255

０１

０２

０３

ＳＮＲ９ＡＡ７Ｋ７２１０００９２１２３ＦＡＡＴ３０

−

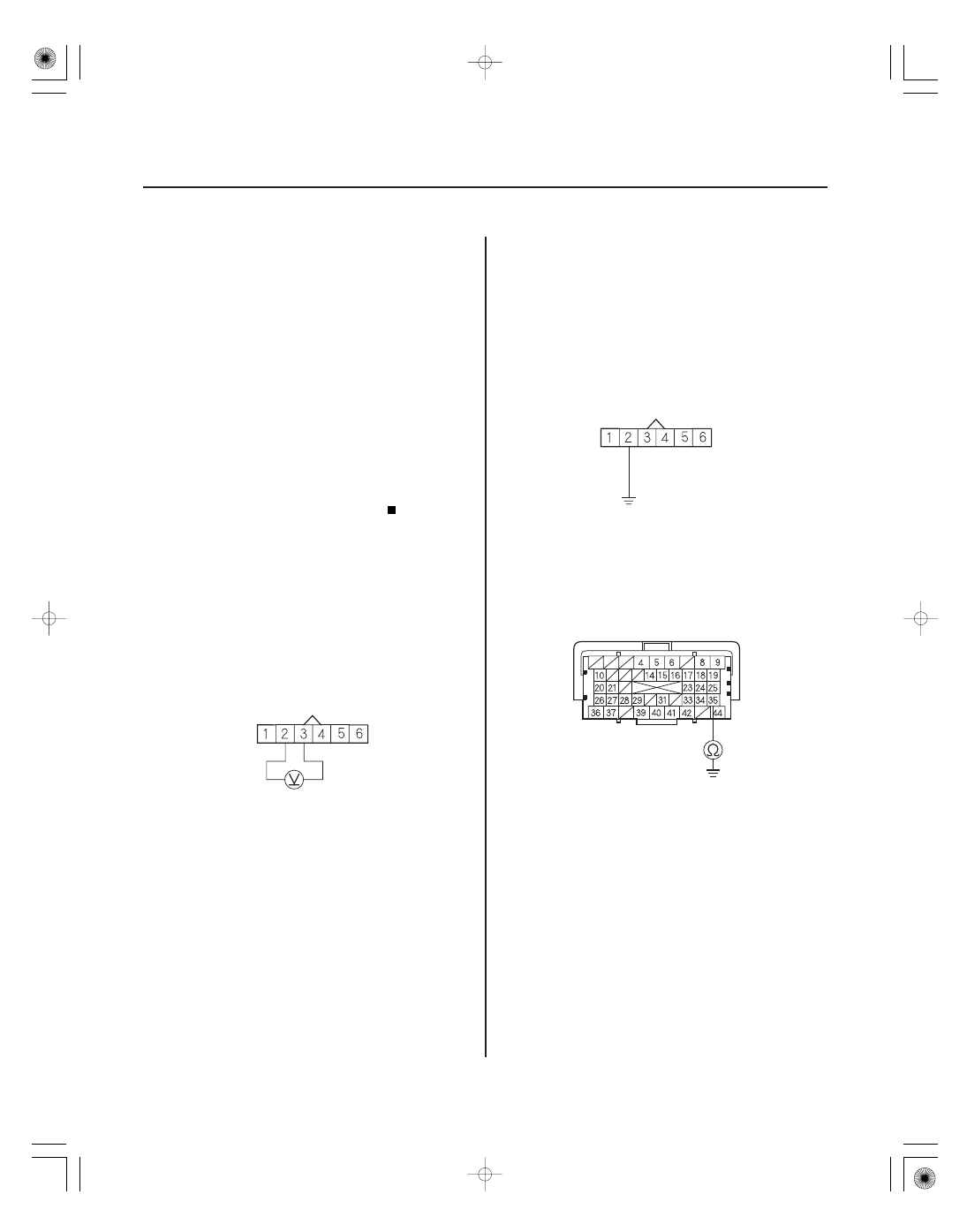

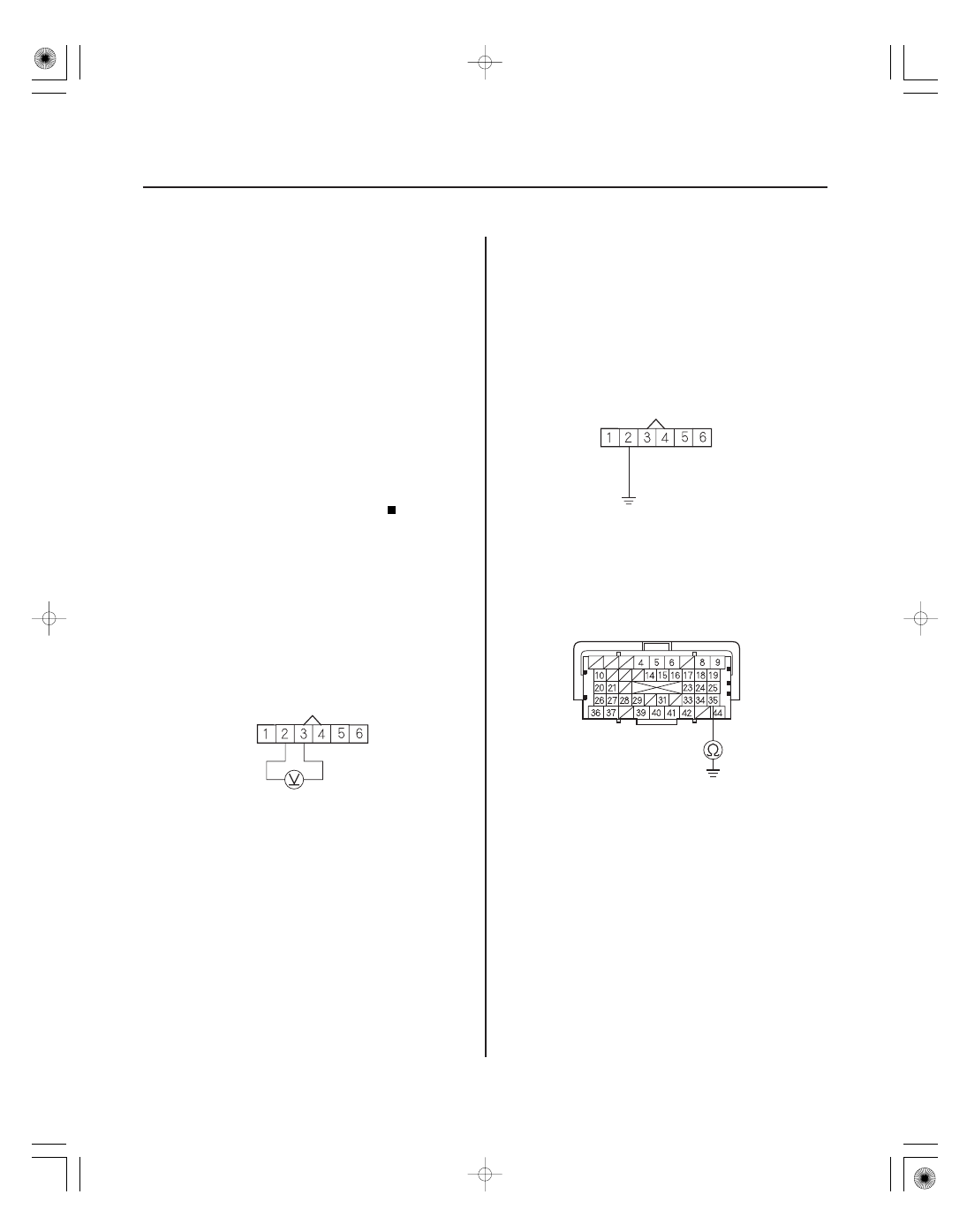

DTC P2123:

YES

11-256

Electronic Throttle Control System

APP SENSOR 6P CONNECTOR

SG4 (BLU)

VCC4 (BRN)

APP SENSOR 6P CONNECTOR

SG4 (BLU)

JUMPER WIRE

ECM/PCM CONNECTOR A (44P)

SG4 (BLU)

APP Sensor A (TP Sensor D)

Circuit High Voltage

NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

1. Turn the ignition switch to ON (II).

2. Check APP SENSOR A in the DATA LIST with the

HDS.

Go to step 3.

Intermittent failure, the system is OK at this

time. Check for poor connections or loose terminals
at the APP sensor and the ECM/PCM.

3. Turn the ignition switch to LOCK (0).

4. Disconnect the APP sensor 6P connector.

5. Turn the ignition switch to ON (II).

6. Measure the voltage between APP sensor 6P

connector terminals No. 2 and No. 3.

Go to step 12.

Go to step 7.

7. Turn the ignition switch to LOCK (0).

8. Jump the SCS line with the HDS.

9. Disconnect ECM/PCM connector A (44P).

10. Connect APP sensor 6P connector terminal No. 2 to

body ground with a jumper wire.

11. Check for continuity between ECM/PCM connector

terminal A35 and body ground.

Go to step 19.

Repair open in the wire between the ECM/

PCM (A35) and the APP sensor, then go to step 14.

Wire side of female terminals

Terminal side of female terminals

Is ther e about 4.9 V or mor e?

Is ther e about 5 V ?

Is ther e continuity?

08/08/21 14:26:46 61SNR030_110_0256
