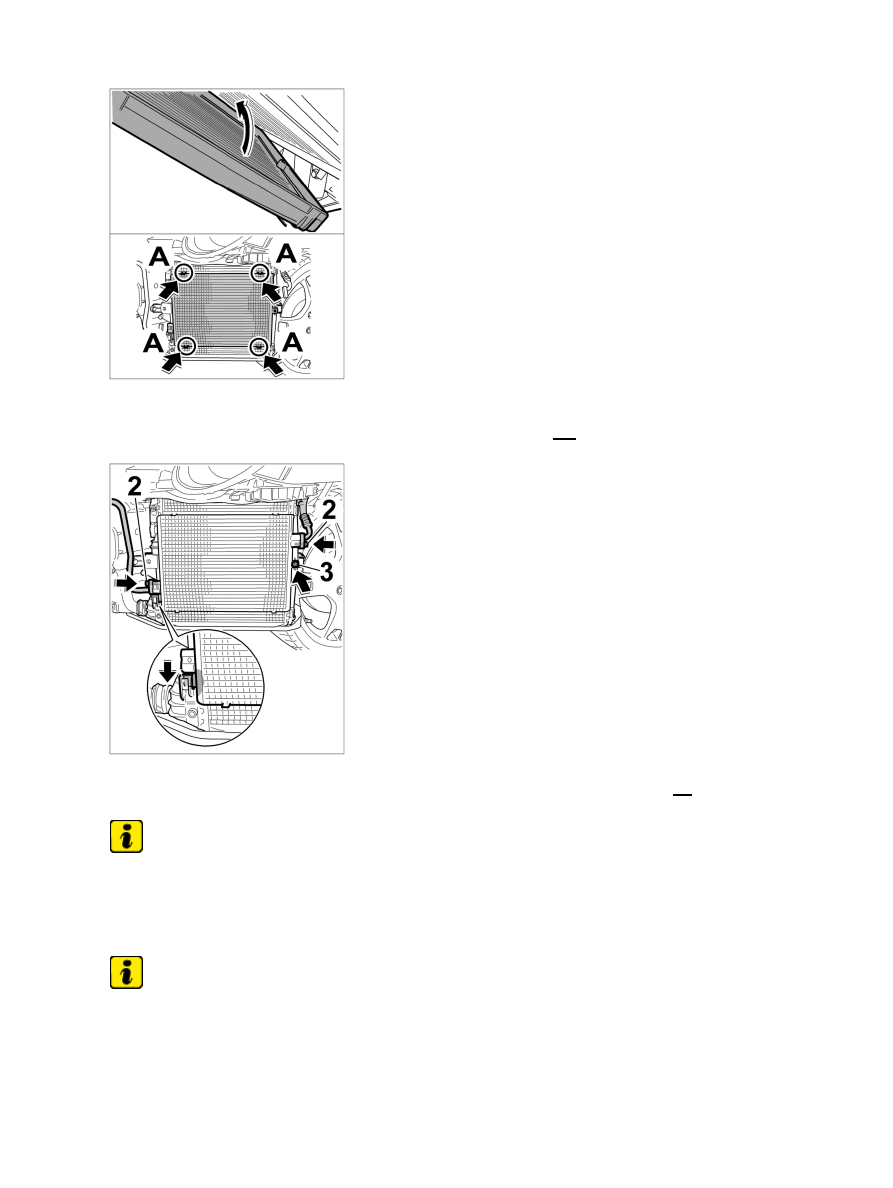

Clipping in condenser 1. Insert condenser into the retaining bracket and clip it into place -A- . Refrigerant lines on condenser 2. Engage the condenser on the radiator bracket and secure with the fastening screw -3- . → tightening torque: 4 (3) Nm (ftlb.) Note When loosening or tightening the M8 refrigerant lines on the condenser, always counter with a • Note Before re-installing the component, check the O-rings of the refrigerant lines for damage and replaced them if Diagnostic system: reading out fault memory and activating systems Installing the condenser 3621 |
