Porshe 911 (997). Manual - part 864

- Preliminary work
- Removing the condenser-fluid tank line
- Installing the condenser-fluid tank line
- Subsequent work

Preliminary work

Preliminary work line condenser-fluid tank

Draining refrigerant. → 870317 Draining and filling in refrigerant - chapter on "draining"
Removing cowl panel cover. → 508719 Removing and installing cowl panel cover - chapter on "removing"
Removing the battery. → 270619 Removing and installing battery - chapter on "Removing"

Removing the condenser-fluid tank line

Note

Before re-installing the component, check the O-rings of the refrigerant lines for damage and replaced them if
necessary.
Wet the O-rings of the refrigerant lines with refrigerant oil.
Do not open the plugs for the lines and connections until shortly before installation.
Close off all lines and connections using suitable plugs during removal.

Installation Location:

3613

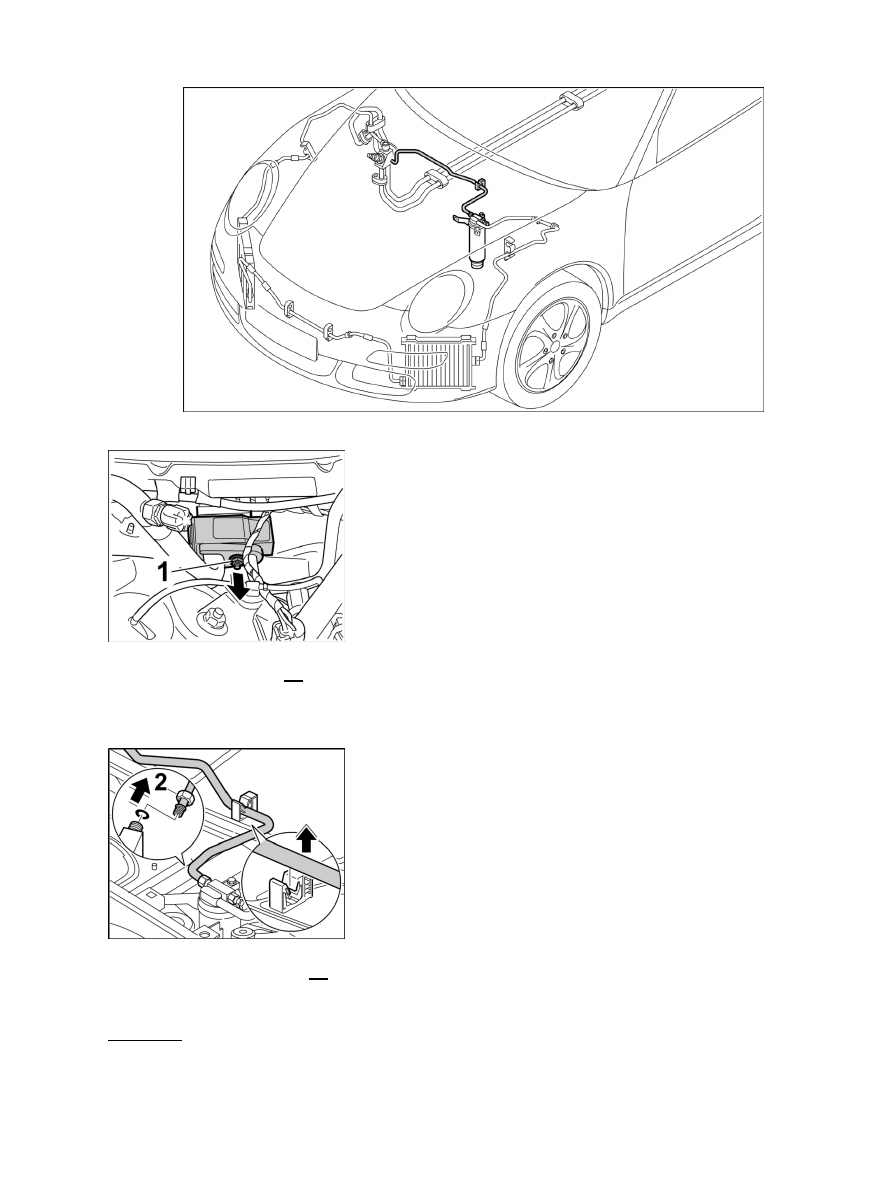

Installation location line condenser-fluid tank

Unscrewing fastening nuts

1. Unscrew fastening nut -1- .

2. Remove the holder for the two refrigerant lines and pull the refrigerant line condenser-fluid tank

out of the expansion valve.

Taking out refrigerant line

3. Unscrew the fastening nut -2- for the refrigerant line condenser-fluid tank in front of the fluid tank, detach

the line from the holder and pull out from under the water hoses for the heat exchanger.

Diagnostic system: reading out fault memory and activating systems

Removing the condenser-fluid tank line

3614

Installing the condenser-fluid tank line

Note

Fastening nut on line fluid tank

1. Lay the refrigerant line under the heat exchanger hoses and screw down on line to fluid tank -2-

with fastening nut. → Tightening torque: 20 (15 ftlb.) Nm

2. Clip line into the holder.

Screwing in fastening nuts

3. Position holder for refrigerant lines and secure with the fastening nut -1- . → Tightening torque: 6 (4.5

ftlb.) Nm

Diagnostic system: reading out fault memory and activating systems

Installing the condenser-fluid tank line

3615

Subsequent work

Subsequent work line condenser-fluid tank

Installing battery. → 270619 Removing and installing battery - chapter on "Installing"
Filling in refrigerant. → 870317 Draining and filling in refrigerant
Installing cowl panel cover. → 508719 Removing and installing cowl panel cover - chapter on "Installing"
